chart with 3 axis Y

#1 Опубликовано: 06.05.2022 07:51:10

D D

0 сообщений из 8 понравились пользователям.

Группа: User

Is it possible to make such a chart with three Y axes on a single chart?

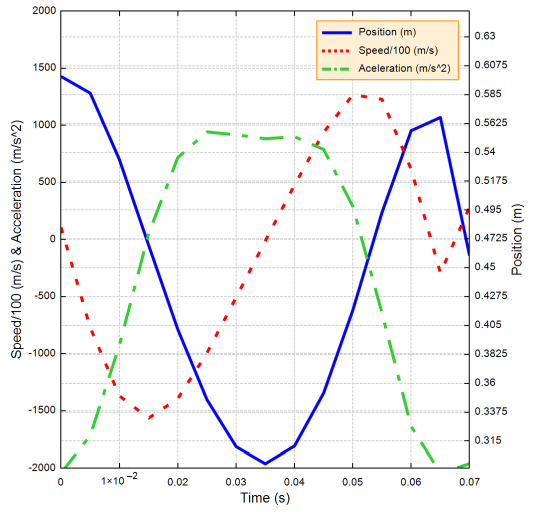

something like this
https://ibb.co/JcRn2B9

#2 Опубликовано: 06.05.2022 08:01:53

fedeghi

25 сообщений из 112 понравились пользователям.

Группа: User

In case you want to have more than one Y value axis, in"XY Plugin" you can set two different Y axis scales: some traces will refer to Y1, some to Y2
I think that there is not "out of the box" tool to have three or more Y axis.

#3 Опубликовано: 06.05.2022 08:19:07

overlord

551 сообщений из 1332 понравились пользователям.

Группа: Moderator

It is not possible to show three separate y-axis as fedeghi already told.
However, you can show three function on a single chart with sys().

Regards

#4 Опубликовано: 06.05.2022 10:41:27

Jean Giraud

983 сообщений из 6866 понравились пользователям.

Группа: User

Wrote
Is it possible to make such a chart with three Y axes on a single chart?

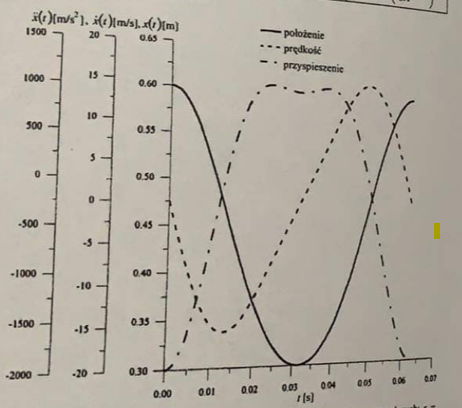

You can have as many as you want of fake style like the image.
Create Y's as image and slide close to the plot.
You can do lot more Professional ... associate each graph with Nodes Labels.
Cheers ... Jean.

#5 Опубликовано: 06.05.2022 11:05:05

Вячеслав Мезенцев

1402 сообщений из 1708 понравились пользователям.

Группа: Moderator

Wrote
Is it possible to make such a chart with three Y axes on a single chart?

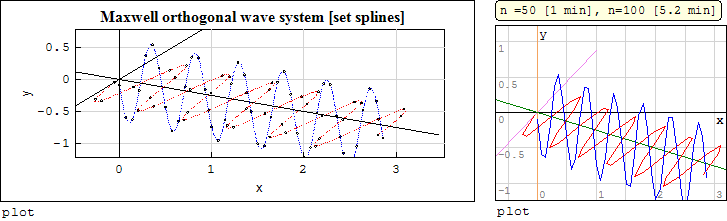

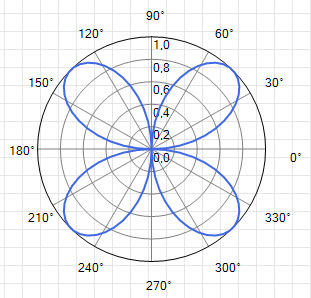

Using X-Y Plot Region, you can simulate your graph with any number of axes, but needs some programming like in this example.

XYPlot. Linear polar.sm (61 КиБ) скачан 30 раз(а).

Russia ☭ forever, Viacheslav N. Mezentsev

#6 Опубликовано: 06.05.2022 12:04:31

Alvaro Diaz Falconi

992 сообщений из 1674 понравились пользователям.

Группа: User

Hi. Also, you can do that in Plotly:

https://plotly.com/chart-studio-help/excel/three-y-axes/

and then put it into SMath, but I don't know how to use the plugin, or if it is available:

https://en.smath.com/forum/yaf_postst17372_Plotly.aspx

Best regards.
Alvaro.

#7 Опубликовано: 06.05.2022 12:19:50

Jean Giraud

983 сообщений из 6866 понравились пользователям.

Группа: User

... omitted details:
1. X_Y does not accept Nodes Labels.
2. X_Y splines nicely data set, QuickPlot NOT
3. Both X_Y, QuickPlot accept 3D isometric axes.

#8 Опубликовано: 06.05.2022 16:02:34

CBG

77 сообщений из 312 понравились пользователям.

Группа: User

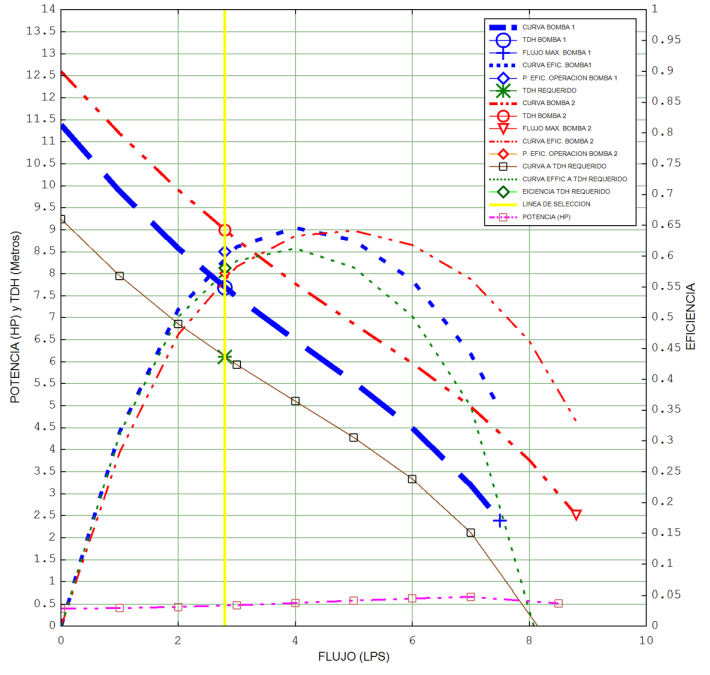

It is possible to use a graph with 2 Y-axes as shown in the image.

Best Regards

Carlos

#9 Опубликовано: 08.05.2022 17:37:38

Jean Giraud

983 сообщений из 6866 понравились пользователям.

Группа: User

Wrote
You can have as many as you want of fake style like the image.
Create Y's as image and slide close to the plot.
You can do lot more Professional ... associate each graph with Nodes Labels.

... as many as you want horizontal/vertical,
disposed inner wrt the Quick Plot
otherwise outside X_Y past build-in default 2.

Utilities XY Label Graph MORE.sm (35 КиБ) скачан 37 раз(а).
