Wrote

Hello Martin,
I had mistakenly understood that the problem is on the plot ' geometries '
It was working fine
now trying on "spannungen" plot, I have the same problem
I apologize
Sergio



That was not mistakenly. In fact I can reproduce the problem with my uploaded file on both plots. And I can confirm that Radovans version works fine here. Unless I hide the input area and save and re-open the file. Saving the file with visible input regions seems to be safe.

Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
1位用户喜欢此帖子
Radovan Omorjan 2013/5/26 07:51:00
#142 已发布: 2013/5/26 08:23:18
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Andrey said that will fix this in the next version.
Russia ☭ forever, Viacheslav N. Mezentsev
#143 已发布: 2013/5/26 09:11:13
Radovan Omorjan

Radovan Omorjan

325个赞和1个踩,共2,052个帖子。

组: Moderator

Wrote

Andrey said that will fix this in the next version.


I think there is nothing wrong if we forget and repeat the things . As I become older the frequency of my forgetting things is increasing

By the way, what about introducing some kind of "bugzilla" thing in order to keep tracking of bugs? I am not sure about it, and it seems that this Forum is still good enough for this.

Regards,
Radovan

When Sisyphus climbed to the top of a hill, they said: "Wrong boulder!"
1位用户喜欢此帖子
ioan92 2013/5/26 09:26:00
#144 已发布: 2013/5/26 09:23:32
Mike Kaganski

Mike Kaganski

184个赞,共434个帖子。

组: User

Just wanted to congratulate omorr with 100 thanks Note this number - it will surely soon be not so round!
С уважением, Михаил Каганский
1位用户喜欢此帖子
Radovan Omorjan 2013/5/26 10:56:00
#145 已发布: 2013/5/26 09:45:31
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

This issue related not only for X-Y Plot but for all regions which have placeholder. I would like to clarify that people are not confused.
Russia ☭ forever, Viacheslav N. Mezentsev
1位用户喜欢此帖子
Radovan Omorjan 2013/5/26 10:54:00
#146 已发布: 2013/6/1 01:25:43
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

XY Plot. Example 5.sm (9.32 KiB)已下载 1600 次。
Russia ☭ forever, Viacheslav N. Mezentsev
1位用户喜欢此帖子
Martin Kraska 2013/6/1 14:33:00
#147 已发布: 2013/6/1 02:37:43
Radovan Omorjan

Radovan Omorjan

325个赞和1个踩,共2,052个帖子。

组: Moderator

Wrote



Nice trick uni , thank you

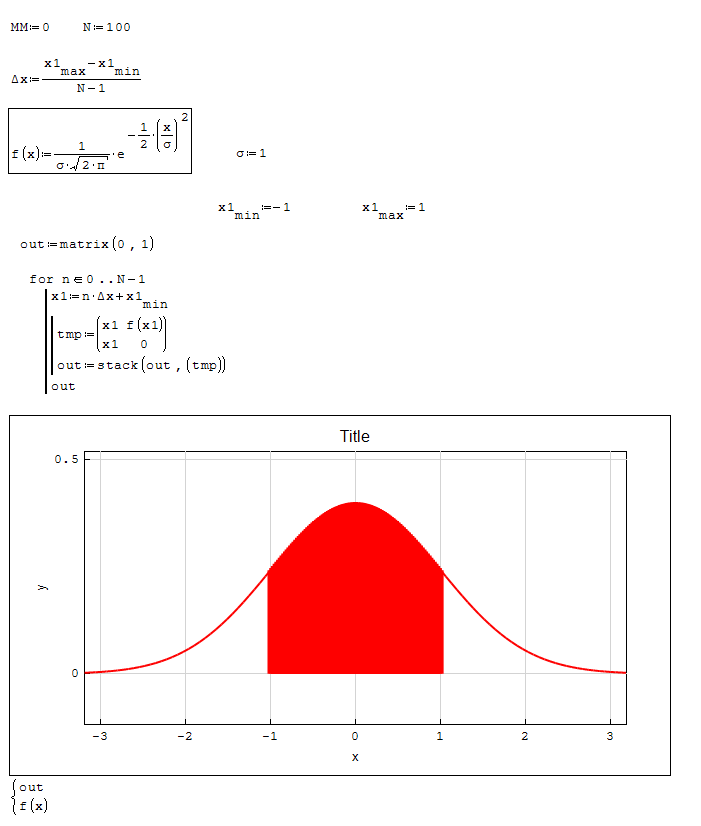

XY Plot-shaded.png

It could have been done with bar graphs as well. I think there is no this type of graph implemented yet, neither in X-Yplot nor ZedGraph.

Regards,
Radovan
When Sisyphus climbed to the top of a hill, they said: "Wrong boulder!"
1位用户喜欢此帖子
Davide Carpi 2013/6/1 05:26:00
#148 已发布: 2013/6/1 14:34:40
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

Slightly off-topic, as no xy-plot involved...

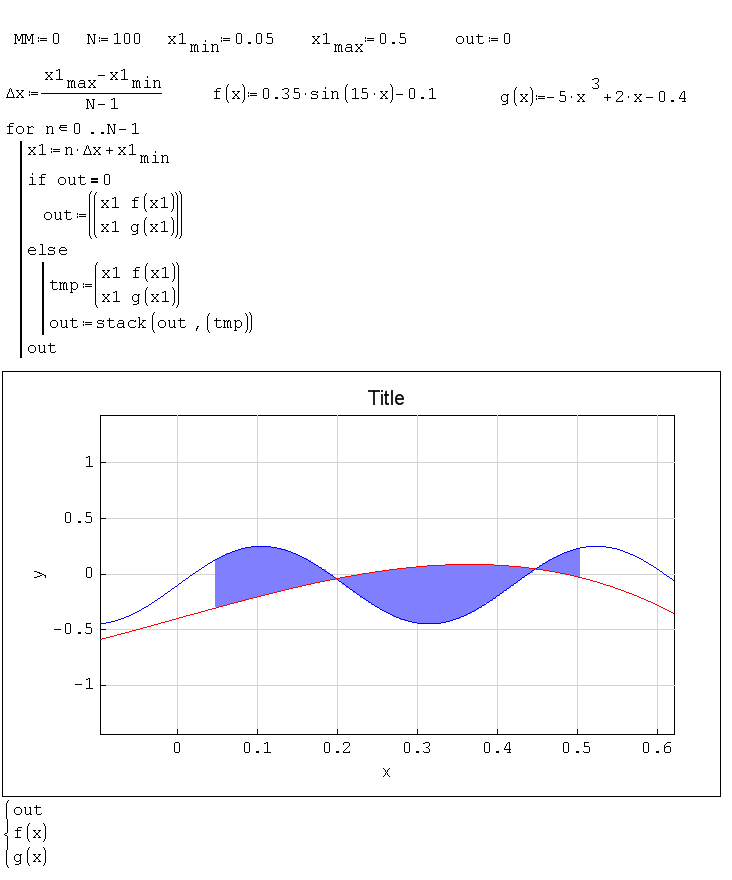

hatch.sm (12.53 KiB)已下载 1625 次。
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
3位用户喜欢此帖子
Fridel Selitsky 2013/6/1 19:23:00, ioan92 2013/6/1 15:28:00, Davide Carpi 2013/6/1 15:59:00
#149 已发布: 2013/6/1 16:02:40
Davide Carpi

Davide Carpi

1,443个赞,共2,936个帖子。

组: Moderator

Wrote

Slightly off-topic, as no xy-plot involved...



I think could be posted as a snippet, very nice stuff
If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects
1位用户喜欢此帖子
Fridel Selitsky 2013/9/21 02:54:00
#150 已发布: 2013/6/3 06:49:07
kilele

kilele

134个赞,共397个帖子。

组: User

@Uni

This .Net2.0 LGPL library could be useful for your plugin.
Johns Hope's FPlot
The download includes the program as well as the library.
It permorms plotting and fitting of measurement data and mathematical functions (Levenberg-Marquardt and Nelder & Mead fitting).
It has nice interactive features (zoom and trace) and an interesting user interface.
3位用户喜欢此帖子
Radovan Omorjan 2013/6/3 07:24:00, ioan92 2013/6/3 13:50:00, Вячеслав Мезенцев 2013/6/3 07:53:00
#151 已发布: 2013/6/7 18:27:58
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

Version 4906.20018 of XYPlot fails to install on my system (portable 4902). Error message says: plugin deactivated. Unable to load one or more of the requested types. Retrieve the LoaderExceptions property for more information.

How can I do that?
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
2位用户喜欢此帖子
ioan92 2013/6/8 01:38:00, Radovan Omorjan 2013/6/8 02:42:00
#152 已发布: 2013/6/12 10:09:41
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

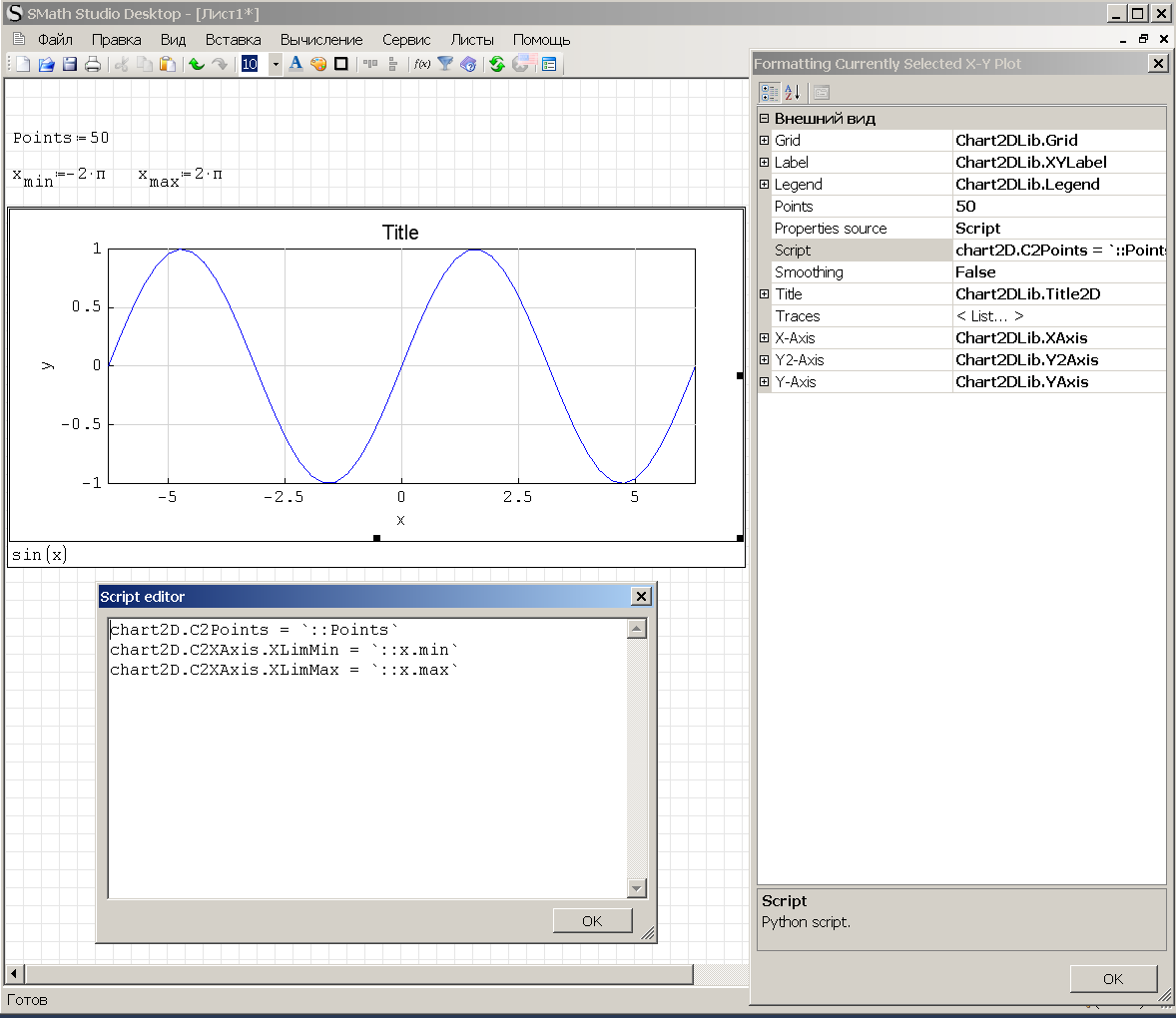

Updated. Added support for scripts (for testing).

chart2D.C2Points = `::Points`
chart2D.C2XAxis.XLimMin = `::x.min`
chart2D.C2XAxis.XLimMax = `::x.max`

Russia ☭ forever, Viacheslav N. Mezentsev
1位用户喜欢此帖子
IVR 2013/6/12 10:41:00
#153 已发布: 2013/6/14 21:48:55
kilele

kilele

134个赞,共397个帖子。

组: User

scripting in python!!
are you using pythonnet or ironpython or maybe py2exe ?
#154 已发布: 2013/6/15 07:02:26
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

I use Iron Python. But the use of SciPy or NumPy is still a difficult task.
Russia ☭ forever, Viacheslav N. Mezentsev
#155 已发布: 2013/6/15 07:47:23
kilele

kilele

134个赞,共397个帖子。

组: User

Nice! ironclad for NumPy might be of help though it is only for 32bit platforms for now.
http://new.scipy.org/faq.html#does-numpy-scipy-work-with-ironpython-net

I had thought about the possibility of Jython and then port jar to dll with IKVM but seems it was too utopical and simply does not work.
This brings me to the lushful idea about porting Jasymca with IKVM or following these Microsoft guidelines.
http://msdn.microsoft.com/en-us/library/c6t6bsdk%28VS.80%29.aspx
#156 已发布: 2013/7/21 06:32:02
philippe dalet

philippe dalet

18个赞,共34个帖子。

组: User

Hi

I'm trying to build your plugin XYPlotRegion with monodevelop 4.0 on ubuntu 13.04 and SMathStudio 0.96.4909


PluginRegion.cs:


public class PluginRegion : IPluginCustomRegion {

PluginRegion.cs(18,18): Error CS0535: `XYPlotPlugin.PluginRegion' does not implement interface member `SMath.Control.IPluginCustomRegion.TagName.get' (CS0535) (XYPlotRegion)


I have the same error with 3DPlotRegion plugin

Do you know this error ? I'm not a specialist of C#.

Philippe DALET

FRANCE
#157 已发布: 2013/7/21 08:51:31
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Hi, Philippe!

Yes, I know what the problem is. I think the sources are out of date. Unfortunately, I can't update it now. But you can solve this problem by adding few lines of code (use the latest dlls from SMath Studio: canvas.dll, ioman.dll, NuLib.dll and SyLib.dll).

namespace XYPlotPlugin {

public class PluginRegion : IPluginCustomRegion {

#region Private fields

string tagName = "xyplot";

AssemblyInfo[] dependences;
MenuButton[] menuButtons;
DragAndDropFileType[] dragAndDropFileTypes;

#endregion

#region Члены IPluginCustomRegion

public string TagName {

get { return tagName; }
}
Russia ☭ forever, Viacheslav N. Mezentsev
#158 已发布: 2013/7/22 18:45:17
philippe dalet

philippe dalet

18个赞,共34个帖子。

组: User

Thanks a lot.

That seems working on Ubuntu 12.04.

http://sourceforge.net/projects/pcpu/files/SmathStudio/smathstudio_0.96.4909_i386.deb/download

Philippe
#159 已发布: 2013/9/21 03:26:46
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

Wrote

Wrote

Slightly off-topic, as no xy-plot involved...


To reduce the computation time of function fil2 can change the first line of the program

hatch.sm (11.47 KiB)已下载 1576 次。
1位用户喜欢此帖子
Martin Kraska 2013/9/21 05:02:00
#160 已发布: 2013/9/21 05:04:05
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

Fridel, thanks for revisiting the snippet and the performance issue. Quite odd for me: The fastest way seems to be direct element adressing without pre-allocation and avoiding stack(). See attachment. The speed-up is significant.

Please post any response to the new dedicated topic

Snippet and examples are updated in the online gallery of the extension manager.
2DPlots with hatch and fill.sm (18.74 KiB)已下载 1596 次。
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
1位用户喜欢此帖子
Fridel Selitsky 2013/9/21 05:50:00
