X-Y Plot Region

X-Y Plot Region - Extends SMath Studio with a X-Y Plot Region. - 消息

#161 已发布: 2013/10/15 22:40:39
Ryan Freund

Ryan Freund

20个赞,共339个帖子。

组: User

Where is the latest download for this plug-in? I did not see it in the registered plugins file.

Thanks!
#162 已发布: 2013/10/16 03:44:23
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Russia ☭ forever, Viacheslav N. Mezentsev
#163 已发布: 2013/10/25 11:26:04
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

If one of the plot objects fails to be evaluated, then the settings in the traces dialog are lost. This is particularly annoying, if this is just because of a temporary error in computing any of the objects.
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
1位用户喜欢此帖子
#164 已发布: 2013/12/8 07:50:09
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

When duplicating a plot by ctrl-drag, then the trace labels (seriesname) in the legend disappear.
Griffith.sm (20.93 KiB)已下载 1606 次。
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
2位用户喜欢此帖子
Radovan Omorjan 2013/12/8 11:38:00, Вячеслав Мезенцев 2013/12/8 09:45:00
#165 已发布: 2013/12/23 07:43:52
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

The legend shows line patterns even if line visibility is set to false for the data series.
Workaround: Set the line color to transparent (see left plot).

Uni, I think that the X-Y Plot plugin is definitely worth further maintenance, as it currently provides the best trade between usability and flexibility. The Maxima plugin might provide similar capabilities some day (there are severe issues with list and matrix translations) but I do not expect the regular user to have Maxima installed or to learn the graphic objects and options.

Important improvements would be:
- log options for the axes
- format dialog similar to Mathcad (avoids clicking through the object tree).
- separate mouse scaling of x and y axes just like in the built-in plot region

VERGUET.txt (4.03 KiB)已下载 1396 次。
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
3位用户喜欢此帖子
Davide Carpi 2013/12/23 21:35:00, Вячеслав Мезенцев 2013/12/23 08:15:00, Radovan Omorjan 2013/12/23 09:14:00
#166 已发布: 2013/12/23 08:15:09
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

I agree. I don't have time for revision of the plugin. I'm afraid to make changes, because then they will need to support. I don't have a complete picture of how the final version should look like.
We still don't have an agreed version of code to save the plugin settings. In this regard, the new version of the plugin may be incompatible with old documents. The code that I use to save the settings I don't like. Need to alter it so that maintained upward compatibility. This problem hinders the development of the plugin.
Russia ☭ forever, Viacheslav N. Mezentsev
1位用户喜欢此帖子
Davide Carpi 2013/12/23 21:34:00
#167 已发布: 2014/2/7 08:40:44
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Updated.

EDIT: Try again. There were problems with redrawing.
EDIT2: Unfortunately, I can't now fully upgrade the plugin. I used the old sources for updates (I'm in another area). The current version of the plugin is not stable. Therefore, have to wait until I get back.
Russia ☭ forever, Viacheslav N. Mezentsev
3位用户喜欢此帖子
ioan92 2014/2/7 10:49:00, IVR 2014/2/7 15:58:00, Davide Carpi 2014/2/7 08:46:00
#168 已发布: 2014/2/21 04:41:16
zorrykid

zorrykid

5个赞,共18个帖子。

组: User

Hi Uni

thanks a lot for your wonderful Estensions for SMath.
This message is just to inform you that there is a litte problem to draw single point in X-Y Plot despite 2D Plot.
Looks like are allowed only array with 2 colums ( see below ) and to draw single point are needed more.

Best Regard

Franco

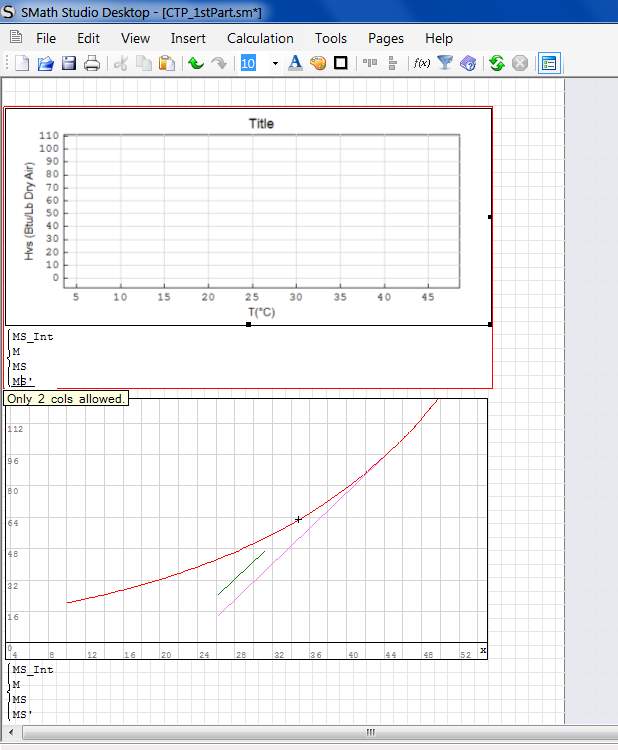

Untitled 1.jpg
1位用户喜欢此帖子
#169 已发布: 2014/2/21 08:22:39
zorrykid

zorrykid

5个赞,共18个帖子。

组: User

Sorry Uni,

I have checked better and have seen that with the X-Y Plot is possible to draw a single point not using the same method used for the Plot 2D Area.
So this need is addressed.

Best regards

Franco
1位用户喜欢此帖子
#170 已发布: 2014/2/24 09:10:48
zorrykid

zorrykid

5个赞,共18个帖子。

组: User

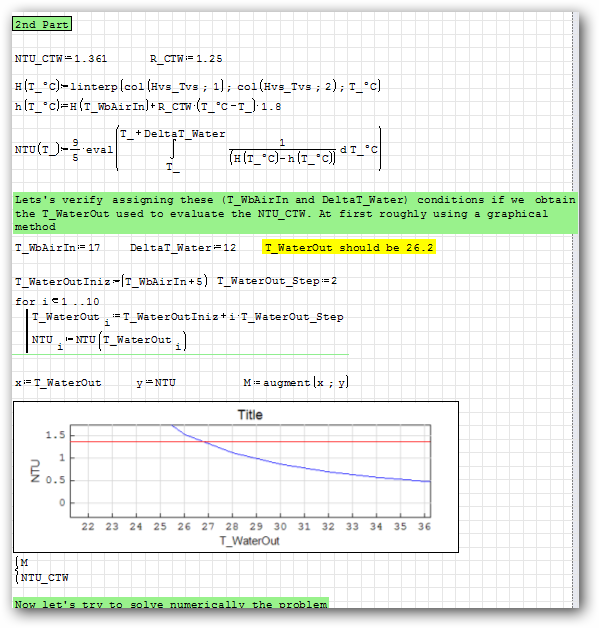

There is something strange in the X-Y Plot too..a file of mine that worked fine in the previous portable release doesn't work now if one of the curve is a costant ( an orizontal line ).
Very strange.

Best Regards

Franco
2位用户喜欢此帖子
Вячеслав Мезенцев 2014/9/5 09:32:00, frapuano 2018/11/17 07:18:00
#171 已发布: 2014/9/2 17:21:45
1andro1

1andro1

0个赞,共2个帖子。

组: User

Hi Uni,

Thank you very much for the nice plugin.

I would like to ask you whether there is a chance the limit of the axes (XLimMin, XLimMax, XTick, YLimMin, YlimMax and YTick) to be made to be updated from the worksheet of the Smath?

As example if I have a variable in the worksheet which to calculates my Xmin and Xmax limits to be able to enter the name of that variable in the fields for XLimMin and XLimMax.

Also it would be nice feature if it is possible, after some digits, the tick number to become with scientific notation. As example if I have a value between 10uA and 100uA and I want a tick in every 10uA, currently, X-Y plot will show it as 0.

Best Regards,
Adriyan
#172 已发布: 2014/9/5 09:24:56
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Wrote

Hi Uni,

Thank you very much for the nice plugin.

I would like to ask you whether there is a chance the limit of the axes (XLimMin, XLimMax, XTick, YLimMin, YlimMax and YTick) to be made to be updated from the worksheet of the Smath?

As example if I have a variable in the worksheet which to calculates my Xmin and Xmax limits to be able to enter the name of that variable in the fields for XLimMin and XLimMax.

Also it would be nice feature if it is possible, after some digits, the tick number to become with scientific notation. As example if I have a value between 10uA and 100uA and I want a tick in every 10uA, currently, X-Y plot will show it as 0.

Best Regards,
Adriyan



Some of these things already exist but other need to be realized, I agree.

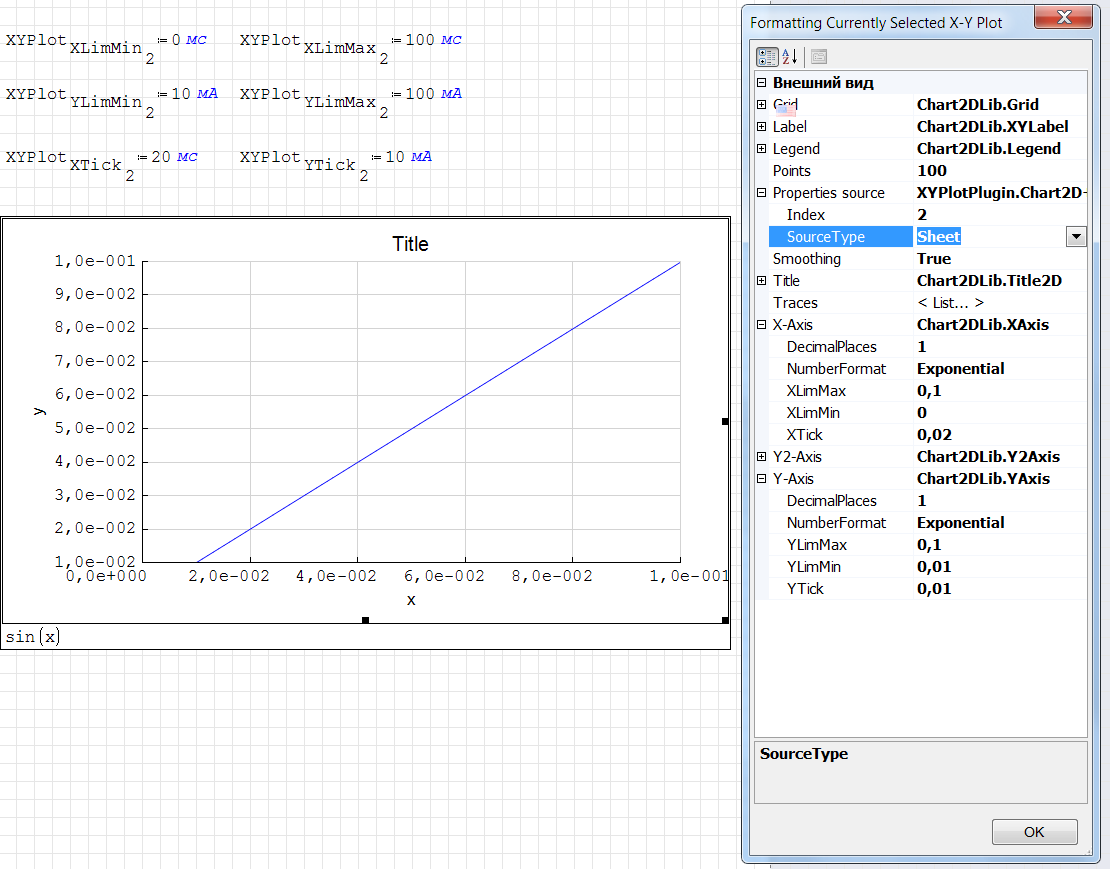

2014-09-05 19-20-22 Скриншот экрана.png
Russia ☭ forever, Viacheslav N. Mezentsev
3位用户喜欢此帖子
ioan92 2015/5/13 02:51:00, Radovan Omorjan 2014/9/5 11:33:00, IVR 2014/9/5 10:55:00
#173 已发布: 2014/9/5 17:02:49
1andro1

1andro1

0个赞,共2个帖子。

组: User

Hi Uni,

Thank you very much for the hints. Indeed, all which I require is already included in the package. My apologies that I have not seen all these features.

Once more thank you very much for the nice package and for the help.

Best Regards,
Adriyan
#174 已发布: 2015/5/11 16:33:04
Chris McNamara

Chris McNamara

0个赞,共5个帖子。

组: User

Hi uni,

Thanks for your awesome plugin, it has helped me greatly with using SMath to visualize lots of data.

Is there currently a way to have a sheet control which can change the title and labels? Also is it possible to control the ticks and numbers on the Y2 axis? Currently it appears that using "XYPlot.Y2Tick" does not work.
#175 已发布: 2015/5/13 04:10:32
NDTM Amarasekera

NDTM Amarasekera

130个赞,共352个帖子。

组: User

Hi All

I have noticed a strange behaviour in XY-Plot.
1. In a sm file there are 2 different plots (with index 1 & index 2) working as expected.
2. When the file is saved and reloaded, the 2nd plot re-adjusts to index 1, showing a distorted view.

Where have I gone wrong please? (sm file attached).

Regards
ndtma

Test XY Plot.sm (292.21 KiB)已下载 1656 次。
Look within!... The secret is inside you. Best Regards Eng. NDTM Amarasekera - Sri Lanka
#176 已发布: 2015/5/13 05:34:00
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

I'm a little busy , I will look later.
Russia ☭ forever, Viacheslav N. Mezentsev
1位用户喜欢此帖子
Davide Carpi 2015/5/14 14:49:00
#177 已发布: 2015/9/1 14:46:28
b3nd3r

b3nd3r

0个赞,共3个帖子。

组: User

On recommendation of w3b5urf3r_reloaded I wanted to use your pluging. But with the current build 5346 of version 0.97 date 21.08.2014 the plugin a unknown error occurs if the plugin is loaded.

Is this a known bug? Which kind of further information do you need?
#178 已发布: 2015/9/7 01:49:18
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Plugin not updated for new version. I'll try to fix this.
Russia ☭ forever, Viacheslav N. Mezentsev
#179 已发布: 2015/10/7 00:42:29
NDTM Amarasekera

NDTM Amarasekera

130个赞,共352个帖子。

组: User

Hi

I too reported to this forum, about 5 months ago, about the problem of saving X-Y Plot settings.
Look within!... The secret is inside you. Best Regards Eng. NDTM Amarasekera - Sri Lanka
2位用户喜欢此帖子
ioan92 2015/10/7 05:05:00, Вячеслав Мезенцев 2015/10/7 03:34:00
#180 已发布: 2015/10/7 03:33:50
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Wrote

Hi

I too reported to this forum, about 5 months ago, about the problem of saving X-Y Plot settings.


Updated. Fixed. Empty title now supported.

引用

Please, is there available the access by program to some other parameters as Traces colors and thinnesses ?
On the other side, I've seen that the plugin generate a system crash if wrong data. Please, could it be possible to include in the plugin a programming sequence of the type "ON ERROR GO NEXT" ?


I'll think about it. I must know what kind of wrong data you want to skip.
Russia ☭ forever, Viacheslav N. Mezentsev
3位用户喜欢此帖子
Davide Carpi 2015/10/7 10:00:00, NDTM Amarasekera 2015/10/7 08:05:00, ioan92 2015/10/7 05:05:00
