X-Y Plot Region

X-Y Plot Region - Extends SMath Studio with a X-Y Plot Region. - 消息

#261 已发布: 2018/8/2 03:47:52
fedeghi

fedeghi

25个赞,共112个帖子。

组: User

Wrote

Updated. Axis general format changed.




Hi uni, did you have the chance to test the new update also on Smath Viewer?
In case yes, if you could let us know so that users that are currently interested in Viewer compatibility (like me) can update safely.
Thanks

#262 已发布: 2018/8/2 04:52:52
Radovan Omorjan

Radovan Omorjan

325个赞和1个踩,共2,052个帖子。

组: Moderator

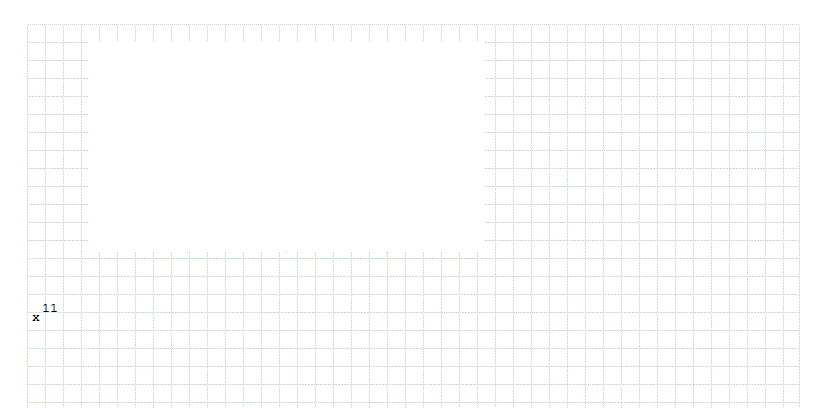

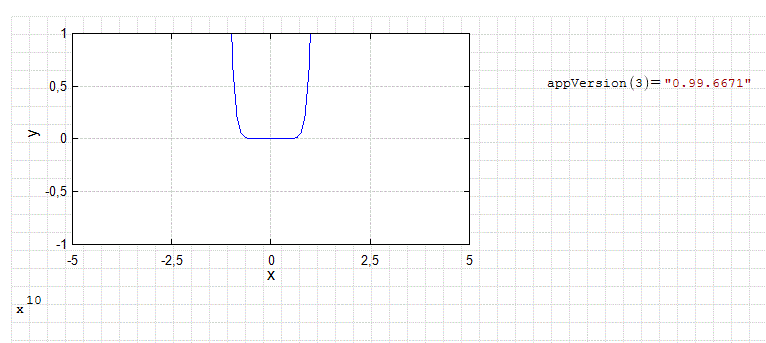

This is happening for me when I just increase the power of x in X-Y plot (Win7 64bit).


At some higher power, say after 10,11 (it depends on the plot size - larger the plot smaller the power) it just become white and the regions disappear when you click on them. It seems it got stuck. But you can click on the power and reduce it. When you reduce it, regions got back and everything seems to be Ok.


Regards,
Radovan
When Sisyphus climbed to the top of a hill, they said: "Wrong boulder!"
2位用户喜欢此帖子
Davide Carpi 2018/8/4 04:33:00, Вячеслав Мезенцев 2018/8/2 14:49:00
#263 已发布: 2018/8/2 06:42:11
Davide Carpi

Davide Carpi

1,443个赞,共2,936个帖子。

组: Moderator

Wrote

Hi uni, did you have the chance to test the new update also on Smath Viewer?
In case yes, if you could let us know so that users that are currently interested in Viewer compatibility (like me) can update safely.
Thanks



Nope, the issue is still here and it is related to Xml serialization used in the plugin. I'm looking for possible fixes.

If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects
1位用户喜欢此帖子
#264 已发布: 2018/8/2 10:55:24
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Wrote

At some higher power, say after 10,11 (it depends on the plot size - larger the plot smaller the power) it just become white and the regions disappear when you click on them. It seems it got stuck. But you can click on the power and reduce it. When you reduce it, regions got back and everything seems to be Ok.


Radovan, this is normal. This is due to errors in drawing. Similar behavior is found in another plugin, but there is a workaround.
引用

This method just handles the case where one or more of the coordinates are outrageous,
or GDI+ threw an exception. This method attempts to correct the outrageous coordinates by
interpolating them to a point (along the original line) that lies at the edge of the ChartRect
so that GDI+ will handle it properly. GDI+ will throw an exception, or just plot the data
incorrectly if the coordinates are too large (empirically, this appears to be when the
coordinate value is greater than 5,000,000 or less than -5,000,000). Although you typically
would not see coordinates like this, if you repeatedly zoom in on a ZedGraphControl, eventually
all your points will be way outside the bounds of the plot.


I'll try to workaround the problem in the same way.
Russia ☭ forever, Viacheslav N. Mezentsev
#265 已发布: 2018/8/2 11:58:46
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

This is a known problem: X_Y fails to accept too large/too small coordinates ranges.
And the trick is to set the X, Y ranges before putting the plot argument(s).
Too large/too small numbers aren't visible anyway, better manage otherwise.
#266 已发布: 2018/8/2 14:32:29
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Wrote

At some higher power, say after 10,11 (it depends on the plot size - larger the plot smaller the power) it just become white and the regions disappear when you click on them. It seems it got stuck. But you can click on the power and reduce it. When you reduce it, regions got back and everything seems to be Ok.



Updated. Try now.

Russia ☭ forever, Viacheslav N. Mezentsev
2位用户喜欢此帖子
Radovan Omorjan 2018/8/2 14:38:00, Davide Carpi 2018/8/4 04:33:00
#267 已发布: 2018/8/2 14:47:27
Radovan Omorjan

Radovan Omorjan

325个赞和1个踩,共2,052个帖子。

组: Moderator

Wrote

Wrote

At some higher power, say after 10,11 (it depends on the plot size - larger the plot smaller the power) it just become white and the regions disappear when you click on them. It seems it got stuck. But you can click on the power and reduce it. When you reduce it, regions got back and everything seems to be Ok.



Updated. Try now.



Thank you uni. It does not stuck anymore. I just thought it might be inconvenient the way it worked before. White area instead of the plot and disappearing regions is not pleasant to see.

Regards,
Radovan
When Sisyphus climbed to the top of a hill, they said: "Wrong boulder!"
#268 已发布: 2018/8/2 15:13:27
Davide Carpi

Davide Carpi

1,443个赞,共2,936个帖子。

组: Moderator

Wrote

Nope, the issue is still here and it is related to Xml serialization used in the plugin. I'm looking for possible fixes.



Fix committed to the SVN server. Error messages about missing LINQ and XmlSerializer assemblies shouldn't be a problem anymore.

P.S. Before changes applies plugin must be recompiled and published again by [userlink]uni[/userlink]
If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects
1位用户喜欢此帖子
#269 已发布: 2018/8/2 15:36:02
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Updated again. Smath Viewer supported.
Russia ☭ forever, Viacheslav N. Mezentsev
3位用户喜欢此帖子
Oscar Campo 2018/8/2 19:24:00, frapuano 2018/8/4 15:01:00, Davide Carpi 2018/8/4 04:35:00
#270 已发布: 2018/8/3 00:27:05
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Wrote

Is it possible to plot text at a specified coordinate in X-Y Plot Region or ZedGraph Plot?


Updated. Text labels added.

Russia ☭ forever, Viacheslav N. Mezentsev
5位用户喜欢此帖子
frapuano 2018/8/4 15:00:00, Radovan Omorjan 2018/8/3 03:02:00, NDTM Amarasekera 2018/8/3 03:01:00, Davide Carpi 2018/8/4 04:35:00, sergio 2018/8/3 06:27:00
#271 已发布: 2018/8/3 03:00:06
NDTM Amarasekera

NDTM Amarasekera

130个赞,共352个帖子。

组: User

Thank you uni. Its amazing and very useful.
Look within!... The secret is inside you. Best Regards Eng. NDTM Amarasekera - Sri Lanka
#272 已发布: 2018/8/3 04:53:57
NDTM Amarasekera

NDTM Amarasekera

130个赞,共352个帖子。

组: User

Following 2 issues noted with new update today.
1. Only integer values for x & y coordinates effective. Text Lables disappear when decimal values are used.
2. Changes in formatting of lines to spline not saved when worksheet is re-loaded.
Look within!... The secret is inside you. Best Regards Eng. NDTM Amarasekera - Sri Lanka
#273 已发布: 2018/8/3 11:11:16
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Updated. Try now.

Trace settings can also be used with text labels (in mixed mode). The text label settings are used if specified, otherwise the trace settings are used.
Russia ☭ forever, Viacheslav N. Mezentsev
2位用户喜欢此帖子
frapuano 2018/8/3 11:14:00, sergio 2018/8/3 11:42:00
#274 已发布: 2018/8/3 11:43:05
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

Updated. Try now.



While you are in the plot design, is there any chance to improve Quick plot ?
Damned hard to leave with so many useless decimals.



Obviously, it concerns x_axis as well
#275 已发布: 2018/8/3 11:49:46
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

This request is not for me. I'm not a SMath Studio developer. Additional features to the program should be specified in Feature Requests Forum.
Russia ☭ forever, Viacheslav N. Mezentsev
#276 已发布: 2018/8/3 13:10:59
NDTM Amarasekera

NDTM Amarasekera

130个赞,共352个帖子。

组: User

Wrote

Updated. Try now.

Trace settings can also be used with text labels (in mixed mode). The text label settings are used if specified, otherwise the trace settings are used.



Thanks. It works fine now.
Look within!... The secret is inside you. Best Regards Eng. NDTM Amarasekera - Sri Lanka
#277 已发布: 2018/8/3 22:42:56
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

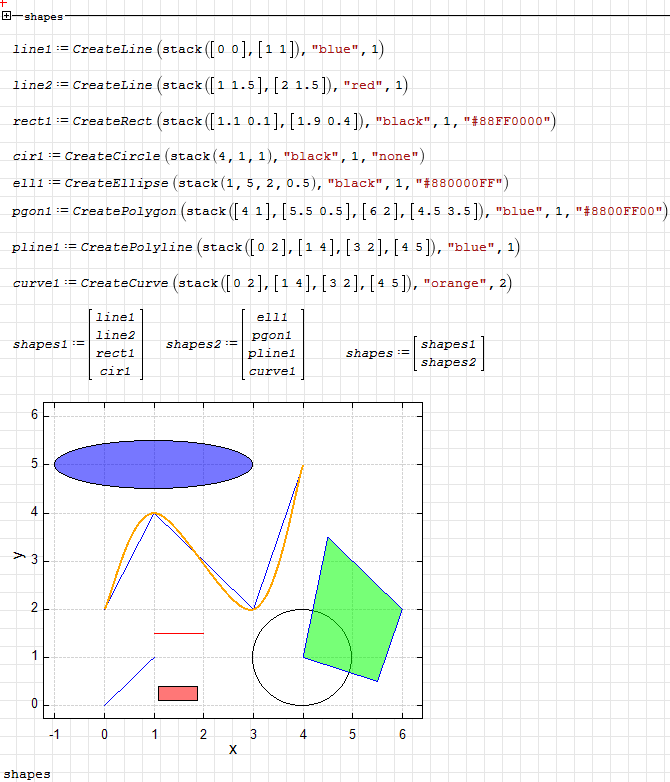

Updated. Shapes added.


X-Y Plot. Draw shapes.sm (22.64 KiB)已下载 1450 次。
Russia ☭ forever, Viacheslav N. Mezentsev
4位用户喜欢此帖子
NDTM Amarasekera 2018/8/3 23:22:00, Davide Carpi 2018/8/4 04:35:00, frapuano 2018/8/4 15:00:00, Radovan Omorjan 2018/8/4 02:17:00
#278 已发布: 2018/8/3 23:27:32
NDTM Amarasekera

NDTM Amarasekera

130个赞,共352个帖子。

组: User

Thanks uni for adding shapes also. It is useful.
Look within!... The secret is inside you. Best Regards Eng. NDTM Amarasekera - Sri Lanka
#279 已发布: 2018/8/3 23:30:42
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

This is experimental. Maybe I'll add a line type, arc shape and something else.
Russia ☭ forever, Viacheslav N. Mezentsev
#280 已发布: 2018/8/4 00:07:41
NDTM Amarasekera

NDTM Amarasekera

130个赞,共352个帖子。

组: User

Yes please. Thank you.
Look within!... The secret is inside you. Best Regards Eng. NDTM Amarasekera - Sri Lanka
