Good day!

I'm trying to generate an array of circles but it looks like I am missing something. The data I have come up with won't plot.

Thank you in advance for any help.bolt array.sm (13.33 KiB)已下载 1290 次。
#2 已发布: 2021/10/4 08:48:10
fedeghi

fedeghi

25个赞,共112个帖子。

组: User

In case of multiple traces, plot expects a system of data as input.
It is sufficient to convert the "boltplot" big matrix into a system (containing one matrix for each circle).

Command mat2sys()1 will do the work.

See attachment
Bye

bolt array.sm (17.74 KiB)已下载 1250 次。
#3 已发布: 2021/10/4 09:49:39
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

I'm trying to generate an array of circles


From there, you can manage all sorts of:
number of bolts in any radii.
Cheers ... Jean

Page11 Bolt Circle.sm (13.6 KiB)已下载 1536 次。
#4 已发布: 2021/10/4 10:52:02
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

From there, you can manage all sorts of:
number of bolts in any radii.


This one is Fourier style for elliptical bolt circle.

Page13 Bolt Cicle Fourier.sm (12.03 KiB)已下载 1340 次。

#5 已发布: 2021/10/4 10:55:16
overlord

overlord

600个赞,共1,381个帖子。

组: Moderator

fedeghi has the correct answer.
multiple plots needs to be in sys(), not matrix.
I don't know the purpose of replies after that, as usual..

Regards
#6 已发布: 2021/10/4 11:10:06
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

... as usual for larger prospective insight.

Page13 Bolt Cicle Fourier Otherwise.sm (20.87 KiB)已下载 1436 次。
#7 已发布: 2021/10/4 11:14:25
overlord

overlord

600个赞,共1,381个帖子。

组: Moderator

or you can just keep within the question.
and don't throw every filename match to topics.
#8 已发布: 2021/10/4 12:07:20
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

I'm trying to generate an array of circles


... more concentric/shifted
bolt array ... visit TEMA standard.

Circle Map.sm (12.35 KiB)已下载 1248 次。
#9 已发布: 2021/10/4 21:45:35
RAJED MAGLINTE

RAJED MAGLINTE

0个赞,共4个帖子。

组: User

Thanks everyone. Really appreciate your help.
#10 已发布: 2021/10/5 05:06:02
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

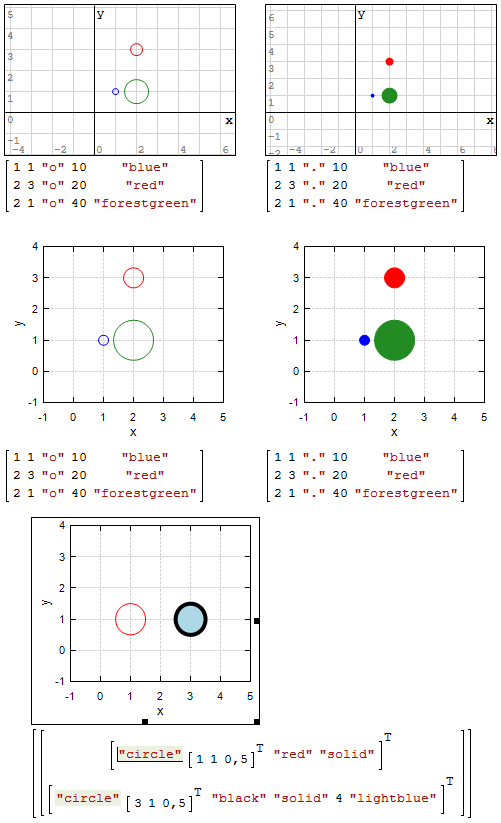

You also could use circular symbols (top row: built-in plot region, 2nd row: XY-Plot region.
However, these won't scale when zooming the plot.
In XY-Plot, you also could use geometric objects, which scale as expected.

bolt array_Kr.png
bolt array_Kr.sm (11.41 KiB)已下载 1240 次。
