Formula transformation

Formula transformation - 消息

#1 已发布: 2019/11/13 19:37:18
Вуаутвук

Вуаутвук

0个赞,共11个帖子。

组: User

Good day. How to find a formula to determine automatically? Also how do you replace values and combine all formulas into one automatically?
#2 已发布: 2019/11/13 22:02:46
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

How to find a formula to determine automatically?


You mean: solve for λ

2位用户喜欢此帖子
Вуаутвук 2019/11/14 12:30:00, frapuano 2019/11/15 07:38:00
#3 已发布: 2019/11/14 04:22:42
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

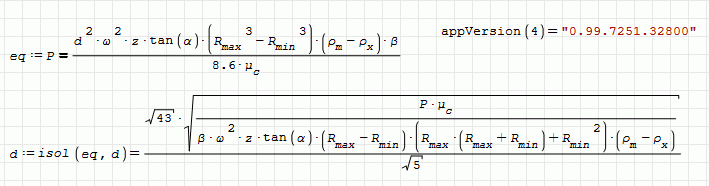

Hi. Try this too. Needs a "Nightly builds":


isol2.sm (33.5 KiB)已下载 1154 次。

Best regards.
Alvaro.
4位用户喜欢此帖子
Вуаутвук 2019/11/14 12:30:00, sergio 2019/11/14 05:59:00, Radovan Omorjan 2019/11/14 06:12:00, frapuano 2019/11/15 07:38:00
#4 已发布: 2019/11/14 11:30:16
Вуаутвук

Вуаутвук

0个赞,共11个帖子。

组: User

Wrote

Hi. Try this too. Needs a "Nightly builds":

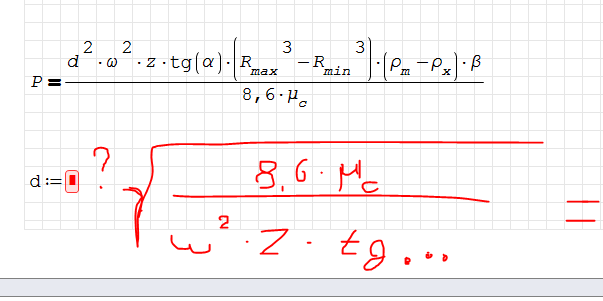

Sni456456mok.PNG.

I meant. Is it possible to automatically convert a formula to find a value from it? Type as in the example in the picture

isol2.sm (33.5 KiB)已下载 1154 次。

Best regards.
Alvaro.

#5 已发布: 2019/11/14 11:35:42
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

1位用户喜欢此帖子
Вуаутвук 2019/11/14 13:25:00
#6 已发布: 2019/11/14 12:14:57
Вуаутвук

Вуаутвук

0个赞,共11个帖子。

组: User

Wrote




Sorry, maybe I didn't understand something?Sni4545445mok.PNG

#7 已发布: 2019/11/14 12:21:03
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Wrote



Sorry, maybe I didn't understand something?

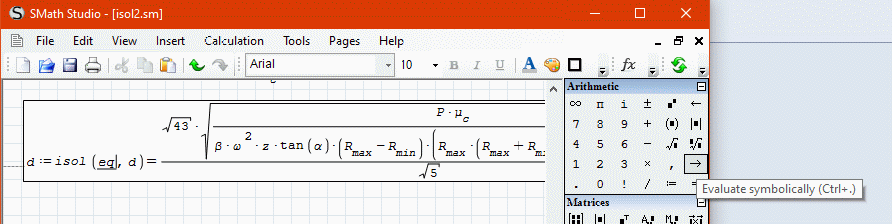

Hi Вуаутвук. Do you have the "Nightly builds"? (Download it at the link). I use a very recent new behavior, not pressent in the stable beta versions).


Best regards.
Alvaro.

2位用户喜欢此帖子
frapuano 2019/11/15 07:38:00, Вуаутвук 2019/11/14 13:25:00
#8 已发布: 2019/11/14 12:39:22
Вуаутвук

Вуаутвук

0个赞,共11个帖子。

组: User

Wrote

Wrote



Sorry, maybe I didn't understand something?



I have the latest version.未找到文件。未找到文件。


Best regards.
Alvaro.



#9 已发布: 2019/11/14 12:58:49
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Wrote


I have the latest version.



Ok. Do you evaluate symbolically d?

Best regards.
Alvaro.
1位用户喜欢此帖子
Вуаутвук 2019/11/14 13:25:00
#10 已发布: 2019/11/14 13:05:37
Вуаутвук

Вуаутвук

0个赞,共11个帖子。

组: User

Wrote

Wrote


I have the latest version.



I want to convert the formula from P = to formula D =. In symbolic form.




#11 已发布: 2019/11/14 13:11:32
Вуаутвук

Вуаутвук

0个赞,共11个帖子。

组: User

Wrote

Wrote


I have the latest version.



I'm understood, thank you.



#12 已发布: 2019/11/14 16:11:30
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

1位用户喜欢此帖子
Вуаутвук 2019/11/22 11:24:00
#13 已发布: 2019/11/14 16:24:45
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

... complete/publish

1位用户喜欢此帖子
Вуаутвук 2019/11/22 11:24:00
#14 已发布: 2019/11/22 11:29:17
Вуаутвук

Вуаутвук

0个赞,共11个帖子。

组: User

Wrote



I didn't quite understand what it was, but thank you.




#15 已发布: 2019/11/22 13:02:25
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

I didn't quite understand what it was, but thank you.

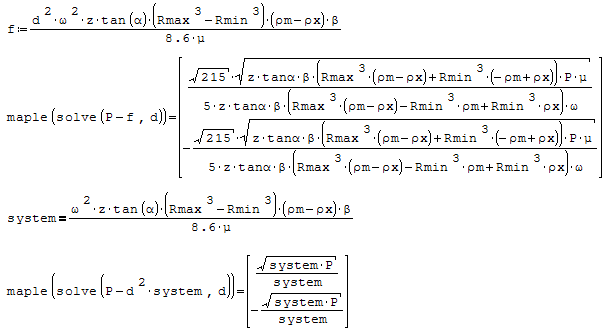

Read like this:
1. 'f' is an expression, i.e: a formula
2. it depends upon 10 parameters from blue sky
3. you wanted its result be 'P' call it "unk" [unknown]
4. if you can measure then assign 9 parameters,
there is one left not measured then "unk'
5. you said you wanted to solve for 'd',
given all 9 other parameters and the result "unk"
solving for 'd' is the maple implicit solve block
maple(solve(unk-f,d)) ... evaluate symbolic.
6. symbolic expresses 'd' wrt all 9 given parameters
and the demanded "unk"
implicit unk-f means unk-f=0
1位用户喜欢此帖子
Вуаутвук 2019/12/9 09:32:00
#16 已发布: 2019/11/22 15:07:31
Вуаутвук

Вуаутвук

0个赞,共11个帖子。

组: User

Wrote

Wrote

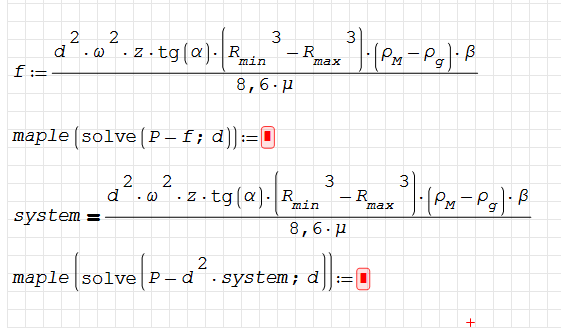

I can not do it




#17 已发布: 2019/11/22 15:15:49
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

I can not do it


Please: attach the Smath document.
Once patients are doctored => recycled !

1位用户喜欢此帖子
Вуаутвук 2019/12/9 09:32:00
#18 已发布: 2019/11/22 15:50:36
Вуаутвук

Вуаутвук

0个赞,共11个帖子。

组: User

003.sm (50.13 KiB)已下载 1123 次。
Wrote

Wrote






003.sm (50.13 KiB)已下载 1144 次。



#19 已发布: 2019/11/22 17:39:03
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

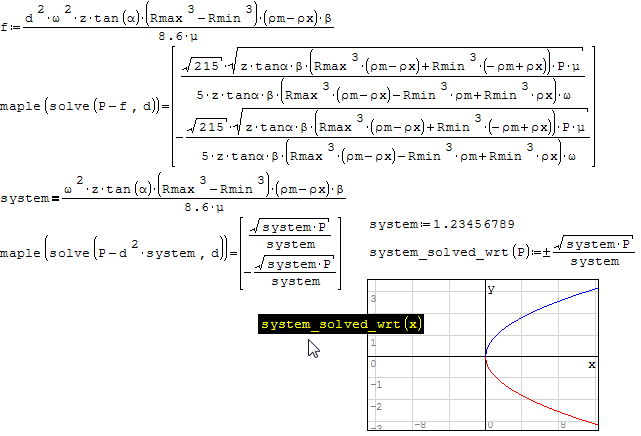

... suite
Here is doctored in pink [2 regions].
Your original SS 7251 opened/doctored in my SS 6179
returned SS 6179. If you don't see the graph, please let me know.
In that case, I will make a snippet.

003.sm (68.58 KiB)已下载 1052 次。
1位用户喜欢此帖子
Вуаутвук 2019/12/9 09:32:00
#20 已发布: 2019/11/22 23:09:41
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Hi Вуаутвук. Some notes:
- Use units. For instance, alpha=45 isn't usual, but alpha=45*deg is.
- R.max^3-R.min^3 is more usual than R.min^3-R.max^3.
- You can't solve P with the same equation from "f".
- Empirical coeffs usually carry some units.
I don't know very well the process that you're describing, but guess that this is a good aprox to the correct solution.

003.sm (49.29 KiB)已下载 1079 次。

Best regards.
Alvaro.
1位用户喜欢此帖子
Вуаутвук 2019/12/9 09:32:00
