Updated. Experimental build. Be careful with this. You need to update X-Y Plot first.

未找到文件。 未找到文件。

P.S. "Name" property is not saved. This will be more difficult to fix, as component uses a binary format for storing settings.



Thank's a lot!!! This is exactly what I was looking for.
You are genius.

#62 已发布: 2020/4/22 13:33:41
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

1. click/click to open your spec stuff
2. click/click to open Zed all spec
Same for less vs same for more !
Stupid Zed ... missing the most delicious line "spline".

#63 已发布: 2020/4/22 14:36:48
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

What is it Zed does not understand ?

#64 已发布: 2020/4/22 20:04:39
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

No shame to publish ... few seconds = done.

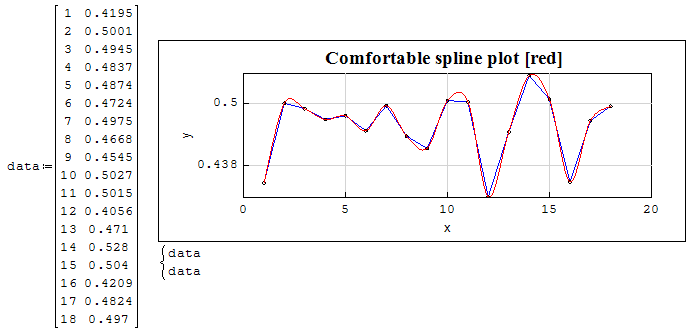

X_Y Splines.PNG
#65 已发布: 2020/10/26 05:13:16
hanskl

hanskl

7个赞,共158个帖子。

组: User

Is it possible to make Zedgraph plot functions with built in conditional programming, ie. if ()?

Also, is it possible to alter the numbers along the axis when log scale is chosen such that the numbers is not written in 10^x?
#66 已发布: 2020/10/26 07:18:43
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

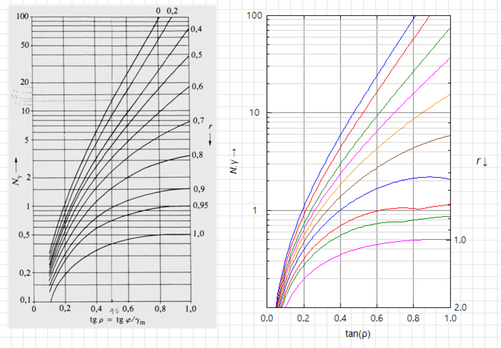

I think it is possible if I change the plugin. I'll try do that.

The external design is not yet fully tested, but you can do this.

problem_log (uni).sm (691.62 KiB)已下载 1800 次。

Russia ☭ forever, Viacheslav N. Mezentsev
1位用户喜欢此帖子
sergio 2020/10/26 09:24:00
#67 已发布: 2020/10/26 11:04:37
hanskl

hanskl

7个赞,共158个帖子。

组: User

Wrote

I think it is possible if I change the plugin. I'll try do that.

The external design is not yet fully tested, but you can do this.



Thank you. Do you think it's possible to make Zedgraph plot my function when the function uses if() instead of cases() to break the for loop?

(in the sheet cases() is used to break the loop, but cases() doesn't actually work.. no iterations are made, the loop is broken after the first run).
#68 已发布: 2020/10/26 12:37:57
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Wrote

Thank you. Do you think it's possible to make Zedgraph plot my function when the function uses if() instead of cases() to break the for loop?



Updated. Try now.
Russia ☭ forever, Viacheslav N. Mezentsev
#69 已发布: 2020/10/26 13:29:50
hanskl

hanskl

7个赞,共158个帖子。

组: User

Wrote

Wrote

Thank you. Do you think it's possible to make Zedgraph plot my function when the function uses if() instead of cases() to break the for loop?



Updated. Try now.



Do I have to delete Zedgraph and make a fresh install?

I tried making a new sheet with a new Zedhgraph - still "x - not defined" when if() is used in the function.
#70 已发布: 2020/10/26 13:34:33
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

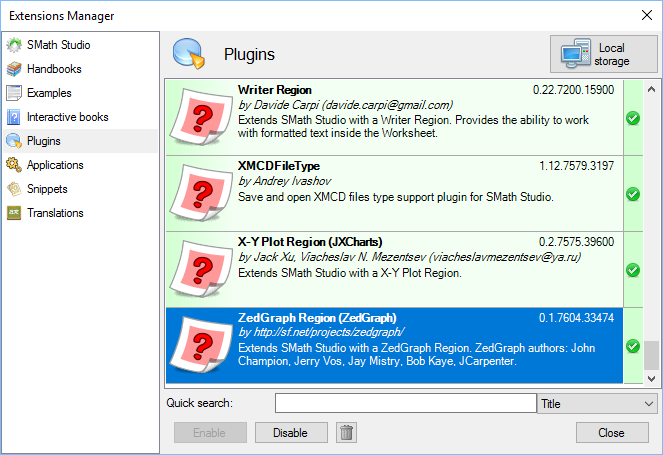

No, you must update it using the main menu: Tools\Plugins (Local Storage) - ZedGgraph Region (Update).

Russia ☭ forever, Viacheslav N. Mezentsev
1位用户喜欢此帖子
hanskl 2020/10/26 14:46:00
#71 已发布: 2020/10/26 14:45:26
hanskl

hanskl

7个赞,共158个帖子。

组: User

Wrote

No, you must update it using the main menu: Tools\Plugins (Local Storage) - ZedGgraph Region (Update).



I went to the plugin manager to check, but I didnt check the online gallery, thus there was no update for me.

I updated from online gallery now and it works! Both the option for "IsUseTenPower" and plotting a function with if() conditional.

I am a very happy camper now. Thank you very much!
#72 已发布: 2020/10/26 14:55:16
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

I think it is possible if I change the plugin. I'll try do that.


Maybe not needed at all. My ZedGraph ancestor plots data OK.
Some patient Collab might be willing. I hate that beast, it punishes me !
As it plots data, for multiple plot will have to be dressed in matrix,
then collect each plot piece.


Project Hanski Soil Drainage Ng User.sm (313 KiB)已下载 1752 次。
#73 已发布: 2020/10/26 18:04:54
hanskl

hanskl

7个赞,共158个帖子。

组: User

Wrote

I think it is possible if I change the plugin. I'll try do that.

The external design is not yet fully tested, but you can do this.



another question - is it possible to have a "dynamic" number format? such that 100 is written as 100 and not 100.0, while 0.1 is written as 0.1?
#74 已发布: 2020/10/26 18:14:09
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

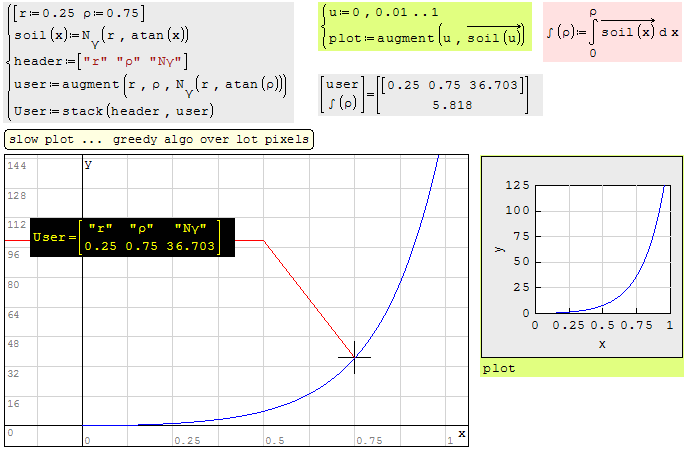

... demo 3 plots added on Zedgraph.
I don't speak enough Aliens to finish a presentable plot.
subdivide X axis, make tick labels visible rather than microscopic...

Project Hanski Soil Drainage Ng User.sm (586.4 KiB)已下载 1849 次。

#75 已发布: 2020/10/26 23:25:27
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Wrote

another question - is it possible to have a "dynamic" number format? such that 100 is written as 100 and not 100.0, while 0.1 is written as 0.1?



Try Scale.Format = g2 or g3
Russia ☭ forever, Viacheslav N. Mezentsev
#76 已发布: 2020/10/27 04:10:26
hanskl

hanskl

7个赞,共158个帖子。

组: User

Wrote

Wrote

another question - is it possible to have a "dynamic" number format? such that 100 is written as 100 and not 100.0, while 0.1 is written as 0.1?



Try Scale.Format = g2 or g3



Worked like a charm! One last request (I think) - is it possible to have the minor and major step linear while using a log scale?

Now my major steps are 0,1 1 10 and 100. Is it possible to divide each range in 10?
#77 已发布: 2020/10/27 20:54:09
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

... latest attempt demo.

Project Hanski Soil Drainage Ng ZedGraph.sm (395.17 KiB)已下载 1829 次。
#78 已发布: 2020/10/27 21:20:06
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

is it possible to have the minor and major step linear while using a log scale?


The major'y' grids are linear wrt the pixels in height,
but not the labels [naturally]. Minor grids are confusing.
Thus the idea of tracking and display the XY coordinates.
Jean

#79 已发布: 2020/11/21 07:59:28
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

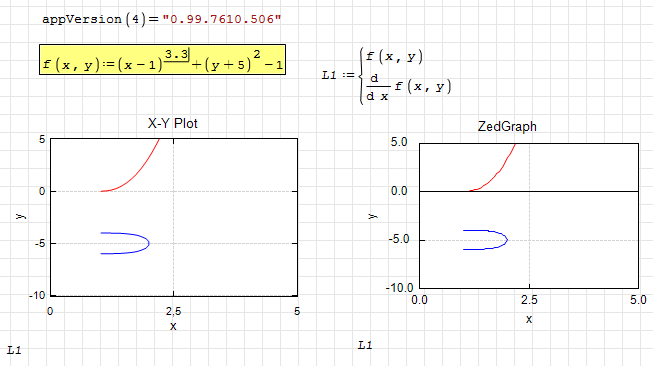

Updated.

Changes:

- SS-4652 partially fixed.

Russia ☭ forever, Viacheslav N. Mezentsev
2位用户喜欢此帖子
Alvaro 2020/11/21 11:24:00, sergio 2020/11/21 08:01:00
#80 已发布: 2023/8/10 06:24:35
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator


- insert a zedgraph region
- set YAxis> Type to log.

This freezes the UI, only option is to kill SMath in the program manager. Version 8348.

I understand that log axes must have positive limits. Just a hint on a trap for uncautious users.
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
1位用户喜欢此帖子
Oscar Campo 2023/9/22 23:41:00
