#1 已发布: 2013/5/16 22:15:01
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

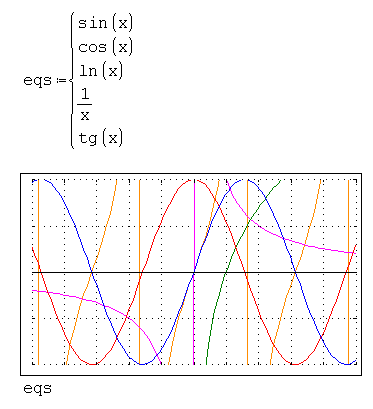

ZedGraph Region

SMath Studio compatibility SMath Viewer compatibility mono compatibility Extension page Sources



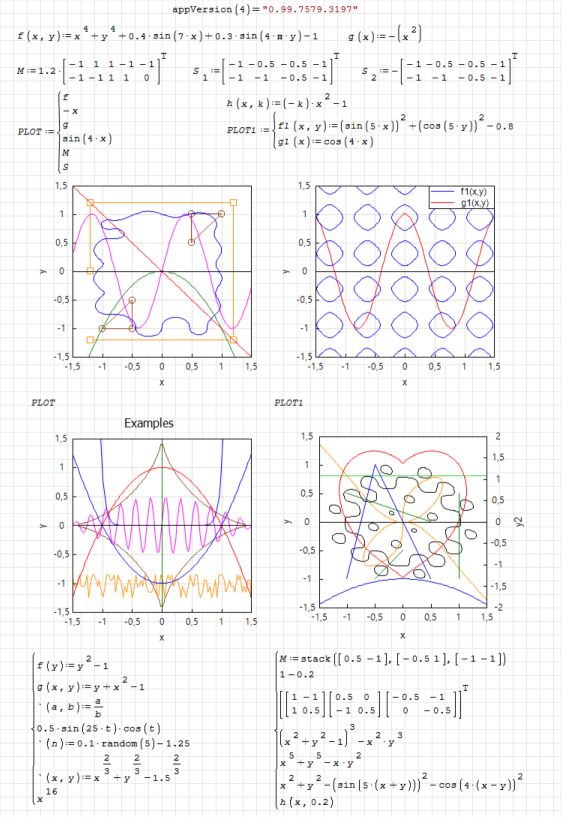

Examples:

ZedGraph.Examples.sm (182.81 KiB)已下载 2008 次。
ZedGraph.Examples.pdf (109.06 KiB)已下载 1169 次。

Links:

1. ZedGraph Wiki.
Russia ☭ forever, Viacheslav N. Mezentsev
2位用户喜欢此帖子
Martin Kraska 2013/5/17 01:42:00, IVR 2013/5/17 02:51:00
#2 已发布: 2013/5/16 22:30:34
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Wrote

thank you very much uni!
please look at this post:
http://en.smath.info/forum/yaf_postsm9105_Plots-improvements.aspx#post9105

ZedGraph is c# targeting .net20 so it should work both in windows and linux.


Let's try to work something out.
Russia ☭ forever, Viacheslav N. Mezentsev
1位用户喜欢此帖子
Radovan Omorjan 2013/5/17 01:10:00
#3 已发布: 2013/5/17 01:19:31
Radovan Omorjan

Radovan Omorjan

325个赞和1个踩,共2,052个帖子。

组: Moderator

Just opened this graph in SMath and saw the examples on the project site. Simply amazed
When Sisyphus climbed to the top of a hill, they said: "Wrong boulder!"
#4 已发布: 2013/5/17 01:42:12
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

That looks promising! To have reasonable defaults for everything except data is great. Even better if these defaults could be configured by the user to his taste...
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
#5 已发布: 2013/5/17 03:43:54
Radovan Omorjan

Radovan Omorjan

325个赞和1个踩,共2,052个帖子。

组: Moderator

Wrote

That looks promising! To have reasonable defaults for everything except data is great. Even better if these defaults could be configured by the user to his taste...


I agree ,

By the way, besides very nice graphs I could see on the ZedGraph Wiki that the text and graphical elements could be inserted into the plot area. This is a very welcome feature. I do not know if XYplot plugin already has this feature of inserting text and graphical elements?.

Regards,
Radovan
When Sisyphus climbed to the top of a hill, they said: "Wrong boulder!"
#6 已发布: 2013/5/17 05:16:48
kilele

kilele

134个赞,共397个帖子。

组: User

This is really thrilling
I had great hope on ZedGraph to be useful in SMath for the requirements (.Net2), license, the look of the graphs and its popularity among developers. Another library I think it could be very useful is SmartMathLibrary, in particular its implementation of OdePack, SmartMathLibrary.OdePack.dll
1位用户喜欢此帖子
Radovan Omorjan 2013/5/17 06:18:00
#7 已发布: 2013/5/17 06:22:01
Radovan Omorjan

Radovan Omorjan

325个赞和1个踩,共2,052个帖子。

组: Moderator

Wrote

This is really thrilling
I had great hope on ZedGraph to be useful in SMath for the requirements (.Net2), license, the look of the graphs and its popularity among developers. Another library I think it could be very useful is SmartMathLibrary, in particular its implementation of OdePack, SmartMathLibrary.OdePack.dll


I think that if this would have been implemented in SMath I would have stopped bothering people here on this Forum
When Sisyphus climbed to the top of a hill, they said: "Wrong boulder!"
#8 已发布: 2013/5/22 21:09:49
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Updated. Added extended settings.
The problems is still there. I don't know how to display different types of charts on one. This can be done only programmatically.
Russia ☭ forever, Viacheslav N. Mezentsev
#9 已发布: 2013/5/23 02:31:34
kilele

kilele

134个赞,共397个帖子。

组: User

Hi, I've done a few searches.
Unfortunately I can't be of much more help.
Multiple Graph Panes Per ZedGraphControl
Zedgraph multiple Curves
#10 已发布: 2013/5/23 07:09:13
Radovan Omorjan

Radovan Omorjan

325个赞和1个踩,共2,052个帖子。

组: Moderator

Wrote

Updated. Added extended settings.
The problems is still there. I don't know how to display different types of charts on one. This can be done only programmatically.


I tried it a bit. Very nice.

I've noted the second X axis, different axis types (log, etc - this crashed SMath few times) etc. This version does not keep the settings after saving the file, but it really looks promising . My respects uni for your efforts

Regards,
Radovan
When Sisyphus climbed to the top of a hill, they said: "Wrong boulder!"
#11 已发布: 2013/5/23 19:00:37
kilele

kilele

134个赞,共397个帖子。

组: User

test video:
http://screencast-o-matic.com/watch/cIh03LVuMM
2位用户喜欢此帖子
Radovan Omorjan 2013/5/24 00:54:00, Вячеслав Мезенцев 2013/5/23 23:28:00
#12 已发布: 2013/5/23 23:28:14
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Wrote

test video:
http://screencast-o-matic.com/watch/cIh03LVuMM



Updated.
Russia ☭ forever, Viacheslav N. Mezentsev
1位用户喜欢此帖子
Radovan Omorjan 2013/5/24 00:54:00
#13 已发布: 2013/5/24 01:21:54
Radovan Omorjan

Radovan Omorjan

325个赞和1个踩,共2,052个帖子。

组: Moderator

Thank you for updating. It is much better now .

By the way, I did not figure out how to keep the settings. If I save and reopen the file, just the position remains but all other settings did not. I suppose it was not resolved yet, or I did not find the right option.

Regards,
Radovan
When Sisyphus climbed to the top of a hill, they said: "Wrong boulder!"
#14 已发布: 2013/5/24 01:30:24
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Yes, there was a problem with saving settings. I'm trying to make a convenient way to save them. Their number is too large.
Russia ☭ forever, Viacheslav N. Mezentsev
#15 已发布: 2013/5/24 06:41:11
Radovan Omorjan

Radovan Omorjan

325个赞和1个踩,共2,052个帖子。

组: Moderator

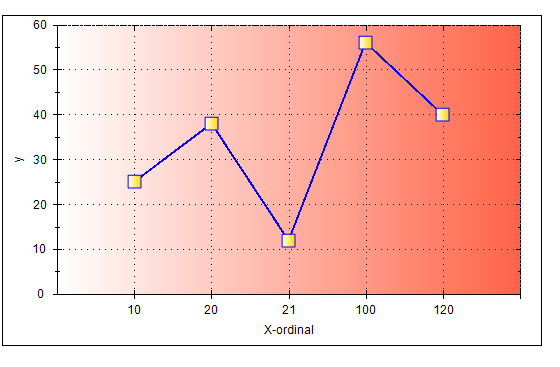

Ordinal X scale

When Sisyphus climbed to the top of a hill, they said: "Wrong boulder!"
#16 已发布: 2013/6/7 18:34:46
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

Version 4906.20456 fails to install on my system. Same as with XY-Plot.
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
#17 已发布: 2013/6/8 08:52:07
kilele

kilele

134个赞,共397个帖子。

组: User

Hi

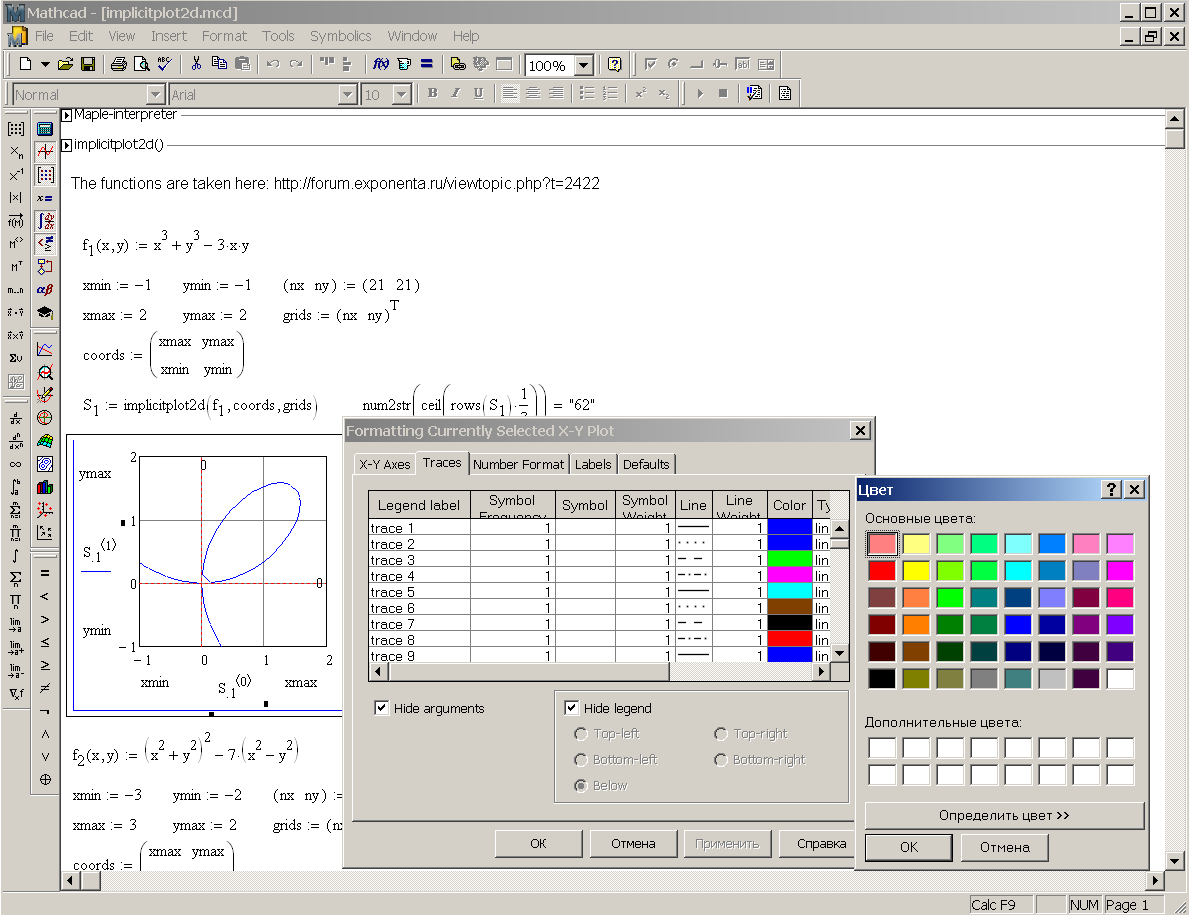

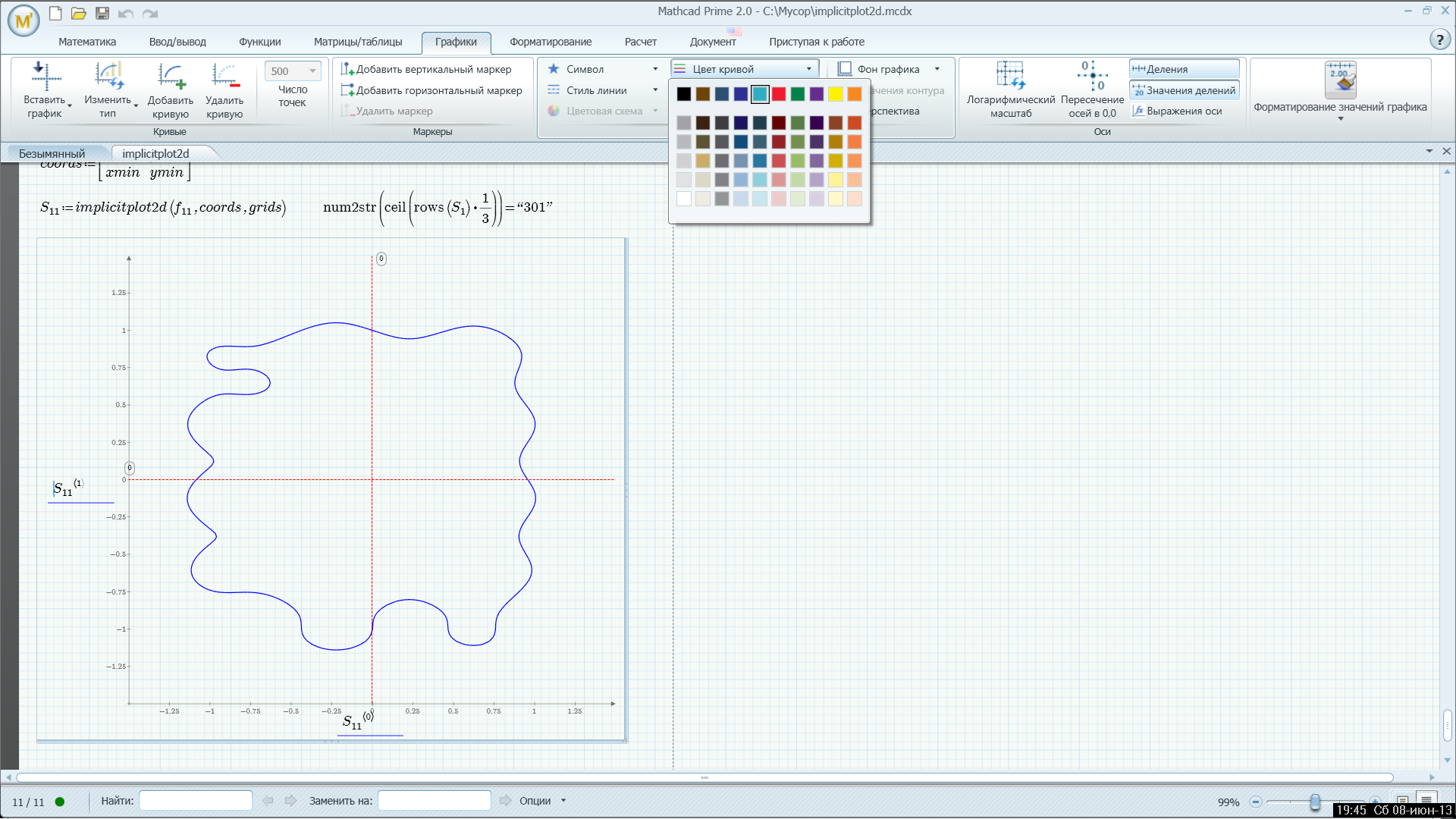

I was searching for works/guis based on using the ZedGraph plugin and I found this page. Look the first picture, I like this sort of wizard/step by step/collapsible-menus. It suggests some ideas like a menu with comboboxes and other enabled, disabled(grayed) gui controls.
I would prefer that sort of user interface with always visible options instead of the current tabbed one.

On the other hand, you can see in the same page the use of an interesting 3d-graph control.
These are some c# wrappers for VTK:
http://www.vtk.org/Wiki/VTK/CSharp/ActiViz.NET
http://vtkdotnet.sourceforge.net/

Thanks for reading!
1位用户喜欢此帖子
Radovan Omorjan 2013/6/8 09:19:00
#18 已发布: 2013/6/8 09:49:31
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Maybe you want something like this:


or like this:

Russia ☭ forever, Viacheslav N. Mezentsev
3位用户喜欢此帖子
Radovan Omorjan 2013/6/8 09:57:00, Davide Carpi 2013/6/8 10:04:00, ioan92 2013/6/8 10:15:00
#19 已发布: 2013/6/8 10:31:41
kilele

kilele

134个赞,共397个帖子。

组: User

ahh..the Ribbon instead of toolbars and menus dilemma..
I used not to like the Ribbon but now I think it is a neat concept if well designed.
There you have a couple of discussions on that matter:
http://www.donationcoder.com/forum/index.php?topic=16444.0
http://www.donationcoder.com/forum/index.php?topic=28892.0

Personally, I'm a fan of right-click and combo-boxes.

I would like to hear what others think of it, you may find useful this gui drawing tool to post your mockups images in the forum,
though I'm sure that you'll end up with a useful design.
http://portableapps.com/apps/graphics_pictures/pencil-project-portable
#20 已发布: 2013/6/8 11:15:40
Radovan Omorjan

Radovan Omorjan

325个赞和1个踩,共2,052个帖子。

组: Moderator

Wrote

...Personally, I'm a fan of right-click and combo-boxes.


Me too
When Sisyphus climbed to the top of a hill, they said: "Wrong boulder!"
