Maple Tools - Symbolic engine for SMath Studio. - 消息

#161 已发布: 2013/6/2 00:01:21
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Updated. Animation added.

显示剧透

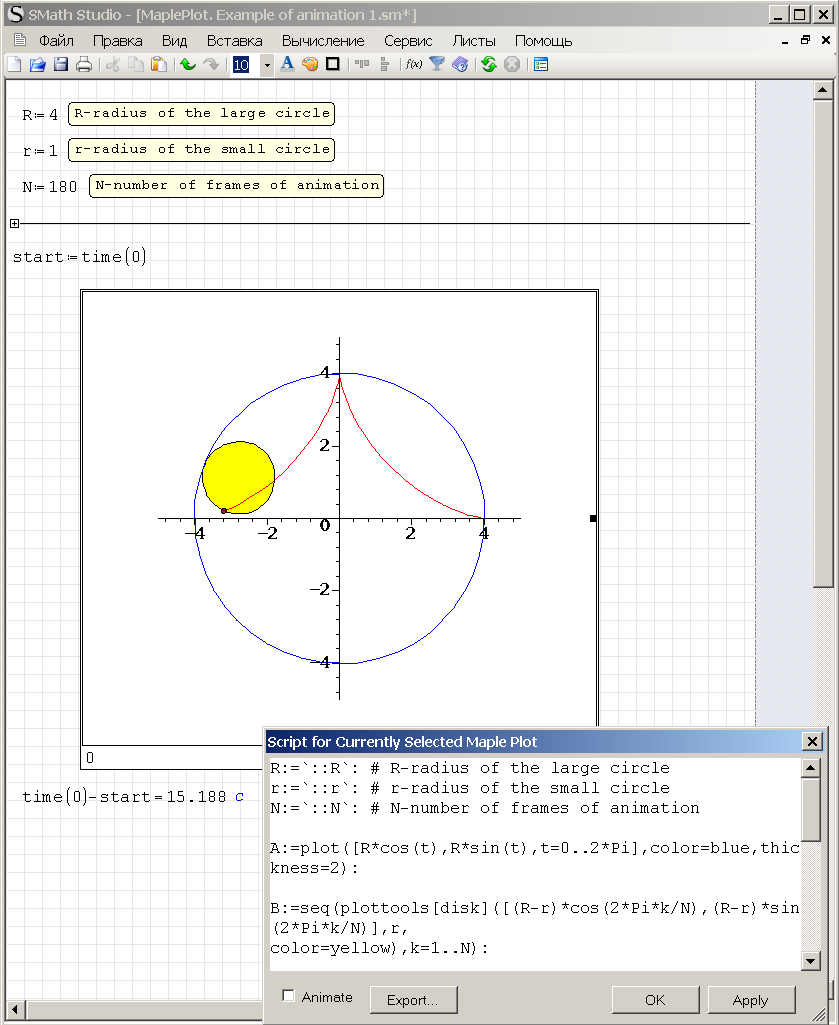

MaplePlot_screen10.png MaplePlot. Example of animation 1.gif

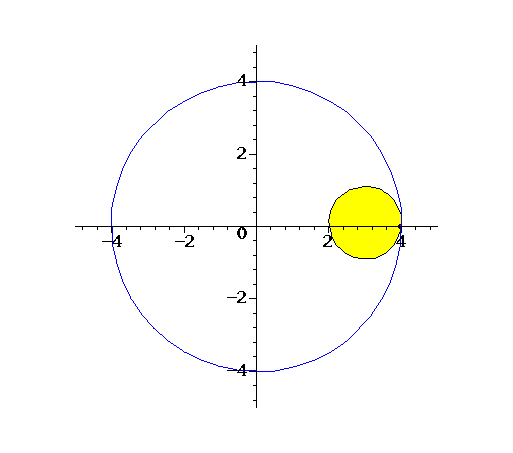

MaplePlot. Example of animation 1.gif
Russia ☭ forever, Viacheslav N. Mezentsev
1位用户喜欢此帖子
ioan92 2013/6/2 02:53:00
#162 已发布: 2013/6/2 01:57:14
Radovan Omorjan

Radovan Omorjan

325个赞和1个踩,共2,052个帖子。

组: Moderator

Good work uni

I've noted the "Export" button was added (maybe it was here but I missed it). This can be used to save the plot in the GIF format, animated or not, like the SMath's base plots.

I suppose copying the plots from one worksheet to another will be fixed as well as soon as the plot saving fix will work.

Regards,
Radovan
When Sisyphus climbed to the top of a hill, they said: "Wrong boulder!"
#163 已发布: 2013/6/2 03:27:53
Janusz

Janusz

7个赞,共48个帖子。

组: User

Viacheslav,

Thank you for the new version of MapleWrapper plugin. This is really impressive to have so beautiful tool like your plugin in SMath Studio. Once again thank you heartily.

Regards,
Janusz
#164 已发布: 2013/6/2 06:42:13
Janusz

Janusz

7个赞,共48个帖子。

组: User

Hello,

I know how to dissolve one differential equation of the any degree using MapleWrapper plugin. But how to dissolve the system of ODE using MapleWrapper, this unfortunately I do not know. Please for the help.

I tried in different ways to reach the result, however ineffective.

From above heartily thank you for your help.

Regards,
Janusz
#165 已发布: 2013/6/2 15:38:15
Radovan Omorjan

Radovan Omorjan

325个赞和1个踩,共2,052个帖子。

组: Moderator

Wrote

Hello,

I know how to dissolve one differential equation of the any degree using MapleWrapper plugin. But how to dissolve the system of ODE using MapleWrapper, this unfortunately I do not know. Please for the help.

I tried in different ways to reach the result, however ineffective.

From above heartily thank you for your help.

Regards,
Janusz


I am not quite sure this was correctly solved using Maple

Regards,
Radovan
odesystem.sm (9.74 KiB)已下载 1585 次。
When Sisyphus climbed to the top of a hill, they said: "Wrong boulder!"
#166 已发布: 2013/6/3 08:16:08
Janusz

Janusz

7个赞,共48个帖子。

组: User

Hello Radovan,

Thank you for these examples. I think that I know already where I made mistakes. Thank you also for your kind - already several times you helped me.

Regards,
Janusz
#167 已发布: 2013/6/3 09:31:47
Radovan Omorjan

Radovan Omorjan

325个赞和1个踩,共2,052个帖子。

组: Moderator

You are welcome Janusz

And do not hesitate to ask, as I always do

Regards,
Radovan
When Sisyphus climbed to the top of a hill, they said: "Wrong boulder!"
#168 已发布: 2013/6/4 12:02:24
Janusz

Janusz

7个赞,共48个帖子。

组: User

Hello,

Make calculations in MapleWrapper must be record the tangent function as: "tan" what it is visible on the first picture. To closing of the file and his repeated opening SMath Studio changes the function tanges from the record: "tan" - required through MapleWrapper, on "tg", and in the this moment MapleWrapper cannot make calculations because it has implemented the tangent function as "tan" and not "tg" as in SMath Studio in the this moment - look the second picture. Well would be to standardize this mark of the tangent function in MapleWrapper and SMath Studio.

Regards,
Janusz


Before save:
Before save

After open:
After open
#169 已发布: 2013/6/4 12:16:39
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

I think this is a bug (Smath Studio, not mine). The same works and for cot(). You can define the function tg():=tan() and it should work.
The names of the trigonometric functions depends on the settings of the program. I consider them.
Russia ☭ forever, Viacheslav N. Mezentsev
#170 已发布: 2013/6/4 12:25:54
Janusz

Janusz

7个赞,共48个帖子。

组: User

Hello Uni,

Thank you for explanations and the council.

Regards,
Janusz
#171 已发布: 2013/6/4 13:00:28
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

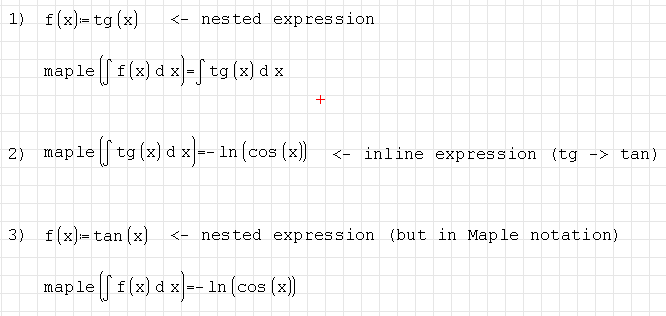

There still need to add that maple() function doesn't support nested expressions fully. I had not planned to use such complex commands.


Russia ☭ forever, Viacheslav N. Mezentsev
#172 已发布: 2013/6/4 13:37:21
Janusz

Janusz

7个赞,共48个帖子。

组: User

Viacheslav,

This is very instructive and surprising example. My congratulations! Thank you very much!

Regards,
Janusz
#173 已发布: 2013/6/6 13:19:28
Janusz

Janusz

7个赞,共48个帖子。

组: User

Hello!

Please for the explanation why I receive two different results as this is visible on the example below:

Where is the error?

Regards,
Janusz
Where is the error.sm (7.65 KiB)已下载 1629 次。
#174 已发布: 2013/6/6 13:45:19
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

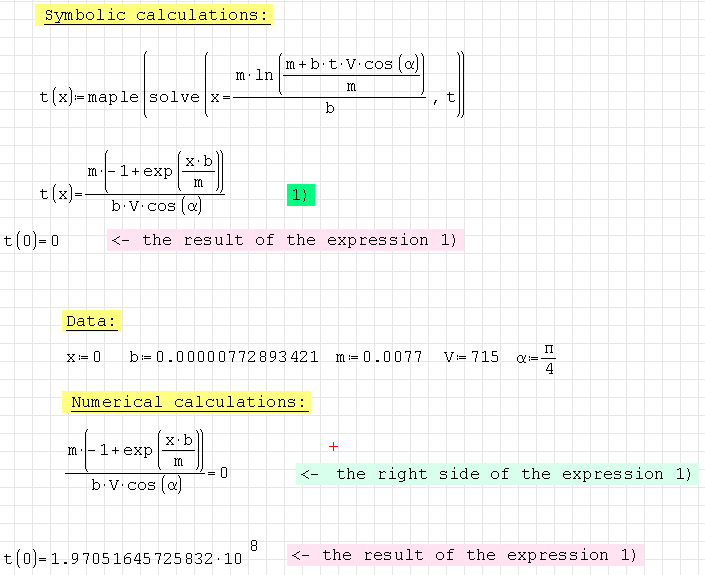

There is no error. This behavior depends on the relative positions of the expressions on the sheet. When you put the definition of x above of a function call, the variable x in the expression solver becomes zero.

Russia ☭ forever, Viacheslav N. Mezentsev
#175 已发布: 2013/6/6 13:54:16
Janusz

Janusz

7个赞,共48个帖子。

组: User

Hello Uni,

Thank you for the explanation. The first time I meet with such by chance.

Regards,
Janusz
#176 已发布: 2013/6/6 14:20:16
Janusz

Janusz

7个赞,共48个帖子。

组: User

Uni,

I cannot obtain such result as you. Can I ask you for the source file of your results.

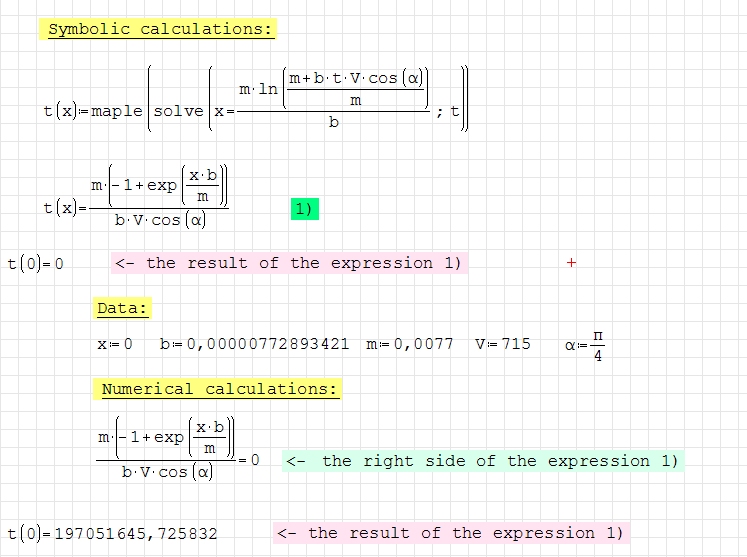

Where is the error 1.jpg

Regards,
Janusz
#177 已发布: 2013/6/6 14:32:29
Radovan Omorjan

Radovan Omorjan

325个赞和1个踩,共2,052个帖子。

组: Moderator

I Installed MapleWrapper from the Online Gallery

It seems Maple is working fine, but, unfortunately, MaplePlot can not produce a plot for me. There are still "empty" plots there, in spite of inserting the plotting text inside them .
I hope I did not do something wrong.

Regards,
Radovan
mvr5.txt (8.71 KiB)已下载 1444 次。
When Sisyphus climbed to the top of a hill, they said: "Wrong boulder!"
#178 已发布: 2013/6/6 14:46:01
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Not so fast There's a bug. This is a test version for the new version SMath Studio. I'll combine Maple and MaplePlot regions.
Russia ☭ forever, Viacheslav N. Mezentsev
1位用户喜欢此帖子
Radovan Omorjan 2013/6/6 15:36:00
#179 已发布: 2013/6/7 11:32:03
Janusz

Janusz

7个赞,共48个帖子。

组: User

Wrote

There is no error. This behavior depends on the relative positions of the expressions on the sheet. When you put the definition of x above of a function call, the variable x in the expression solver becomes zero.




Hello,

Right now I noticed, that the power in the calculation of the value t (0) at the end of your sheet is positive. From here the conclusion: there is the error because the value t(0) have to be zero. The value x equal zero is given at the end because here I pass to numerical calculations.

If I am wrong please for the explanation.

Regards,
Janusz
#180 已发布: 2013/6/7 13:13:56
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

When you are trying to calculate the last expression the maple() function takes the following expression (see mvr5\mvr5.txt):

显示剧透


As you can see: solve({(0=, but you expected solve({(x=. That's the difference. The solve() function solves another equation.
Russia ☭ forever, Viacheslav N. Mezentsev
