Maple Tools - Symbolic engine for SMath Studio. - 消息

#461 已发布: 2024/12/26 14:47:54
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Wrote

In addition to names, parameter types also need to be converted. They need to be supported in both directions. As for trigonometric functions, the SMath tries to automatically work with names, which prevents them from being supported in the plugin in a controlled way.

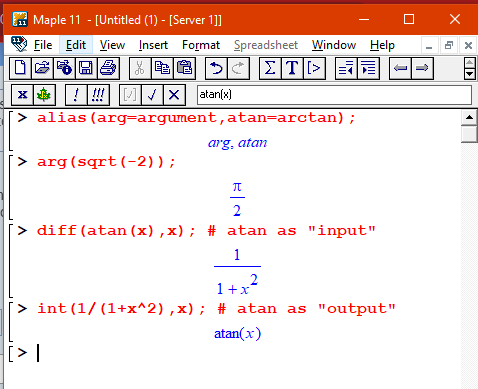

Hi Viacheslav. Forgetting about types for a moment, if you add a line with "alias(arg=argument, asin=arcsin, ... )" and some other aliases to the plugin's "in.tmp" file, wouldn't it do the conversion automatically?



Best regards.
Alvaro.
#462 已发布: 2024/12/26 15:18:42
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

You can check it yourself. The plugin supports including custom commands using the "with.inc" file. The file content is added automatically with each conversion to the in.tmp file header.
Russia ☭ forever, Viacheslav N. Mezentsev
1位用户喜欢此帖子
Alvaro 2024/12/26 15:50:00
#463 已发布: 2024/12/26 15:54:20
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Hi Viacheslav. This is the modified with.inc:

with(linalg):with(inttrans):with(plots):
alias(arg=argument, sign=signum, u=Heaviside):
alias(asin=arcsin, acos=arccos, atan=arctan):
alias(asec=arcsec, acsc=arccsc, acot=arccot):
alias(asinh=arcsinh, acosh=arccosh, atanh=arctanh):
alias(asech=arcsech, acsch=arccsch, acoth=arccoth):

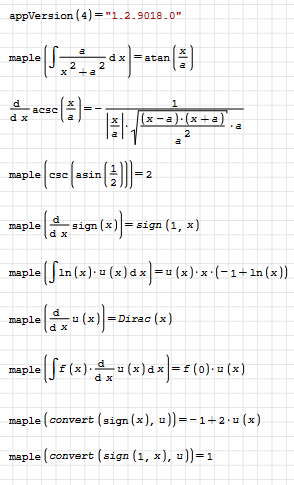

And this is the test:

alias.sm (8.84 KiB)已下载 1807 次。


I use u=Heaviside because there is a plugin with this function, useless for integration, but there must be some other better name. Also, there are some other functions, like GAMMA, Bessel, Airy, etc.

Best regards.
Alvaro.
1位用户喜欢此帖子
#464 已发布: 2025/7/30 14:48:24
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Since the maple plugin is used as an intermediary, all interpreters based on it will be located here.

In the future, a separate plugin can be made to remove unnecessary transformations.

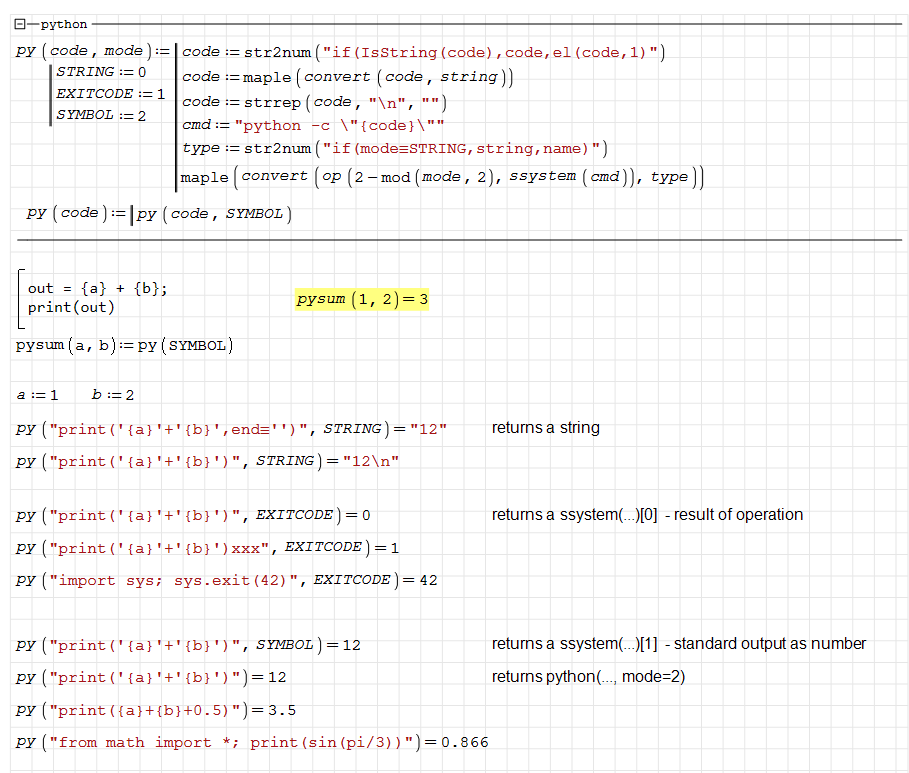

The python.exe interpreter must be accessible via known paths.

maple-python-mode.sm (12.22 KiB)已下载 1474 次。


The octave-cli.exe interpreter must be accessible via known paths.

maple-octave-mode.sm (12.45 KiB)已下载 1590 次。

Russia ☭ forever, Viacheslav N. Mezentsev
#465 已发布: 2025/7/30 15:52:21
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

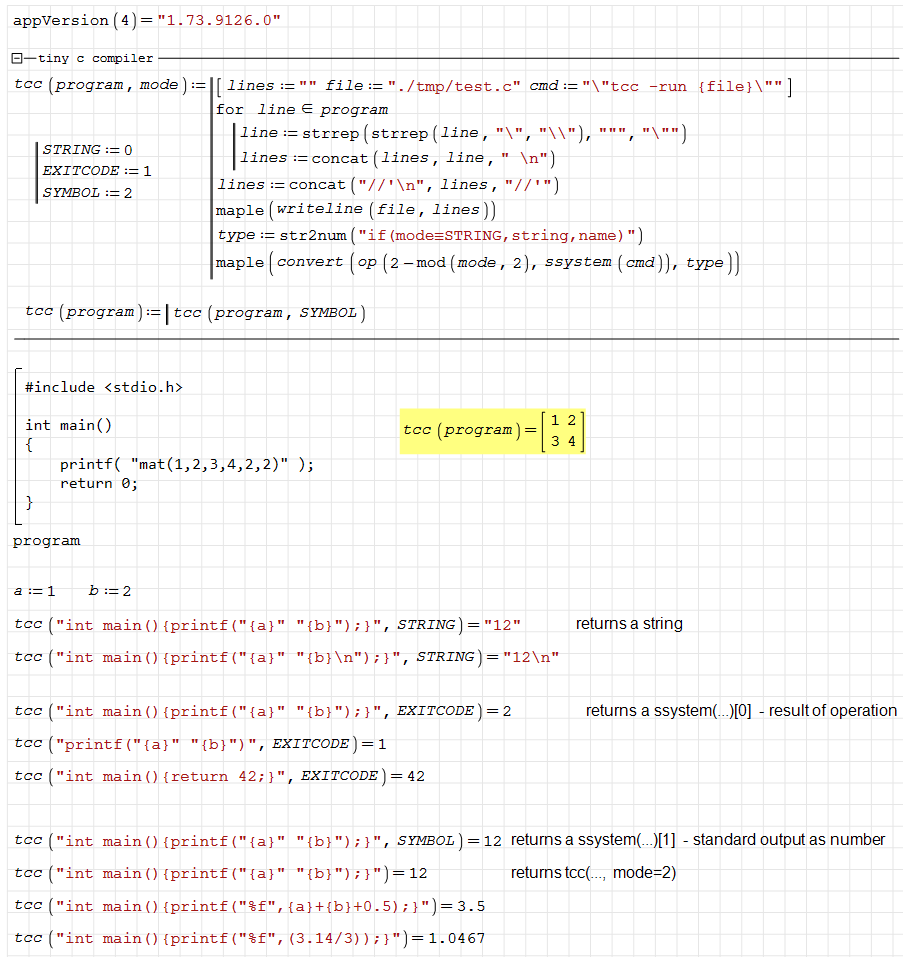

The same for Tiny C Compiler

maple-tcc-mode.sm (14.41 KiB)已下载 1477 次。

Russia ☭ forever, Viacheslav N. Mezentsev
1位用户喜欢此帖子
Andrey Ivashov 2025/7/31 23:43:05
#466 已发布: 2025/11/12 06:55:56
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User


Thanks, Slava!
See pls the attach
mapletools-implicitplot3d-Nautilus.sm (271.98 KiB)已下载 1081 次。

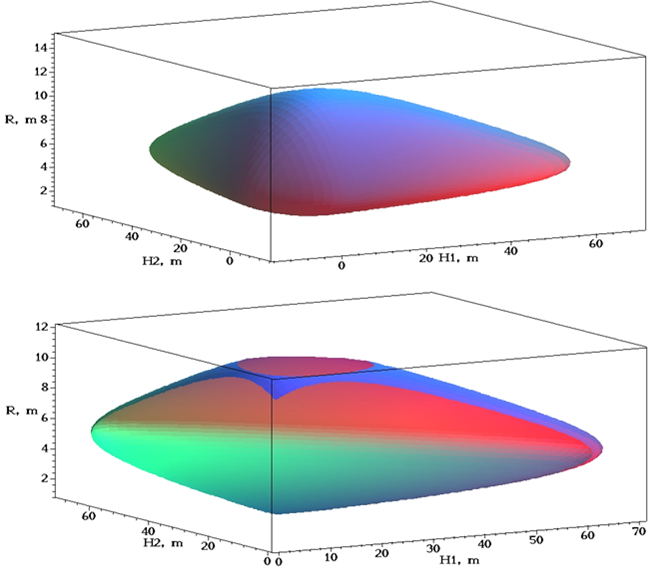

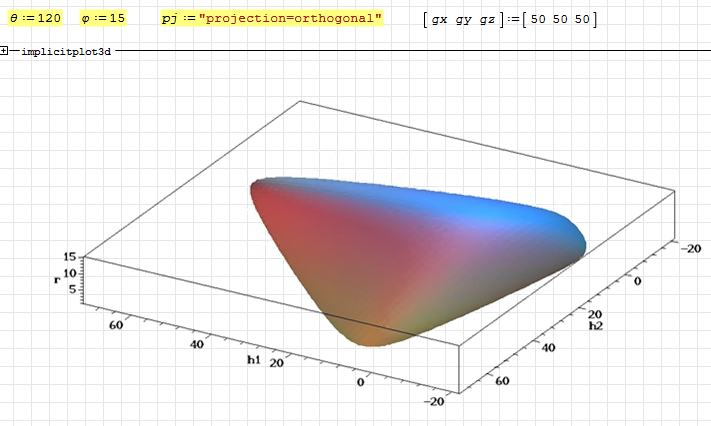

How can we to put correct view - as in the Maple-picture?
#467 已发布: 2025/11/13 01:42:01
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

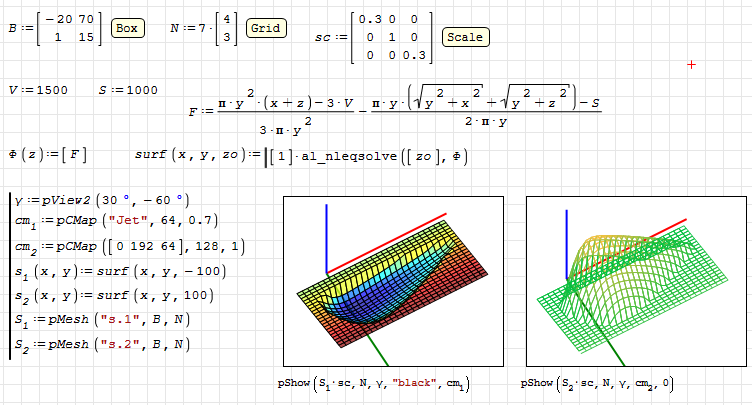

Hi Valery. I don't know from which version of Maple has implicit plot 3D, but I'm sure version 6 doesn't have it. You can try pMesh or pSurf.


pMesh-implicit.sm (123.13 KiB)已下载 982 次。

Best regards.
Alvaro.
已编辑 2025/11/13 01:43:51
#468 已发布: 2025/11/13 05:14:51
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

Wrote

Hi Valery. I don't know from which version of Maple has implicit plot 3D, but I'm sure version 6 doesn't have it. You can try pMesh or pSurf.


pMesh-implicit.sm (123.13 KiB)已下载 982 次。

Best regards.
Alvaro.



Thanks, Alvaro!
See pls attachs
mapletools-implicitplot3d-Nautilus.pdf (489.57 KiB)已下载 544 次。
mapletools-implicitplot3d-Nautilus.sm (274.4 KiB)已下载 1051 次。
Nautilus.sm (45.81 KiB)已下载 991 次。
已编辑 2025/11/13 05:29:54
#469 已发布: 2025/11/13 06:56:15
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Oh, I see. Maple 6 have that function. I also had no idea that you could use setprop with maple plots. I guess then that what you need is to find the right projection. It's difficult since it's not interactive. Maybe this helps.


mapletools-implicitplot3d-Nautilus mod.sm (26.32 KiB)已下载 1029 次。

Best regards.
Alvaro.
1位用户喜欢此帖子
Valery Ochkov 2025/11/13 11:11:31
#470 已发布: 2025/11/14 03:46:14
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

Tanks, Alvaro!
See pls
mapletools-implicitplot3d-Nautilus.sm (17.81 KiB)已下载 993 次。
已编辑 2025/11/14 03:53:50
#471 已发布: 2025/11/14 08:50:30
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

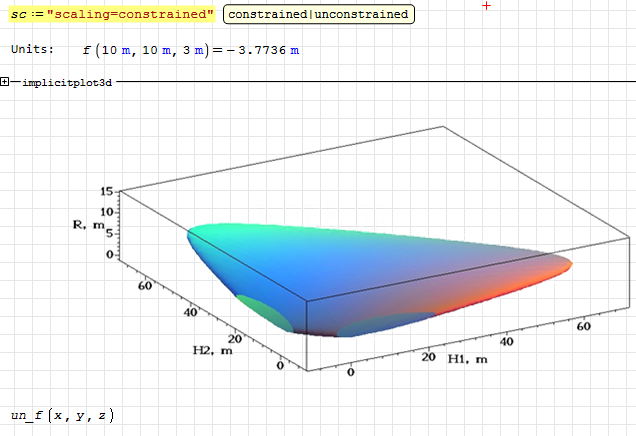

Hi. Some improvements, I guess. You can sterilize the units inside a wrapper function. Also, using scaling=constrained looks with the real proportions.


mapletools-implicitplot3d-Nautilus (2).sm (20.29 KiB)已下载 979 次。

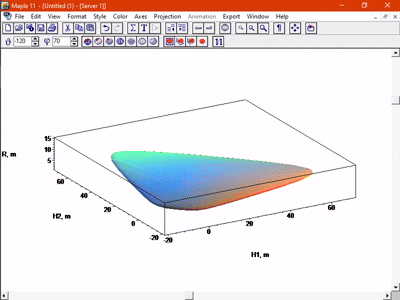

In Maple 11:


Also, from other post from you, notice that you can write the temperatures like this


Best regards.
Alvaro.
已编辑 2025/11/14 09:06:20
1位用户喜欢此帖子
Valery Ochkov 2025/11/14 09:23:42
#472 已发布: 2025/11/18 09:07:03
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

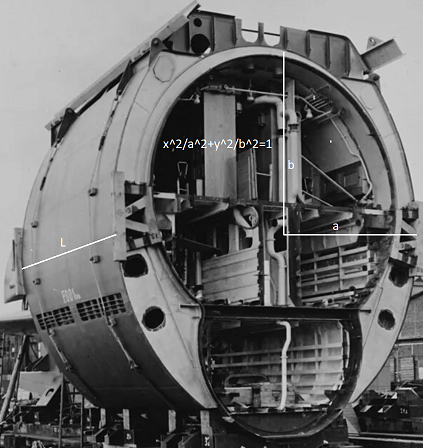

Can you solve this problem? The submarine's cross-section is an ellipse, and the bow and stern are halves of the ellipsoid.
Слабо?
已编辑 2025/11/18 09:07:54
#473 已发布: 2025/11/19 07:35:25
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Wrote

Can you solve this problem? The submarine's cross-section is an ellipse, and the bow and stern are halves of the ellipsoid.
Слабо?



Hi Valery. And what's the problem? It has a curious shape, but I suppose it's not one of the strangest I've seen. I don't know what problem you're trying to solve. I thought it was just about getting the graph like in Mathcad.

Best regards.
Alvaro.
#474 已发布: 2025/11/19 10:47:29
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

Wrote

Wrote

Can you solve this problem? The submarine's cross-section is an ellipse, and the bow and stern are halves of the ellipsoid.
Слабо?



Hi Valery. And what's the problem? It has a curious shape, but I suppose it's not one of the strangest I've seen. I don't know what problem you're trying to solve. I thought it was just about getting the graph like in Mathcad.

Best regards.
Alvaro.


Thanks Alvaro for the interest.
The problem - the submarine's cross-section is an ellipse, and the bow and stern are halves of the ellipsoid.
V, S, L=constants, a, b -?
By symbolic and/or numeric math. With 3D-plot with animation!
已编辑 2025/11/19 10:49:19
#475 已发布: 2025/11/20 01:38:49
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

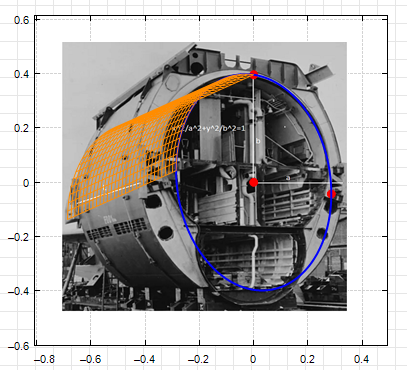

Hy Valery. Assuming the cameraman was very skilled and there's no roll angle, and disregarding perspective effects, you can try adjusting the values ​​for a setup similar to the following


submarine ellipse.sm (295.35 KiB)已下载 973 次。

Best regards
Alvaro
1位用户喜欢此帖子
#476 已发布: 2025/11/21 17:13:21
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

Wrote

Hy Valery. Assuming the cameraman was very skilled and there's no roll angle, and disregarding perspective effects, you can try adjusting the values ​​for a setup similar to the following


submarine ellipse.sm (295.35 KiB)已下载 973 次。

Best regards
Alvaro

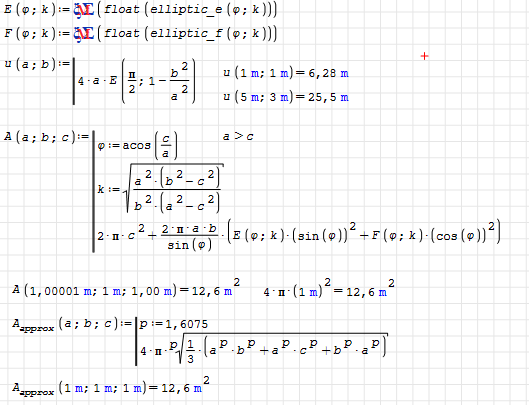

How to calculate the length of an ellipse and the area of an ellipsoid?
#477 已发布: 2025/11/22 00:23:09
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

As it is not a political question, you may rely on Wikipedia: https://en.wikipedia.org/wiki/Ellipsoid

elli.sm (13.46 KiB)已下载 987 次。
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
1位用户喜欢此帖子
Alvaro 2025/11/22 05:07:26
#478 已发布: 2025/11/22 00:38:57
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

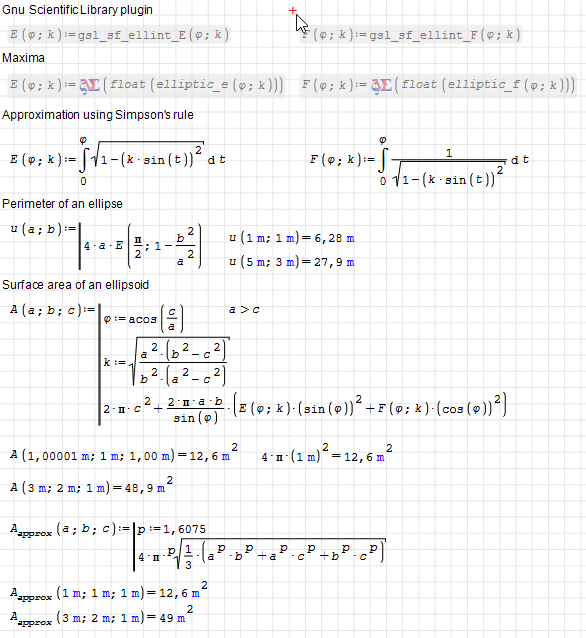

Maxima can be replaced by Gnu Scientific Library plugin.

Edit: Alvaro found a typo and suggested to use the definition of the elliptic integrals directly.

elli.sm (19.21 KiB)已下载 963 次。
已编辑 2025/11/22 10:50:21
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
2位用户喜欢此帖子
Alvaro 2025/11/22 22:47:53, ioan92 2025/11/28 07:27:29
#479 已发布: 2025/11/23 09:58:48
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

引用

The problem - the submarine's cross-section is an ellipse, and the bow and stern are halves of the ellipsoid.
V, S, L=constants, a, b -?



The (possibly) elliptical outer hull of the submarine doesn't carry pressure loads. The cross section of the actual internal pressure vessel seems to consist of two circle segments. Elliptical sections would easily collapse under external pressure. Circular sections are bending-free and the internal and external bulkheads and stringers just prevent the hull from buckling due to compressive membrane stress. The outer hull may contribute to that in the sense of a sandwich design. Of course, there might be non-uniform pressure loads due to nearby detonations or collisions with the ground or other vessels.
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
1位用户喜欢此帖子
Alvaro 2025/11/25 03:27:35
