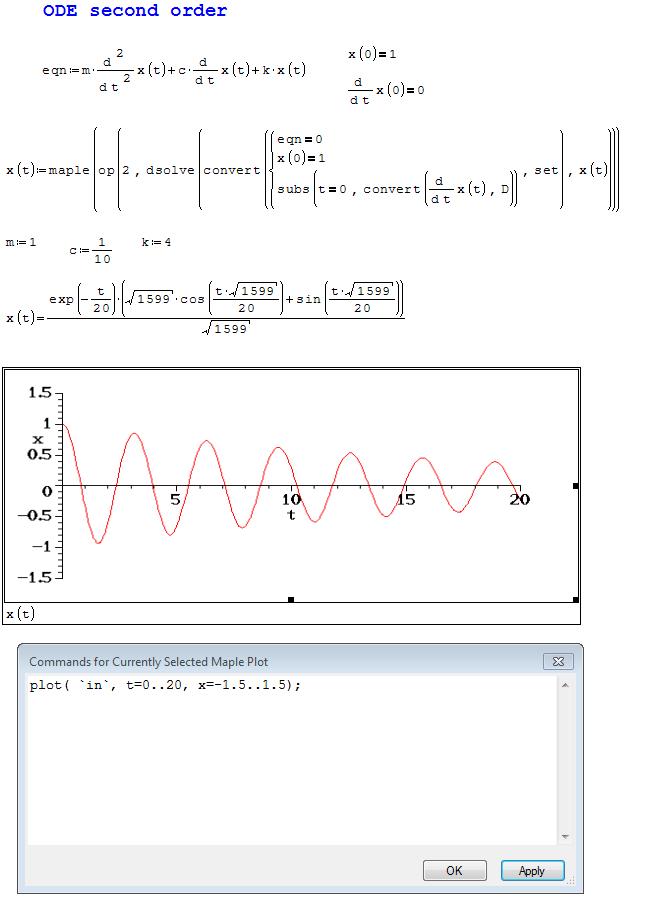

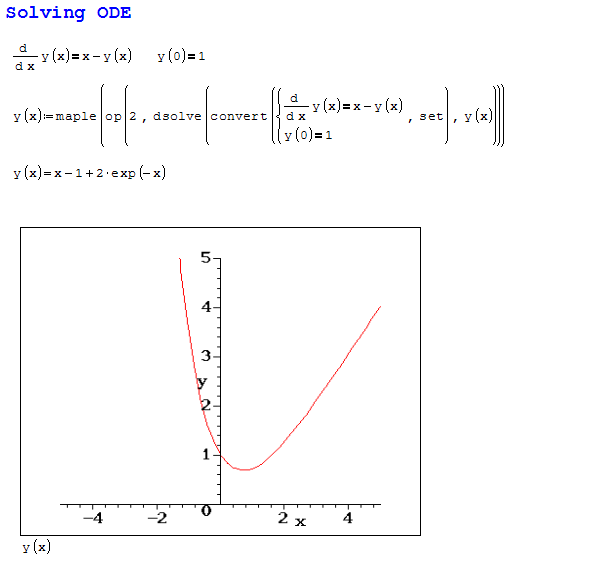

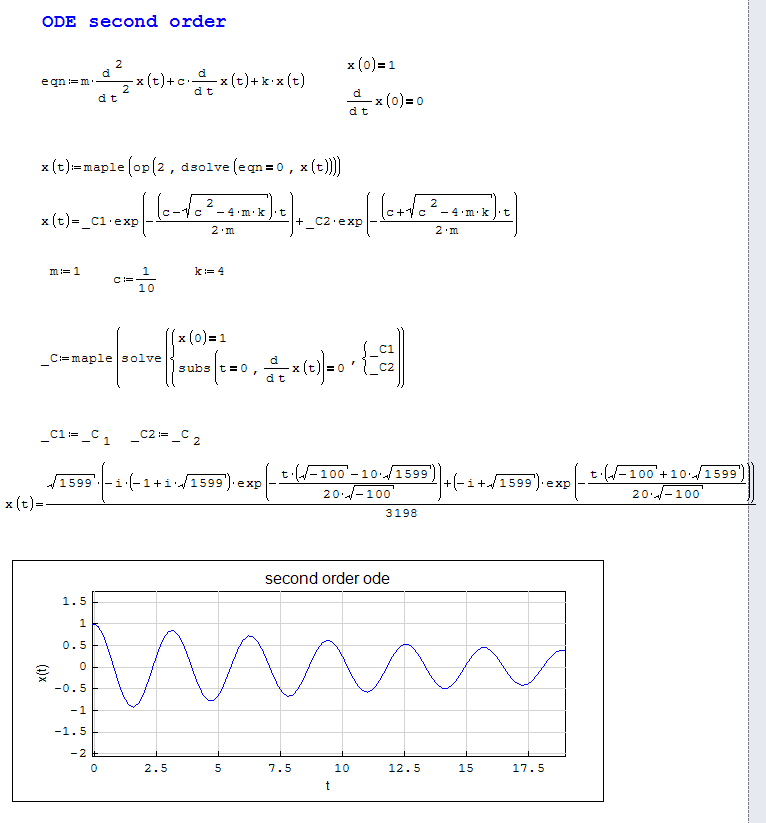

First and second order ODE examples.


I do not know how to solve them in one step like. How to put sets - {} in the command?

>dsolve({D(y)(x)=x-y,y(0)=1},y(x))

Could someone give some help?

Regards,
Radovan
ode2.sm (13.69 KiB)已下载 1657 次。
When Sisyphus climbed to the top of a hill, they said: "Wrong boulder!"
#122 已发布: 2013/5/24 19:54:08
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Updated. The document can not be saved. I don't know why.

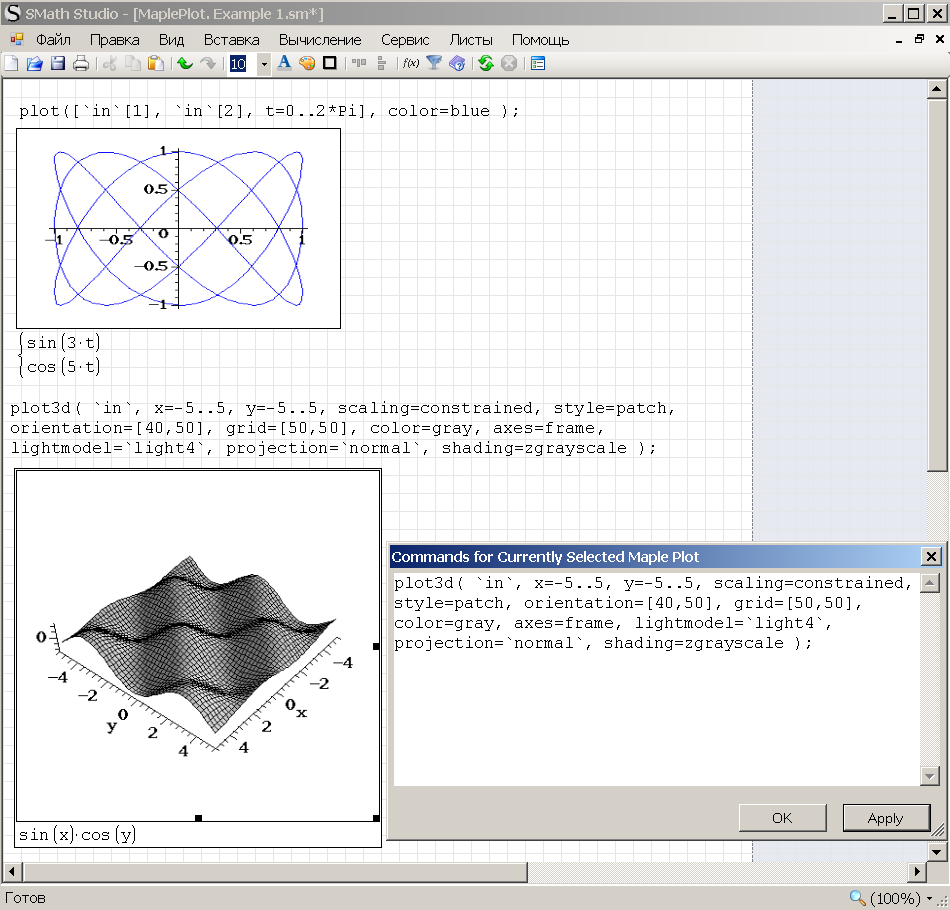

plot([`in`[1], `in`[2], t=0..2*Pi], color=blue );

plot3d( `in`, x=-5..5, y=-5..5, scaling=constrained, style=patch,
orientation=[40,50], grid=[50,50], color=gray, axes=frame,
lightmodel=`light4`, projection=`normal`, shading=zgrayscale );

implicitplot3d( `in`=0, x=-2..2, y=-2..2, z=-2..2, grid=[50,50,50], orientation=[20,60],
axes=frame, lightmodel=`light4`, projection=`normal`, style=patchnogrid);

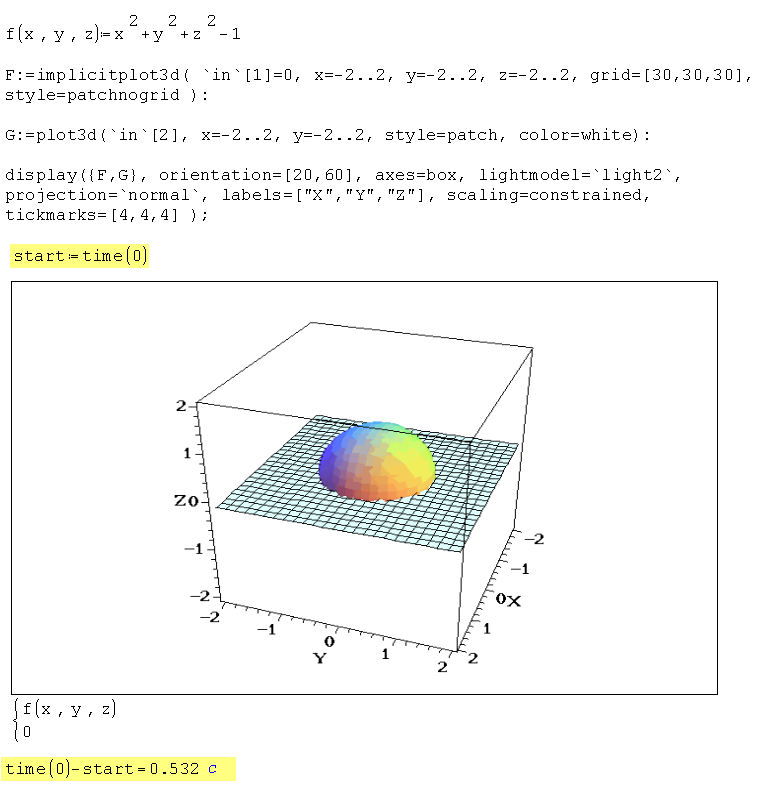

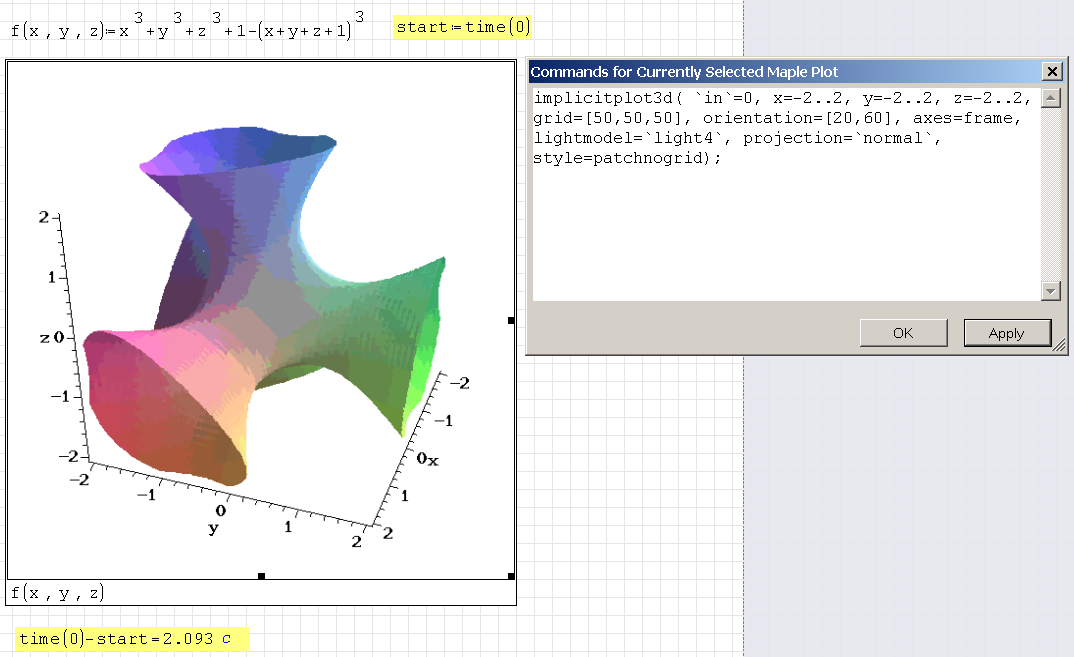

MapleWrapper_screen14.png MapleWrapper_screen15.png

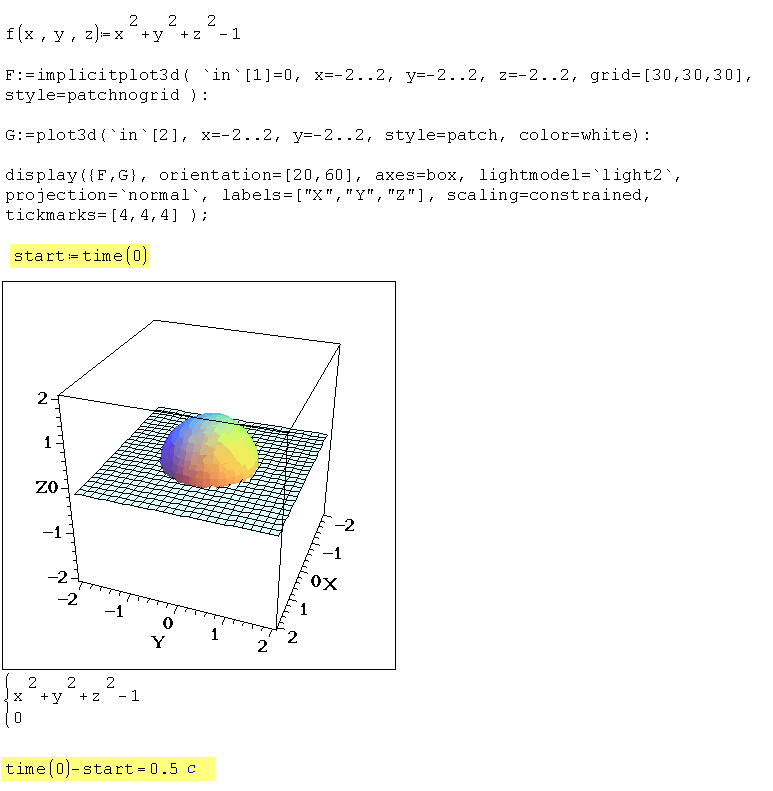

F:=implicitplot3d( `in`[1]=0, x=-2..2, y=-2..2, z=-2..2, grid=[30,30,30],
style=patchnogrid ):

G:=plot3d(`in`[2], x=-2..2, y=-2..2, style=patch, color=white):

display({F,G}, orientation=[20,60], axes=box, lightmodel=`light2`,
projection=`normal`, labels=["X","Y","Z"], scaling=constrained,
tickmarks=[4,4,4] );

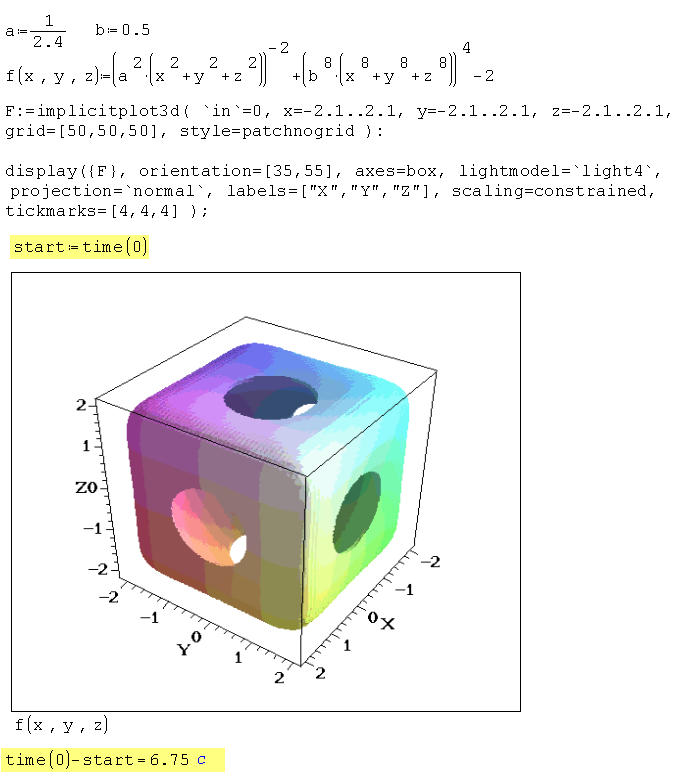

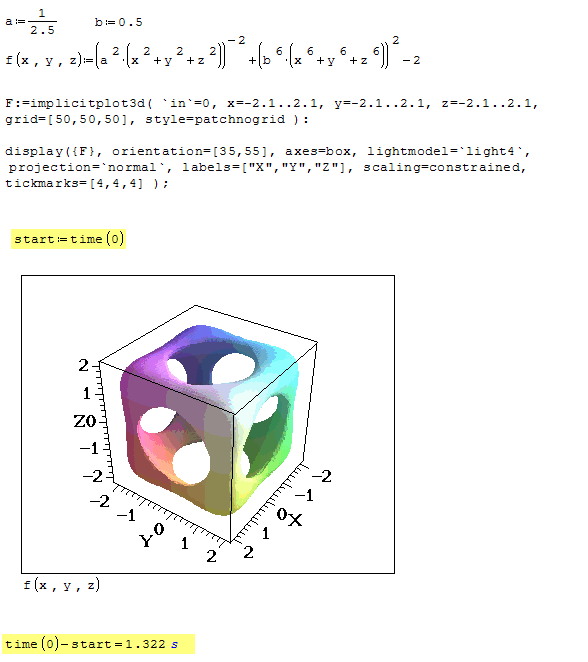

[MATH]f(x;y;z)a^2*(x^2+y^2+z^2))^{-2}+(b^8*(x^8+y^8+z^8))^4-2[/MATH]

F:=implicitplot3d( `in`=0, x=-2.1..2.1, y=-2.1..2.1, z=-2.1..2.1,
grid=[50,50,50], style=patchnogrid ):

display({F}, orientation=[35,55], axes=box, lightmodel=`light4`,
projection=`normal`, labels=["X","Y","Z"], scaling=constrained,
tickmarks=[4,4,4] );

Russia ☭ forever, Viacheslav N. Mezentsev
#123 已发布: 2013/5/25 03:50:17
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Wrote

I do not know how to solve them in one step like. How to put sets - {} in the command?

>dsolve({D(y)(x)=x-y,y(0)=1},y(x))

Could someone give some help?

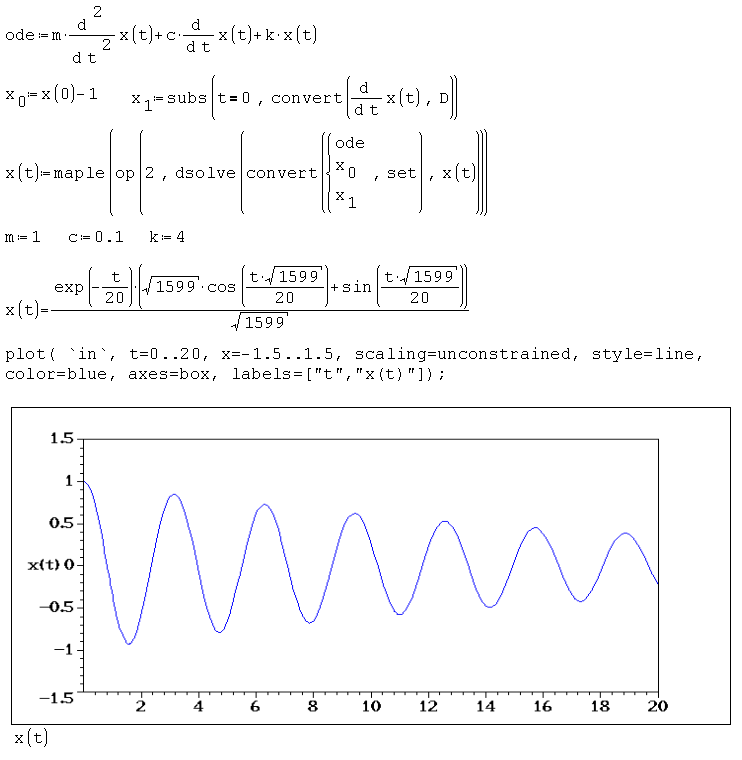

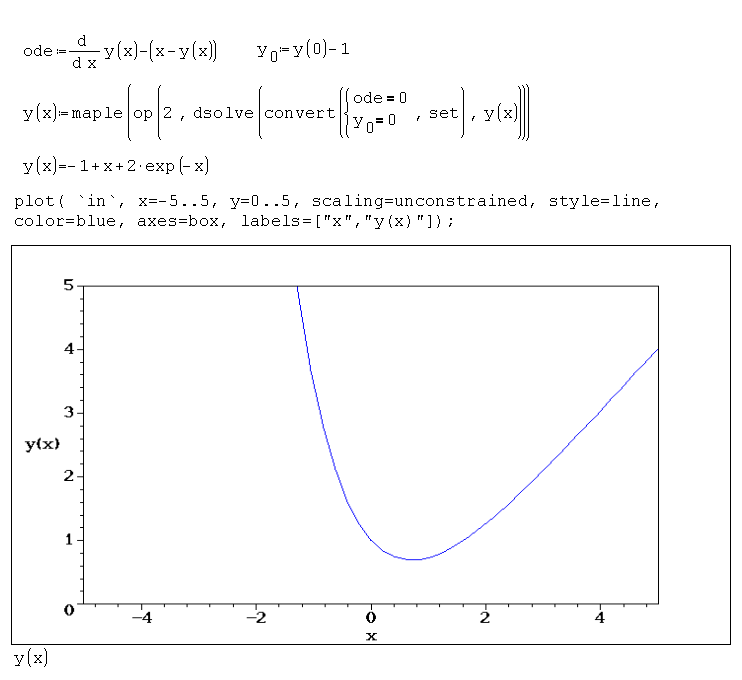

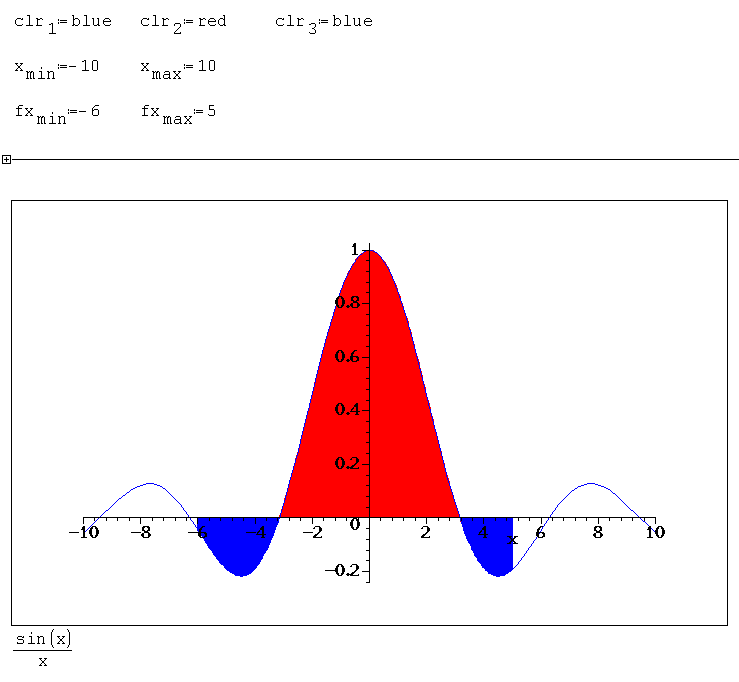

MaplePlot_screen2.png MaplePlot_screen3.png
Russia ☭ forever, Viacheslav N. Mezentsev
#124 已发布: 2013/5/25 05:52:17
Radovan Omorjan

Radovan Omorjan

325个赞和1个踩,共2,052个帖子。

组: Moderator

Aha,...convert() was the magic word. Thank you
Strange, but this one was the only one successful

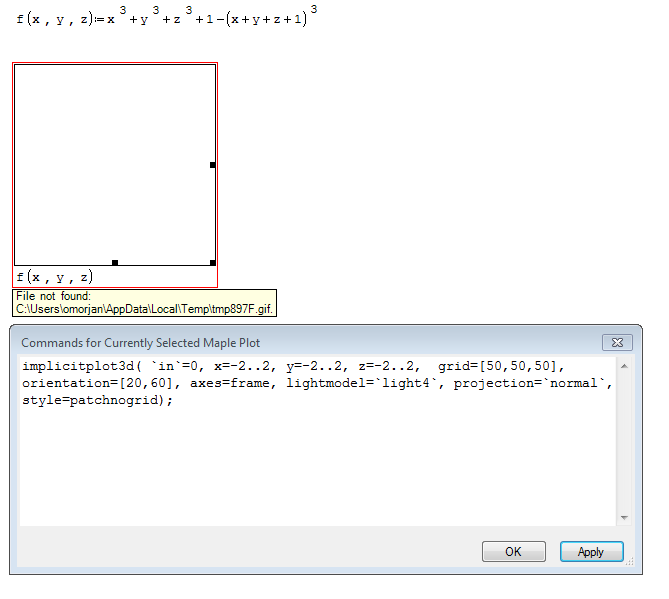

My other attempts in making plots and reproducing your pictures, issued an error about missing gif file in tmp folder. See the picture please


The problem of not saving pictures and SMat crash still remained.

Regards,
Radovan
When Sisyphus climbed to the top of a hill, they said: "Wrong boulder!"
#125 已发布: 2013/5/25 06:08:25
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Show me the log file: mvr5.txt.
Russia ☭ forever, Viacheslav N. Mezentsev
#126 已发布: 2013/5/25 06:19:05
Radovan Omorjan

Radovan Omorjan

325个赞和1个踩,共2,052个帖子。

组: Moderator

Wrote

Show me the log file: mvr5.txt.


Here it is. If you want me something in particular to try, just let me know.

Regards,
Radovan


mvr5.txt (192.04 KiB)已下载 1403 次。
When Sisyphus climbed to the top of a hill, they said: "Wrong boulder!"
#127 已发布: 2013/5/25 06:40:59
Radovan Omorjan

Radovan Omorjan

325个赞和1个踩,共2,052个帖子。

组: Moderator

This one is after deleting mvr5.txt and trying to make a parametric 3dplot
When Sisyphus climbed to the top of a hill, they said: "Wrong boulder!"
#128 已发布: 2013/5/25 06:59:09
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Wrote

Wrote

Show me the log file: mvr5.txt.


Here it is. If you want me something in particular to try, just let me know.

Regards,
Radovan


Radovan, you have to change the maple-commands for each graph. In your example these commands are set incorrectly. I specifically show the commands. They need to be inserted into the settings form, as showed above.

1) Try this:

a := plot( `in`, t=0..20, x=-1.5..1.5, scaling=unconstrained, style=line,
color=blue, axes=box, labels=["t","x(t) "]):

b := coordplot(rectangular, [0..20, -1.5..1.5], linestyle=[7,7],
color=[gray,gray]):

display([a,b]);

2) projection=`normal must be projection=`normal`
Russia ☭ forever, Viacheslav N. Mezentsev
#129 已发布: 2013/5/25 08:04:10
Radovan Omorjan

Radovan Omorjan

325个赞和1个踩,共2,052个帖子。

组: Moderator

I tried your suggestion (just copy/paste) and calculation take quite long (did not wait for it to finish). Just used the simple one, and it worked (the first picture). It is good enough for me .

Tried one of your examples, and typed carefully as much as I could. I did not see any mistake - but the plot did not appear (the second picture)


Regards,
Radovan
mvr5.txt (265.75 KiB)已下载 1484 次。
When Sisyphus climbed to the top of a hill, they said: "Wrong boulder!"
#130 已发布: 2013/5/25 08:14:41
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Try to add with(plots): to with.inc:
引用

with(linalg):with(inttrans):with(plots):

Russia ☭ forever, Viacheslav N. Mezentsev
#131 已发布: 2013/5/25 08:26:25
Radovan Omorjan

Radovan Omorjan

325个赞和1个踩,共2,052个帖子。

组: Moderator

Wrote

Try to add with(plots): to with.inc:

引用

with(linalg):with(inttrans):with(plots):



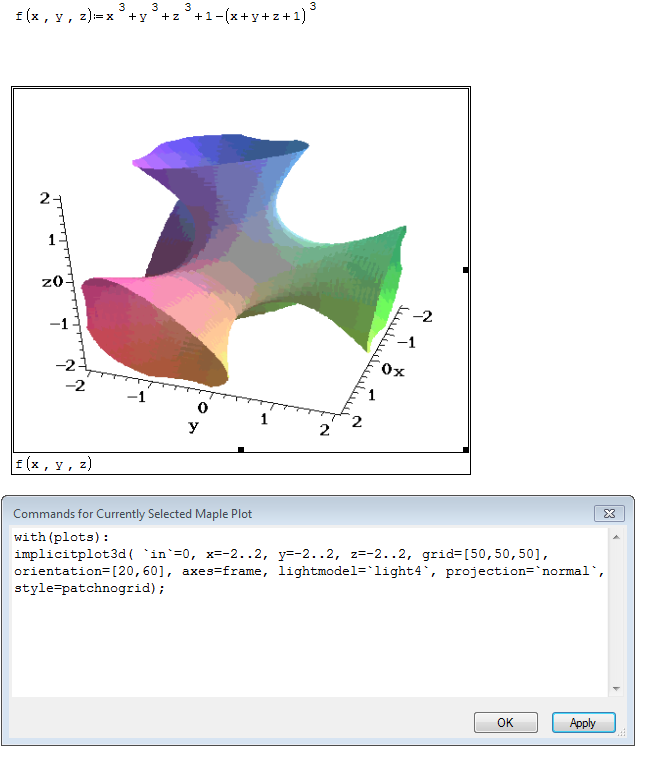

It worked . What was the catch?

When Sisyphus climbed to the top of a hill, they said: "Wrong boulder!"
#132 已发布: 2013/5/25 12:26:54
Radovan Omorjan

Radovan Omorjan

325个赞和1个踩,共2,052个帖子。

组: Moderator

Nice

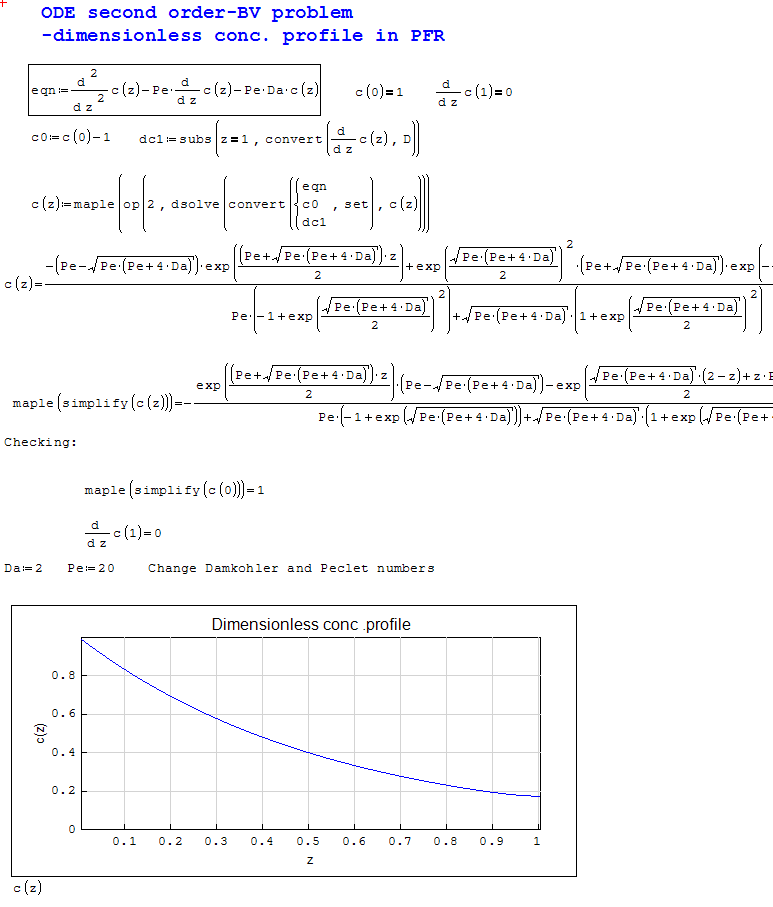

ode2-boundary.sm (18.63 KiB)已下载 1690 次。
When Sisyphus climbed to the top of a hill, they said: "Wrong boulder!"
1位用户喜欢此帖子
#133 已发布: 2013/5/25 19:40:31
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

MaplePlot updated. Small imprоvements.

Russia ☭ forever, Viacheslav N. Mezentsev
1位用户喜欢此帖子
Radovan Omorjan 2013/5/26 03:00:00
#134 已发布: 2013/5/26 02:59:31
Radovan Omorjan

Radovan Omorjan

325个赞和1个踩,共2,052个帖子。

组: Moderator

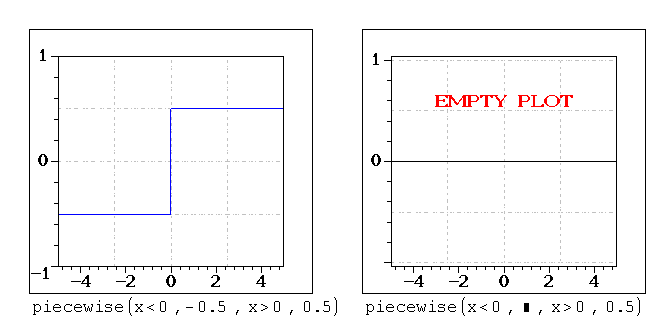

Just to confirm. The EMPTY PLOT is now working fine. No crash of SMath at the plot inserting

When Sisyphus climbed to the top of a hill, they said: "Wrong boulder!"
#135 已发布: 2013/5/26 04:20:20
Janusz

Janusz

7个赞,共48个帖子。

组: User

Hello,

Heartily please for the prompt, how to check in Maple that two expressions are to themselves equal. For example whether the expression under variable a is such alone as the expression under variable b?

Regards,
Janusz
#136 已发布: 2013/5/26 06:26:32
Radovan Omorjan

Radovan Omorjan

325个赞和1个踩,共2,052个帖子。

组: Moderator

Wrote

Heartily please for the prompt, how to check in Maple that two expressions are to themselves equal. For example whether the expression under variable a is such alone as the expression under variable b?


I do not use maple to much (it is interesting and a fun using it in SMath ) , and someone else might give you a better solution - but this should work

[MATH=eng]e1a^2-1)*1/sqrt(a)[/MATH]

[MATH=eng]e2b-1)*(b+1)/sqrt(b)[/MATH]

[MATH=eng]maple(simplify(subs(a≡b,e1)-e2))=0[/MATH]

Regards,
Radoavn
When Sisyphus climbed to the top of a hill, they said: "Wrong boulder!"
#137 已发布: 2013/5/26 07:32:54
Janusz

Janusz

7个赞,共48个帖子。

组: User

Hi Radoavn,

Thank you, interesting solution, will try out it.

Regards,
Janusz
#138 已发布: 2013/5/27 01:10:51
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Updated. Still can't save region.

显示剧透



MaplePlot. Example 8.sm (4.9 KiB)已下载 1688 次。
Russia ☭ forever, Viacheslav N. Mezentsev
1位用户喜欢此帖子
Radovan Omorjan 2013/5/27 04:21:00
#139 已发布: 2013/5/27 02:22:01
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

Thanks for the update.

I have still trouble with the basics. Example 2 does not work.

Here is what the log file says:

显示剧透



There are empty tmp files in the tmp dir:
tmp59BF.tmp
tmp5A0F.tmp
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
#140 已发布: 2013/5/27 03:07:10
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

In your example:
[MATH]`in`x^2+y^2+z^2)-1[/MATH]

but expected:

[MATH]sys(el(`in`;1);el(`in`;2);2;1):sys((x^2+y^2+z^2)-1;0;2;1)[/MATH]

we get: `in`[1]="" , `in`[2]="" - empty values (because it is not a system) and `in`=(x^2+y^2+z^2)-1 (but is missing in script)

Must be:

显示剧透



引用

There are empty tmp files in the tmp dir:
tmp59BF.tmp
tmp5A0F.tmp

This is normal.
Russia ☭ forever, Viacheslav N. Mezentsev
