I'm not shure about BodePlot and TransferFunction. I think Maple V Release 5 does not support these functions.

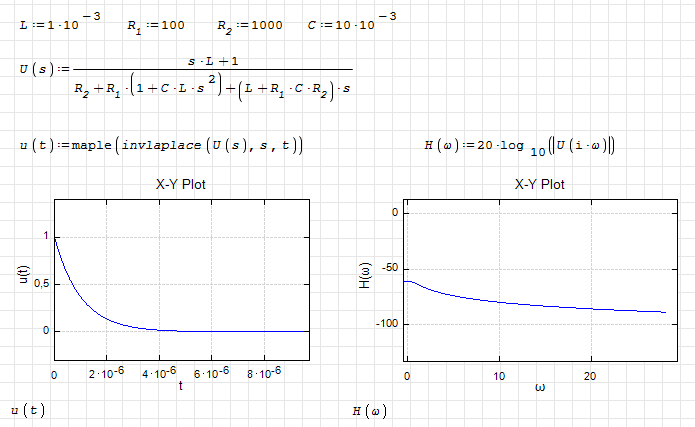

You must use something like this:

Russia ☭ forever, Viacheslav N. Mezentsev
#342 已发布: 2018/9/14 04:18:33
andrea993

andrea993

2个赞,共12个帖子。

组: User

Wrote

.

You must use something like this:



OK but in Bode the graph should has logarithmic scale (and it misses the phase plot (not a problem)). Is there some graphs plugin that does logarithmic scale, without I have to simulate it?
#343 已发布: 2018/9/14 05:37:40
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

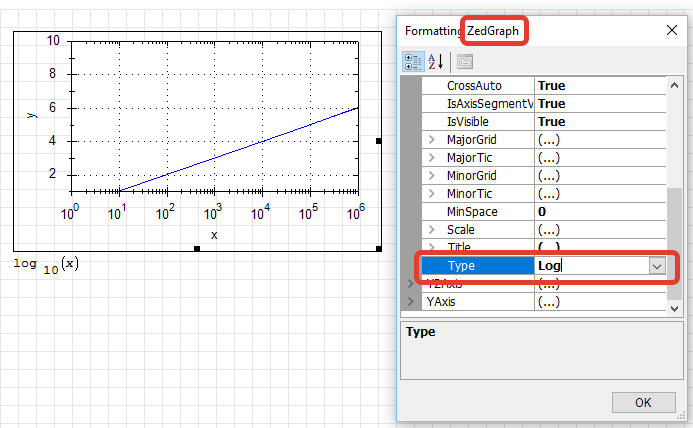

ZedGraph can do that.

Russia ☭ forever, Viacheslav N. Mezentsev
2位用户喜欢此帖子
frapuano 2018/9/14 06:14:00, IVR 2018/9/14 06:48:00
#344 已发布: 2018/9/14 05:45:05
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

ilt.sm (18.18 KiB)已下载 1592 次。

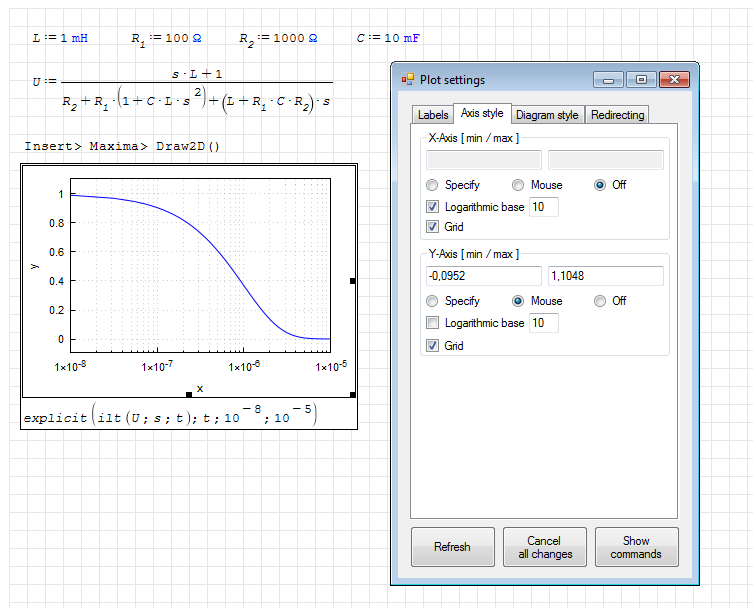

2018-09-14 10_42_47-SMath Studio 0.99.6671 - [Page3_].png
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
3位用户喜欢此帖子
frapuano 2018/9/14 07:08:00, Вячеслав Мезенцев 2018/9/14 05:46:00, IVR 2018/9/14 06:48:00
#345 已发布: 2018/9/14 12:59:19
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

ZedGraph can do that.



Will you be kind enough to to plot the MCD beta Poisson
just posted in the Rotavirus ScratchPad.
And attach the work sheet to familiarize doing.

Thanks in advance, Uni ... Jean

Stat Rotavirus [ScrathPad].sm (74.71 KiB)已下载 1403 次。

#346 已发布: 2018/9/14 14:21:56
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

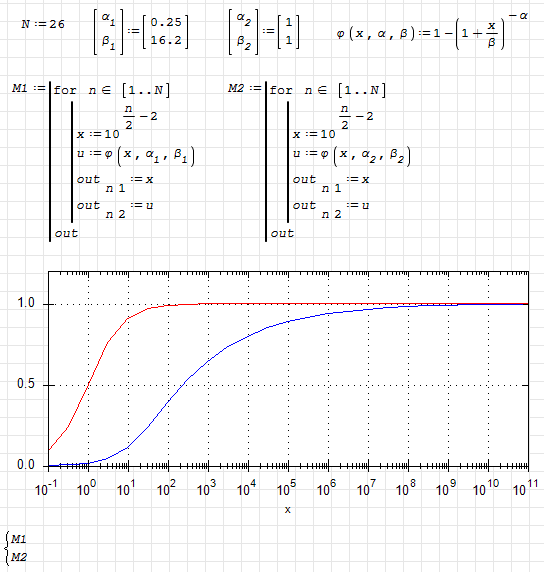

Something like this.


ZedGraph. Log Example.sm (40.87 KiB)已下载 1580 次。
Russia ☭ forever, Viacheslav N. Mezentsev
2位用户喜欢此帖子
sergio 2018/9/14 14:50:00, frapuano 2018/9/14 15:11:00
#347 已发布: 2018/9/14 17:58:31
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Wrote

How can access to SMath variables? Seems that isn't with `::fun`


Updated. Maple region partially restored.

未找到文件。 未找到文件。

Maple Plot Region can't save properties. This is because I have not yet figured out how to use it. It can display a variety of information in various forms. But its use is not convenient for the user.
I have one idea - the use of templates. But it's a bit difficult to implement yet.
Russia ☭ forever, Viacheslav N. Mezentsev
1位用户喜欢此帖子
Alvaro 2018/9/14 19:37:00
#348 已发布: 2018/9/20 17:20:34
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Wrote

For other side, the function Maple, even can take an string for parse it, don't accept intermediate variable nor functions definitions inside the string. For example, maple("a:=1: a + 1:" ) gives an error.


Updated.

Russia ☭ forever, Viacheslav N. Mezentsev
1位用户喜欢此帖子
Alvaro 2018/9/20 18:09:00
#349 已发布: 2018/9/20 18:14:32
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Wrote


Updated.



What can I say? Thanks don't looks enough. With this improvement seems much more easier handle dsolve and a lot of other maple call's

Best regards.

Alvaro
#350 已发布: 2018/9/26 11:20:03
Igor Skarine

Igor Skarine

14个赞,共97个帖子。

组: User

Hello Uni,

The maple wrapper plugin supplied with the new revision of Smath (099.6839) failed on the attached worksheet.
It looks like it hangs forever at maple(simplfy(f1(v),v)). The process can't be interrupted and canceled by ESC key.
I've attached the failed code and plugin's log file.
The previous version of the plugin with latest beta Smath still works fine on the example.
Thank you for your hard work on the plugin.

P.S.
I noticed that under Windows 10 the symbolic calculations became slower about 4 times!
Do you have any idea? Instead 14 seconds it takes now about 1 min.

maple_failed_099b6839.sm (25.45 KiB)已下载 1655 次。
log.txt (9.75 KiB)已下载 1417 次。
1位用户喜欢此帖子
#351 已发布: 2018/9/26 11:26:53
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Wrote

The previous version of the plugin with latest beta Smath still works fine on the example.


Can you attach the log file for this case?

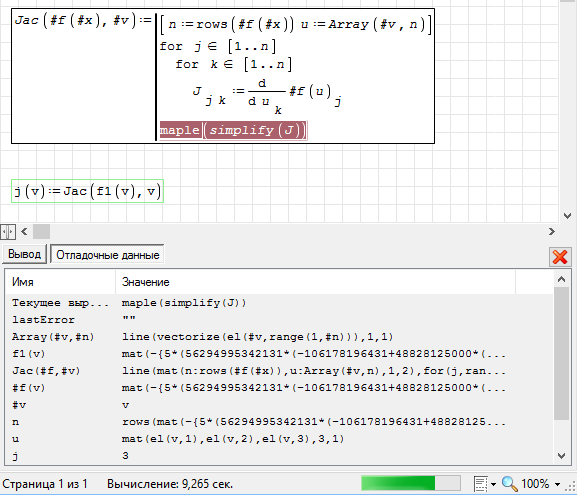

I think the problem is not in maple function. If you toggle a breakpoint you'll see that maple function worked only once.


EDIT: Hm... or something happened inside maple().
Russia ☭ forever, Viacheslav N. Mezentsev
#352 已发布: 2018/9/26 12:20:58
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

I found the bug but I can't update the plugin because server doesn't work now.
Russia ☭ forever, Viacheslav N. Mezentsev
#353 已发布: 2018/9/26 13:44:16
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

Do you have any idea? Instead 14 seconds it takes now about 1 min.



Win 7 ... 1.8 sec !!!


maple_failed_099b6839.sm (52.86 KiB)已下载 1636 次。
#354 已发布: 2018/9/28 06:27:53
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Wrote

P.S.
I noticed that under Windows 10 the symbolic calculations became slower about 4 times!
Do you have any idea? Instead 14 seconds it takes now about 1 min.


Updated. Try now.

Nice trick from the sheet above.

Russia ☭ forever, Viacheslav N. Mezentsev
1位用户喜欢此帖子
Igor Skarine 2018/9/28 14:39:00
#355 已发布: 2018/9/28 14:48:05
Igor Skarine

Igor Skarine

14个赞,共97个帖子。

组: User

Plugin works fine now.
But in general symbolic calculations in Win7 is 4 times faster than Win10.
My home Win7 computer is older and slower than Win10 office one.


#356 已发布: 2019/2/3 16:49:29
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Updated.



04.02.2019 0:51:08 [INFO ] [->] smath_diff(smath_el(`(beta)`,2)*x^2,x)
04.02.2019 0:51:08 [INFO ] [<-] 2*el(β,2)*x

Changes:
- copy/paste issue for the regions fixed;
- maple(): fixed issue with output parsing;
- refactored.
Russia ☭ forever, Viacheslav N. Mezentsev
1位用户喜欢此帖子
frapuano 2019/2/3 17:41:00
#357 已发布: 2019/2/5 19:28:38
Igor Skarine

Igor Skarine

14个赞,共97个帖子。

组: User

Hello Uni,

The plugin is broken again since Smath v.6962 (I'm sure only with ..62 at the end).
I've spent half of an hour and located the issue.
It is a tiny piece of a big worksheet.

Best regards

mapledoesntworksince6962.sm (21.68 KiB)已下载 1791 次。
#358 已发布: 2019/2/5 20:22:00
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

I can't see the maple() function here.
Russia ☭ forever, Viacheslav N. Mezentsev
#359 已发布: 2019/2/5 22:00:40
Igor Skarine

Igor Skarine

14个赞,共97个帖子。

组: User

Sorry, Uni, I'm confused.
But there is a problem with symbolic calculations in the new betas.
#360 已发布: 2019/2/5 23:13:20
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

The plugin is broken again since Smath v.6962



Looks working open 6179, though it may generate "type conversion error"
