#281 已发布: 2016/11/21 08:29:32
frapuano

frapuano

13个赞,共115个帖子。

组: User

log.txt (2.85 KiB)已下载 1222 次。

Hi Uni,

attached the log file of my test. Unluckily I have the same result .

Best regards and thanks a lot for your support.

Franco
#282 已发布: 2016/11/21 09:51:03
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

You need to show log.txt from the \32dfd679-8cfd-483a-b79a-19d5ea838750\1.0.6169.5202 folder but not \32dfd679-8cfd-483a-b79a-19d5ea838750\1.0.6097.39410

After the plugin updated it would be located in another folder.

EDIT: You need to remove the plugin and install it again.
Russia ☭ forever, Viacheslav N. Mezentsev
#283 已发布: 2016/11/21 09:56:20
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

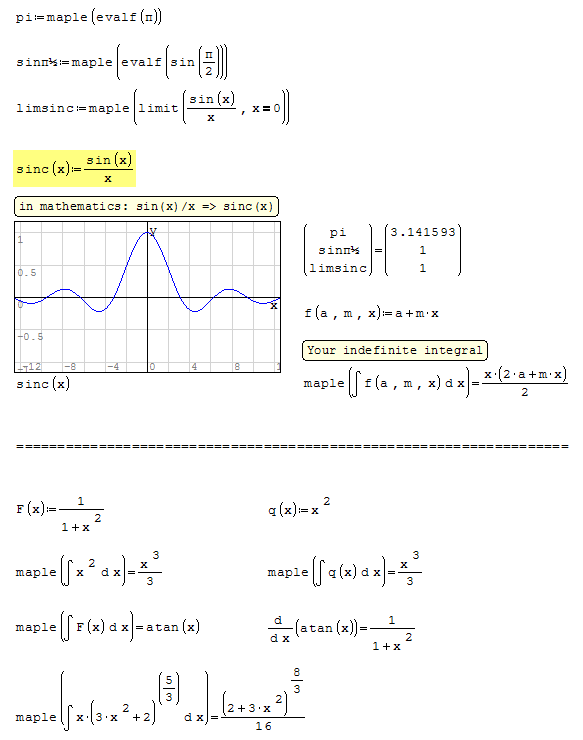

Updated. Please do these steps again and show me log.txt. You can use "maple(sin(x))=" as a test example.



For sure they are all "empty", none of Franco is 'maple(,)' instruction.

Forum Franco_3.gif

#284 已发布: 2016/11/21 11:40:56
frapuano

frapuano

13个赞,共115个帖子。

组: User

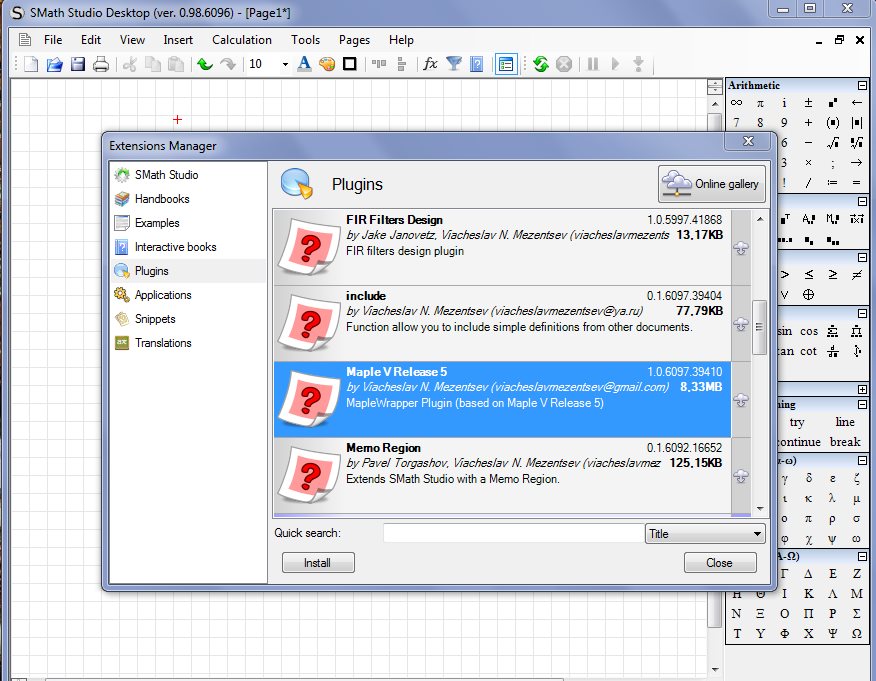

...I am getting crazy , as you can imagine I have uninstalled the plugin but as soon as I try to reload it on the Online gallery I have this :


So looks that or the on line repository is not updated with the last release ..or there are problems to update a plugin with a portable release

Really do not understand what is happening .

I'll give another try using a non portable release and see what happens.

Best regards

Franco

#285 已发布: 2016/11/21 11:49:20
Davide Carpi

Davide Carpi

1,443个赞,共2,936个帖子。

组: Moderator

Wrote

So looks that orthe on line repository is not updated with the last release ..or there are problems to update a plugin with a portable release



Probably Viacheslav has updated the plugin for a newer version than your (0.98.6128 vs 0.98.6096)
If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects
#286 已发布: 2016/11/21 11:57:53
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Wrote

Wrote

So looks that orthe on line repository is not updated with the last release ..or there are problems to update a plugin with a portable release



Probably Viacheslav has updated the plugin for a newer version than your (0.98.6128 vs 0.98.6096)


Thanks, Davide. I forgot about it. Now the update should be available for 0.98.6096 too.
Russia ☭ forever, Viacheslav N. Mezentsev
1位用户喜欢此帖子
Davide Carpi 2016/11/21 12:44:00
#287 已发布: 2016/11/21 12:24:02
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

I never understood what is an "Smath portable release" ?
Is it a "lap top" different than the PC version ?
Or is it a "WI-FI" gadget ? an "Android surface" ?

I'm "thick" about Smath: PC, XP SP3, Smath 5346
Don't worry: My Smath is piece of gold !

Cheers all collabs, Jean.
#288 已发布: 2016/11/21 12:42:32
Davide Carpi

Davide Carpi

1,443个赞,共2,936个帖子。

组: Moderator

Portable is... portable; has nothing to do with programs' versions, clouds, internet.

Wrote

A portable application, sometimes also called standalone, is a program designed to run on a compatible computer without being installed leaving the computer's configuration information intact.



It means, you do not have to run an installer on the machine (that implies you should run it even if you don't have administrator privileges on the machine; in the other hand you might loose some features, like system's file association, etc...)
If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects
#289 已发布: 2016/11/21 12:42:58
frapuano

frapuano

13个赞,共115个帖子。

组: User

I have tried with a non portable installation and it works fine .

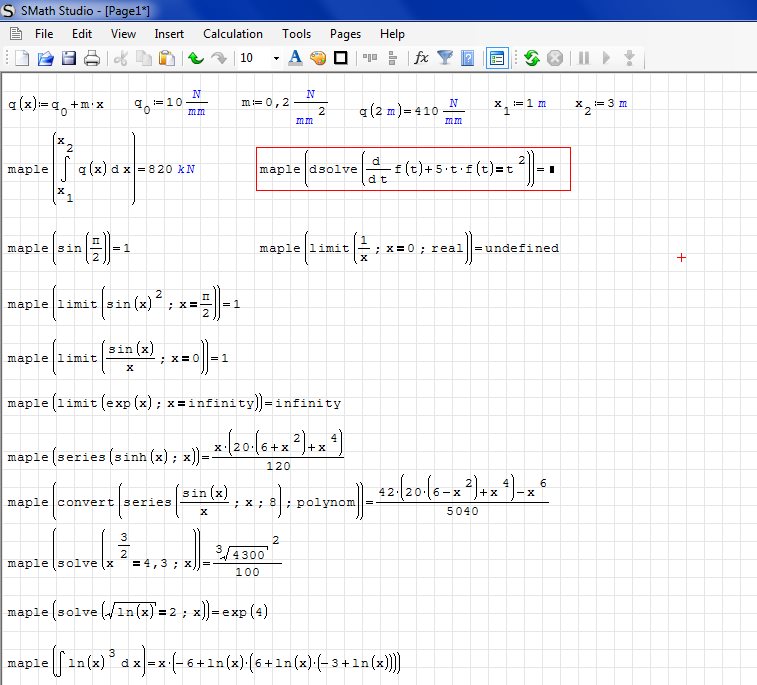

I have taken the examples from the Handbook , there is just an error on the differential equation but for now I don't care.
What I am interested the most is in knowing if it is possible in Maple to evaluate left and right limits like in Maxima .
If yes what is necessary to type to achieve this.

@Jean. Portable version is something that allow to run the Maxima plugin and because I use it I have downloaded and used the last one provided by Martin
#290 已发布: 2016/11/21 13:06:29
frapuano

frapuano

13个赞,共115个帖子。

组: User

Found it , it is necessary to use left and right as argument to the limit function to specify a limit from the left or the right side.

Calling Sequence
limit(f, x=a, left)
limit(f, x=a, right)

from the help on the Maplesoft site.

thanks a lot for your help and sorry for bothering

Franco


#291 已发布: 2016/11/21 19:18:15
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Franco,

Your DE is not set correctly wrt Maple
Not needed to = 0 [implicit by default].

Forum Franco dsolve.gif
1位用户喜欢此帖子
frapuano 2016/11/22 03:42:00
#292 已发布: 2016/11/21 23:04:50
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

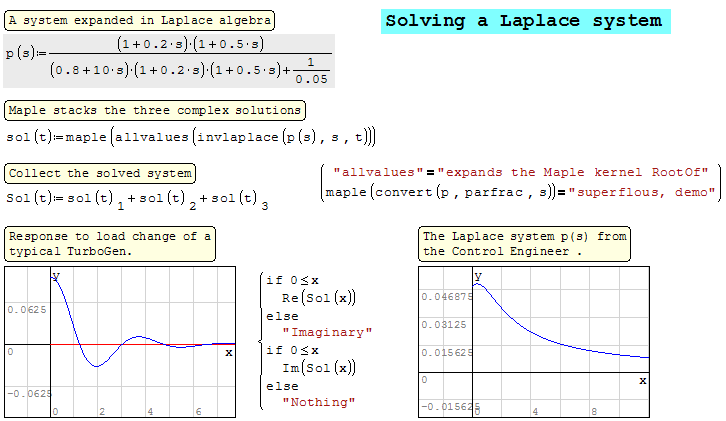

Franco: more for your Maple tool box.

Laplace TurboGen.gif
1位用户喜欢此帖子
frapuano 2016/11/22 03:42:00
#293 已发布: 2016/11/23 12:14:14
frapuano

frapuano

13个赞,共115个帖子。

组: User

Hi Uni,

just for sake of completeness, this is to inform you that I have tried again with the Portable version and still I have the same issue with the Maple Wrapper .

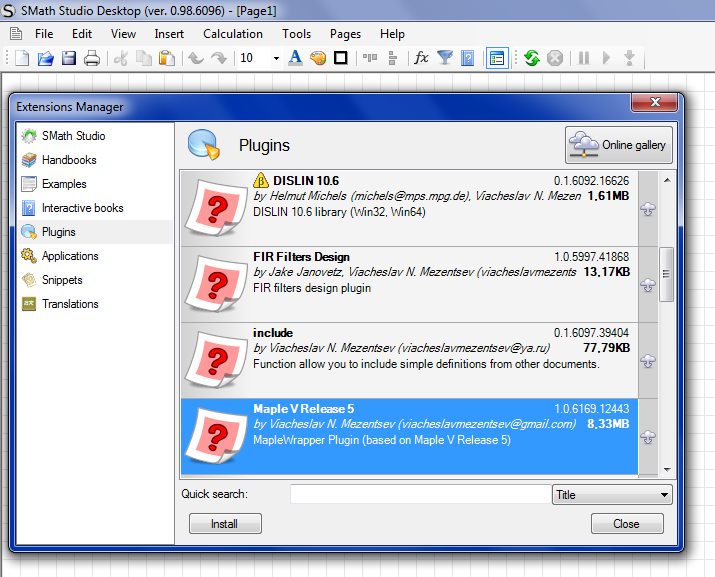

What is strange is the release that is shown for downloading on the On line repository as you can see herewith:


Best regards and thanks a lot as usually

Franco
#294 已发布: 2016/11/23 13:14:18
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Ok, now show me log.txt. And give me a link to this portable version.
Russia ☭ forever, Viacheslav N. Mezentsev
#295 已发布: 2016/11/23 15:54:40
frapuano

frapuano

13个赞,共115个帖子。

组: User

Uni,

the portable version was something downloadable through a temporary link from Martin, see herewith the message in which this is reported ( in the Maxima Plug-in thread ) :

Wrote

Here is a [/url= https://www.th-brandenburg.de/exchange?g=6catq9]temporary download link[/url] for an updated portable SMath with Maxima ( 150MB ).
This is just a temporary solution with problems in SVG graphics display (image region issue) and partly disabled takeover of SMath functions by Maxima (SMath core feature, takeover not allowed any more for certain functions).

Yet, this is the most convenient way to use a current SMath version with Maxima. Does not work under Win 10.



log.txt (9.03 KiB)已下载 1371 次。

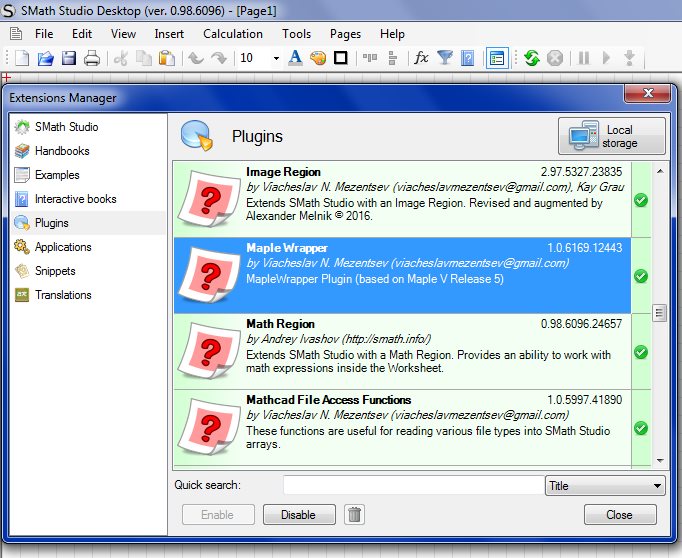

The screenshot of the PlugIn loaded :


Best regards

Franco
1位用户喜欢此帖子
#296 已发布: 2016/11/23 17:53:10
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

The path to the maple is too long (> 160 bytes). As far as I can see the program (cmaple.exe) may not work properly in this case. Apparently there is a buffer overflow (or something similiar to this) and we get the error message:

引用

23/11/2016 19:46:40 [ERROR] The instruction at 0050f0c5 referenced memory at 31362e30
The memory could not be read from



The solution: move SMath Studio folder into several levels above. For now this is the only solution.
Russia ☭ forever, Viacheslav N. Mezentsev
1位用户喜欢此帖子
frapuano 2016/11/23 19:50:00
#297 已发布: 2016/12/1 07:38:42
frapuano

frapuano

13个赞,共115个帖子。

组: User

Hi Uni

I am trying to use the Maple wrapper to solve symbolically simple equations , I don't need to solve non linear equations , my aim is just to isolate a variable from an equation to avoid to do this manually..it is something that take place quite often while a person is working with formulas and so on .
I have done some tests trying to understand why something was not working .
The method applied is quite empirical..probably too much and here are the results :

未找到文件。未找到文件。

I don't know if my conclusion is correct for what concern the naming convention that are needed in writing something to feed the Wrapper or the issue is somewhere else.

Any suggestion to workaround this issue is welcome, Thanks in advance for your help, best regards

Franco
#298 已发布: 2016/12/1 12:06:31
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

You found a bug. I will correct it soon.
Russia ☭ forever, Viacheslav N. Mezentsev
#299 已发布: 2016/12/1 13:12:59
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Franco,

Your setup is incorrect for solving.

Solve Viscosity.gif
#300 已发布: 2016/12/1 13:54:41
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

... your setup is correct ... maple wrapper is not.
