XY plot not plotting

XY plot not plotting - Why are my XY plots empty - 消息

#1 已发布: 2024/9/23 16:44:36
RegRetired

RegRetired

8个赞,共144个帖子。

组: User

See the attached files. The MANHATTAN DATA.xlsx file is needed as input to LITTLE BOY LAMBDA AND ALPHA.sm.

The calculations seem to be working, but the XY plots are empty.

Have I missed something obvious?

未找到文件。未找到文件。

Thanks again.
Reg
Reg CurryLoveland, CO
#2 已发布: 2024/9/23 23:08:31
Gerry_Bush

Gerry_Bush

12个赞,共14个帖子。

组: User

Hello Reg,

It looks like the plots are empty because they are out of the display range set for the graph.

As it is the X values are actually between 8.75 and 8.95 but the display range is between 0.87 and 0.9.

All the best,

Gerry_Bush
#3 已发布: 2024/9/24 02:34:38
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Hi Reg. In addition to Gerry's observation, by double clicking on the XYPlot, in the "traces" menu, "Visible" is set to "False". The "Visible" property must be set to "True". I don't know how to configure the graph to only show shapes without the line that joins them, without modifying the argument with augment( alpha , "o" ) or something similar.

Best regards.
Alvaro.
#4 已发布: 2024/9/24 03:22:02
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

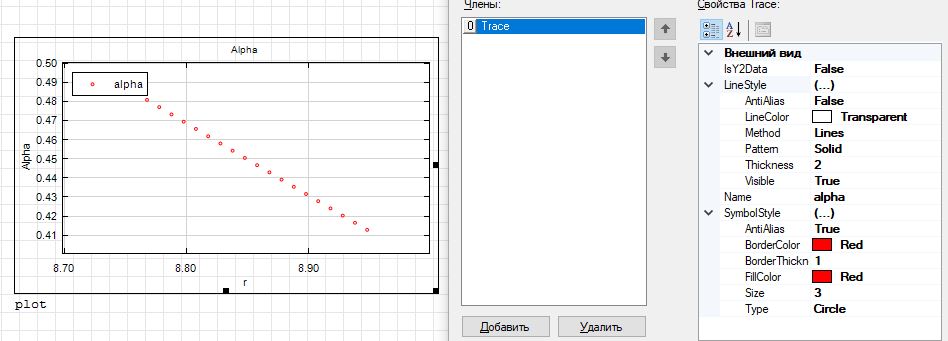

You can use transparent color for the line.

Russia ☭ forever, Viacheslav N. Mezentsev
#5 已发布: 2024/9/24 04:06:33
RegRetired

RegRetired

8个赞,共144个帖子。

组: User

Everyone,
Thanks much.
At 81, I am clearly losing my mind, or my eyesight...maybe both.

Attached is a pdf of my updated file. All is working now, thanks to you.

SMATH ALPHA MODEL.pdf (688.37 KiB)已下载 1058 次。

One last question. If I wanted to use the roots(2) function, do I need to cast everything in terms of the range variable k, or will roots(2) not work for multiple equations, each with a different k? Maybe in programming?

The MATHCAD 15 version gives slightly different results using the Find function. I have no idea which is more accurate.

MATHCAD ALPHA MODEL.pdf (299.57 KiB)已下载 1118 次。

Thanks again for all your help.
Reg
Reg CurryLoveland, CO
