Trefoil Knot

Trefoil Knot - 3D plot - 消息

#1 已发布: 2023/2/9 19:11:59
overlord

overlord

600个赞,共1,381个帖子。

组: Moderator

Parametric plot of curve and (2-3) trefoil knots.
What would be really cool would be a meshed torus.
However, I don't know any idea how to do that.

Regards

trefoil.sm (12.84 KiB)已下载 1619 次。

Click to enlarge
1位用户喜欢此帖子
sergio 2023/2/10 05:28:00
#2 已发布: 2023/2/9 22:33:20
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

What would be really cool would be a meshed torus.
However, I don't know any idea how to do that.


Torus in three options [meshed/points/quaternion]
Just be patient rolling Torus.
Cheers ... Jean.

0Anim Torus Ber7.sm (20.65 KiB)已下载 1597 次。
0Anim Torus.sm (44.44 KiB)已下载 1638 次。
Rotate Quaternion MODULO copy.sm (391.66 KiB)已下载 1615 次。

Descartes Trifolium looks better as you wish.
#3 已发布: 2023/2/10 00:36:26
overlord

overlord

600个赞,共1,381个帖子。

组: Moderator

Trefoil torus, not ordinary torus.
#4 已发布: 2023/2/10 03:03:35
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

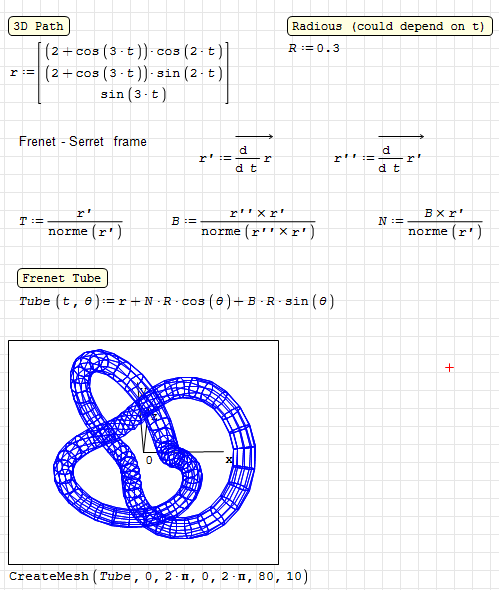

Hi Overlord. You can try starting with something this:


Frenet Tube.sm (9.22 KiB)已下载 1593 次。

Best regards.
Alvaro.
4位用户喜欢此帖子
Mark R Harris 2023/2/10 04:24:00, sergio 2023/2/10 05:28:00, NDTM Amarasekera 2023/2/10 08:34:00, overlord 2023/2/10 12:43:00
