Does anybody knows why this difference in the independent variable?

Thank you,
Basile
#2 已发布: 2012/9/20 20:23:37
Davide Carpi

Davide Carpi

1,443个赞,共2,936个帖子。

组: Moderator

Wrote

Hello,

Does anybody knows why this difference in the independent variable?

Thank you,
Basile



Hi Basile,


I'm not sure but I think it's something related to "local" and "global" variables... using the line() [MATH]t[/MATH] becomes a local variable for [MATH]i(t)[/MATH], and the "global" [MATH]t:x[/MATH] doesn't affect the function, vice versa without the line() [MATH]t[/MATH] is a global variable for q(t) so plotting the graph you implicitly write "plot q(x)".


regards,

w3b5urf3r
If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects
#3 已发布: 2012/9/21 08:54:32
Oscar Campo

Oscar Campo

135个赞,共309个帖子。

组: Moderator

Hi Basile.
By default x is a global variable in SMath. When you define i(t), t is a local variable.
So, while you try plotting i(t) you get an error because t is not defined. When you define t=x, you obtain plots for i(t) and q(t)

Regards,

Oscar
#4 已发布: 2012/9/21 09:40:06
Basile

Basile

8个赞,共172个帖子。

组: User

Hello,

I can plot q(t) but not i(t) although I defined t:=x.

Can the definition of the functions have anything to do with that, one uses the if statement the other is as usually.

Regards,
Basile
#5 已发布: 2012/9/21 11:49:29
Davide Carpi

Davide Carpi

1,443个赞,共2,936个帖子。

组: Moderator

Wrote

Hello,

I can plot q(t) but not i(t) although I defined t:=x.

Can the definition of the functions have anything to do with that, one uses the if statement the other is as usually.

Regards,
Basile

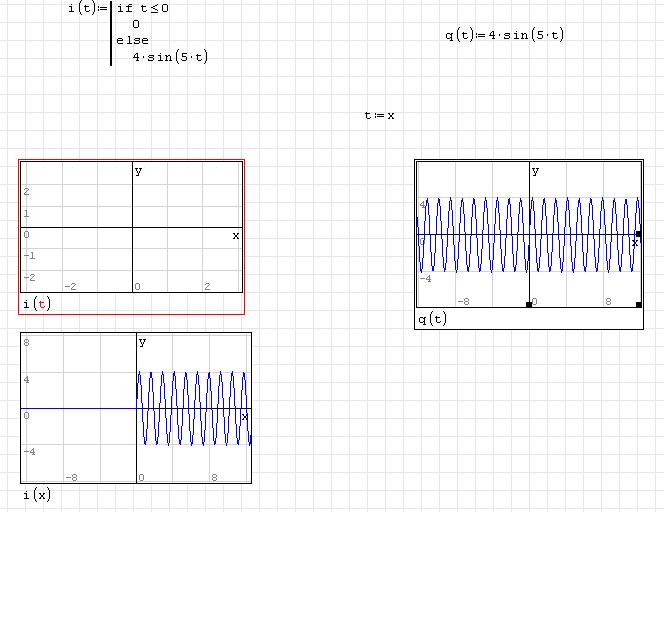

You're right, the issue is in the if statement (see the attachments)

to bypass the issue use this workaround:

[MATH]i(t)t>0)*(4*sin(5*t))[/MATH]


regards,

w3b5urf3r
test.sm (8.3 KiB)已下载 1509 次。
If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects
