Trying to plot a variety of functions and nothing shows up in the plots.
I have 23 yrs of MathCad experience, but cannot figure out what Smath is looking for to plot three very simple function (See attached file).
Additionally, I am not sure why an equation needs vectorized to output the answers in the normal distribution equation.

Equation 1 - Normal distribution does not solve as a function until it is vectorized. Why?
Equation 2 - f(x):x^3+2*x*sin(0.25) solves without vectorization but will not plot. Why?
Equation 3 - f(x):vectorize(1/{σ*sqrt(2*π)}*e^{-1/2*({x-μ}/σ)^2}) solves with vectorization but does not plot (2D or X-Y plot method). Why?


Smath - 2D Plots.sm (15.56 KiB)已下载 1239 次。
#2 已发布: 2021/10/25 13:54:36
Lloyd Snell

Lloyd Snell

0个赞,共8个帖子。

组: User

Equation 2 also needs vectorized to get the correct results.
You don't have to do this in MathCad, why here?
#3 已发布: 2021/10/25 14:35:07
sergio

sergio

127个赞,共342个帖子。

组: User

You have defined a vector of values ​​for x. If you use the X-YPLOT plugin you need to change the variable. If instead you use SM native 2D graph then it already works as you expect
sergio
#4 已发布: 2021/10/25 14:42:14
Lloyd Snell

Lloyd Snell

0个赞,共8个帖子。

组: User

First Solution Found
This allowed me to plot Normal Distribution Function.
augment(x,f(x))
#5 已发布: 2021/10/25 15:13:13
Lloyd Snell

Lloyd Snell

0个赞,共8个帖子。

组: User

Solved for now. On with the learning experience.
Thanks....
#6 已发布: 2021/10/25 15:13:44
Renzo Choque

Renzo Choque

6个赞,共18个帖子。

组: User

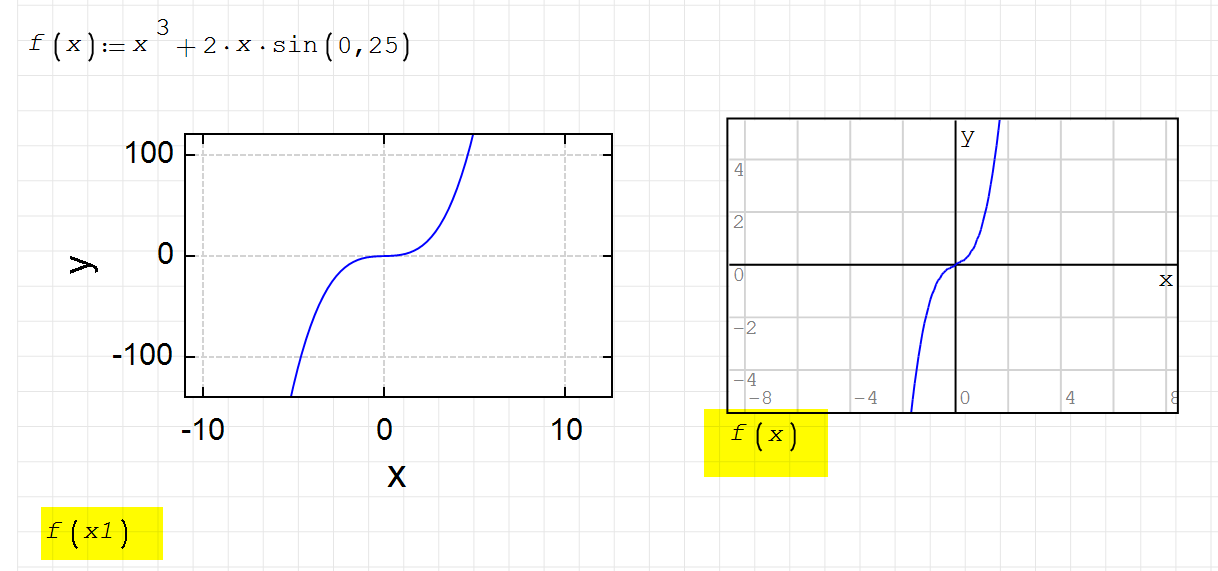

Hi, if you need a quick plot I recommend you use 2D standard plot you can plot functions f(x) directly , if you need a more configurable plot use XY plot but you need to put your data in a special format. 未找到文件。未找到文件。
#7 已发布: 2021/10/25 15:29:09
overlord

overlord

600个赞,共1,381个帖子。

组: Moderator

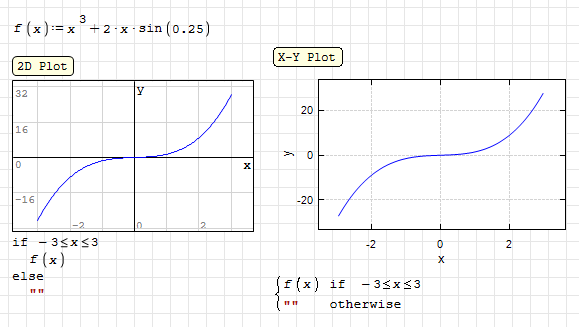

You don't need to use range() and augment() if you want to plot sections.
You can limit it with if-else() or cases().

Regards

#8 已发布: 2021/10/25 15:43:24
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

Trying to plot a variety of functions and nothing shows up in the plots.
I have 23 yrs of MathCad experience, but cannot figure out what Smath is looking for to plot three very simple function (See attached file).
Additionally, I am not sure why an equation needs vectorized to output the answers in the normal distribution equation.


1. Show the two other ones on same document for doctoring.
2. Your sigma makes no sense !
3. BTW, in Samples you should find my Stat Treasury [10 WS]
Hard to find such immense Compendium.
4. If you can't download, please let me know
Welcome ... Jean.

Smath - 2D Plots.sm (17.77 KiB)已下载 1238 次。
#9 已发布: 2021/10/25 15:50:14
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

... besides the pure statistical application,
you can use to fit data sets [Fréchet US Rainfall ...]
#10 已发布: 2021/10/25 15:52:41
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

... besides the pure statistical application,
you can use to fit data sets [Fréchet US Rainfall ...]


There is about 24 built-in PDF in Smath ... f(x) menu
as well as CDF, ICDF
#11 已发布: 2021/10/26 07:05:13
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

Equation 1 - Normal distribution does not solve as a function until it is vectorized. Why?


1. Discretize the range you want and plot ... No vectorize.
2. Plot scalar directly.

#12 已发布: 2021/10/26 07:29:00
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Paecific.sm (9.62 KiB)已下载 1250 次。
#13 已发布: 2021/10/26 08:20:56
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

... in most applications inc(Low,High,step,f(#)) is preferred

Paecific.sm (14.25 KiB)已下载 1278 次。
#14 已发布: 2021/10/26 09:50:27
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Scalar plots have limited use, mostly confirm the project.
Discrete plot can be used for subsequent application/export.
1. Collapsed the algo at top utilities.
2. Use it infinitely in-situ use [range each f(x) at will].

#15 已发布: 2021/10/26 11:29:10
overlord

overlord

600个赞,共1,381个帖子。

组: Moderator

Try this file.

Regards

Smath - 2D Plots_r1.sm (17.22 KiB)已下载 1291 次。
