Hello,
I was looking for a similar topic on the forum, but I couldn't find it.

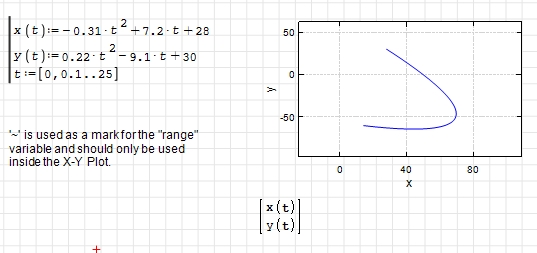

Is it possible to draw such a graph.
Graphs.sm (4.42 KiB)已下载 1419 次。
#2 已发布: 2022/10/17 16:16:22
overlord

overlord

600个赞,共1,381个帖子。

组: Moderator

Wrote

Is it possible to draw such a graph.


Yes it is possible.
Here is your request.

Regards

Graphs_1.sm (4.68 KiB)已下载 1339 次。

2位用户喜欢此帖子
sergio 2022/10/17 16:38:00, Oscar Campo 2022/10/18 07:13:00
#3 已发布: 2022/10/17 16:33:54
sergio

sergio

127个赞,共342个帖子。

组: User

You can get the 3D graph with the Maxima plugin
Scatter plot_Kr(adattato).sm (161.33 KiB)已下载 1368 次。
inspired by the discussion on this forum
full discussion

sergio
#4 已发布: 2022/10/18 02:53:01
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Hi. Just another way, in addition to the solutions offered by Overlord and Pompelmo, using the ability of XYPlot plugin for plot parametric curves, as is explained here.

XYPlot Parametric.sm (5.61 KiB)已下载 1308 次。

Best regards.
Alvaro.
#5 已发布: 2022/10/18 10:08:54
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

Is it possible to draw such a graph.


... export your creation
Cheers ... Jean.

Utilities XY plot [Butterfly].sm (29.82 KiB)已下载 1176 次。
#6 已发布: 2022/10/18 18:43:50
overlord

overlord

600个赞,共1,381个帖子。

组: Moderator

Wrote

using the ability of XYPlot plugin for plot parametric curves


Parametric ability is a good addition.
I wish 2D-Plot has this feature too.
I also would like animation for XY-Plot.
#7 已发布: 2022/10/19 05:17:14
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

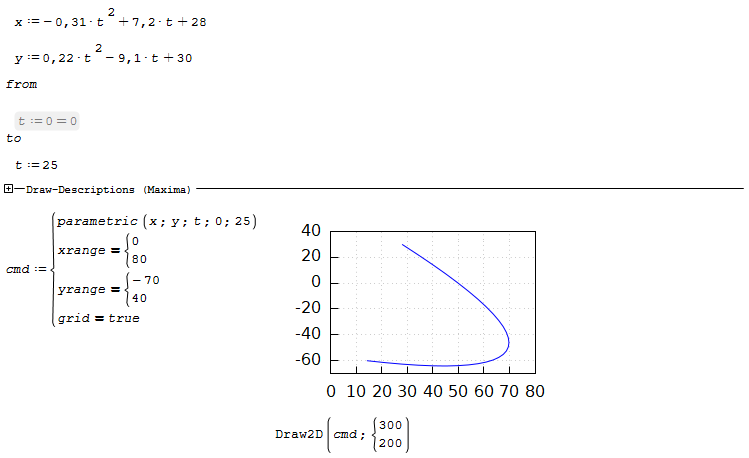

The Maxima plugin provides plotting functions, among them parametric plots. For details look for "kraska smath handbuch".

Note that there seems to be a png export glitch. The region t:=25 is disabled in the sheet but not grayed out in the export (image below). The parameter variable obviously must be undefined, otherwise the x and y expressions are just numbers.

para.sm (137.85 KiB)已下载 1358 次。
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
#8 已发布: 2022/10/20 10:00:35
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

I have no recollection of Parametric Engineering project(s).
Whatever, this document advances your Parametric Journey.
Ultimately, export the project as a standard data table for publishing.
... offered up to the derivatives of the piece-wise project.
Comments, more help ... Welcome.
Cheers ... Jean.

Utilities XY plot Parametric.sm (89.13 KiB)已下载 1315 次。
