Hey guys,

im trying to plot my function with x-yplot (addon) but it doesnt work. I will be happy if can someone can help me.
i define two functions (with If-clauses) and now I have to put it in x-y-plot.
Thanks for helping

Pfahlsetzungslinie.sm (101.89 KiB)已下载 1386 次。
#2 已发布: 2023/2/11 09:51:05
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

I define two functions (with If-clauses) and now I have to put it in x-y-plot.


1. Start by the first red instance ... assign the demand.
2. For the plot Units don't match
3. Check if your incomplete Bolean is OK ... here shown complete.
4. What is mPa

#3 已发布: 2023/2/11 11:27:05
overlord

overlord

600个赞,共1,381个帖子。

组: Moderator

If you want to plot, you have to eliminate units.
Either by writing a unitless function, or using units while plotting.
I would rather second one.

Regards

Pfahlsetzungslinie.sm (112.67 KiB)已下载 1428 次。

Click to enlarge
#4 已发布: 2023/2/11 14:22:20
Beyaz

Beyaz

0个赞,共19个帖子。

组: User

hey guys thanks. (i tryed to give you a thanks but i always get an error)
it works now. Ive realized my mistakes.

i have 2 more question.
1. is it possible to rotate the graph or function? I wanna switch x and y axis
2. i wanna make the visible spectrum of x and y axis depent on a variable. like X-Axis Max=s1 and Min=s2

//sorry for my bad english
#5 已发布: 2023/2/11 16:44:13
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

i have 2 more question.
1. is it possible to rotate the graph or function? I wanna switch x and y axis
2. I wanna make the visible spectrum of x and y axis depend on a variable. like X-Axis Max=s1 and Min=s2


I understand 1 ... 2 Not clear.
Cheers ... Jean.

#6 已发布: 2023/2/11 16:46:06
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

... once the discrete data set in hand,
you can rotate by any angle as desired.
#7 已发布: 2023/2/11 17:58:06
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

2. I wanna make the visible spectrum of x and y axis depend on a variable. like X-Axis Max=s1 and Min=s2


If I understand: once the discrete data set in hand,
very easy to range between Mi/Max.
Produce the discrete data set, I will terminate.
Cheers ... Jean.

#8 已发布: 2023/2/12 01:43:27
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Wrote

... i have 2 more question.
1. is it possible to rotate the graph or function? I wanna switch x and y axis
2. i wanna make the visible spectrum of x and y axis depent on a variable. like X-Axis Max=s1 and Min=s2



Hi Beyaz.

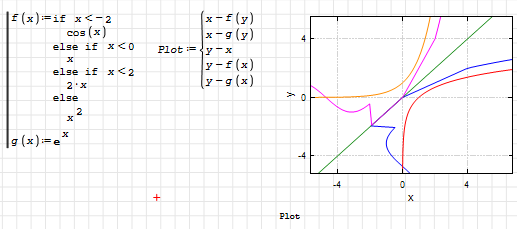

1. Yes. For example you can use this technique over your functions


xy-yx-plot.sm (7.16 KiB)已下载 1367 次。

2. Yes. For example you can try to learn about how to use setprop in an XY plot region.

Best regards.
Alvaro.
#9 已发布: 2023/2/12 07:09:44
Beyaz

Beyaz

0个赞,共19个帖子。

组: User

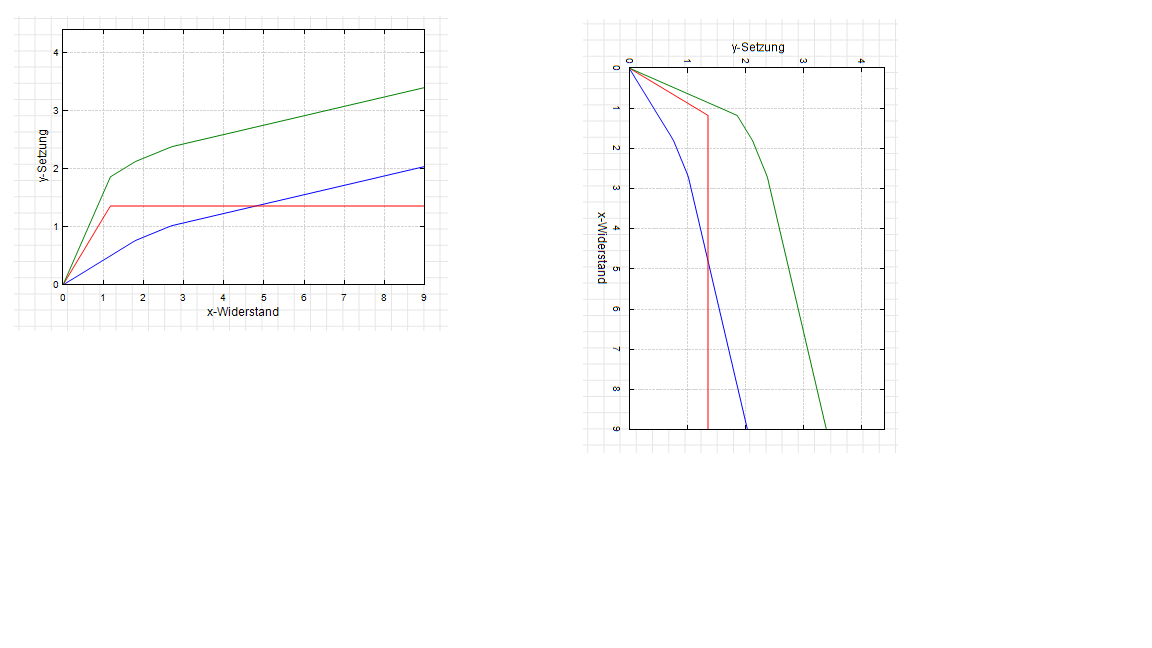

question 2: solved after find this
https://en.smath.com/forum/yaf_postsm57205_X-Y-Plot-Region.aspx


but to rotate the graph like this it didnt work. i tried your suggestions. Pfahlsetzungslinie1.sm (80.01 KiB)已下载 1389 次。
#10 已发布: 2023/2/12 08:47:18
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

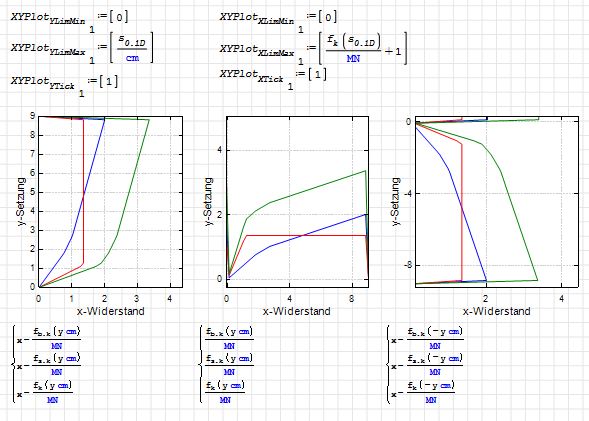

Hi. You need to specify the XYPlot index. This is how to swap axis coordinates, and reverse the y-axis. I reduce the number of points in the XYPlot to 50.


Pfahlsetzungslinie1.sm (87.42 KiB)已下载 1400 次。

Best regards.
Alvaro.

#11 已发布: 2023/2/12 09:12:08
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

But to rotate the graph like this it didn't work.
I tried your suggestions.


You haven't produced the discrete data set.
Cheers ... Jean.

Wanna Rotate.sm (14.34 KiB)已下载 1348 次。

#12 已发布: 2023/2/12 14:23:09
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

#13 已发布: 2023/2/13 07:13:49
overlord

overlord

600个赞,共1,381个帖子。

组: Moderator

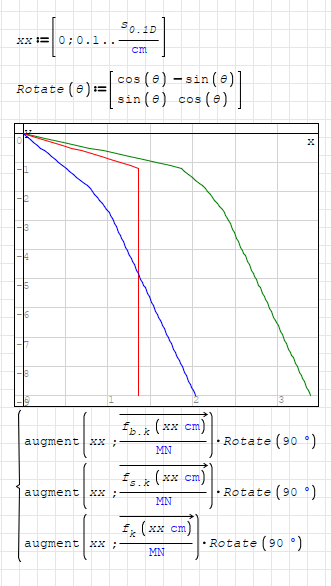

You can also use a rotation matrix.
It works on both 2DPlot an XYplot.

Regards

1位用户喜欢此帖子
churichuro 2023/2/13 16:11:00
#14 已发布: 2023/2/13 10:41:33
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Rotate XY.sm (486.01 KiB)已下载 1386 次。
#15 已发布: 2023/2/13 15:07:49
Beyaz

Beyaz

0个赞,共19个帖子。

组: User

thanks all of you guys.

now my smath tool is perfect. thanks for helping.
