Matrix function (conditional)

Matrix function (conditional) - 消息

#1 已发布: 2019/9/20 15:34:48
XiuPer

XiuPer

0个赞,共3个帖子。

组: User

Hi,

I'm trying to write a function that I can use to calculate the surface area. The function is to be based on data from a matrix with n elements
I ran out of ideas. I guess the problem is in a loop.

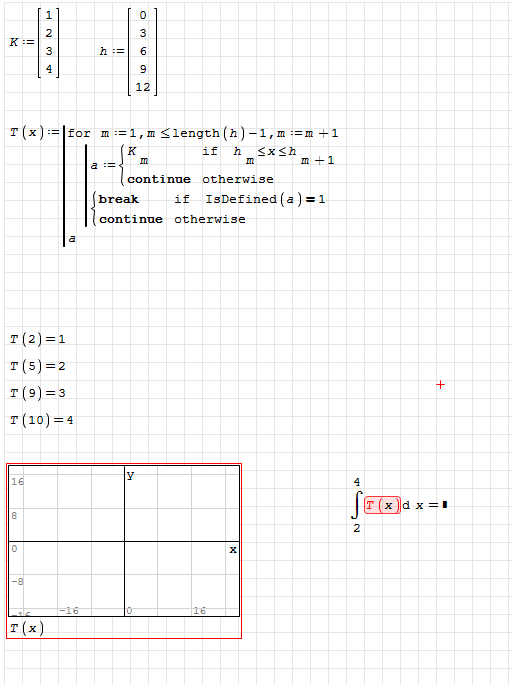

I attach a file and an image.
I will be grateful for your help.



Integral.sm (7.23 KiB)已下载 1155 次。
#2 已发布: 2019/9/20 17:22:30
Arie

Arie

94个赞,共285个帖子。

组: User

You can define piecewise function this way. Haven't figured out integration yet. Built in int() function doesn't seem to work.
Piecewise Function.sm (6.82 KiB)已下载 1160 次。
Feel free to join the SMath Studio Users Discord Channel: https://discord.gg/PayZpJW
#3 已发布: 2019/9/20 19:56:29
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

I'm trying to write a function that I can use to calculate the surface area. The function is to be based on data from a matrix with n elements
I ran out of ideas. I guess the problem is in a loop.
I attach a file and an image.
I will be grateful for your help.



That was lavishly exemplified few hours ago.
Your drawing needs some project intention about,
i.e: what is what for what.
#4 已发布: 2019/9/20 20:15:38
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

You can define piecewise function this way. Haven't figured out integration yet. Built in int() function doesn't seem to work.


Latest version is all white. Could discover the blank regions,
framed the regions, added background.

#5 已发布: 2019/9/20 20:37:44
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

calculate the surface area



#6 已发布: 2019/9/20 20:46:37
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

You can try something like this

Russia ☭ forever, Viacheslav N. Mezentsev
#7 已发布: 2019/9/20 23:29:09
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

calculate the surface area.



Annotate the drawing [what is what in there], and what wort what.

MatrixUnknown.sm (9.19 KiB)已下载 1164 次。
#8 已发布: 2019/9/21 04:37:10
XiuPer

XiuPer

0个赞,共3个帖子。

组: User

Thank you guys for your answers,

I will try to explain what I need.

Depending on the soil layers, I have a graph similar to the picture. At a later stage, I want to divide this chart into equal pieces (for example 0.25 m or 0.5m) to obtain "soil springs".
To simplify the example, I assumed that the elements of the K matrix are constant.

#9 已发布: 2019/9/21 05:47:47
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

uint.sm (9.71 KiB)已下载 1172 次。
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
2位用户喜欢此帖子
frapuano 2019/9/21 07:05:00, sergio 2019/9/21 08:26:00
#10 已发布: 2019/9/21 11:23:03
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

Depending on the soil layers,
I have a graph similar to the picture. At a later stage,
I want to divide this chart into equal pieces
(for example 0.25 m or 0.5m) to obtain "soil springs".
To simplify the example, I assumed that the elements of the K matrix are constant.


OK ... from there, apply your skill to produce the Cartesian graph
of the piecewise soil. No problem to integrate.
Integration of discontinuous functions is deceiving.
Two models attached. The Romberg-Simpson is more accurate.
Example 2, the integration is known by inspection.
Isn't deceiving Simpson is not so good !
Cheers ... Jean

Integrate Discontinuous_2.sm (131.93 KiB)已下载 1213 次。

#11 已发布: 2019/9/21 14:12:23
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

Integration of discontinuous functions is deceiving.


Total integration is often what the project needs.
Most Engineering projects require the evolution of the integration,
i.e: the cumulative integration.
The attached takes Martin data set, convex Hermite
that you can fillet [sub:=,] and populate at will [mesh 't'].
The latest step is the FD integration [Finite Differences].
The graph shows the evolution of the integration.
The end point of the cumulative = total integration
from any other best/applicable numerical integrator.
Except for trivial cases no numerical integration is exact.
FD integration is always very accurate [kind of yardstick].
Hermite polyline is very similar to CAD systems.
Please, come back on that "Soil project".
Cheers ... Jean

Integrate Discontinuous_3 [HermiteSpline, FD].sm (49.69 KiB)已下载 1034 次。
#12 已发布: 2019/9/21 14:16:46
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

You can try something like this


True Viacheslav: ODE integrator(s) are very excellent.
Thanks for your input.
#13 已发布: 2019/9/21 17:18:55
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

... some didactic added.
OBSERVE: before the CAS numerical integration,
integration was FD [Finite Differences].
Read: F.B. Hildebrand.

Integrate Discontinuous_3 [HermiteSpline, FD].sm (114.63 KiB)已下载 1048 次。
#14 已发布: 2019/9/22 06:57:11
XiuPer

XiuPer

0个赞,共3个帖子。

组: User

Thank you very much,
(btw the "thank" button on this page does not work)

The idea of ​​using linterp is actually much better instead of a loop.
Below is the file with the result I needed.

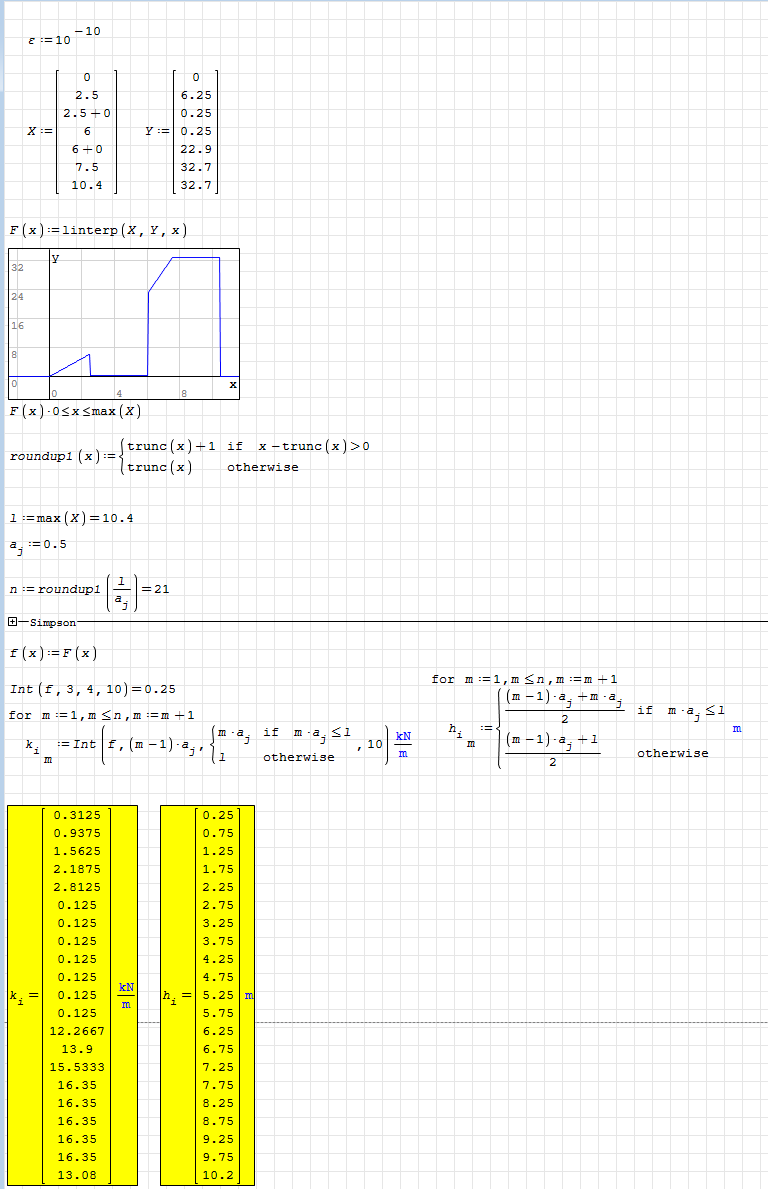

Final springs.PNG

Final springs.sm (20.64 KiB)已下载 1186 次。
#15 已发布: 2019/9/22 09:43:08
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

Thank you very much,
(btw the "thank" button on this page does not work)

The idea of using linterp is actually much better instead of a loop.
Below is the file with the result I needed.


The "Tanks" button used to work years ago, not any more.
Good work ... two comments:
1. subscript is confusing with sub-sub index.
Very many projects are sub-sub indexed.
Reserve subscript as tutorial [exemplified].
2. variable name confusing with number is another killer.
you had 1:=max(X).
SS7030 was reputed good version, compatible SS 6179.

Final springs_1.sm (24.73 KiB)已下载 1196 次。


#16 已发布: 2019/9/22 13:56:55
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

... for convenience and publishing:
you can sub-space [at will] your calculated segments.
From there, you may obtain the cumulative integration
from the FD as offered before.

Final springs_1.sm (42.69 KiB)已下载 1176 次。
#17 已发布: 2019/9/22 15:32:32
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

you can sub-space [at will]


... directly from the sampled data.
Subspace is a great utility.

Soil Simplifed from Sampled Data.sm (18.09 KiB)已下载 1239 次。
