#1 已发布: 2023/12/5 12:53:18
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

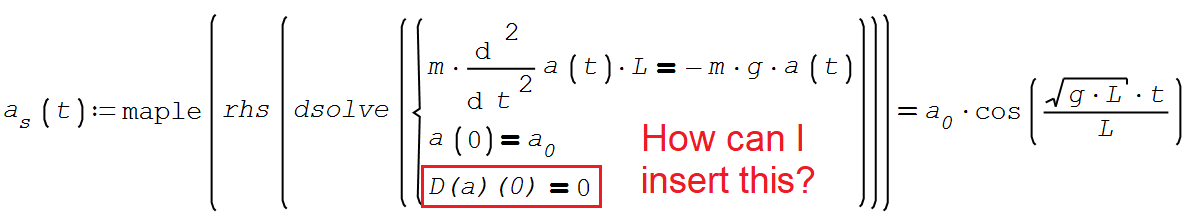

Pendulum.sm (233.97 KiB)已下载 1498 次。
#2 已发布: 2023/12/5 13:38:18
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Ctrl+Shift+K.
Russia ☭ forever, Viacheslav N. Mezentsev
1位用户喜欢此帖子
Valery Ochkov 2023/12/5 13:54:00
#3 已发布: 2023/12/5 22:44:09
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

Wrote

Ctrl+Shift+K.



Can we solve this task with SMath + Mathcad
#4 已发布: 2023/12/6 00:05:11
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Можно попробовать, если будет доступен оригинальный документ Mathcad.
Russia ☭ forever, Viacheslav N. Mezentsev
#5 已发布: 2023/12/6 00:55:01
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

Можно попробовать, если будет доступен оригинальный документ Mathcad.



Pendulum-Spring.xmcd (159.03 KiB)已下载 1531 次。
#6 已发布: 2023/12/6 03:09:08
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

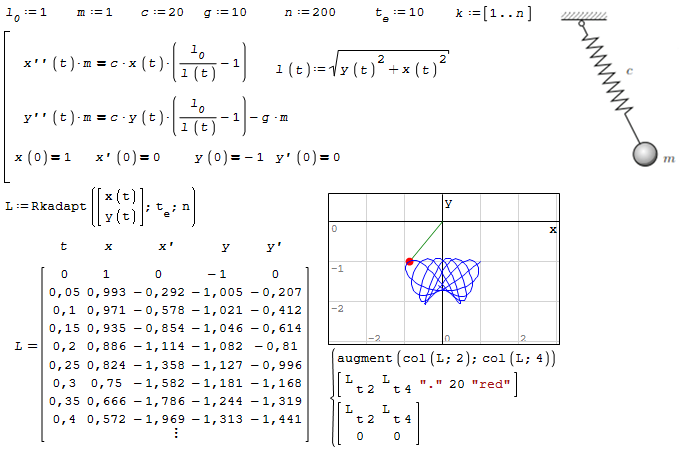

The definition of l(t) must be inside or above the Mathcad block

Federpendel-block.sm (39.22 KiB)已下载 1481 次。
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
1位用户喜欢此帖子
Valery Ochkov 2023/12/6 04:16:00
#7 已发布: 2023/12/6 05:04:43
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

My solution
Pendulum-Spring.xmcd (82.56 KiB)已下载 1534 次。

#8 已发布: 2023/12/6 05:15:14
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

Animation needed

#9 已发布: 2023/12/6 07:57:07
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Simple pendulum + animation.

ODE Pendulum Copy.sm (103.31 KiB)已下载 1484 次。
#10 已发布: 2023/12/6 12:49:26
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Comparing with the usual elastic pendulum.


Click to enlarge


Ochkov elastic pendulum.sm (32.17 KiB)已下载 1451 次。

Best regards.
Alvaro.
2位用户喜欢此帖子
Вячеслав Мезенцев 2023/12/6 14:10:00, Valery Ochkov 2023/12/6 14:34:00
#11 已发布: 2023/12/6 14:38:55
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

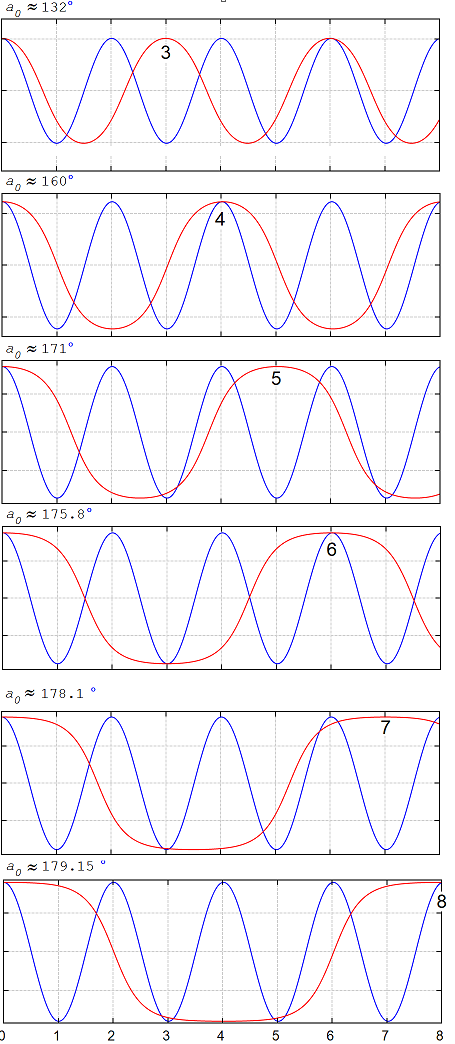

See please the Fig. 4.10 here
http://twt.mpei.ac.ru/ochkov/Ochkov-V-F-Engineering-Calc.pdf
Now I would like to rewrite this Russian-English book with SMath. Help me please!

#12 已发布: 2023/12/6 20:02:42
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

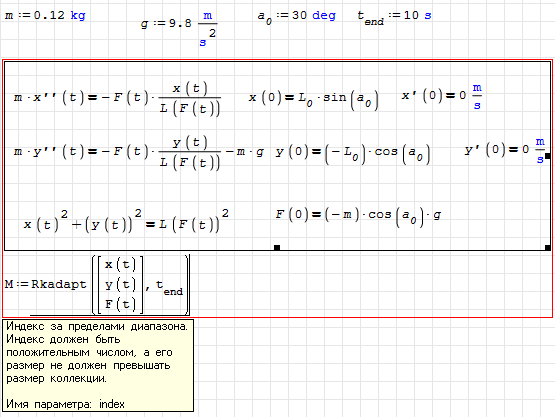

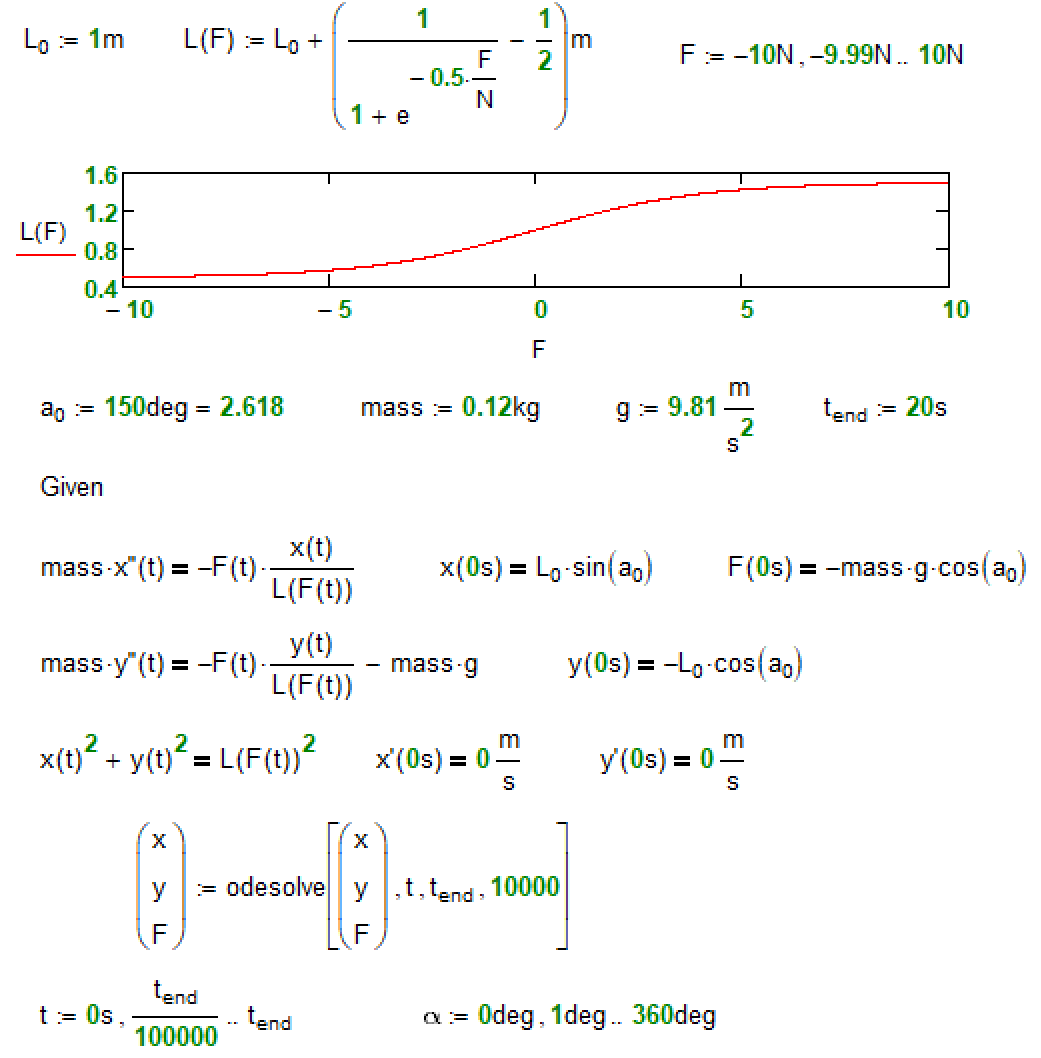

Why I have an error in this task? Help please!
Pund-Spring.sm (15.02 KiB)已下载 1497 次。
#13 已发布: 2023/12/6 21:27:58
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

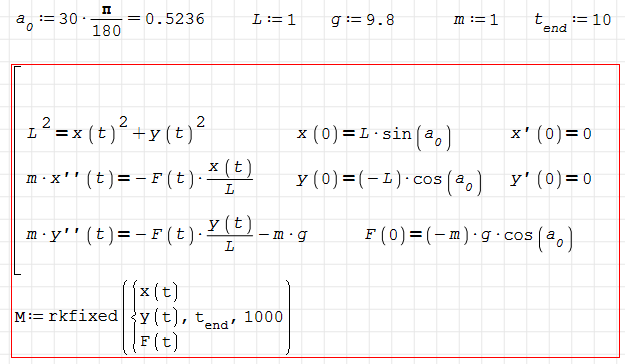

More simple task
Pund.sm (11.53 KiB)已下载 1518 次。
#14 已发布: 2023/12/7 06:47:42
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

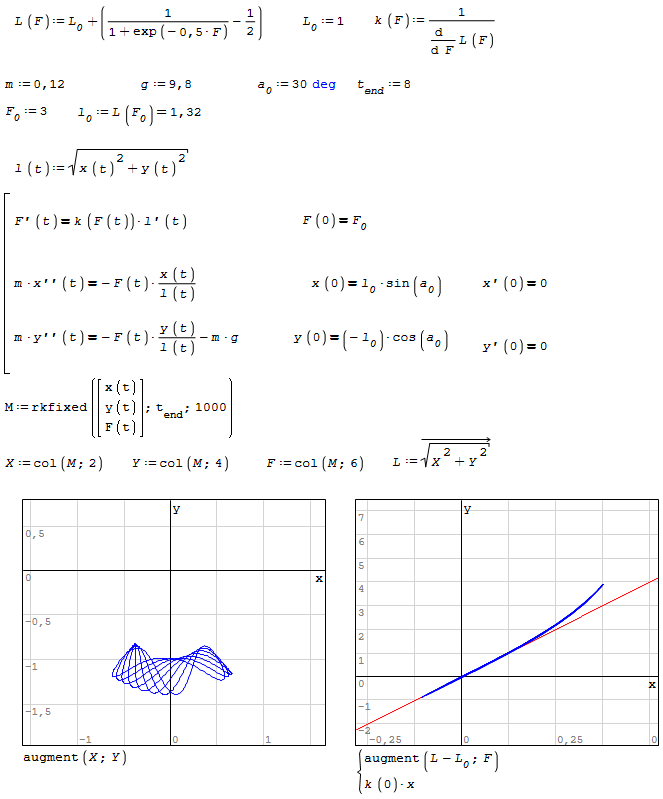

If F(t) is requested as result, you have to specify F'(t). k(F) is the tangential stiffness of the spring, the inverse of the tangential compliance.

Federpendel-NL.sm (13.71 KiB)已下载 1497 次。
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
2位用户喜欢此帖子
Valery Ochkov 2023/12/7 13:02:00, Alvaro 2023/12/7 12:22:00
#15 已发布: 2023/12/7 13:03:36
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

#16 已发布: 2023/12/7 15:59:36
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

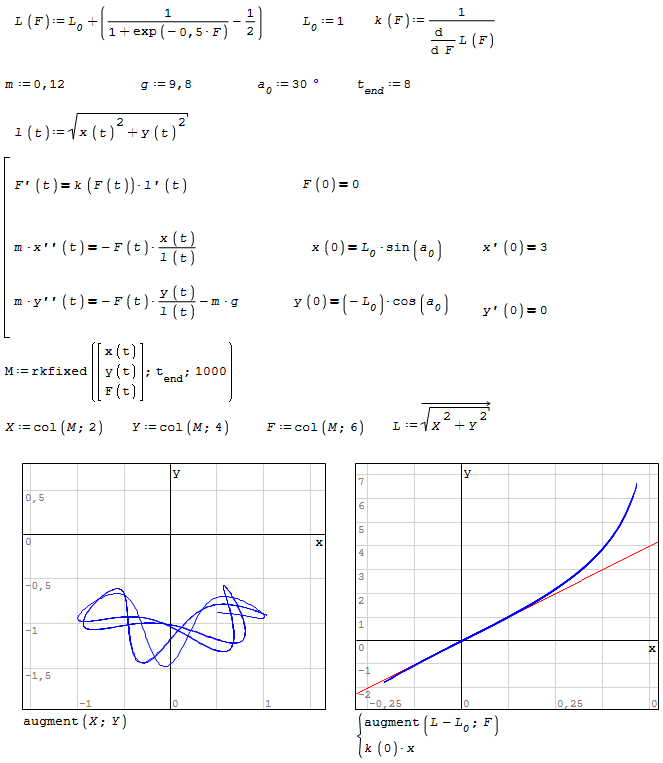

In this version you can specify the initial force in the spring. The initial conditions for x and y are adjusted appropriately.

Federpendel-NL.sm (15.06 KiB)已下载 1511 次。
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
2位用户喜欢此帖子
Alvaro 2023/12/8 05:03:00, Valery Ochkov 2023/12/8 08:11:00
#17 已发布: 2023/12/8 03:12:47
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

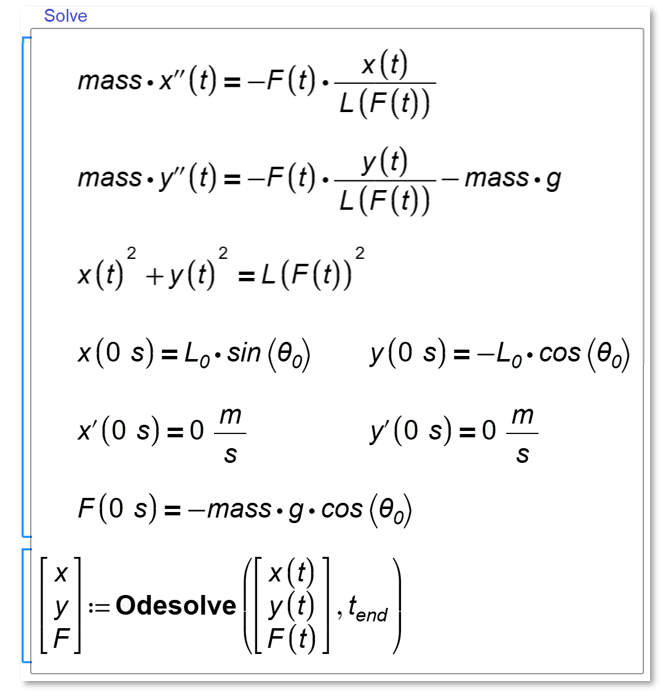

Your Mathcad Given/Odesolve ... solves via Maple.
Verhulst solves wrt limits ... pretty advanced.

Inst_Verhulst.sm (27.14 KiB)已下载 1495 次。
1位用户喜欢此帖子
Valery Ochkov 2023/12/8 08:11:00
#18 已发布: 2023/12/8 05:06:15
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

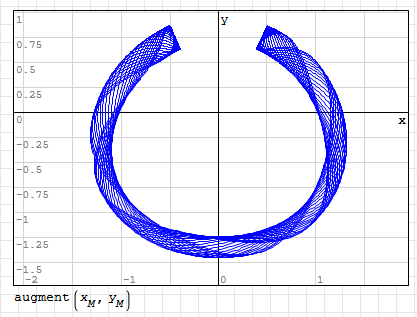

The equations of motion, using Lagrange dynamics, from this post:


ElasticPendulum.sm (244.53 KiB)已下载 1476 次。

Best regards.
Alvaro.
2位用户喜欢此帖子
Valery Ochkov 2023/12/8 08:10:00, sergio 2023/12/8 23:03:00
#19 已发布: 2023/12/8 07:54:19
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Wrote

In this version you can specify the initial force in the spring. The initial conditions for x and y are adjusted appropriately. ...



A comparison between Martin's solution and that given by the equations of motion obtained from the Lagrangian. Spoiler: both give the same result.

I'd like to point out how incredibly complicated this problem actually is, and what a series of brilliant implementations Martin makes. For example, where the hell does he get the time derivative of the force on an elastic bar when he is given only the length of the bar as a function of the force? Obviously, it is not enough to apply the theorem of the derivative of the inverse function, but you also have to have a deep knowledge of the mechanics of the system to remember something called tangential stiffness, and although it uses k to represent it, we forgive it because It's German and they are well known to use their own abbreviations. Well, actually I don't know what letter to use, because I don't remember ever using that magnitude for any practical purpose, but in Spanish literature it is quite common to use k for its inverse, which is the constant that appears in Hooke's law. Or at least I think so, because the existence of elastic bodies is actually a complication, they should all be rigid better.

Another notable thing about this example is that I would like someone to please explain to me how the hell the Viacheslav plugin manages to handle l'(t) within the equations, because I honestly didn't expect it.

Federpendel-NL - Lagrangian.sm (257.87 KiB)已下载 1625 次。

Best regards.
Alvaro.
3位用户喜欢此帖子
Valery Ochkov 2023/12/8 08:10:00, Martin Kraska 2023/12/8 15:04:00, Вячеслав Мезенцев 2023/12/8 15:35:00
#20 已发布: 2023/12/8 13:00:10
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

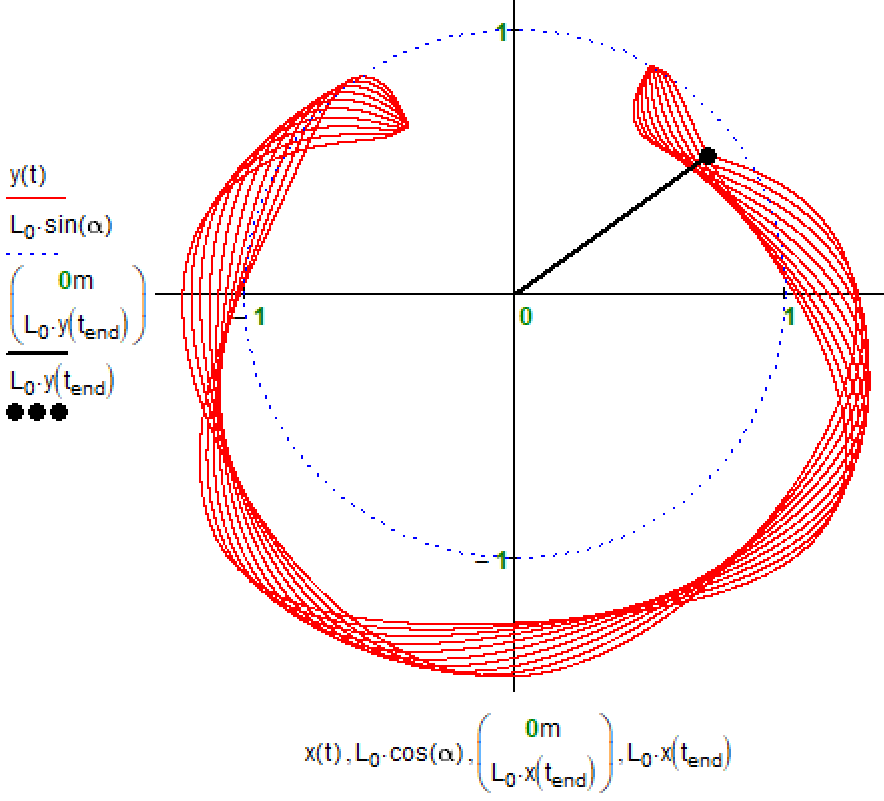

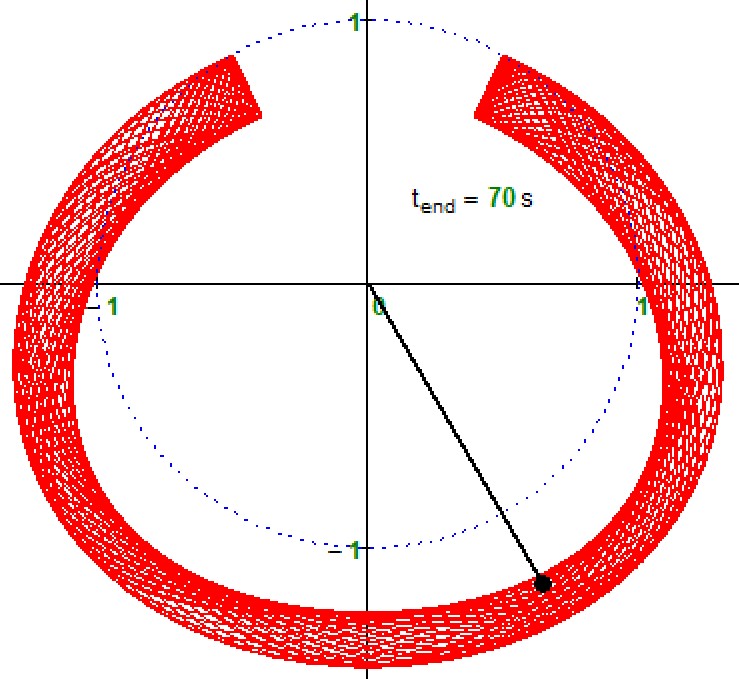

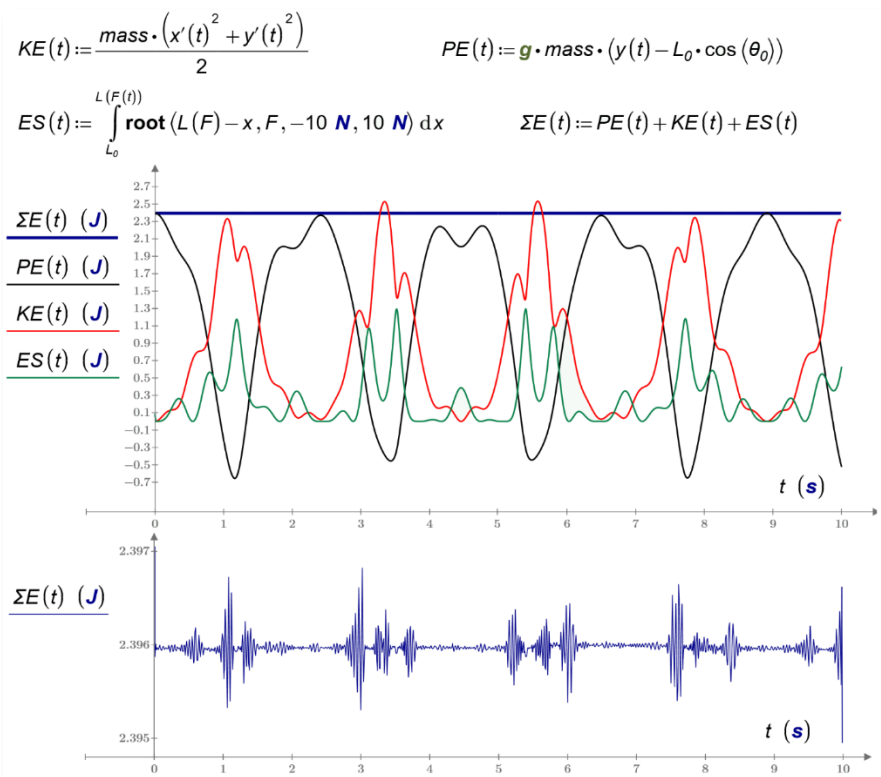

Have you seen this plot
