Split Areas(Polygons convex and concave) by lines

Split Areas(Polygons convex and concave) by lines - Momentum curvature by fibers method - 消息

#1 已发布: 2022/7/29 13:13:09
Jesus

Jesus

0个赞,共6个帖子。

组: User

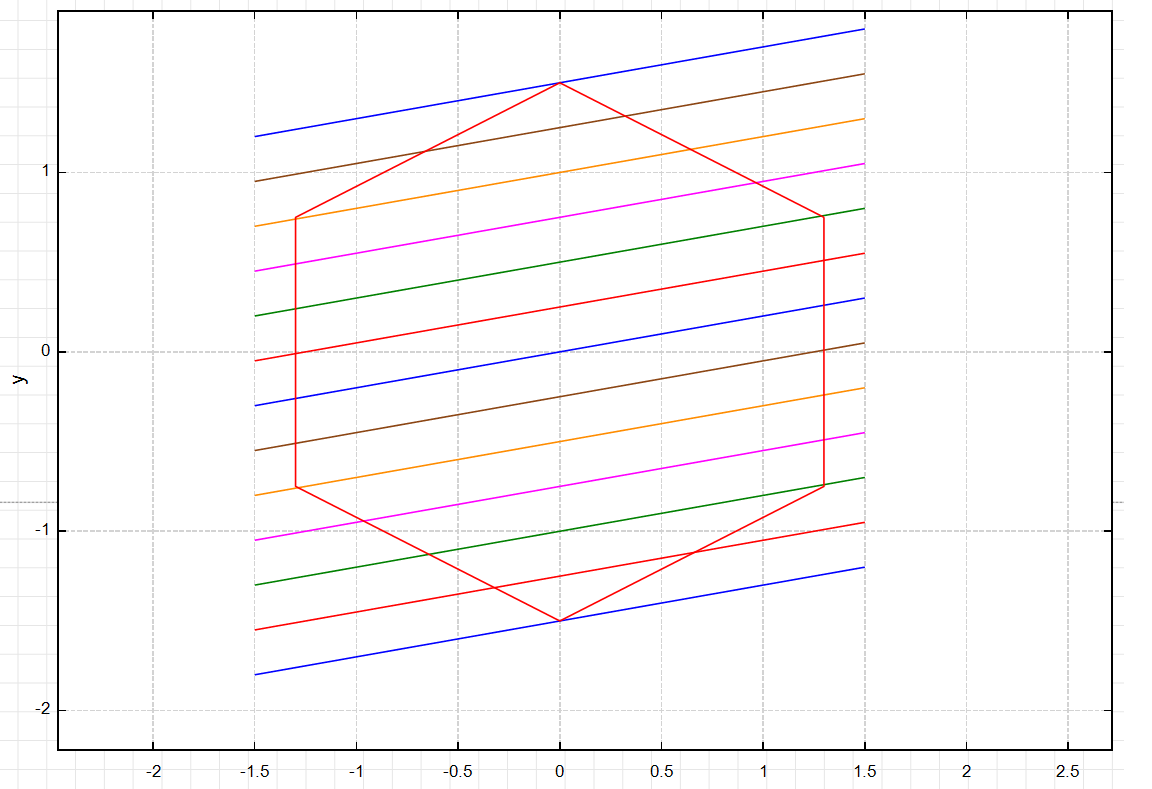

Hi everyone ,I'm doing a momentum curvature usign Popovic's Method and found a big problem beacuse to divide a polygon(convex and concave) into small fiber like this image but with more lines:
General Polygon

it's not so easy to do an algorithm. I did a smath file when the polygon it's rectangular but for more general case my smath code doesn't work, I'd like know an algorithm, code or function if it's posible in smath or other language to develop.

Best regards.
Jesus.

Verificacion_de_fluencia_en_acero_fiber_method_degradation_forum.pdf (550.67 KiB)已下载 1200 次。
#2 已发布: 2022/7/29 16:45:52
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

If I understand ...
Your polygon has 9 vertices, we can try a circular spline.
That will add as many points between vertices, is it ?
From there: Area, Perimeter, Center of Gravity.
Give the vertices... Jean.
#3 已发布: 2022/7/29 18:10:04
Jesus

Jesus

0个赞,共6个帖子。

组: User

Hi Jean, exactly I need to known the area, center of gravity and perimeter of the division but the polygon doesn't need to have 9 vertices, this is an example in this case. In general ,I'd like to calculate for n vertices polygon(convex or concave),let me give an example in smath for regular polygon.


polygon_2.sm (36.33 KiB)已下载 1403 次。

Best regards.
Jesus.
#4 已发布: 2022/7/30 15:49:15
Jesus

Jesus

0个赞,共6个帖子。

组: User

Hi Jean, it was a good solution and you give some ideas to do a code but I'd like to do for more lines and I'd like to optimize the code or algorithm. I did a code in smath maybe need to optimize some parts and get some interesting results, i hope you take a look because a I'd like to aply to convex and no convex polygon, I think it's so hard but I'd like to know the algorithm or code that other programs use. My code doesn't work for some slopes though

Page5 Polygon Copy.sm (116.59 KiB)已下载 1663 次。

Best regards.
Jesus.
#5 已发布: 2022/7/31 07:45:01
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

Wrote

Hi everyone ,I'm doing a momentum curvature usign Popovic's Method and found a big problem beacuse to divide a polygon(convex and concave) into small fiber like this image but with more lines:
General Polygon

it's not so easy to do an algorithm. I did a smath file when the polygon it's rectangular but for more general case my smath code doesn't work, I'd like know an algorithm, code or function if it's posible in smath or other language to develop.

Best regards.
Jesus.

Verificacion_de_fluencia_en_acero_fiber_method_degradation_forum.pdf (550.67 KiB)已下载 1200 次。

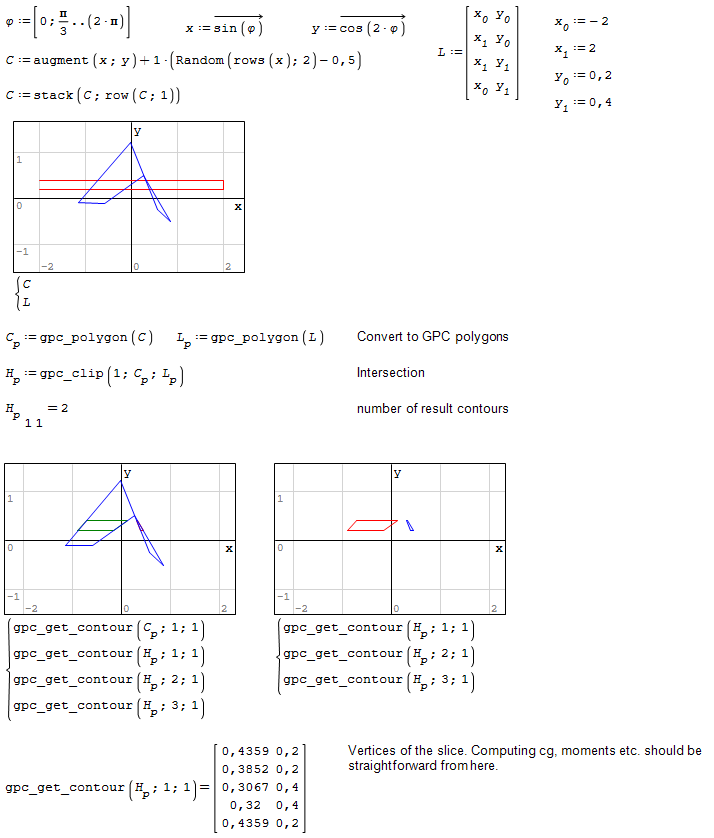

This might be an application for the GPC wrapper plugin by Davide.

gpc1.sm (12.5 KiB)已下载 1383 次。
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
#6 已发布: 2022/7/31 12:37:52
Jesus

Jesus

0个赞,共6个帖子。

组: User

Thank you so much, mkraska and Jean, I'll take a look this package (GPC wrapper).

Best regards

Jesús.
#7 已发布: 2022/7/31 16:06:27
Jesus

Jesus

0个赞,共6个帖子。

组: User

Ok Jean, I hope You'll find an algorithm to solve that problem.

Best regards
Jesus
#8 已发布: 2022/8/1 14:09:35
Laurent Fournier

Laurent Fournier

9个赞,共66个帖子。

组: User

very exciting project!
#9 已发布: 2022/8/1 14:23:17
Jesus

Jesus

0个赞,共6个帖子。

组: User

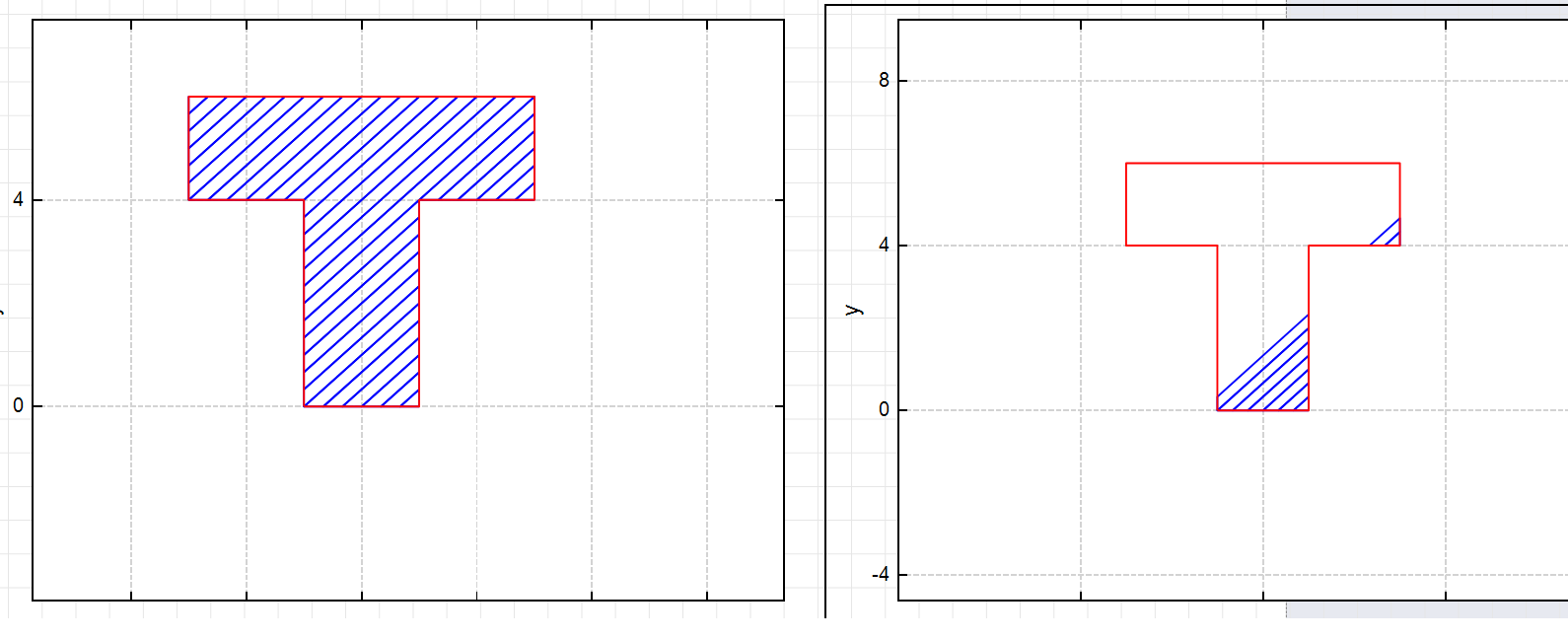

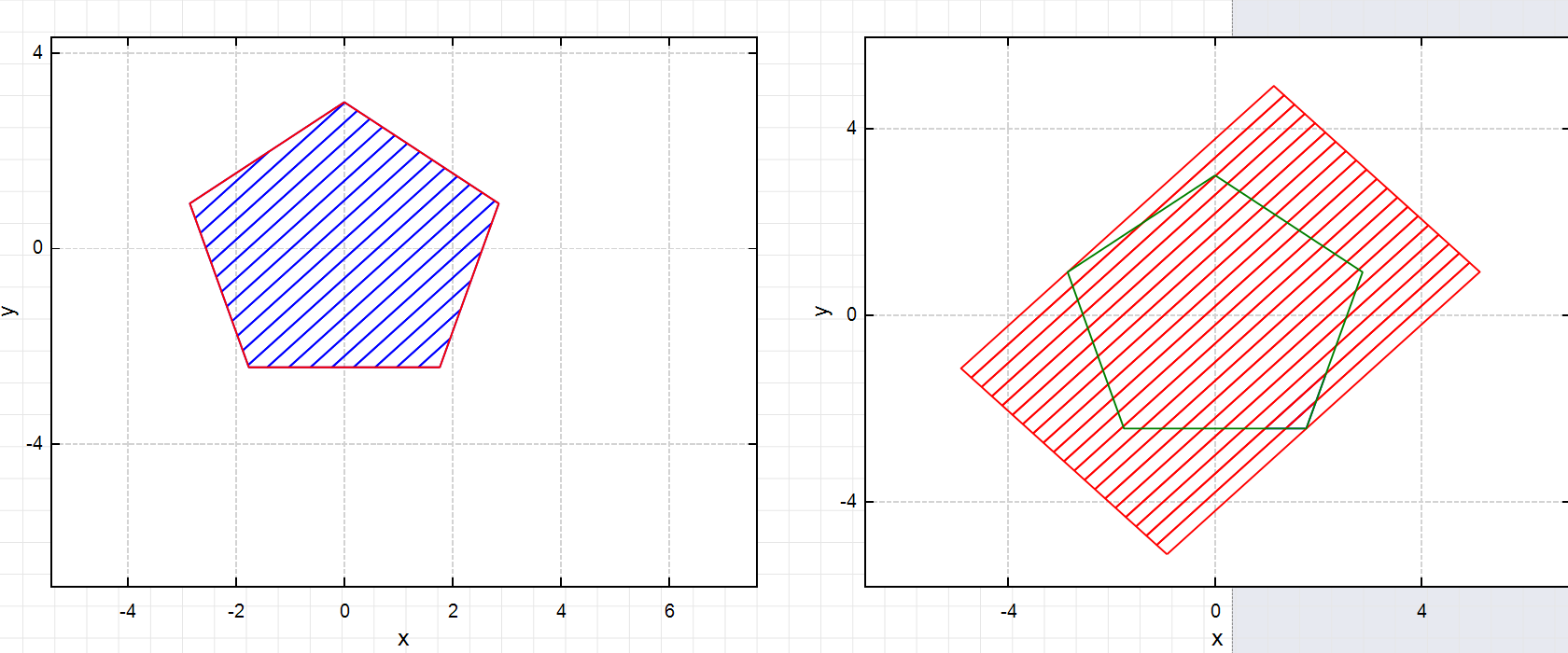

Hi Jean it's an excellent solution, thank you so much , I did a code with GPC plugin and I could get this results.



polygon_irregular_fiber_borrador1.sm (34.31 KiB)已下载 1424 次。

polygon_regular_fiber_borrador1.sm (35.48 KiB)已下载 1402 次。

Best regards

Jesus
#10 已发布: 2022/8/1 15:19:08
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

very exciting project!


... algo style to collapse in utilities.

#11 已发布: 2022/8/1 19:06:15
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

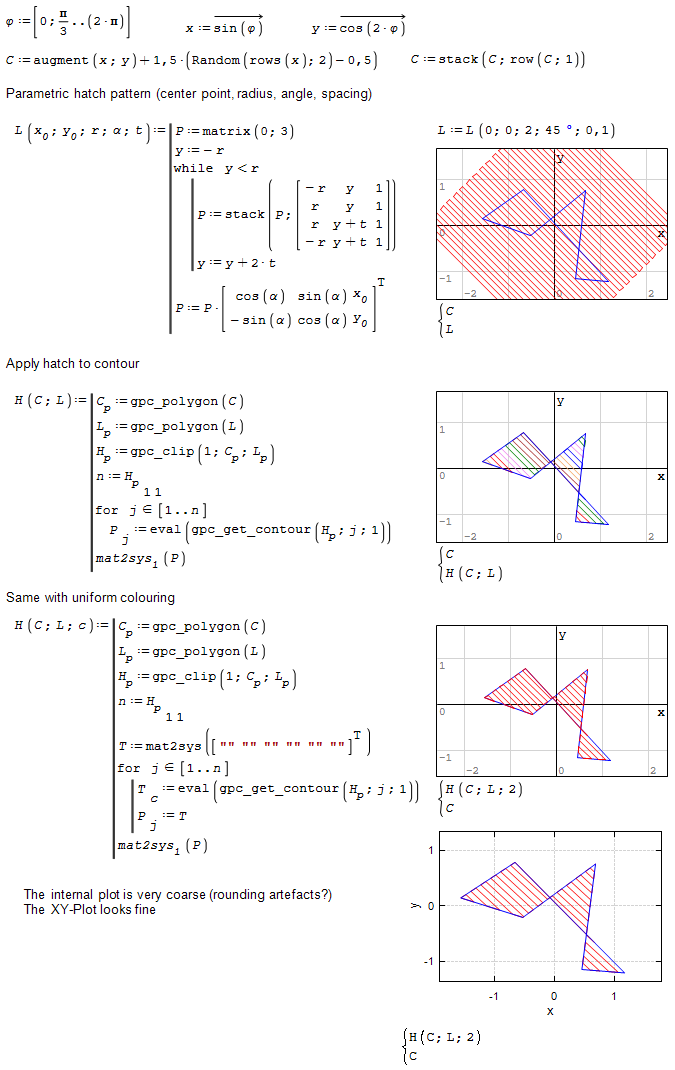

General hatching procedure for arbitrary contours

gpc2.sm (42.6 KiB)已下载 1447 次。
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
#12 已发布: 2022/8/2 00:05:56
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Hi. In the attached, a function for see if a point is inside or outside a polygon, and a code for double integrals using Gauss-Legendre coefficients.

InPoly.pdf (97.1 KiB)已下载 846 次。
InPoly.sm (43.3 KiB)已下载 1369 次。

Best regards.
Alvaro.
1位用户喜欢此帖子
sergio 2022/8/2 11:10:00
#13 已发布: 2022/8/2 02:44:17
Laurent Fournier

Laurent Fournier

9个赞,共66个帖子。

组: User

Wow!
Will we be able to calculate the static moment and the moment of inertia of any section with these tools?
#14 已发布: 2022/8/2 06:41:33
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

gpc3.sm (135.5 KiB)已下载 1495 次。

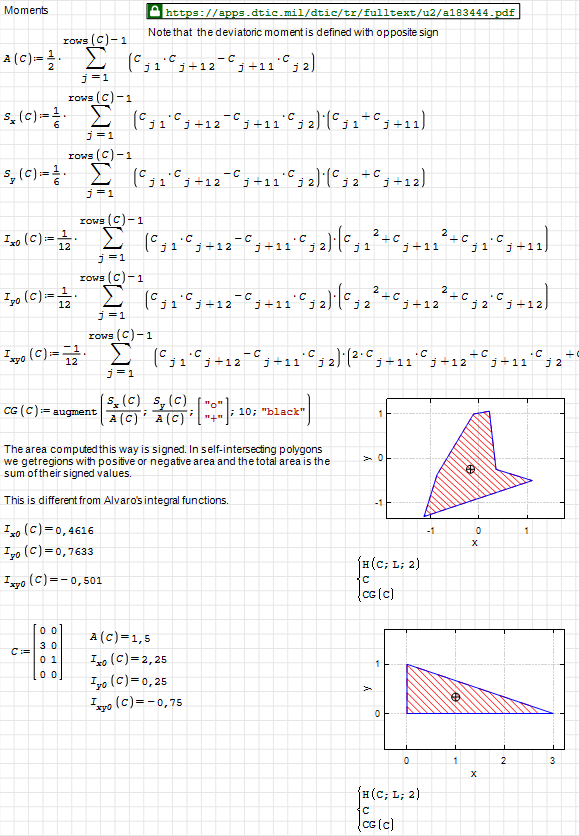

2022-08-02 11_11_43-SMath Solver 1.0.8238 - [gpc3.sm_].png
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
1位用户喜欢此帖子
sergio 2022/8/2 11:10:00
#15 已发布: 2022/8/2 09:21:54
Laurent Fournier

Laurent Fournier

9个赞,共66个帖子。

组: User

That's superb!

Thanks a lot!

Has anyone worked on polyhedra, convex hulls and polar polyhedra?
#16 已发布: 2022/8/2 11:16:59
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

... refreshed for convenience.

Maths Polygon Create.sm (99.71 KiB)已下载 1408 次。

#17 已发布: 2022/8/2 12:35:53
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

Has anyone worked on polyhedra, convex hulls and polar polyhedra?


I may have something on convex hull
Polyhedra, we have C_60 extracted from the adjacency matrix.
Jean

#18 已发布: 2022/8/2 13:41:40
Laurent Fournier

Laurent Fournier

9个赞,共66个帖子。

组: User

anything on the adjacency matrix I am super interested!
Handling the adjacency matrix is the only difficulty in fact. Polarity of points-planes is easy.
#19 已发布: 2022/8/2 20:47:43
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

anything on the adjacency matrix I am super interested!
Handling the adjacency matrix is the only difficulty in fact. Polarity of points-planes is easy.


1. In the attached Buckyball, adjacency matrix is from Mathsoft,
Mathsoft borrowed fro Matlab.
2. I have the Mathcad convex hull ORIGIN 0
RemToDo ORIGIN 1 for Smath coding.
Cheers ... Jean.

Buckyball Adjacency.sm (16.36 KiB)已下载 1372 次。
0Anim Buckyball.sm (107.29 KiB)已下载 1368 次。
Buckyball.sm (176.41 KiB)已下载 1419 次。

1位用户喜欢此帖子
Laurent Fournier 2022/8/2 23:36:00
#20 已发布: 2023/5/24 17:25:09
CLEISON ARMANDO MANRIQUE AGUIRRE

CLEISON ARMANDO MANRIQUE AGUIRRE

0个赞,共2个帖子。

组: User

Wrote

gpc3.sm (135.5 KiB)已下载 1495 次。
2022-08-02 11_11_43-SMath Solver 1.0.8238 - [gpc3.sm_].png



I guess we can not use the same matrix of contour point to get the area and de center of mass ... Or am I wrong ?
