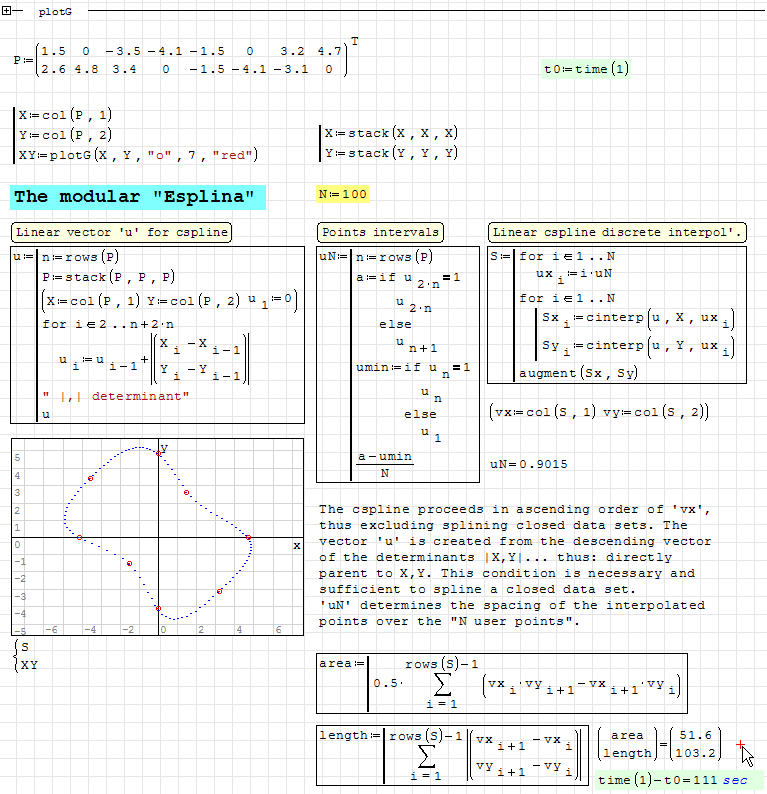

This one works well for the given data set. Mesh finer at will and if needed,
bilinear ... not much use for bilinear, whereas "spline" is just something.

Jean

Spline Esplina Done.gif

Spline Esplina [AI2000].sm (23.66 KiB)已下载 1239 次。
#2 已发布: 2016/9/12 19:08:01
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

... a faster version: one twin col extractor removed.
By same token, I wonder why the col extractor col(,,) is so slow ?

Jean

Spline Esplina [AI2000].sm (23.75 KiB)已下载 1270 次。
#3 已发布: 2016/9/12 21:59:52
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

"By same token, I wonder why the col extractor col(,,) is so slow ?"

You can speed up calculation if o are using "eval":

Spline Esplina [AI2000] (1).sm (25.27 KiB)已下载 1248 次。

#4 已发布: 2016/9/12 23:07:59
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Thanks Ber7 for "speedy Gonzalez". In fact, the "uN"
conditional code is redundant in this dataset.
Here is the latest version, even faster.

Jean

Spline Esplina [AI2000].sm (23.66 KiB)已下载 1284 次。
#5 已发布: 2016/9/13 03:08:10
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

Jean,calculation speed will be doubled, if we use the advice of Андрей
http://en.smath.info/forum/resource.ashx?a=14504&b=2

Spline Esplina [AI2000] 2.sm (20.98 KiB)已下载 1291 次。
1位用户喜欢此帖子
Davide Carpi 2016/9/13 11:45:00
#6 已发布: 2016/9/13 07:58:11
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Thanks Ber7,
... now she is a bomb [2 sec] !

Spline Esplina [AI2000].sm (22.82 KiB)已下载 1307 次。
2位用户喜欢此帖子
sergio 2016/9/13 08:17:00, NDTM Amarasekera 2016/9/13 11:14:00
#7 已发布: 2016/9/13 11:23:31
Andrey Ivashov

Andrey Ivashov

2,344个赞,共4,057个帖子。

组: Super Administrator

You forgot to specify first element of u vector.

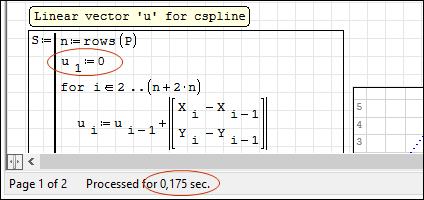

By doing so you can speed up calculation even more:


Regards.
2位用户喜欢此帖子
Davide Carpi 2016/9/13 11:45:00, NDTM Amarasekera 2016/9/13 12:01:00
#8 已发布: 2016/9/13 12:08:37
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

You forgot to specify first element of u vector.

By doing so you can speed up calculation even more:



Thanks Andrey, damned me !

While you are there, can you speed up "DeBoor" ?

Jean

Spline De Boor [Esplina].sm (47.76 KiB)已下载 1241 次。

#9 已发布: 2016/9/13 12:47:49
Andrey Ivashov

Andrey Ivashov

2,344个赞,共4,057个帖子。

组: Super Administrator

Done

Spline De Boor [Esplina]_mod.sm (47.37 KiB)已下载 1322 次。

Timings:
  • 6.1 seconds by 0.97.5890
  • 2.3 seconds by 0.98.6096


Regards.
#10 已发布: 2016/9/13 15:32:56
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Thanks Andrey,

... for the local definition of Sx(v), Sy(v).
Must be consistant with all upward local definitions.

Jean
#11 已发布: 2016/9/13 15:53:06
Andrey Ivashov

Andrey Ivashov

2,344个赞,共4,057个帖子。

组: Super Administrator

You're welcome.

The main change was this:


Actually I'm not sure why calculation of u is so complex... looks like it is just a copy of m.
#12 已发布: 2016/9/14 00:51:51
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Quite right Andrey: 'u' is 'm', which 'm' is redundant.

I must have constructed N_(v,j) aroud 'u' from some source,
thus easier to check the coding. The attached work sheet
has been refactored with auxilliary explanations.
Can be used as model for DeBoor, pretty easy to adapt to
any project. Spline order is linear interpolation around
the polygon. Spline order 2 is "convex hull" per say.
They are about the only two types splines useful for
technical works [?]

Jean

Spline De Boor [Loop].sm (41.68 KiB)已下载 1296 次。
