I saw someone here doing simulations of pendulum and other nonlinear dynamic models, I wonder how can I do that on SMath given that solutions of the ODEs is known, thanks in advance
#2 已发布: 2023/2/2 22:19:19
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

I saw someone here doing simulations of pendulum and other nonlinear dynamic models, I wonder how can I do that on SMath given that solutions of the ODEs is known, thanks in advance


Number of ODE's have symbolic solution.
If your DE has either of these tree forms,
Smath will spits scalar solutions wrt parameters/IC ...

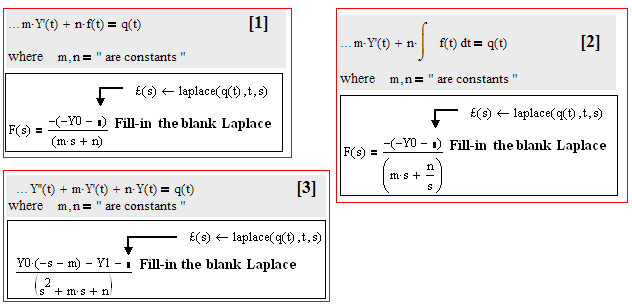

One of my old baby in Mathsoft Collaboratory.
Cheers ... Jean.

Laplace 123.PNG
1位用户喜欢此帖子
Oichi 2023/2/3 04:20:00
#3 已发布: 2023/2/3 04:20:26
Oichi

Oichi

4个赞,共35个帖子。

组: User

Thanks, But what I meant is how to simulate the pendulum motion itself seeing the bob and how it swings. See this link
https://en.smath.com/forum/yaf_postst973_Animation-double-pendulum-and-a-pendulum-on-a-spring.aspx
#4 已发布: 2023/2/3 05:28:39
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

In the handbook section 8.2.6 (google for kraska smath handbuch) there is an example for such animations.

The idea is to parametrize your graphics expressions with the variable t and provide a vector of values for t via context menu of the graphic area. This only works for the built-in graphics region, not for x-y plot plugin and neither for maxima.
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
1位用户喜欢此帖子
Oichi 2023/2/3 05:32:00
#5 已发布: 2023/2/3 05:32:26
Oichi

Oichi

4个赞,共35个帖子。

组: User

Wrote

In the handbook section 8.2.6 (google for kraska smath handbuch) there is an example for such animations.

The idea is to parametrize your graphics expressions with the variable t and provide a vector of values for t via context menu of the graphic area. This only works for the built-in graphics region, not for x-y plot plugin and neither for maxima.



Do you have a version that is in English?
#6 已发布: 2023/2/3 08:58:41
Arie

Arie

94个赞,共285个帖子。

组: User

Wrote

Do you have a version that is in English?



Google translate is your friend..
https://translate.google.com/?sl=de&tl=en&op=translate&hl=en
Feel free to join the SMath Studio Users Discord Channel: https://discord.gg/PayZpJW
#7 已发布: 2023/2/3 09:02:31
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

Wrote



Do you have a version that is in English?



No, but online translators nowadays are quite powerful.

Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
#8 已发布: 2023/2/3 09:20:45
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

Thanks, But what I meant is how to simulate the pendulum motion itself seeing the bob and how it swings. See this link


Ber7 demos are 6 years before I joined Smath Community.
In the mean time, you can solve the homogeneous pendulum.
Cheers ... Jean.

ODE Pendulum Copy.sm (63.38 KiB)已下载 1371 次。

1位用户喜欢此帖子
Oichi 2023/2/3 14:09:00
#9 已发布: 2023/2/3 14:12:17
Oichi

Oichi

4个赞,共35个帖子。

组: User

Wrote

In the handbook section 8.2.6 (google for kraska smath handbuch) there is an example for such animations.

The idea is to parametrize your graphics expressions with the variable t and provide a vector of values for t via context menu of the graphic area. This only works for the built-in graphics region, not for x-y plot plugin and neither for maxima.



Finally, I did some animations, But I find some problems with the exported gifs. It acts like there are some missing frames while it's totally smooth inside the sheet.
Vibrating Pendulum.sm (15.9 KiB)已下载 1404 次。
#10 已发布: 2023/2/3 15:04:54
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Wrote

...
Finally, I did some animations, But I find some problems with the exported gifs. It acts like there are some missing frames while it's totally smooth inside the sheet.
Vibrating Pendulum.sm (15.9 KiB)已下载 1404 次。



Hi. This is a workaround for that bug: https://en.smath.com/forum/yaf_postsm75052_Problem-with-animated-gif-from-plot-region.aspx#post75052

However, notice that since the values of phi are numbers and not expressions, you cannot compute the derivatives of its components the way you do in D. You can check this by substituting zero for its values, and you get the same numerical solutions.



For diff(el(φ,3),t) you can use el(φ,4), and for diff(el(φ,4),t) you should use some kind of numerical estimate.

Best regards.
Alvaro.
1位用户喜欢此帖子
Oichi 2023/2/3 15:43:00
#11 已发布: 2023/2/3 18:13:12
Oichi

Oichi

4个赞,共35个帖子。

组: User

Wrote

Wrote

...
Finally, I did some animations, But I find some problems with the exported gifs. It acts like there are some missing frames while it's totally smooth inside the sheet.
Vibrating Pendulum.sm (15.9 KiB)已下载 1404 次。



Hi. This is a workaround for that bug: https://en.smath.com/forum/yaf_postsm75052_Problem-with-animated-gif-from-plot-region.aspx#post75052

However, notice that since the values of phi are numbers and not expressions, you cannot compute the derivatives of its components the way you do in D. You can check this by substituting zero for its values, and you get the same numerical solutions.



For diff(el(φ,3),t) you can use el(φ,4), and for diff(el(φ,4),t) you should use some kind of numerical estimate.

Best regards.
Alvaro.



I tried it, but still same bug exist maybe it got lowered but its still there and thanks for making me notice that mistake, does that mean we cannot solve numerically such type of DEs without assumptions?
#12 已发布: 2023/2/3 18:40:30
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Wrote

... does that mean we cannot solve numerically such type of DEs without assumptions?



Hi Oichi. Not. Remember that given F(x,x',x'',...,t) = 0 then for using numerical DEs solvers you must to find the system D(t,x) = [x', x'', ... ] with an appropriate change of variables. Which is your original analytic expression of your differential equation to be solved? This is, the one or two equations involving both all derivatives of all "x" variables, F(x,x',x'',...,t) = 0.

Best regards.
Alvaro.
#13 已发布: 2023/2/4 10:45:29
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

This version is doctored for SS versions as low as SS 6179.
To make it compatible with ODE universal plugins.
Can you update my invented vector 'phi' in red
So that the system makes sense for all visitors.
Cheers ... Jean.

Vibrating Pendulum (1).sm (24.56 KiB)已下载 1368 次。
#14 已发布: 2023/2/4 11:27:01
Oichi

Oichi

4个赞,共35个帖子。

组: User

Wrote

This version is doctored for SS versions as low as SS 6179.
To make it compatible with ODE universal plugins.
Can you update my invented vector 'phi' in red
So that the system makes sense for all visitors.
Cheers ... Jean.

Vibrating Pendulum (1).sm (24.56 KiB)已下载 1368 次。

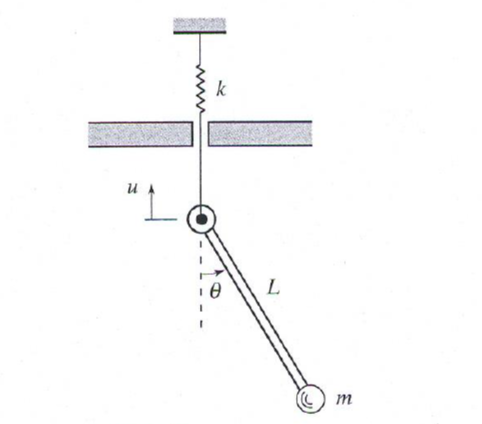

This example is for a pendulum that it's upper end is attached to a spring, The displacement of this upper end is Phi(1) "u" and the angular displacement of the pendulum is Phi(2) "theta". Phi(3) "u_dot" and Phi(4) "theta_dot" are the first derivatives of the upper end vertical motion and the angular displacement of the pendulum respectively.
Vibrating Pendulum.PNG
#15 已发布: 2023/2/4 15:11:46
Oichi

Oichi

4个赞,共35个帖子。

组: User

I did a trick and removed the d/dt terms.. but now I got a new problem. The Adams function telling me "Cannot calculate"
Vibrating Pendulum 2.sm (107.61 KiB)已下载 1389 次。
#16 已发布: 2023/2/4 15:21:26
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

This example is for a pendulum that it's upper end is attached to a spring, The displacement of this upper end is Phi(1) "u" and the angular displacement of the pendulum is Phi(2) "theta". Phi(3) "u_dot" and Phi(4) "theta_dot" are the first derivatives of the upper end vertical motion and the angular displacement of the pendulum respectively.


Thanks for explaining your advanced project.
Up until now, I can only manage the homogeneous Pendulum.
Cheers ... Jean.


1位用户喜欢此帖子
Oichi 2023/2/4 15:26:00
#17 已发布: 2023/2/4 17:06:12
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Hi. The attached file uses the techniques shown here and here. You can also obtain the equations of motion using the lagrangian with what is shown here.

Vibrating Pendulum.sm (116.24 KiB)已下载 1415 次。
Vibrating Pendulum.pdf (183.21 KiB)已下载 850 次。

Best regards.
Alvaro.
1位用户喜欢此帖子
Oichi 2023/2/4 17:25:00
#18 已发布: 2023/2/4 17:28:59
Oichi

Oichi

4个赞,共35个帖子。

组: User

Wrote

Hi. The attached file uses the techniques shown here and here. You can also obtain the equations of motion using the lagrangian with what is shown here.

Vibrating Pendulum.sm (116.24 KiB)已下载 1415 次。
Vibrating Pendulum.pdf (183.21 KiB)已下载 850 次。

Best regards.
Alvaro.


Thank you so much ^^, ODEs were already obtained using Lagrangians and Hamiltonians but I did them on a paper
