I am trying to plot two temperature curves governed by two equations with one variable that changes between them and one variable that goes from an interval of 0 seconds to 263 seconds. The plot window accepts the equations, but does not plot them. Additionally, when trying to get either equation to solve, it gives an error "cannot calculate". Which is quite odd, running through it on my calculator the equations work fine.

My only lead to what is going on, is perhaps the formatting is off and SMath doesn't understand it? I tried removing all the .waters and .airs, but that didn't work. I tried removing the time units, didn't work. Tried giving time just one value, did not work. I tried removing the (x) and (t) from the equation, did not work. I followed exactly what the wiki said to do, so I am not sure why I can't get these to plots. Don't really want to have to switch over to excel to get the graphs... Attached is a screenshot of the issue and the equations.

Anyone have any ideas?

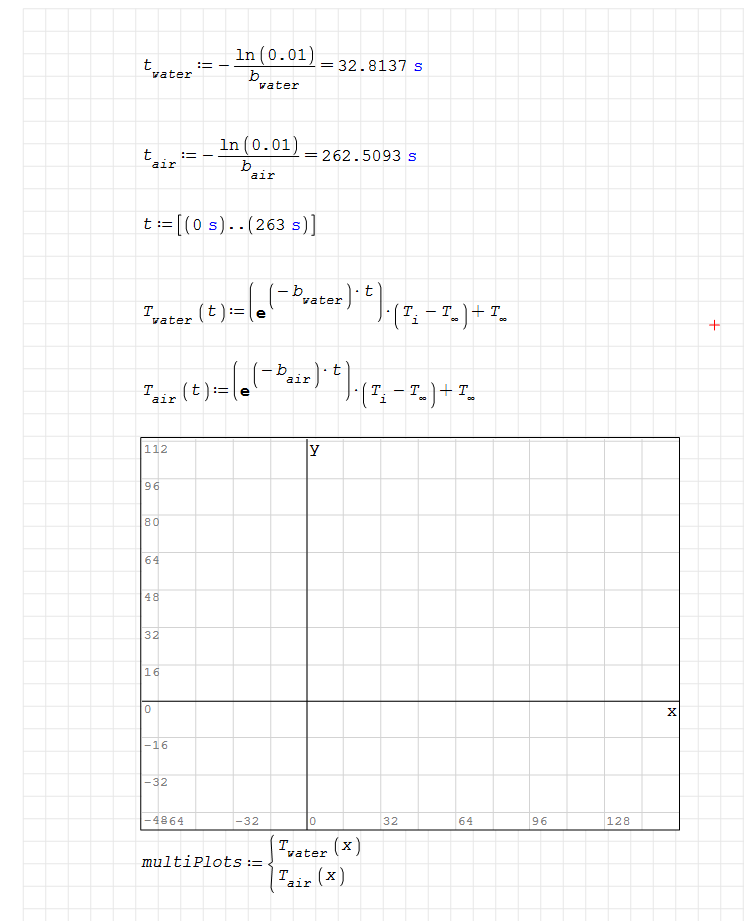

error 2.PNG
#2 已发布: 2022/10/9 06:33:33
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Too many complains in there ...
better attach the *.sm document for doctoring.
Try this ...t(x):=-ln(0.01)/x ... plot
#3 已发布: 2022/10/9 10:20:18
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Wrote


Anyone have any ideas?



Hi Albedo. Try to plot T(x*'s)

Best regards.
Alvaro.
#4 已发布: 2022/10/9 20:13:49
Ozen

Ozen

0个赞,共6个帖子。

组: User

Wrote

Too many complains in there ...
better attach the *.sm document for doctoring.
Try this ...t(x):=-ln(0.01)/x ... plot



Wrote

Wrote


Anyone have any ideas?



Hi Albedo. Try to plot T(x*'s)

Best regards.
Alvaro.



Tried to plot T(x*'s), no luck either. Attached is the .SM file if you want to try experimenting with it.Worksheet2.sm (7.81 KiB)已下载 1321 次。

EDIT: Found a previous post of somebody struggling to get a range variable to calculate, the solution was to vectorize the equation after to get it to form a matrix. This works and gives me the correct temperature value, but it still will not plot the functions.

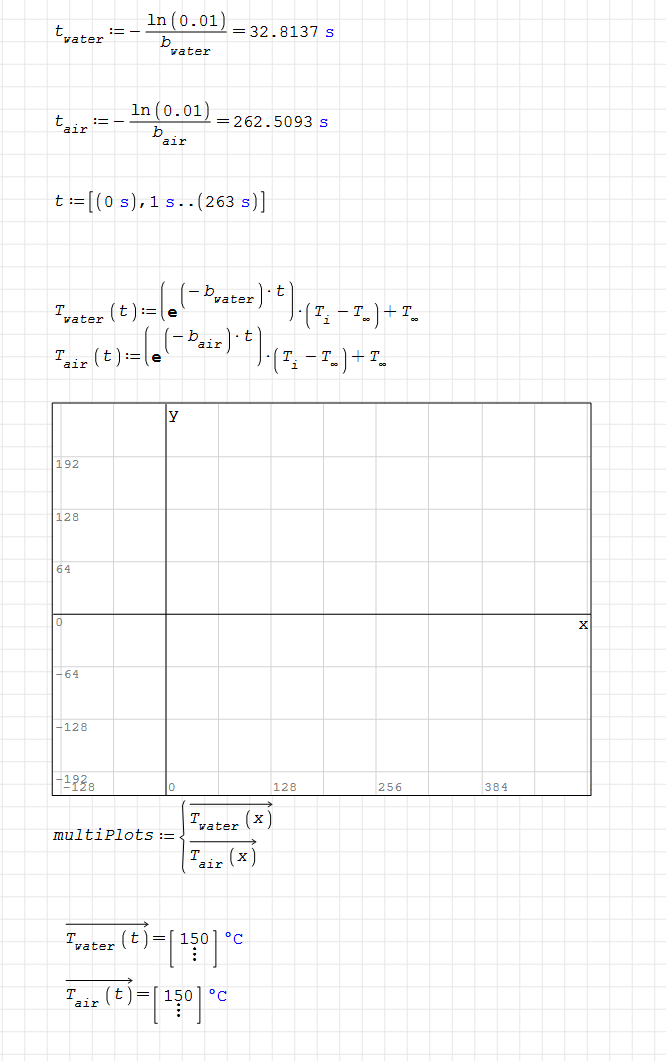

error 3.PNG
#5 已发布: 2022/10/9 23:42:40
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Wrote



Tried to plot T(x*'s), no luck either. Attached is the .SM file if you want to try experimenting with it.



Hi. Try to resize the plot too.


Best regards.
Alvaro.
#6 已发布: 2022/10/9 23:56:50
Ozen

Ozen

0个赞,共6个帖子。

组: User

Wrote

Wrote



Tried to plot T(x*'s), no luck either. Attached is the .SM file if you want to try experimenting with it.



Hi. Try to resize the plot too.


Best regards.
Alvaro.

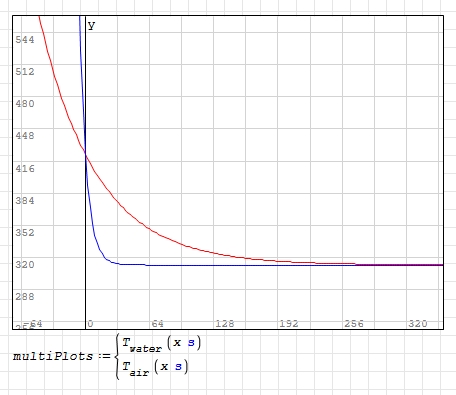

Awesome, thanks! That is exactly what I wanted. One last thing, is there a way to change the units for the y-axis? It is in Kelvin but I may want to change it to degrees C instead.
#7 已发布: 2022/10/10 06:51:21
Oscar Campo

Oscar Campo

135个赞,共309个帖子。

组: Moderator

Wrote

Awesome, thanks! That is exactly what I wanted. One last thing, is there a way to change the units for the y-axis? It is in Kelvin but I may want to change it to degrees C instead.



You have these options:

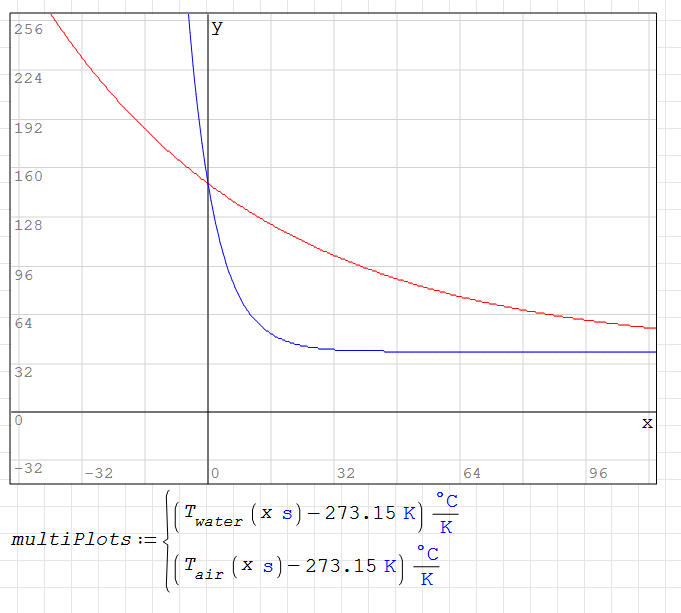

Manipulate units in plot definition

Screenshot 2022-10-10 044614.png

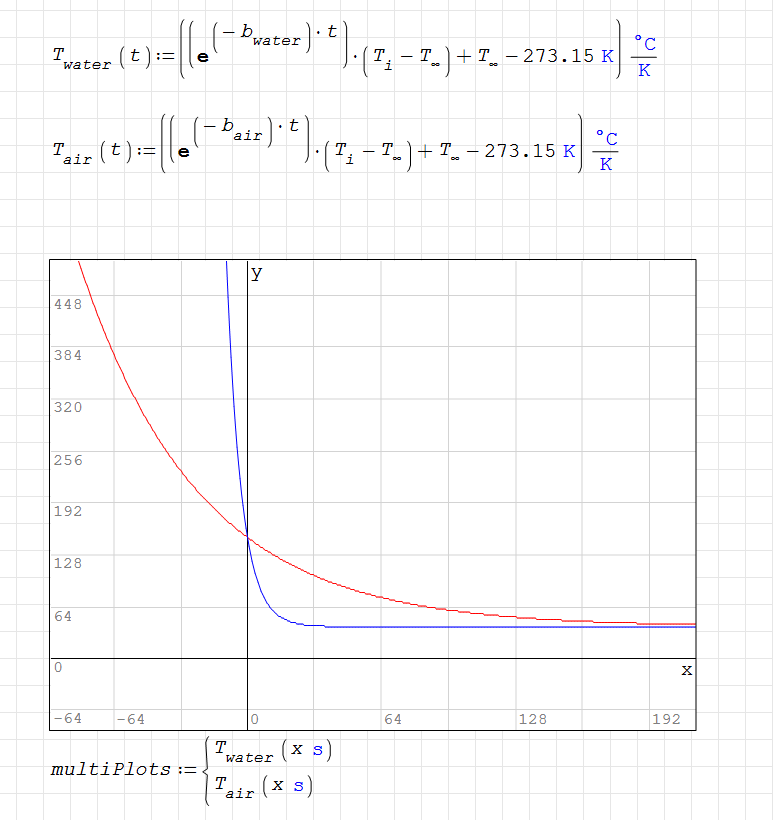

Or...manipulate units in the function definition:

in Celsius.png

Regards,
Oscar
#8 已发布: 2022/10/10 09:41:41
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

... as interpreted to be commented.
Cheers ... Jean.

Worksheet2 as interpreted.sm (18.39 KiB)已下载 1377 次。
#9 已发布: 2022/10/10 17:06:00
overlord

overlord

600个赞,共1,381个帖子。

组: Moderator

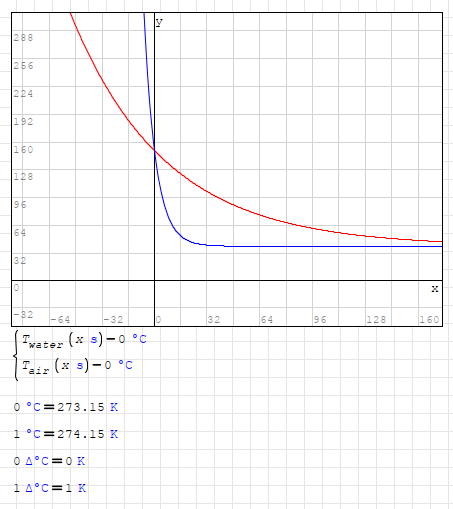

You can simply write as in plot below.

Just a reminder, since you are working with temperatures.
Temperature unit handling is different in SMath.
Addition of temperatures beside Kelvin should be done with delta units.
Otherwise, it will cause some unwanted complications.

Regards

3位用户喜欢此帖子
Alvaro 2022/10/11 01:42:00, sergio 2022/10/11 05:05:00, Oscar Campo 2022/10/11 07:28:00
#10 已发布: 2022/10/11 09:02:31
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

... as interpreted to be commented.


As given, your project is not traceable.
It may be correct, but not for publishing.
Cheers ... Jean ... welcome for more.


Worksheet2 as interpreted.sm (34.27 KiB)已下载 1368 次。

#11 已发布: 2022/10/12 11:51:45
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

... as it looks, Twater(t), Tair(t)
likely represent some experimental data set(s).
If so, don't hesitate to attach for a fitting session.
Of the 100's Smath fitting sessions ... NONE have resisted.
Cheers ... Jean ... maybe soon.
