Matrix Data

Matrix Data - Getting the wrong information - 消息

#1 已发布: 2018/4/12 16:33:22
Ruben Sidranski

Ruben Sidranski

17个赞,共465个帖子。

组: User

I need the information for 1 pipe diameter smaller ... sigh, I hate programming
PipeVel.sm (10.74 KiB)已下载 1167 次。
#2 已发布: 2018/4/12 18:57:52
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

I need the information for 1 pipe diameter smaller ... sigh, I hate programming



Smath is like Mathcad ... etc almost dead w/o programmed utilities.

#3 已发布: 2018/4/12 20:43:16
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

I need the information for 1 pipe diameter smaller ... sigh,
I hate programming



Model your pipe from inspired working document.

Inst_Colebrook Pipe Data.sm (59.38 KiB)已下载 1256 次。



#4 已发布: 2018/4/13 16:45:34
CBG

CBG

78个赞,共312个帖子。

组: User

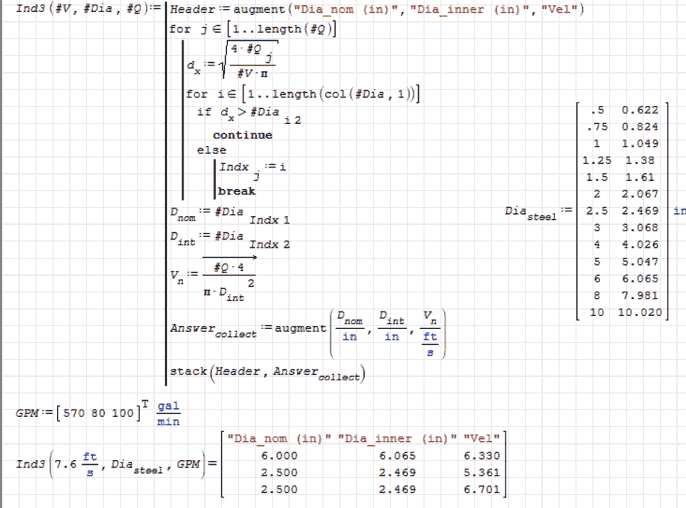

Here is a solution




PipeVel_CBG.sm (8.94 KiB)已下载 1245 次。


Best Regards

Carlos
1位用户喜欢此帖子
ElSid 2018/4/13 17:33:00
#5 已发布: 2018/4/13 17:18:30
Ruben Sidranski

Ruben Sidranski

17个赞,共465个帖子。

组: User

Muchas gracias Carlos. Lo que no podia ver es la indice else --> index.j:1 Handaba pensando en algo similar para retener el numro viejo, pero nada se me vino a la mente.

Ruben
#6 已发布: 2018/4/13 17:25:39
CBG

CBG

78个赞,共312个帖子。

组: User

No hay de que Ruben. Recibe un cordial saludo.

Carlos
#7 已发布: 2018/4/13 22:01:39
CBG

CBG

78个赞,共312个帖子。

组: User

Ruben: A slightly more complicated algorithm, which supports several speeds and several flows.




PipeVel_CBG_R1.sm (14.85 KiB)已下载 1266 次。


Best Regards

Carlos
#8 已发布: 2018/4/14 10:07:09
Ruben Sidranski

Ruben Sidranski

17个赞,共465个帖子。

组: User

Interesting. I was looking at modifying your other code ... this is better inspiration.
I'm looking at sizing pipe at low flow, then calculate velocity, fixed pipe dia, at a higher flow. With your original code, I set this up in two steps to look at VFD driven system.
#9 已发布: 2018/4/14 14:58:53
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

I'm looking at sizing pipe at low flow, then calculate velocity, fixed pipe ID, at a higher flow.



TW, Tanks Carlos ... lovely code.

Elsid, about your request:

That's what "Colebrook Pipe Data" [post 3] does.
1. For industrial projects, we measure MassFlow, not volumetric
... volumetric is for simple/primitive municipal water work.
2. "Colebrook Pipe Data" in based on 100 m, pipe length.
3. Pipe sizing is like valve sizing: trial/error,
... mostly wrt "Nominal" design conditions.
4. Convert your input data from SI to US
5. post convert back from SI to US.
#10 已发布: 2018/4/15 10:17:34
Ruben Sidranski

Ruben Sidranski

17个赞,共465个帖子。

组: User

Jean,
I tend to deal in "volumetric is for simple/primitive municipal water work." And hydronic systems.
#11 已发布: 2018/4/15 10:52:33
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

Jean,
I tend to deal in "volumetric is for simple/primitive municipal water work." And hydronic systems.



Hydronics is the use of water as the heat-transfer medium in heating and cooling systems. A hydronic piping system is used to circulate chilled or hot water with the connections between the piping and the terminal units made in a series loop.
Whatever "Hydronic" is hot/cold, the water has properties wrt to MASS.
Reverse Engineering in your proposal does not solve project not understood from the onset.
