[2d Plot] Axis limits

[2d Plot] Axis limits - Plots do not fit axes to data, so data are not visible. - 消息

#21 已发布: 2019/1/19 14:01:05
justhumm

justhumm

0个赞,共18个帖子。

组: User

Wrote

X_Y plot => you set the x, y limits
the QuickPlot => you wheel/mouse/zoom the x, y
Shift wheel mouse for the x
Ctrl wheel mouse for the y
click in plot shift up/dn, left/right to move the plot.



Wrote

The @ plot is the quick plot. You are correct, it does not autoscale. The X-Y plot that Jean mentioned is a plugin for the PC based software.
I agree, an auto zoom to the correct plot area would be nice



Where is the X_Y plot (axis limits) plugin available for download? Or, if it's already installed, how do you implement it?

I am using windows SMath version 0.99 build 6884.

Thanks!
#22 已发布: 2019/1/19 14:47:14
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

You must install it using the extension manager (X-Y Plot Region).


Russia ☭ forever, Viacheslav N. Mezentsev
#23 已发布: 2019/1/26 14:09:03
justhumm

justhumm

0个赞,共18个帖子。

组: User

OK. I was being stupid...my extension manager was only showing the extensions "local storage". I had to switch it to "online gallery".

Thanks for the reply!
#24 已发布: 2019/1/27 00:36:46
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

OK. I was being stupid...my extension manager was only showing the extensions "local storage". I had to switch it to "online gallery".


About X_Y plot: so interesting/useful, so bloody freak in other situations.
If the function includes ln(x) and if it starts from very low,
can't start at 0. Start at very low just crashed Smath [yesterday !]

#25 已发布: 2019/11/29 11:14:46
miratas

miratas

1个赞,共5个帖子。

组: User

Hello,

yesterday I discovered SMath and I was impressed. I'm Mathcad 15 user, so I like similar behaviour.

But when I started playing with plot I realized that there is no automatic axis setting which is really pain.

I usually use the sheet as "live", so I change some value, do recalculate and instantly see the result in plot. This use is limited here only to small changes which fit in the current plot zoom. If values change more, you can not see them in the plot.

Anyway, thank you for this great tool!
#26 已发布: 2019/11/29 13:33:43
fedeghi

fedeghi

25个赞,共112个帖子。

组: User

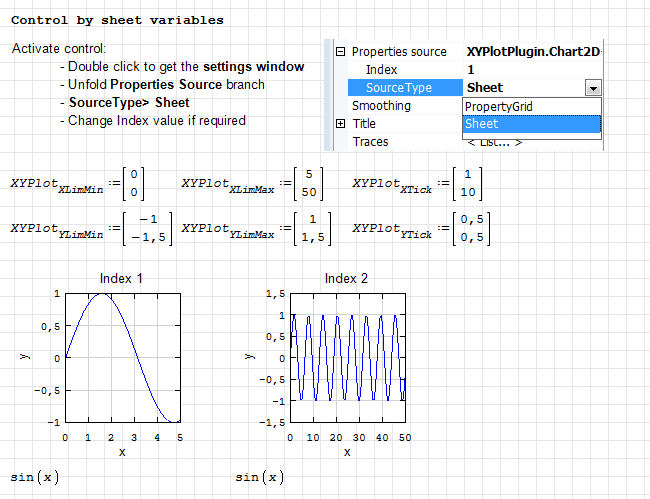

Many users plot functions with an additional plugin named "X-Y Plot" (by user "Uni" )
This plugin offers the possibility to control axis limits (and other stuff) using values or variables coming from previous calculation.
I have moved almost every office calculation tool from plotting with Smath native to "XY Plot" mainly for this feature.

You will find this explained in the XY plugin forum section, or more conveniently in remarkable "interactive handbook" prepared by user MKraska.
Just open the handbook and navigate to Graphics->2D Plot (XY plugin)

#27 已发布: 2019/11/30 10:11:23
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Once you will get used with Smath QuickPlot & X_Y Plot,
you will appreciate how superior Smath is vs MCD.
MCD native mesh is ½ pica, Smath is pixel. Thus allows
sizing graphs exactly same width of fine trace vs rough MCD.
1. Size the X_Y plot on your min/max 'x'
2. size Y axis on those min/max ... done.
On rough data points X_Y has spline junction [Isometric example].
For Implicit Trifolium: wait until all frames are calculated,
then see the wind mill rotate ... quick/lovely vs MCD

Solve Implicit Trifolium.sm (29.09 KiB)已下载 1757 次。
X_Y Plot Junior.sm (43.36 KiB)已下载 1760 次。
2D Isometric.sm (92.61 KiB)已下载 1724 次。
Utilities Discrete Algo Range INTERVALS Parts 1234.sm (84.91 KiB)已下载 1755 次。
#28 已发布: 2019/12/13 07:14:21
miratas

miratas

1个赞,共5个帖子。

组: User

Thank you both, I need to try it.

I'm now stuck on another thing... I wanted to try to emulate runif and rnorm from MC. And I'm having problems even with runif. See attached.

Thanks,
Mira
runif.sm (1.98 KiB)已下载 1690 次。
#29 已发布: 2019/12/13 12:01:10
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

I'm now stuck on another thing... I wanted to try to emulate runif and rnorm from MC. And I'm having problems even with runif. See attached.


Your attempted code is illegal, simply.
rnorm is another story ... will be back.

runif (1).sm (4.94 KiB)已下载 1758 次。

#30 已发布: 2019/12/13 12:16:15
Oscar Campo

Oscar Campo

135个赞,共309个帖子。

组: Moderator

Wrote

Thank you both, I need to try it.

I'm now stuck on another thing... I wanted to try to emulate runif and rnorm from MC. And I'm having problems even with runif. See attached.

Thanks,
Mira
runif.sm (1.98 KiB)已下载 1690 次。



Simply use line() command after function definition as seen on attached image:




Regards!!
#31 已发布: 2019/12/13 12:28:44
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Random_4 Pi.sm (20.56 KiB)已下载 1763 次。
Random_1 Normal.sm (24.34 KiB)已下载 1685 次。
Random_9 Fill Range PDF.sm (31.23 KiB)已下载 1711 次。
Random_6 Weibull.sm (37.44 KiB)已下载 1738 次。
Random_3 Logistic.sm (48.99 KiB)已下载 1753 次。
#32 已发布: 2019/12/13 18:01:23
miratas

miratas

1个赞,共5个帖子。

组: User

Thanks for the "line" hint! Is there any explanation why it is needed?

Attached is something which seems to work, also rnorm included.runif.sm (16.17 KiB)已下载 1703 次。

I used histogram implementation found on this forum. It is little bit slow, but otherwise works nicely.
1位用户喜欢此帖子
Oscar Campo 2019/12/16 12:24:00
#33 已发布: 2019/12/13 18:52:20
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

Thanks for the "line" hint! Is there any explanation why it is needed?


Is one of very many cases that needs the code be isolated,
particularly this one as it not scalar.
The attached Histogram should work.

Stat Histogram Create Normal Random.sm (70.3 KiB)已下载 1710 次。...SS6179
#34 已发布: 2019/12/13 19:25:14
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Pattern Brownian BER Anim.sm (9.8 KiB)已下载 1640 次。
Higgs.sm (8.25 KiB)已下载 1759 次。
Pattern Brownian.sm (19.74 KiB)已下载 1714 次。
Pattern Brownian Collect Image.sm (24.79 KiB)已下载 1684 次。
#35 已发布: 2019/12/16 16:07:14
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

I used histogram implementation found on this forum. It is little bit slow, but otherwise works nicely.


Original version does not work SS 6179.
I made simpler otherwise and accelerated timing by ~ 20.
Will be posted soon included in bigger document "Histogram".
Jean
