Good morning,

I'm new to smart studio and I'm trying to plot the graph for this function of a bi-supported beam but I can't

whyplot.sm (7.98 KiB)已下载 1200 次。

Click to enlarge
#2 已发布: 2021/12/27 10:42:33
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Something like that. The X-Y Plot plugin doesn't have advanced capabilities for working with units.

Unlike Mathcad, we have only one field for describing the graph. For this reason, we can only learn about the X variable from this description. For this, it must be undefined. The component looks for undefined variables in the expression and uses them to determine how to plot a graph. If you define the variable x, then the component will not understand how to plot the graph. The tilde sign (~) helps him with this as an analogue of the range variable in Mathcad.

whyplot (uni).sm (9.75 KiB)已下载 1229 次。

Click to enlarge

You have an incorrectly written expression:

Click to enlarge

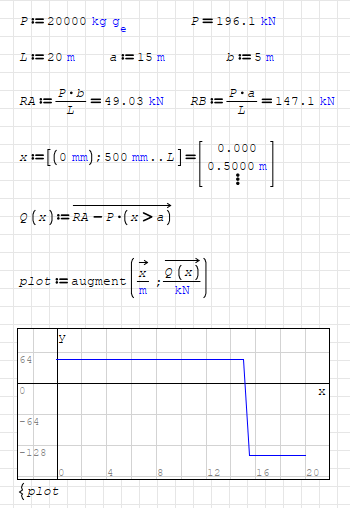

We usually plot the graph like this:

Click to enlarge

Links:

1. X-Y Plot. Support for parametric plot type.
Russia ☭ forever, Viacheslav N. Mezentsev
#3 已发布: 2021/12/27 11:19:06
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

I'm new to smart studio and I'm trying to plot the graph for this function of a bi-supported beam but I can't


Zap units for the plot.

whyplot (else).sm (13.03 KiB)已下载 1271 次。
#4 已发布: 2021/12/27 13:22:19
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

Zap units for the plot.


... add meaning to the plot.

#5 已发布: 2021/12/27 17:45:59
overlord

overlord

600个赞,共1,381个帖子。

组: Moderator

Wrote

We usually plot the graph like this:


Same approach with embedded 2D plot.


Wrote

The tilde sign (~) helps him with this as an analogue of the range variable in Mathcad.


This would be awesome if 2D plot supports tilde sign (~) ranges.

Regards
#6 已发布: 2021/12/27 22:44:04
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

In general, it is possible to make a component with two and more fields. But this situation happened historically. Ten years ago there was no experience in creating such components, and now there is no time and effort to create everything from scratch. The API allows you to add any number of such fields, but this is more difficult to program. In a sense, this is a different ideology. If we ever have a development team, they will develop a component that is more understandable to use.
Russia ☭ forever, Viacheslav N. Mezentsev
#7 已发布: 2022/1/5 18:04:52
TIAGO C DOS SANTOS

TIAGO C DOS SANTOS

1个赞,共27个帖子。

组: User

thx all closed topic
