Slope Stability Analysis - A basic approach to find cutting points of strips with profile and slip circle - 消息
Ref: Example 12.2 (Page 296) - Soil Mechanics : Principles and Practice by G.E. Barnes.
The attached SM file demonstrates how to find cutting points of strips with the slope profile and slip circle.
(for an assumed strip width of 1m. which can be changed if necessary).
Slip_Circle_Barnes-Ex 12.2-TO FORUM.pdf (238.31 KiB)已下载 1124 次。
Slip_Circle_Barnes-Ex 12.2-TO FORUM.sm (320.99 KiB)已下载 1832 次。
The attached SM file demonstrates how to find cutting points of strips with the slope profile and slip circle.
(for an assumed strip width of 1m. which can be changed if necessary).
Slip_Circle_Barnes-Ex 12.2-TO FORUM.pdf (238.31 KiB)已下载 1124 次。
Slip_Circle_Barnes-Ex 12.2-TO FORUM.sm (320.99 KiB)已下载 1832 次。
Look within!... The secret is inside you.
Best Regards
Eng. NDTM Amarasekera - Sri Lanka
2位用户喜欢此帖子
Hi,
The complete solution to Slope Stability Analysis of above example.
Analysis is carried out in 2 parts.
1. With one assumed Center of a slip circle to explain steps involved and resulting cordinates of strips etc., and checked with ACAD drawing.
2. Program to find the minimum factor of safety using multiple arrays of centers.
Slip_Circle_Barnes-Ex 12.2-Min FS-R8-CORRECT-FINAL-R4.pdf (334.22 KiB)已下载 1107 次。
Slip_Circle_Barnes-Ex 12.2-Min FS-R8-CORRECT-FINAL-R4.sm (522.82 KiB)已下载 1760 次。
The complete solution to Slope Stability Analysis of above example.
Analysis is carried out in 2 parts.
1. With one assumed Center of a slip circle to explain steps involved and resulting cordinates of strips etc., and checked with ACAD drawing.
2. Program to find the minimum factor of safety using multiple arrays of centers.
Slip_Circle_Barnes-Ex 12.2-Min FS-R8-CORRECT-FINAL-R4.pdf (334.22 KiB)已下载 1107 次。
Slip_Circle_Barnes-Ex 12.2-Min FS-R8-CORRECT-FINAL-R4.sm (522.82 KiB)已下载 1760 次。
Look within!... The secret is inside you.
Best Regards
Eng. NDTM Amarasekera - Sri Lanka
3位用户喜欢此帖子
Hi,

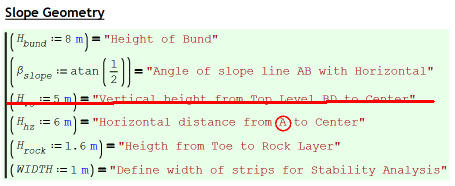

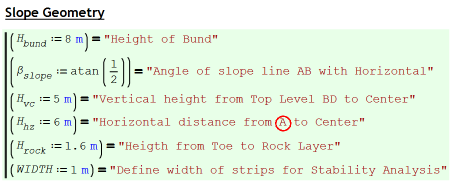

Please make the correction as shown ( replace A with -A in page 3).
Even without this correction, the program will run in most cases, but will give
wrong values for AA for some center cordinates.
This correction is an improvement.
Sorry for the inconvenience.

Please make the correction as shown ( replace A with -A in page 3).
Even without this correction, the program will run in most cases, but will give
wrong values for AA for some center cordinates.
This correction is an improvement.
Sorry for the inconvenience.

Look within!... The secret is inside you.
Best Regards
Eng. NDTM Amarasekera - Sri Lanka
1位用户喜欢此帖子
Oscar Campo 2023/9/21 13:47:00
An improved method to my post #5.
I get Wrong Values OR Errors when using the "Findroot()" function for some center cordinates.
This new method mainly uses "root()" function, with few supporting programs.
Slip Circle Intersection Points - TO FORUM.pdf (392.59 KiB)已下载 1066 次。
Slip Circle Intersection Points - TO FORUM.sm (247.73 KiB)已下载 1759 次。
I get Wrong Values OR Errors when using the "Findroot()" function for some center cordinates.
This new method mainly uses "root()" function, with few supporting programs.
Slip Circle Intersection Points - TO FORUM.pdf (392.59 KiB)已下载 1066 次。
Slip Circle Intersection Points - TO FORUM.sm (247.73 KiB)已下载 1759 次。
Look within!... The secret is inside you.
Best Regards
Eng. NDTM Amarasekera - Sri Lanka
3位用户喜欢此帖子
