PID Controller - 消息

pid_controler.sm (56.12 KiB)已下载 1392 次。

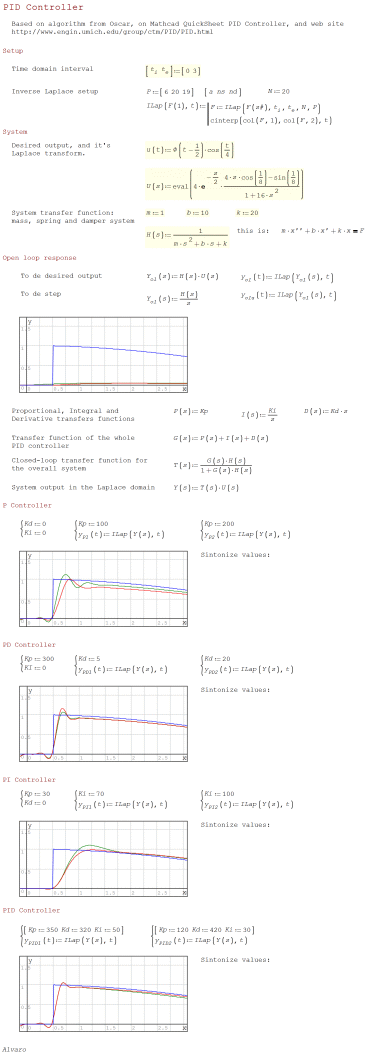

Based on the numerical laplace inverse from Oscar.
Best regards.
Alvaro.
3位用户喜欢此帖子
Wrote
Laplace stuff is purely Edu.
Isn't. With the attached SMath file you can make the performance optimization of ABB, Schneider and others PID controllers according with their described procedures, as is indicated in this few examples from a very big collection of PID tunning procedures from the modern control industry
ABB:
- Tuning loop: control performance and diagnostics :
https://library.e.abb.com/public/2925fa1164ff90a185256f9b005aad3f/LPM_Paper_Final%20EN.pdf
Schneider:
- PID Optimization – Altivar Process : https://www.schneider-electric.com/resources/sites/SCHNEIDER_ELECTRIC/content/live/FAQS/355000/FA355451/en_US/Application%20Note%2051%20-%20PID%20tuning.pdf
Best regards.
Alvaro.
1位用户喜欢此帖子
frapuano 2018/12/9 06:44:00
Read first: EXAMPLE_0 ...
suite if you think you have interest in that kind of stuff.
Jean
Inst_PID Discrete Schema EXAMPLE_5.sm (21.37 KiB)已下载 1357 次。
Inst_PID Discrete Schema EXAMPLE_6.sm (30.3 KiB)已下载 1363 次。
Inst_PID Discrete Schema EXAMPLE_4.sm (57.57 KiB)已下载 1339 次。
Inst_PID Discrete Schema EXAMPLE_7.sm (28.75 KiB)已下载 1360 次。
Inst_PID Discrete Schema EXAMPLE_3.sm (22.94 KiB)已下载 1345 次。
Inst_PID Discrete Schema EXAMPLE_1.sm (32.01 KiB)已下载 1365 次。
Inst_PID Discrete Schema EXAMPLE_0.sm (96.6 KiB)已下载 1462 次。
Inst_PID Discrete Schema EXAMPLE_2.sm (28.09 KiB)已下载 1375 次。
Inst_PID Discrete Schema EXAMPLE_8.sm (16.08 KiB)已下载 1337 次。
suite if you think you have interest in that kind of stuff.
