Hi,

I am a new user of SMath. I mainly use it for control system analysis and drawing Bode plots for transfer functions.
I am trying to figure out how to change the marker for different curves. I use Maxima plugin.
Please see my attached file.

ThanksTF.sm (53 KiB)已下载 1352 次。
#2 已发布: 2021/12/23 19:51:15
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

#3 已发布: 2021/12/23 21:07:33
PE_Electron

PE_Electron

0个赞,共3个帖子。

组: User

Thanks for your reply.
What I was trying to figure out is how to change the marker point for curves for better visualization. I could find out how to changes the line width and color in Maxima as you can see in my file.
It is easy to do it with X-Y plot but I needed log scale and it is available in Maxima.
#4 已发布: 2021/12/23 21:52:06
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

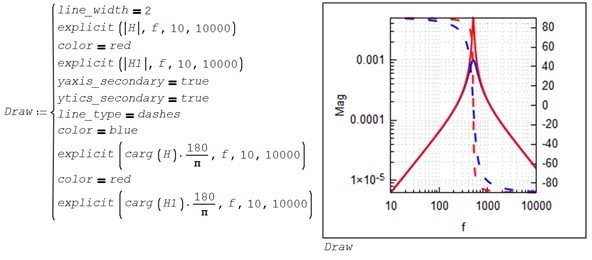

Hi. Use line_type≡dashes. Other types are dots, short_dashes, short_long_dashes, short_short_long_dashes and dot_dash


Best regards.
Alvaro.
2位用户喜欢此帖子
Oscar Campo 2021/12/23 23:40:00, sergio 2021/12/24 06:58:00
#5 已发布: 2021/12/24 00:40:56
PE_Electron

PE_Electron

0个赞,共3个帖子。

组: User

Thanks so much. This is helpful.
Is there a manual where I can find these different settings and options?
#6 已发布: 2021/12/24 01:15:16
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Wrote

Thanks so much. This is helpful.
Is there a manual where I can find these different settings and options?



https://maxima.sourceforge.io/docs/manual/

Best regards
Alvaro
