Angles trygonometry value in solutions of the system of equations

#1 Posted: 9/9/2021 4:25:42 AM

0 likes in 8 posts.

Group: User

Hi,
How to turn of the decimal values in trygonometry angles value? I got sth lik this for solution of system of equations:

The file with example: example_v1.sm (8 KiB) downloaded 27 time(s).

Regards,
A.

#2 Posted: 9/9/2021 6:44:19 AM

Fridel Selitsky

520 likes in 451 posts.

Group: User

You can use the function al_nlegsolve with any initial
assumptions (because the equations are linear)

al_nlegsolve.sm (11 KiB) downloaded 32 time(s).

#3 Posted: 9/9/2021 9:52:40 AM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
How to turn of the decimal values in trigonometry angles value ?

By default, trig are in decimal radian in all CAS.

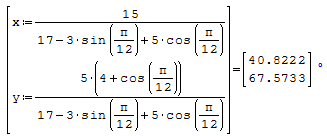

Recast your solutions, fill-in the unit place holder.

#4 Posted: 9/9/2021 11:20:45 PM

Alvaro Diaz Falconi

992 likes in 1674 posts.

Group: User

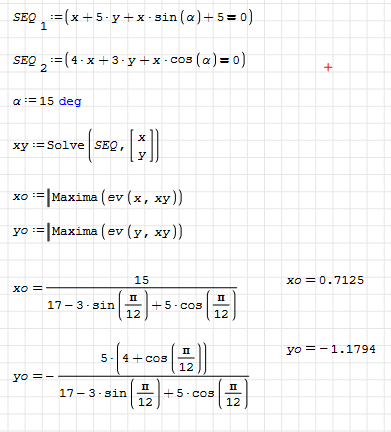

Hi. You also can use Maxima commands, in this case ev():

Best regards.
Alvaro.

#5 Posted: 9/10/2021 5:37:18 AM

Martin Kraska

1222 likes in 2150 posts.

Group: Moderator

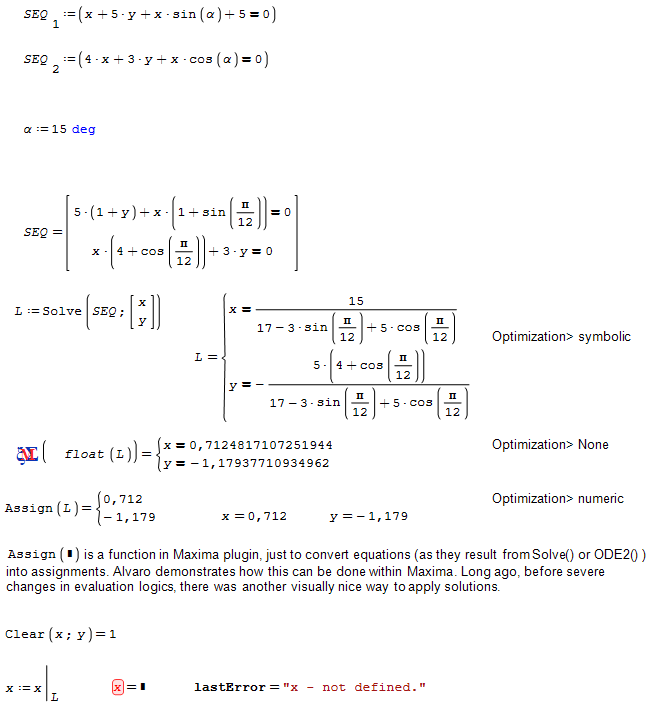

example_v1.sm (13 KiB) downloaded 27 time(s).

Martin Kraska Pre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx

1 users liked this post

sergio 9/10/2021 6:11:00 AM

#6 Posted: 9/10/2021 1:02:39 PM

Alvaro Diaz Falconi

992 likes in 1674 posts.

Group: User

Hi Martin. I use Maxima's ev() because SMath's Assign() only works with the variable names, instead others, like xo, yo, and SMath's at() doesn't works for the symbolic evaluation, as shown this picture:

example_v1.sm (15 KiB) downloaded 20 time(s).

This is a workaround for use only SMath native functions or plugins, without any explicit Maxima function:

example_v2.sm (15 KiB) downloaded 23 time(s).

Best regards.
Alvaro.

1 users liked this post

sergio 9/10/2021 1:43:00 PM
