#1 Posted: 10/1/2021 6:35:53 PM

7 likes in 28 posts.

Group: User

hi guys it's me again xD

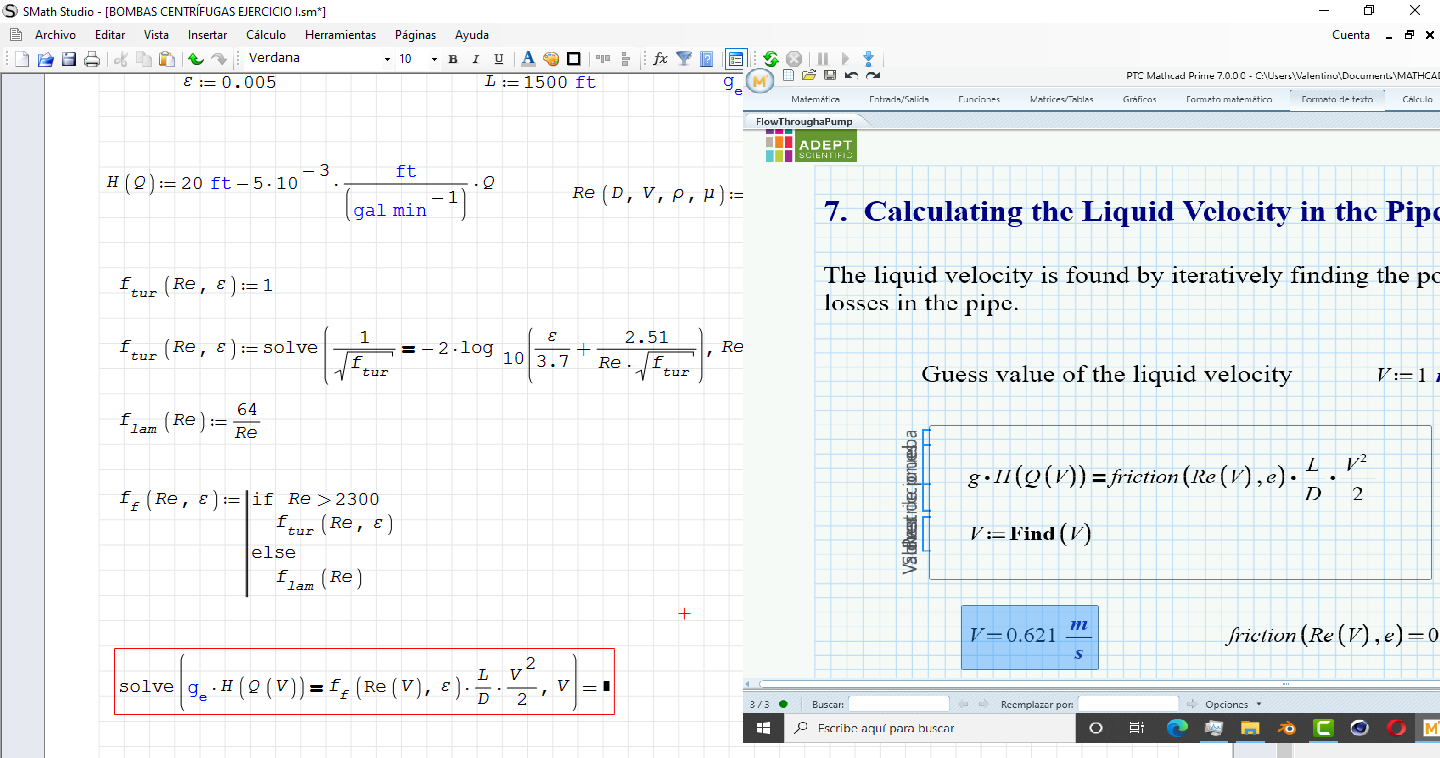

There is an exercise to find the discharge speed of a pump in Mathcad Prime ... when I try to do it in SMath Studio I am unsuccessful

Resolving functions based on other functions in SMath Studio - Mathcad Prime

I leave the pdf of Mathcad Prime and the SM File

Liquid Flow Through a Pump.sm (42.2 KiB) downloaded 218 time(s).

FlowThroughaPump.pdf (690.73 KiB) downloaded 231 time(s).

#2 Posted: 10/2/2021 1:55:16 AM

Alvaro Diaz Falconi

1,040 likes in 1,705 posts.

Group: User

It didn't seem that difficult. Attached as far as I could advance.

Liquid Flow Through a Pump.sm (46.99 KiB) downloaded 221 time(s).

Best regards.
Alvaro.

#3 Posted: 10/2/2021 9:53:10 AM

Jean Giraud

983 likes in 6,866 posts.

Group: User

Wrote
when I try to do it in SMath Studio I am unsuccessful

These 3 documents may have interest in your projects.
I have Control Valve Sizing as well.
Your first PUMP fails the Table ... incorrect format ???
Cheers ... Jean.

Inst_Colebrook MOODY.sm (16.88 KiB) downloaded 235 time(s).
Inst_Colebrook Pipe Data.sm (71.45 KiB) downloaded 225 time(s).
Inst_Colebrook.sm (167.25 KiB) downloaded 215 time(s).

#4 Posted: 10/3/2021 8:42:55 PM

Jean Giraud

983 likes in 6,866 posts.

Group: User

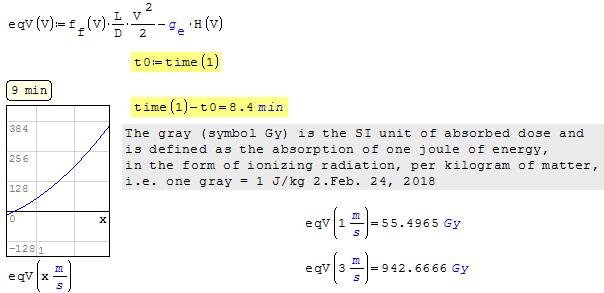

Liquid Flow Through a Pump Brute Force Plot.sm (56.99 KiB) downloaded 227 time(s).

#5 Posted: 10/4/2021 1:48:53 AM

Alvaro Diaz Falconi

1,040 likes in 1,705 posts.

Group: User

Hi. Solved.

Liquid Flow Through a Pump.sm (51.06 KiB) downloaded 241 time(s).

Liquid Flow Through a Pump.pdf (126.32 KiB) downloaded 241 time(s).

Best regards.
Alvaro.

#6 Posted: 10/4/2021 9:56:35 AM

Jean Giraud

983 likes in 6,866 posts.

Group: User

Wrote
There is an exercise to find the discharge speed of a pump

This document is metric, you can convert imperial.
There is more than velocity for the plant Manger
wrt power consumption and optimum plant operation.
Jean.

Inst_Colebrook Pipe Data.sm (71.45 KiB) downloaded 221 time(s).

#7 Posted: 10/4/2021 5:10:58 PM

overlord

566 likes in 1,339 posts.

Group: Moderator

Thanks Valentino and Razonar.
This is a good example.
I also have a basic pump motor calculation.
With head-losses included, automatic selected.
I will upload it when I am available.

Regards
