Установил Development Tools. Но программа 'tst_xyplot_v2.sm' все равно не работает (но, наверное, этот плагин не для этого). В приложении - файл с моей системной информацией.

sys_info.txt (1.39 KiB)已下载 1123 次。
#642 已发布: 2025/7/24 08:44:56
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

В папке плагина есть конфигурационный файл: %APPDATA%\SMath\extensions\plugins\c12231ec-4873-43c1-a7d0-a167ebd17066\0.3.9106.25707\XYPlotPlugin.config

Закройте SMath Studio и измените значение Debug в True:
<Debug>True</Debug>

После этого запустите SMath Studio. В этой же папке появится файл лога: XYPlotRegion.log

Приложите его сюда тоже. Там будет указано какая версия .Net используется плагином для работы.
已编辑 2025/7/24 08:45:42
Russia ☭ forever, Viacheslav N. Mezentsev
#643 已发布: 2025/7/24 13:10:31
Ed

Ed

2个赞,共9个帖子。

组: User

Sorry, switched to Russian. The file attached is the log-file after the prescribed 'magic' actions It is written in the file 'Net: 2.0...' I guess it is not what we need.

XYPlotRegion.log (574 B)已下载 1192 次。
已编辑 2025/7/24 13:11:27
#644 已发布: 2025/7/24 14:51:12
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

It's strange that the old version of the framework is selected instead of the new one. In fact, this particular plugin is compatible with the old version, but I haven't tested it in such an environment for a long time.
Perhaps this is the reason.
For everyone else, including me, the new version of the framework is apparently selected.

You can try installing .Net Framework 4.8, for example. Maybe this will help.
Russia ☭ forever, Viacheslav N. Mezentsev
#645 已发布: 2025/7/24 15:27:42
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

I was able to reproduce the problem. It is indeed a version issue.
You can also try another solution.

You can try changing the contents of the file: C:\Program Files (x86)\SMath Studio\Solver.exe.config
  <startup useLegacyV2RuntimeActivationPolicy="true">
    <supportedRuntime version="v4.0" sku=".NETFramework,Version=v4.8" />
    <supportedRuntime version="v2.0.50727" />
  </startup>

You can try to remove the old version by deleting the line with it and adding the existing version. You can ask the deepseek to suggest a variant of writing these lines.

P.S. I fixed the error. The fix will be available in the next version of the plugin. The problem was in the plugin sources.
已编辑 2025/7/24 15:49:28
Russia ☭ forever, Viacheslav N. Mezentsev
#646 已发布: 2025/7/24 15:57:27
Ed

Ed

2个赞,共9个帖子。

组: User

It works finally. I can see now all plots in program 'tst_xyplot_v2.sm'. I could not download NET Framework 4.8 (some errors). But, as you suggested, I found a version of NET Framework installed on my computer (4.0.30319). I have changed "v2.0.50727" in the second line of 'supportedRuntime ...' to my number, and it works. Thank you for your help. I am really impressed by your dedication, supporting plugins and helping people for more than 15 years.
已编辑 2025/7/24 15:58:24
2位用户喜欢此帖子
Davide Carpi 2025/7/24 23:07:34, Вячеслав Мезенцев 2025/7/24 16:49:53
#647 已发布: 2025/7/24 16:49:38
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

SMath Studio compatibility History page Changes

Plugin updated. Please try.

Changes:

- added support for high DPI when displaying fonts;
- fixed the CopyTo() method in HashSet.cs;
- supplemented the error message when trying to display complex numbers.

The last problem was related to an incorrect manual implementation of the CopyTo() method, which only now became apparent.
Russia ☭ forever, Viacheslav N. Mezentsev
2位用户喜欢此帖子
Davide Carpi 2025/7/24 23:07:30, sergio 2025/7/25 07:58:13
#648 已发布: 2025/7/25 07:10:54
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

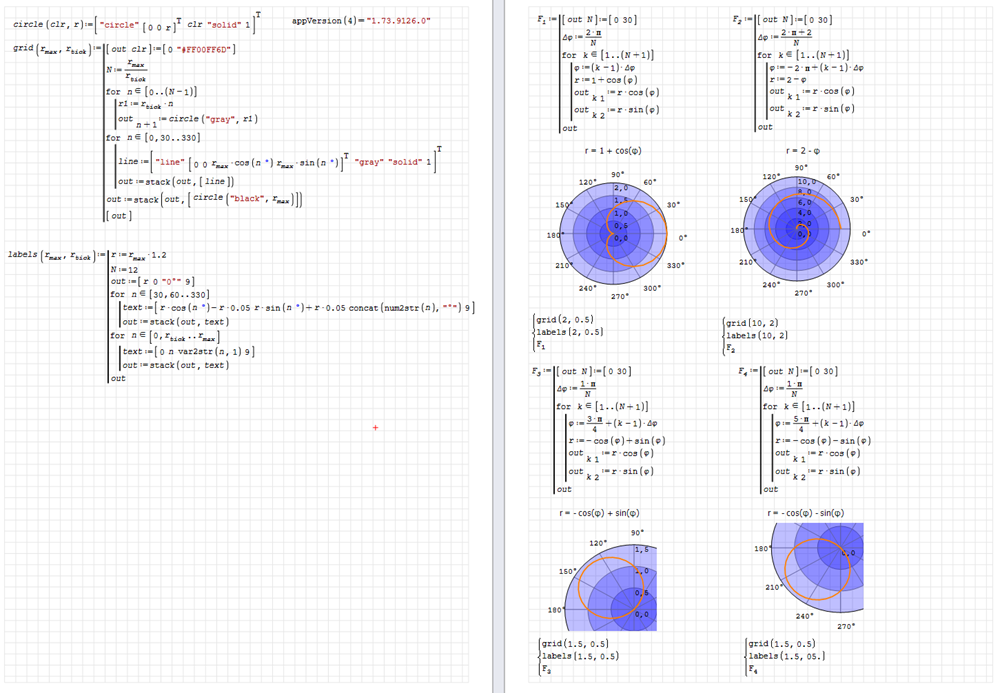

Funny bug. When drawing shapes, the fill is also drawn, even if it is disabled in the curve properties. If you superimpose circles on top of each other, it creates the impression that the color depends on the radius.


XYPlot. Linear polar.sm (56.78 KiB)已下载 2644 次。
XYPlot. Linear polar.pdf (134.78 KiB)已下载 1679 次。
已编辑 2025/7/25 07:15:58
Russia ☭ forever, Viacheslav N. Mezentsev
2位用户喜欢此帖子
sergio 2025/7/25 08:03:42, Alvaro 2025/7/25 09:48:09
#649 已发布: 2025/7/25 12:45:29
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

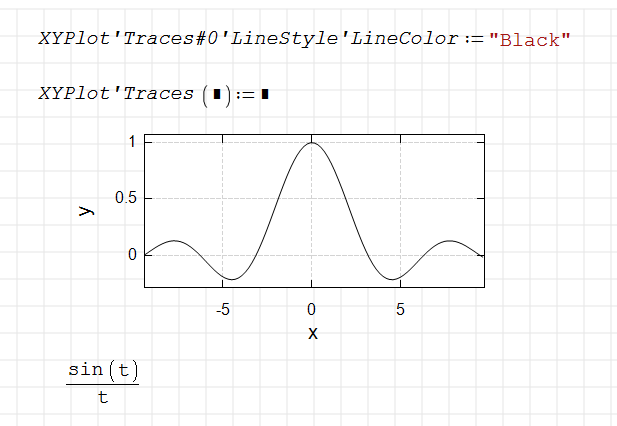

I think I can adapt this syntax to customize the properties of a set of curves.
.Traces##. - for all curves
.Traces#i#j. - for curves from i to j
.Traces##j. - for curves from 1 to j
.Traces#i#. - for curves from i to end

已编辑 2025/7/25 12:46:02
Russia ☭ forever, Viacheslav N. Mezentsev
1位用户喜欢此帖子
Rafael H Padilla Velázquez 2025/7/25 15:39:21
#650 已发布: 2025/7/25 17:44:21
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Wrote

Funny bug. ...


Hi Viacheslav. A workaround for the bug, and a simplified way to those plots.


XYPolar.sm (42.8 KiB)已下载 1408 次。

Best regards
Alvaro.

已编辑 2025/7/25 17:52:20
1位用户喜欢此帖子
#651 已发布: 2025/7/25 20:42:20
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

SMath Studio compatibility History page Changes

Plugin updated. Please try.

Changes:

- fixed the problem with background filling when drawing shapes.
Russia ☭ forever, Viacheslav N. Mezentsev
2位用户喜欢此帖子
Alvaro 2025/7/26 06:05:37, sergio 2025/7/26 10:38:11
#652 已发布: 2025/7/26 06:07:13
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Wrote

... Plugin updated. Please try.


It works fine.

Best regards.
Alvaro.
#653 已发布: 2025/7/26 06:15:08
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Wrote

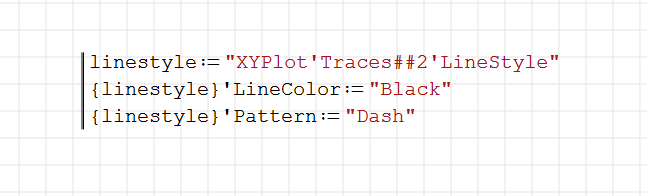

I think I can adapt this syntax to customize the properties of a set of curves....


What about this notation?. And with the option for assigning a vector, like a colormap.
.Traces(,) - for all curves
.Traces(i,j) - for curves from i to j
.Traces(,j) - for curves from 0 to j
.Traces(i,) - for curves from i to end

Best regards.
Alvaro.
已编辑 2025/7/26 06:16:40
#654 已发布: 2025/7/26 08:24:46
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

There will be vector support, but I don't use brackets, because it should work in different cases.

Russia ☭ forever, Viacheslav N. Mezentsev
1位用户喜欢此帖子
Alvaro 2025/7/27 06:51:34
#655 已发布: 2025/7/26 11:52:03
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

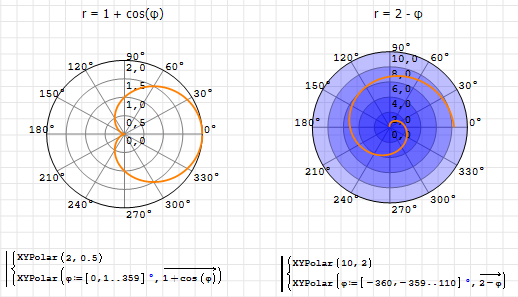

It's nice to combine and layer colors.

Click to enlarge
已编辑 2025/7/26 19:49:35
Russia ☭ forever, Viacheslav N. Mezentsev
2位用户喜欢此帖子
Andrey Ivashov 2025/7/26 11:54:07, Alvaro 2025/7/27 06:51:46
#656 已发布: 2025/7/26 12:11:07
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

I have a bug when printing. This is a result of adjusting for high DPI.

Click to enlarge
已编辑 2025/7/26 19:48:48
Russia ☭ forever, Viacheslav N. Mezentsev
#657 已发布: 2025/7/26 19:47:47
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

SMath Studio compatibility History page Changes

Plugin updated. Please try.

Changes:

- fixed printing issue in GetDpiScaledFont().

Implementing the scaling function is not easy, I will spend a couple more days testing and fixing bugs.
已编辑 2025/7/26 19:54:14
Russia ☭ forever, Viacheslav N. Mezentsev
#658 已发布: 2025/7/26 20:24:12
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

SMath Studio compatibility History page Changes

Plugin updated. Please try.

Changes:

- fixed issue with scaling grid label values.

I hope scaling will work properly for a while now.

Documents that were previously created at high resolution require adjustment of font size.
已编辑 2025/7/26 20:39:47
Russia ☭ forever, Viacheslav N. Mezentsev
#659 已发布: 2025/7/28 11:03:23
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

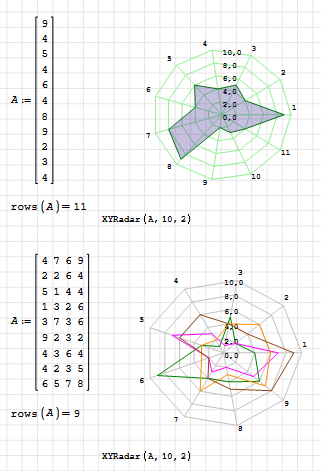

A kind of Spider Web or Radar plot.


XYRadar.sm (21.83 KiB)已下载 1355 次。

Best regards.
Alvaro.
3位用户喜欢此帖子
Вячеслав Мезенцев 2025/7/28 11:21:35, francesco rapuano 2025/7/28 13:20:25, sergio 2025/7/28 19:43:31
#660 已发布: 2025/8/3 20:38:44
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

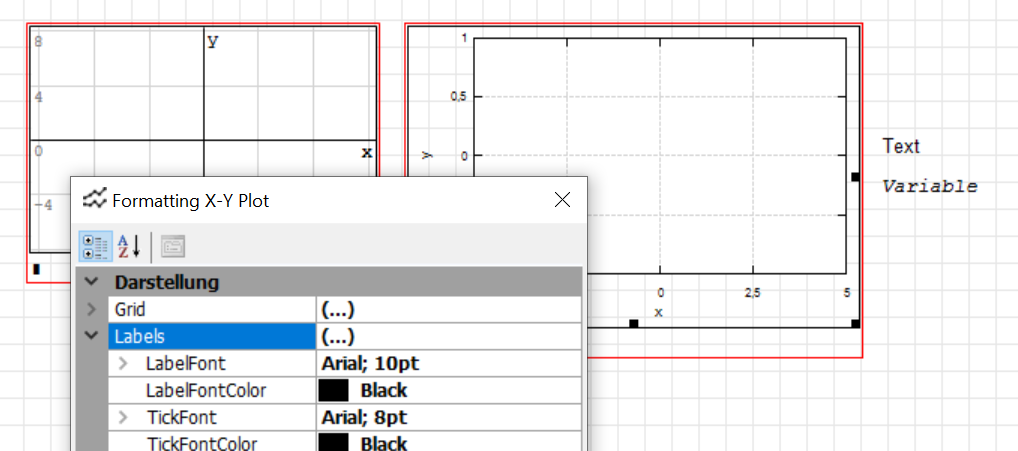

I seem to have problems with the font size in the plugin. The font sizes in the plot region and on the canvas are inconsistent.

The canvas font is set to 10. While the label font is also set to 10 in the region, the labels appear much smaller.

Edit: Meanwhile I found out the reason for the problem. If I change the hardware setup while SMath is running (e.g. switching from docking station with external monitor to just the notebook with built-in monitor) I get the problem as indicated in the screenshot. Yet, if I restart SMath, the problem is fixed.

I don't know if the plot region is supposed to handle the situation without problems but at least I have a workaround.

problem nearly fixed (now the labels are slightly too big.)


original problem


System information:

显示剧透



已编辑 2025/8/3 21:30:48
