Thermal Physics - Rod in Cylinder

Thermal Physics - Rod in Cylinder - Solve thermal problem - 消息

#1 已发布: 2018/1/30 15:40:39
Norm Schutzkus

Norm Schutzkus

9个赞,共90个帖子。

组: User

I have another MC sheet I'm working on in SMATH. I am not certain how to solve for/ replace the "Find" solver in MC. Attached is my worksheet and the pdf of the Prime MC sheet.

I welcome any help to solve this.

Thank you,

未找到文件。未找到文件。
#2 已发布: 2018/1/30 21:02:26
CBG

CBG

78个赞,共312个帖子。

组: User

This can be one of the solutions.
The "T" in the formula can be easily isolated.



Thermal Physics - Rod in Cylinder_R1.sm (13.95 KiB)已下载 1238 次。


Best Regards

Carlos
#3 已发布: 2018/1/31 01:46:31
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

This can be one of the solutions.
The "T" in the formula can be easily isolated.



Well done Carlos,

I think it can be plotted directly on the canvas
Will try tomorrow [tonight, I'm dead... not completely !]

Jean
#4 已发布: 2018/1/31 02:43:54
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

I think it can be plotted directly on the canvas
Will try tomorrow

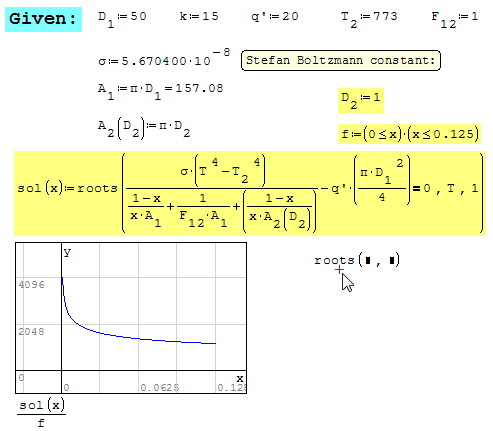

roots(,,) solve on the canvas.
Next matter is the unit system to be adapted,
unfortunately incompetent on that !





#5 已发布: 2018/1/31 05:24:21
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

Not nearly as nice as your Mathcad sheet...

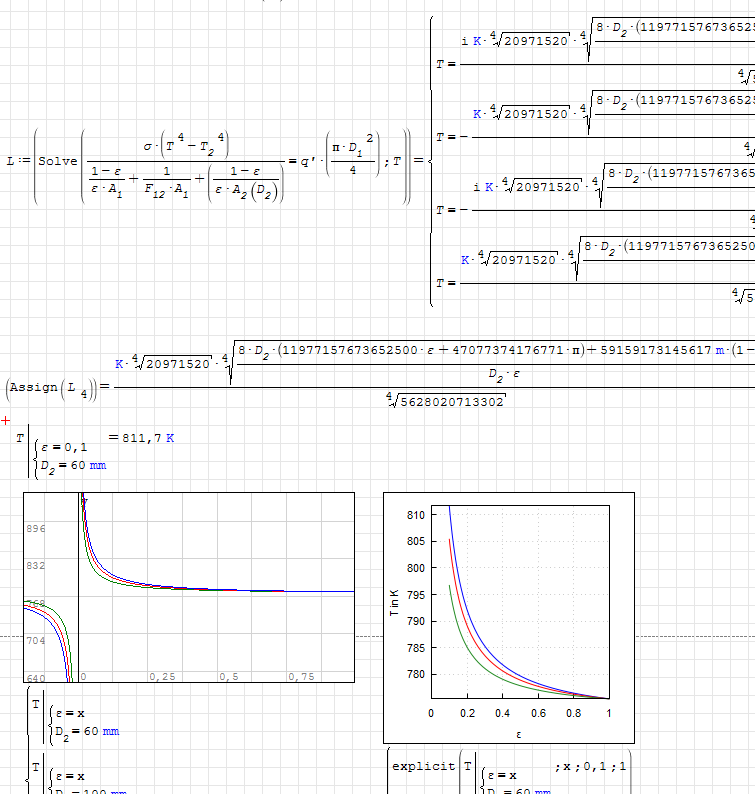

Uses the symbolic solver in Maxima. You have to select one of the four solutions, I guess the
real positive one is correct.

Thermal%20Physics%20-%20Rod%20in%20Cylinder_Kr.sm (39.56 KiB)已下载 1456 次。

2018-01-30 22_02_41-SMath Studio 0.98.6598 - [Thermal%20Physics%20-%20Rod%20in%20Cylinder.sm_].png
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
2位用户喜欢此帖子
frapuano 2018/1/31 06:03:00, Radovan Omorjan 2018/1/31 08:24:00
#6 已发布: 2018/1/31 10:54:01
Norm Schutzkus

Norm Schutzkus

9个赞,共90个帖子。

组: User

Thank you, all, for your help. I'll look closer at the solutions presented; learning more about SMATH.

Martin, I get a message opening your sheet looking for "Maxima.bat". Is this in a plugin that I need to download? Your sheet presents the following message: "Initializing error. Please reinitialize under settigs."

Norm
#7 已发布: 2018/1/31 11:34:41
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

Please follow the link in my signature, there you find instructions how to install Maxima (a free CAS system) and how to tell SMath where to find it.
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
#8 已发布: 2018/1/31 12:46:11
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Try this in stricly Smath ... done 6179.

Very interesting, but missing the physical drawing !!!

Solve Maple Thermal Physics.sm (33.55 KiB)已下载 1177 次。
#9 已发布: 2018/1/31 13:25:11
CBG

CBG

78个赞,共312个帖子。

组: User

One of the solutions with graphics.



Thermal Physics - Rod in Cylinder_R2.sm (15.96 KiB)已下载 1246 次。


Best Regards


Carlos
#10 已发布: 2018/1/31 14:18:07
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

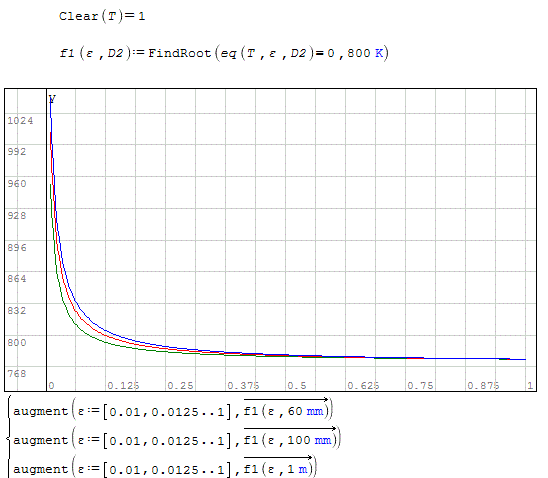

Hi. In the attached, just numerical methods, and how to parametrize the solver, like Mathcad find solve blocks.

Best regards.

Alvaro.

Thermal Physics - Rod in Cylinder.sm (17.65 KiB)已下载 1222 次。
1位用户喜欢此帖子
Fridel Selitsky 2018/1/31 15:11:00
#11 已发布: 2018/1/31 15:18:10
Norm Schutzkus

Norm Schutzkus

9个赞,共90个帖子。

组: User

Carlos, Jean, Martin and Alvaro, many thanks! Your support is superb!

There's a lot here for me to digest.

Norm
#12 已发布: 2018/1/31 19:40:41
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

Carlos, Jean, Martin and Alvaro, many thanks! Your support is superb!

There's a lot here for me to digest.

Norm



Norm,

observe closely your function ... it has rational format.
It suggests that a rational model would fit the data set.
Isn't true looking at the fit from a 4 terms rational.
The red and green traces from Carlos would be as easy, not done.

Please, don't forget the physical drawing.
You could do the very same in Mathcad.

Jean

Maths Thermal Physics - Rod in Cylinder_R2.sm (66.84 KiB)已下载 1268 次。

#13 已发布: 2018/1/31 21:26:44
overlord

overlord

600个赞,共1,381个帖子。

组: Moderator

Yet another one without using for-loops and using both [Built-in Plot] and [X-Y Plot Plugin].
God I really don't like to look at those for-loops, thanks to Andrey I will avoid them as much as I can. (Smath Studio 0.98.6604)

Thermal Physics - Rod in Cylinder_R3.sm (20.18 KiB)已下载 1256 次。
#14 已发布: 2018/2/1 00:46:42
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

God I really don't like to look at those for-loops, thanks to Andrey I will avoid them as much as I can.


Not backward compatible ... maybe a bug ?
I welcomed that feature as it was announced. And reattached Mandelbroth,
no answer from Designers ... maybe not so gorgeous as you pretend.

#15 已发布: 2018/2/1 01:18:17
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

As I say before, this is a general numeric setup.
Best regards.
Alvaro.Thermal Physics - Rod in Cylinder.sm (24.85 KiB)已下载 1231 次。
#16 已发布: 2018/2/1 02:36:46
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

As I say before, this is a general numeric setup.



Alvaro,

Your original [previous] is a gorgeous piece of work.
Just needed be doctored a bit. It might be compacted.

Jean

Maths Thermal Physics - Rod in Cylinder_R2 [Alvaro].sm (20.96 KiB)已下载 1101 次。
#17 已发布: 2018/2/1 03:41:35
overlord

overlord

600个赞,共1,381个帖子。

组: Moderator

Wrote

Wrote

God I really don't like to look at those for-loops, thanks to Andrey I will avoid them as much as I can.


Not backward compatible ... maybe a bug ?
I welcomed that feature as it was announced. And reattached Mandelbroth,
no answer from Designers ... maybe not so gorgeous as you pretend.

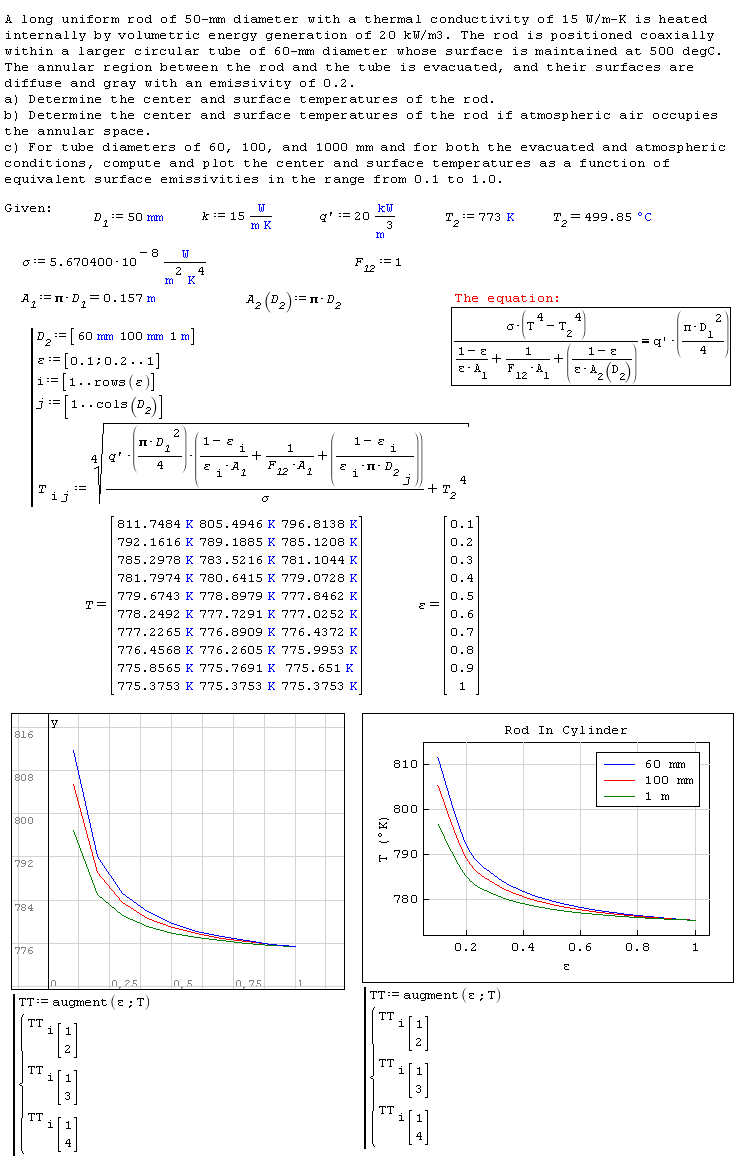

It shouldn't work before 6580, using range like this is introduced with this verison as far as I remember. This is why I have written the Smath version I used. Anyway, below you can see how it looks. Still I think it looks better then for-loops.

Regards
Thermal Physics - Rod in Cylinder_R3.png
#18 已发布: 2018/2/1 04:21:55
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Hi Jean.

The point about MAXITERS is to figure after the root function body, not before in such way that you can change it like TOL in Mathcad.

Also notice that in your worksheet you don't call the function Bisection defined there, but the function Bisection from the Nonlinear solvers plugin.

Best regards.

Alvaro.
#19 已发布: 2018/2/1 04:41:33
Radovan Omorjan

Radovan Omorjan

325个赞和1个踩,共2,052个帖子。

组: Moderator

Hello,

Sooner or later, this way or another - one will end up by using some nonlinear solvers.


Regards,
Radovan
When Sisyphus climbed to the top of a hill, they said: "Wrong boulder!"
#20 已发布: 2018/2/1 11:32:21
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

It shouldn't work before 6580, using range like this is introduced with this verison as far as I remember. This is why I have written the Smath version I used. Anyway, below you can see how it looks. Still I think it looks better then for-loops.



I love for-loops !

1. with units => "Matrix must be square"
2. w/o units => "Can not calculate"
