Maple Tools

Maple Tools - Symbolic engine for SMath Studio. - 消息

#241 已发布: 2016/8/24 06:19:51
Tinu_

Tinu_

14个赞,共19个帖子。

组: User

I have noticed the same Problem with the german version of SM

Tinu
#242 已发布: 2016/8/24 12:07:21
Igor Skarine

Igor Skarine

14个赞,共97个帖子。

组: User

Andrey,
You are right, "cic3-1.sm" works with the latest and greatest Maple plugin, that Uni updated few days ago.
But I'm talking about the next bug.
Please look at the worksheet in attachment.
Regards,
Igor
example_that_works_in_5973.sm (7.98 KiB)已下载 1688 次。
1位用户喜欢此帖子
Andrey Ivashov 2016/8/24 16:49:00
#243 已发布: 2016/8/24 16:25:58
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Hello Igor,

I'm not sure about what you should have as a result.
The attached works fine in version 5346.
Works fine for what I would expect.

Jean

Maple coeffs NumDen.sm (29.15 KiB)已下载 1591 次。

#244 已发布: 2016/8/24 17:07:12
Igor Skarine

Igor Skarine

14个赞,共97个帖子。

组: User

Jean, Yes it does! But try any version > 5973.
#245 已发布: 2016/8/24 23:56:39
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Igor, my dear friend: I'm an ! irreducible 5346 !
like an "irreducible polynomial".

Jean
#246 已发布: 2016/8/25 02:19:28
Laurent Fournier

Laurent Fournier

9个赞,共66个帖子。

组: User

Wrote

I have noticed the same Problem with the german version of SM

Tinu



Same in French... Maple Wrapper refuses to work, refuses to update, refuses to disable! :d But after turning to English, it works again.
#247 已发布: 2016/8/25 04:27:40
Davide Carpi

Davide Carpi

1,443个赞,共2,936个帖子。

组: Moderator

It is a bug in localization handling of MapleWrapper about the function description in the dynamic assistance; current supported languages are ENG/RUS/UKR/BEL, an exception is fired when one different language is used in the maple() dictionary and the plugin fails to start. Viacheslav can fix it
If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects
1位用户喜欢此帖子
#248 已发布: 2016/8/25 11:48:16
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

To clarify this bug, you must have the Maple version
used by Smath. Up until now, the bug is wrt Smath 5346.
Maybe Uni will catch that one.

Jean

ODE Laplace 2nd [Unexpected Bug].sm (37.99 KiB)已下载 1425 次。
#249 已发布: 2016/8/25 23:27:53
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Wrote

You can not install the Maple plugin in Smath Studio , if Smath Studio is in Spanish.

If you put Smath Studio in English , then you can load the plugin Mapler , but when you changes again Smath Studio to Spanish and restarted, then the plugin will not start.

Best Regards

Carlos



¡Gracias! Parecía como si funcionara únicamente cuando le daba la gana.

Best regards.

Alvaro.
#250 已发布: 2016/8/26 00:28:15
CBG

CBG

78个赞,共312个帖子。

组: User

Estimado Alvaro.

Efectivamente el Programa no acepta el Plugin si Smath Studio esta en español.
Si uno lo pone en Ingles, si carga Maple, pero al regresarlo al español, el plugin no arranca.

Parece que eso sucede también en otros idiomas.

Ya lo reporte también en la nueva versión.

Saludos

Carlos
1位用户喜欢此帖子
Alvaro 2016/8/26 01:20:00
#251 已发布: 2016/8/26 15:03:18
Arie

Arie

94个赞,共285个帖子。

组: User

Not sure if this is a maple wrapper issue but thought I would start here. I'm using the new version of SMATH (6081) and Version 1.0.6067.40150 of Maple Wrapper.

When I use simplify, it converts a variable with 'I' to 'i'. See attached .sm file. Notice "I.BIAS" in the input and the "i.BIAS" at the output.



example.sm (4.9 KiB)已下载 1729 次。
Feel free to join the SMath Studio Users Discord Channel: https://discord.gg/PayZpJW
#252 已发布: 2016/8/26 22:56:27
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

"When I use simplify, it converts a variable with 'I' to 'i'. See attached .sm file.
Notice "I.BIAS" in the input and the "i.BIAS" at the output.
________________________________

The greatest, often glorify themselves of the weirdest stupidity:

Mathematica imaginary 'i' is an horrible insane invented gyzma !!!!
Maple is as stupid: the universal 'i or j' imaginary is 'I'
Wise enough, it corected your input.
It toke me days to elucidate. In Smath 5346 if above an indexed 'i'
is part of a program AND IF 'i' is imaginary in an above definition
the programme is all freaked but no error message. It was reported
and AFAIK, has been corrected in newer versions.

Jean
#253 已发布: 2016/8/31 02:26:18
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Wrote

It is a bug in localization handling of MapleWrapper about the function description in the dynamic assistance; current supported languages are ENG/RUS/UKR/BEL, an exception is fired when one different language is used in the maple() dictionary and the plugin fails to start. Viacheslav can fix it



Updated. Try now.
Russia ☭ forever, Viacheslav N. Mezentsev
1位用户喜欢此帖子
Davide Carpi 2016/8/31 04:40:00
#254 已发布: 2016/8/31 02:49:24
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Wrote

Hello Uni,

Thank you for your efforts of supporting Maple plug-in.
But since Smath 5973, most of my worksheets failed to work.
The next bug, hopefully is that the later Smath
puts some "unwanted" placeholder for units into result of some symbolic calculations.

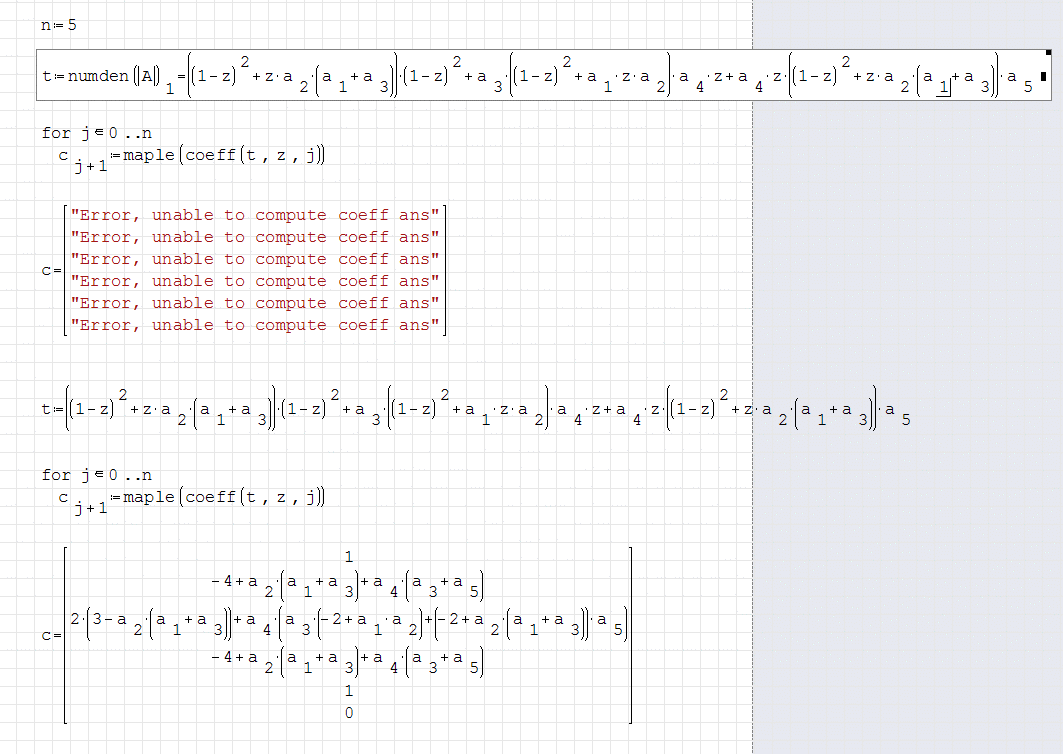

The attached screenshot shows such a problem.
If "t" was obtained as a result of calculation, the further symb. calculation failed,
but if I assign "t:=" by copy-pasting the value stripped of the placeholder, it works !
It also possible that some trailing character is removed from the result string.
Uni, could you please look into this issue ?

Thanks and best regards.



We have two functions numden() here (SMath Studio and maple). I think it is the reason. I'll try to fix this. Duplicate functions must be specially converted.
Russia ☭ forever, Viacheslav N. Mezentsev
1位用户喜欢此帖子
Davide Carpi 2016/8/31 04:40:00
#255 已发布: 2016/8/31 03:40:38
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Wrote

Not sure if this is a maple wrapper issue but thought I would start here. I'm using the new version of SMATH (6081) and Version 1.0.6067.40150 of Maple Wrapper.

When I use simplify, it converts a variable with 'I' to 'i'. See attached .sm file. Notice "I.BIAS" in the input and the "i.BIAS" at the output.



example.sm (4.9 KiB)已下载 1729 次。



Fixed and updated. Try now.
Russia ☭ forever, Viacheslav N. Mezentsev
3位用户喜欢此帖子
Arie 2016/9/8 14:28:00, Davide Carpi 2016/8/31 04:40:00, NDTM Amarasekera 2016/8/31 04:57:00
#256 已发布: 2016/9/1 04:51:51
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Wrote

Andrey,
You are right, "cic3-1.sm" works with the latest and greatest Maple plugin, that Uni updated few days ago.
But I'm talking about the next bug.
Please look at the worksheet in attachment.
Regards,
Igor
example_that_works_in_5973.sm (7.98 KiB)已下载 1688 次。



The problem is deeper than I thought. maple() function doesn't look recursively nested expressions. Because of this function names are intersecting (sum, product). Maple can't works with SMath functions and we have errors (expression transmitted as is).
When we write a command on a single line - it works (maple( command_all_in_one )). If we use complex external expression, then we get an error.

I think previously the function worked because the program has transformed the expression before passing it to the function. To support nested expressions, I need to further process the input expression. I need a time for this.

Russia ☭ forever, Viacheslav N. Mezentsev
#257 已发布: 2016/9/1 10:32:57
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

"Example that works" ... YES but:

1. Not generalised enough.
2. Result is in reverse order.

Jean

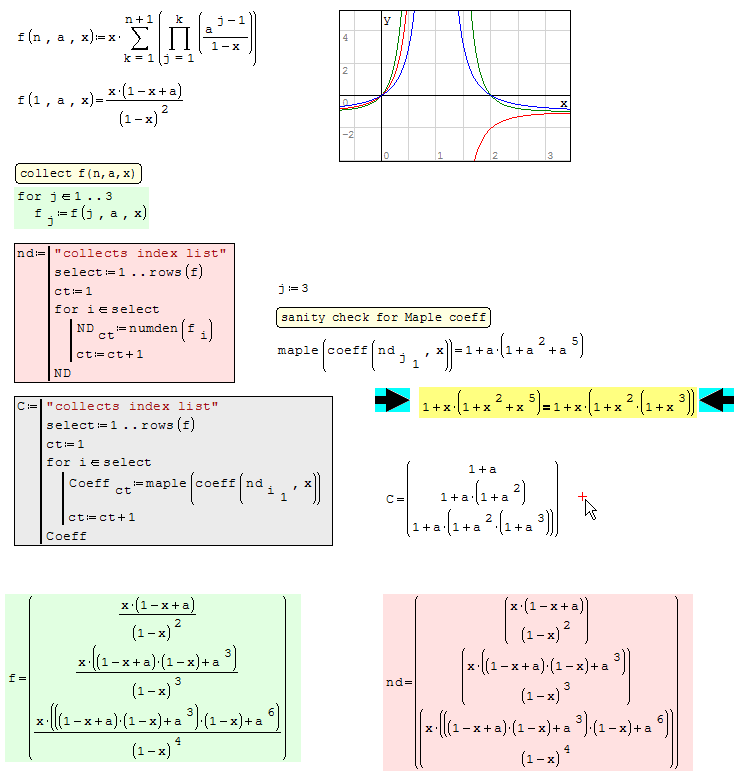

Maple Coeffs QUICK.gif

Maple coeffs NumDen.sm (21.32 KiB)已下载 1557 次。
#258 已发布: 2016/9/1 12:03:56
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Hello ! Viacheslav ... while you are there,

Can you examine the bug in the Laplace DE 2nd order.
The bug is about Maple refusing the forcing function sqrt(t).
Everything is explained in the work sheet.

Jean

ODE Laplace 2nd [Unexpected Bug].sm (15.94 KiB)已下载 1403 次。
#259 已发布: 2016/9/2 02:01:28
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Hello, Jean.

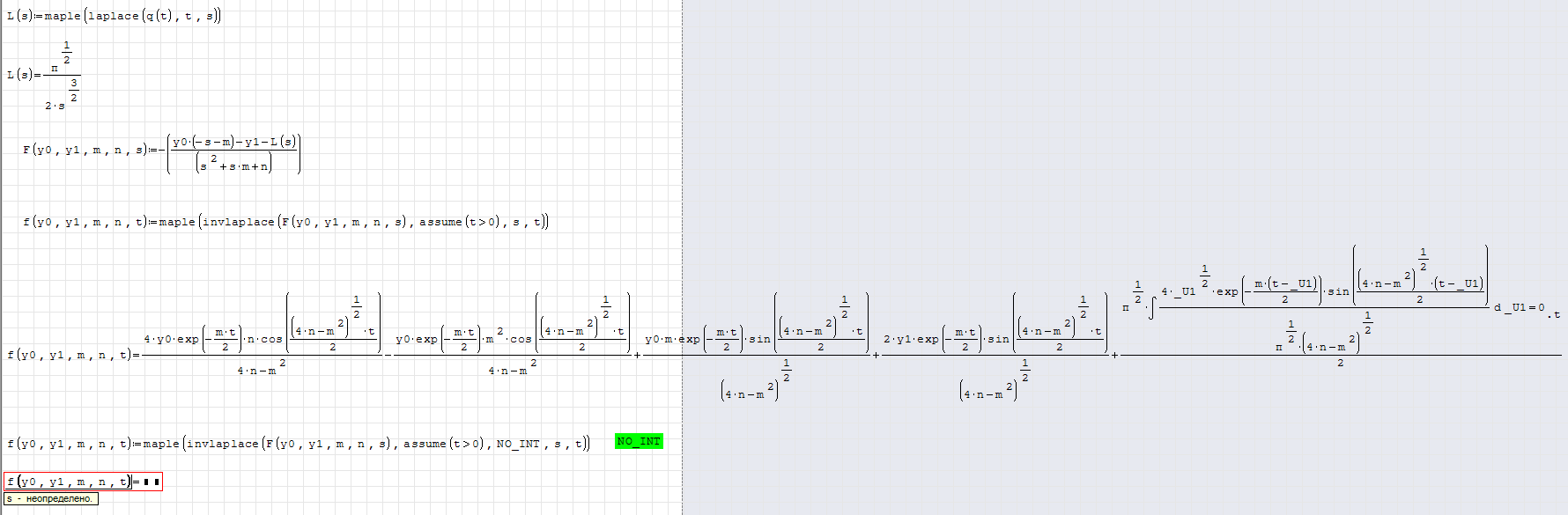

If I understood correctly when we use q(t) := sqrt(t) we will get an error. In this case maple answer is too complex for SMath:

4*y0*exp(-1/2*m*t)/(4*n-m^2)*n*cos(1/2*(4*n-m^2)^(1/2)*t)-y0*exp(-1/2*m*t)/(\
    4*n-m^2)*m^2*cos(1/2*(4*n-m^2)^(1/2)*t)+y0*m*exp(-1/2*m*t)/(4*n-m^2)^(1/\
    2)*sin(1/2*(4*n-m^2)^(1/2)*t)+2*y1*exp(-1/2*m*t)/(4*n-m^2)^(1/2)*sin(1/2\
    *(4*n-m^2)^(1/2)*t)+1/2*Pi^(1/2)*int(4*_U1^(1/2)/Pi^(1/2)*exp(-1/2*m*(t-\
    _U1))/(4*n-m^2)^(1/2)*sin(1/2*(4*n-m^2)^(1/2)*(t-_U1)),_U1 = 0 .. t)

We have int() function here in unexpected for SMath form. We can suppress integrals using NO_INT option but in this case Dirac() function appears which is defined in Statistical Tools plugin.


-(y0*(-s-m)-y1-1/2*Pi^(1/2)/s^(3/2))/(s^2+s*m+n)*Dirac(s)

We have another error - "s - undefined" (Dirac() not defined for symbolic argument).

Russia ☭ forever, Viacheslav N. Mezentsev
#260 已发布: 2016/9/2 08:14:32
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Thanks Viacheslav,

You are 100% correct in few words, only an Smath limit access.
Your first black snipet is identical to Mathcad 11, just differently
presented. I may still have some sufficiently good approximation sqrt(x).
Anyway: a pretty odd forcing function... most appreciated.

Jean
