Function from plot

Function from plot - 消息

#1 已发布: 2023/6/6 08:19:33
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

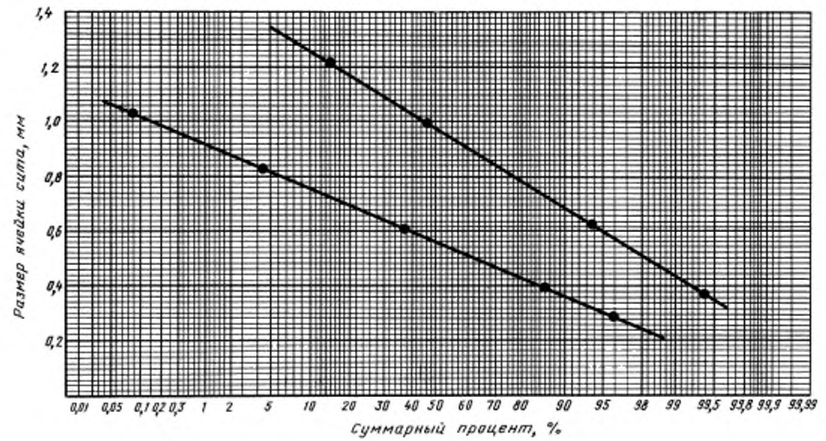

How can I get a function from this plot?
#2 已发布: 2023/6/6 08:59:59
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

How can I get a function from this plot ?


1. Probably from the expensive digitizer suggested by Richard [Mathsoft Collaboratory]
2. Piecewise from Tracer.
3. Try Mathsoft digitizer.
4. Smath difficult
At this point from the collected data set, fit a model function.
Cheers ... Jean.

1位用户喜欢此帖子
Valery Ochkov 2023/6/6 10:24:00
#3 已发布: 2023/6/6 10:05:20
Brian Runagle

Brian Runagle

13个赞,共27个帖子。

组: User

Does this help?

Graphing.pdf (164.86 KiB)已下载 1557 次。

Brian
1位用户喜欢此帖子
Valery Ochkov 2023/6/6 10:24:00
#4 已发布: 2023/6/6 10:15:02
⚜ Kenny Lemens, P.E. ᵂᴵ

⚜ Kenny Lemens, P.E. ᵂᴵ

85个赞,共181个帖子。

组: User

Greetings,

Wrote

How can I get a function from this plot? 🖼



That is a straight line on a semi-log graph; you can reference this handout: https://inside.mines.edu/~epoeter/_GW/LAB/EquationsOfStraightLinesOnDifferentTypesGraphPaper.pdf

Per this handout, your equation should be
y = b + m*log(x)
where:
  • m = difference in y over one log cycle of x
  • b = y value corresponding to x=1



May this be of Good Help;
⚜ Kenny Lemens, P.E. ᵂᴵ
"No matter where you go, there you are." -Buckaroo BanzaiHotkeys: https://en.smath.com/forum/resource.ashx?a=45771&b=2
1位用户喜欢此帖子
Valery Ochkov 2023/6/6 10:24:00
#5 已发布: 2023/6/6 12:44:34
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Wrote

How can I get a function from this plot?



Hi. You can try this post Approximation of a functional curve in a digital image or this other one: Embedding images into a plot

Best regards.
Alvaro.
2位用户喜欢此帖子
Вячеслав Мезенцев 2023/6/6 14:16:00, Valery Ochkov 2023/6/6 13:45:00
#6 已发布: 2023/6/6 14:19:52
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

How can I get a function from this plot ?


Hello Valery,
some Smath digitizing utilities
Cheers, Jean.

Digitize Tracer 15.sm (28.83 KiB)已下载 1404 次。
Digitize OVNI Copy.sm (69.15 KiB)已下载 1387 次。
Digitize Contour Isocurve Himmelblau Copy.sm (106.67 KiB)已下载 1445 次。
Digitize Curve.sm (295.86 KiB)已下载 1378 次。
Digitize Contour.sm (829.05 KiB)已下载 1461 次。
Digitize Clean_Strip_Smooth.sm (1.76 MiB)已下载 1498 次。

#7 已发布: 2023/6/6 15:29:30
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

... this Himmelblau has resident Gray matrix.

Digitize Contour Isocurve Himmelblau Copy.sm (107.19 KiB)已下载 1449 次。
1位用户喜欢此帖子
Valery Ochkov 2023/6/7 01:02:00
#8 已发布: 2023/6/6 17:11:16
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

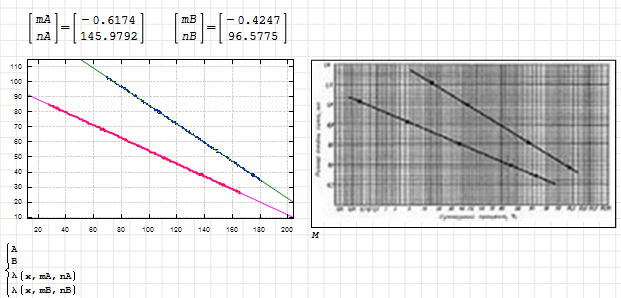

Hi. Hope this helps.


Modeling a functional curve in a digital image.pdf (860.39 KiB)已下载 929 次。
Modeling a functional curve in a digital image.sm (1 MiB)已下载 1510 次。

Best regards.
Alvaro.
3位用户喜欢此帖子
Valery Ochkov 2023/6/7 01:02:00, sergio 2023/6/7 06:34:00, darlbeck 2023/6/7 14:59:00
