Hi friends!
Now I am on the forum again!
Anime2.sm (55.59 KiB)已下载 1058 次。

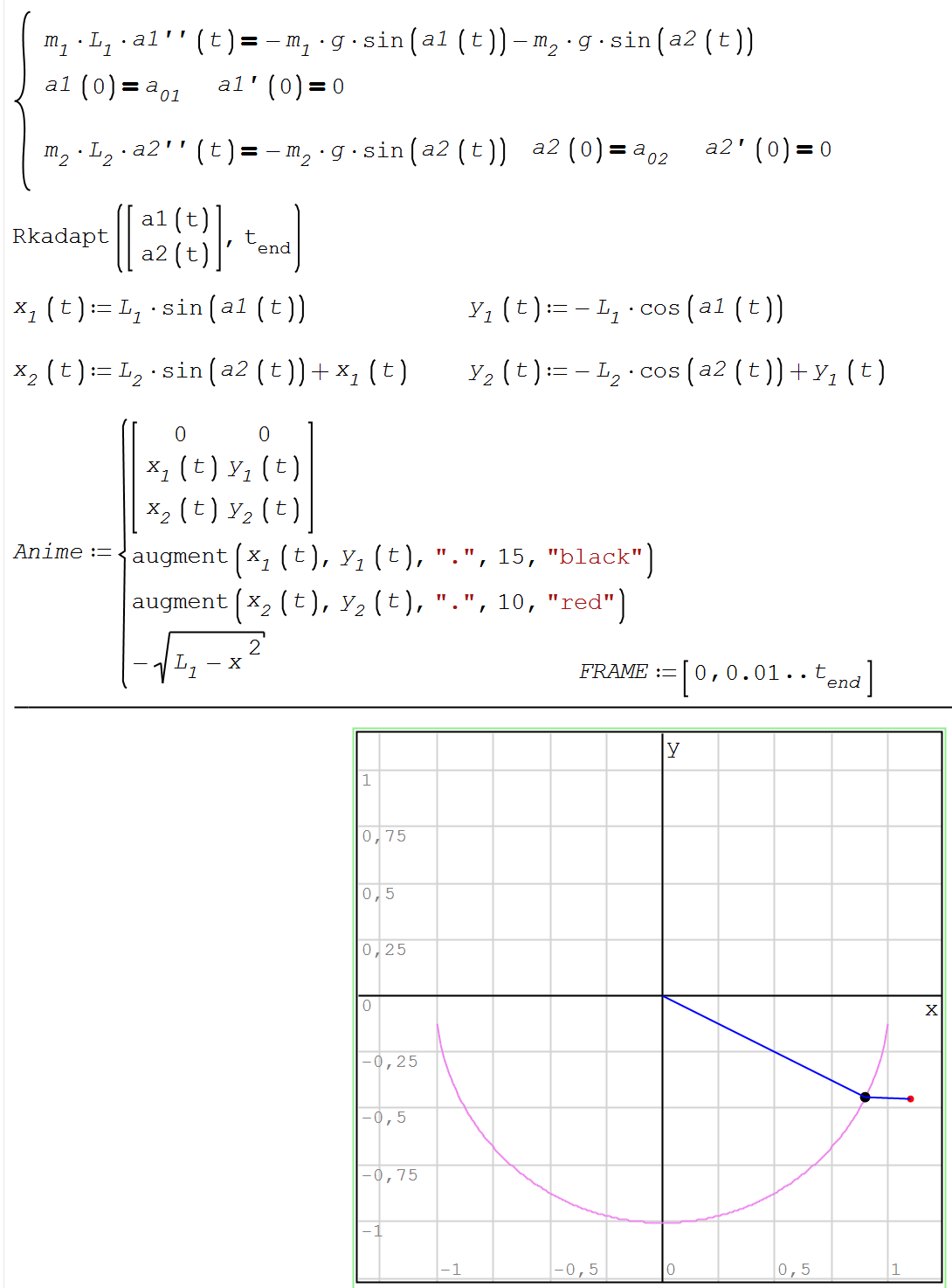

But the model is not correct. See please Alvaro model!
已编辑 2025/10/30 19:22:14
#2 已发布: 2025/10/29 10:45:45
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

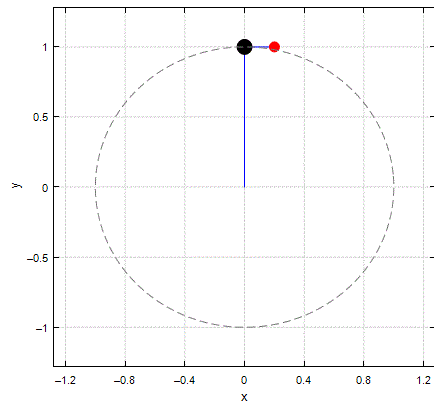

Using X-Y Plot

Anime2-xyplot.sm (57.84 KiB)已下载 1094 次。

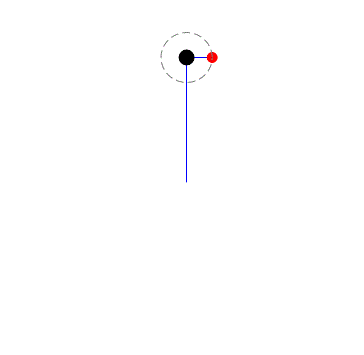

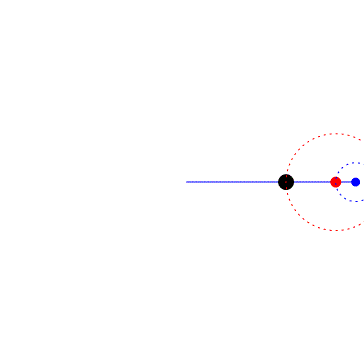

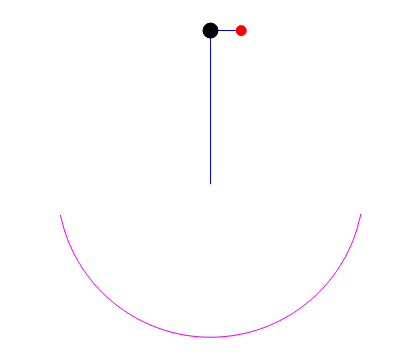

Double pendulum model and animation.gif
Russia ☭ forever, Viacheslav N. Mezentsev
2位用户喜欢此帖子
sergio 2025/10/29 14:50:17, Ricardo_Herrera 2026/1/3 14:15:17
#3 已发布: 2025/10/29 11:14:52
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

Thanks, Слава!
已编辑 2025/10/29 13:53:54
1位用户喜欢此帖子
Alvaro 2025/10/30 07:04:33
#4 已发布: 2025/10/29 13:56:31
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User


Anime-x-y-plot.sm (18.24 KiB)已下载 1018 次。
And where here is a bug?
#5 已发布: 2025/10/29 14:01:44
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

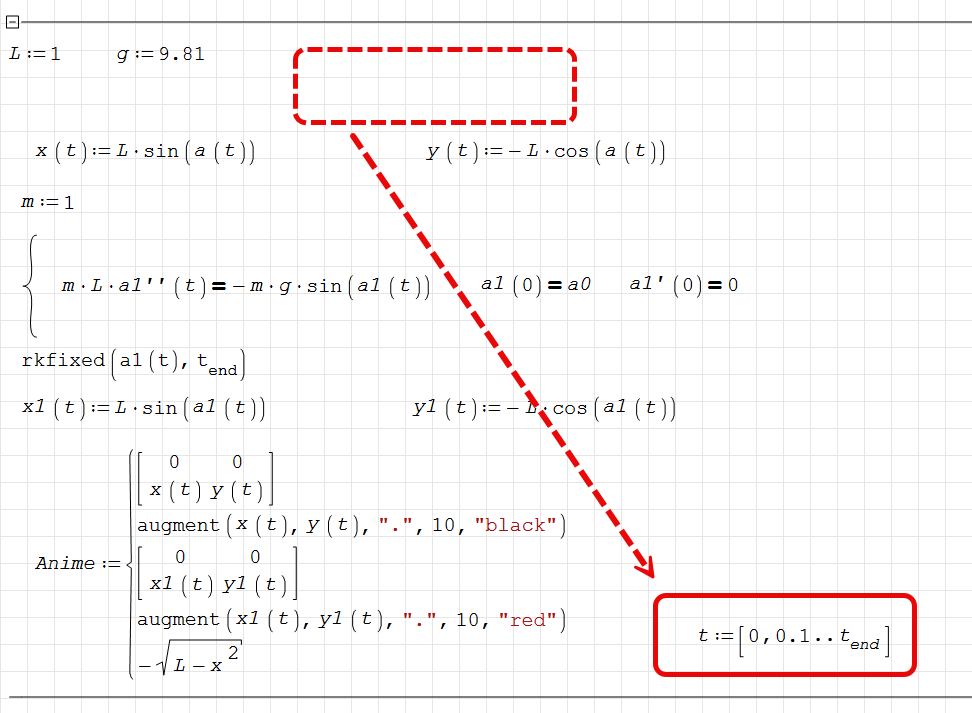

Vector t must be defined below before the component.
The animation feature is still being developed when I have time for it.

已编辑 2025/10/29 14:05:45
Russia ☭ forever, Viacheslav N. Mezentsev
1位用户喜欢此帖子
Alvaro 2025/10/30 07:04:42
#6 已发布: 2025/10/29 17:02:10
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

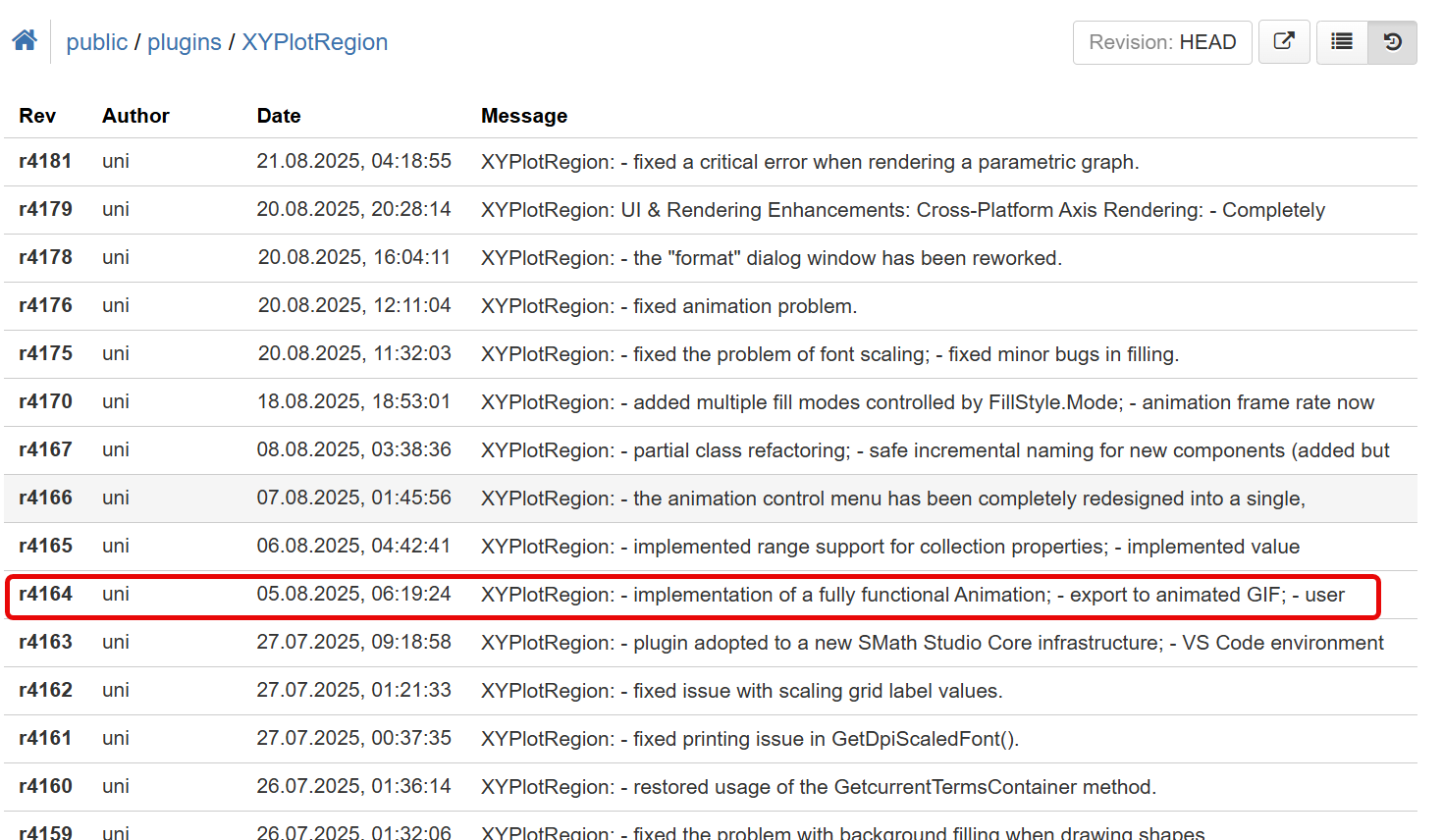

Слава, а когда этот новая версия плагина появилась?
#7 已发布: 2025/10/29 18:19:29
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

引用

Слава, а когда этот новая версия плагина появилась?


В конце лета.

已编辑 2025/10/29 18:21:02
Russia ☭ forever, Viacheslav N. Mezentsev
#8 已发布: 2025/10/30 07:07:54
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Hi. My approach to solving the double pendulum problem.


double_pendulum.sm (75.92 KiB)已下载 1112 次。

Best regards.
Alvaro.
3位用户喜欢此帖子
Вячеслав Мезенцев 2025/10/30 09:13:40, sergio 2025/10/30 12:18:26, Valery Ochkov 2025/10/30 07:45:32
#9 已发布: 2025/10/30 13:32:00
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

Newton vs Lagrange

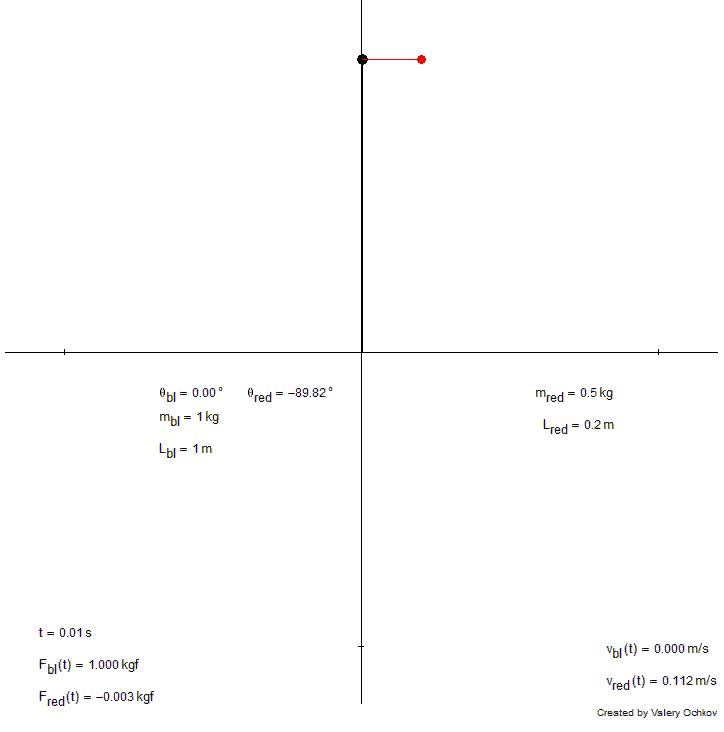

Pendulum-2.xmcd (119.12 KiB)已下载 1090 次。
#10 已发布: 2025/10/30 18:31:11
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

My little edit
1位用户喜欢此帖子
Alvaro 2025/10/31 04:29:45
#11 已发布: 2025/10/30 19:33:11
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

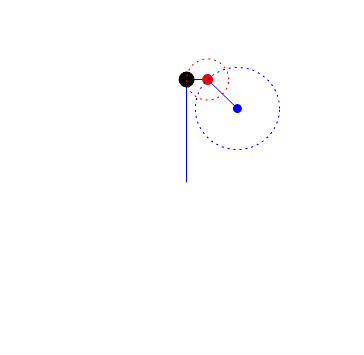

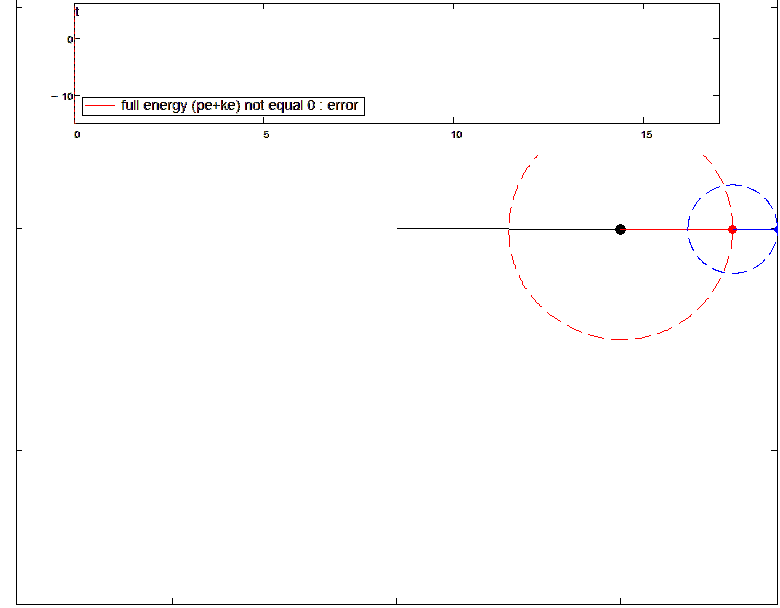

Triple pendulum - see errors at the second haft of time interval.
Pendulum-3-for-SMath.xmcd (220.62 KiB)已下载 1173 次。
已编辑 2025/10/30 19:39:16
1位用户喜欢此帖子
Alvaro 2025/10/31 05:05:16
#12 已发布: 2025/10/31 05:03:31
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

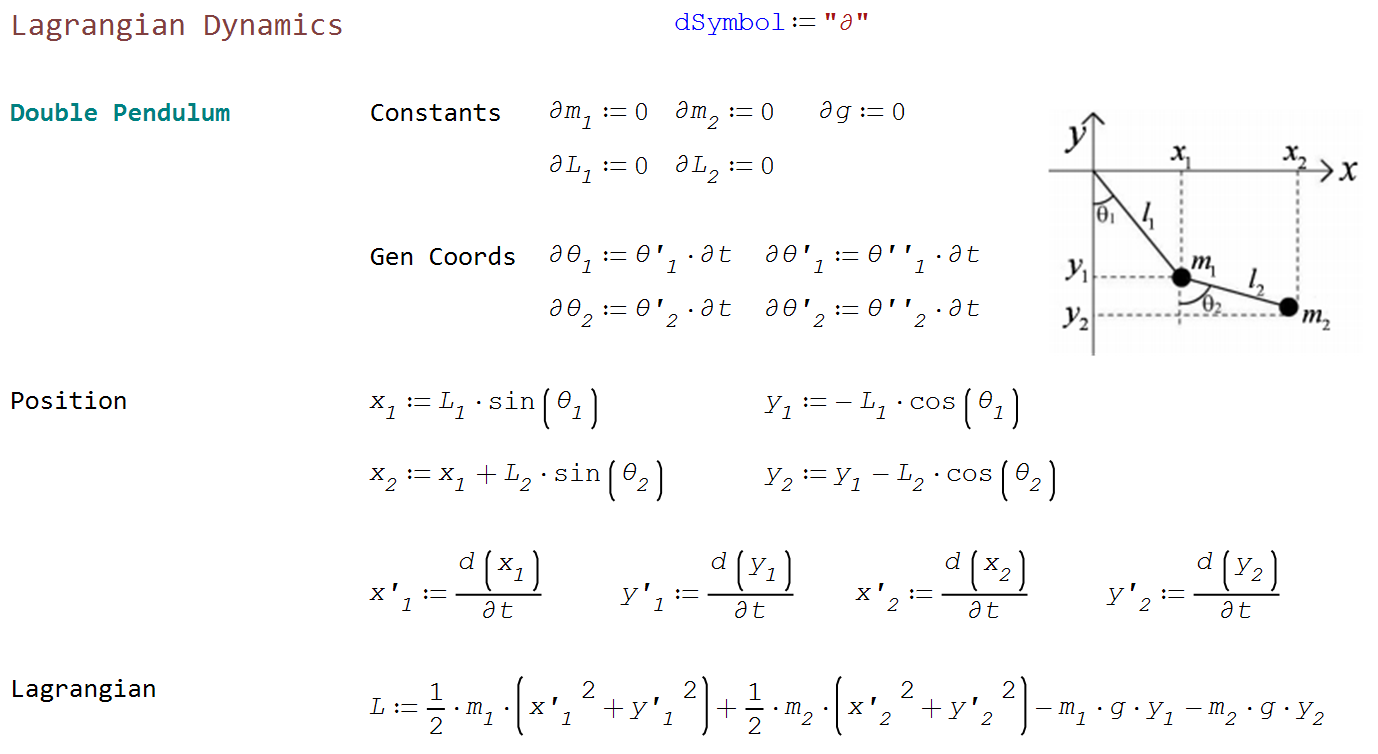

Hi. Using pure SMath code to deduce the equations of motion from the Lagrangian, with the functions in this post: https://smath.com/en-US/forum/topic/AeeMSM/Using-differentials.


double_pendulum_lagrangian.sm (174.64 KiB)已下载 1051 次。

double_pendulum_lagrangian.pdf (503.4 KiB)已下载 794 次。

Best regards.
Alvaro.
2位用户喜欢此帖子
Valery Ochkov 2025/10/31 07:37:56, sergio 2025/10/31 08:48:37
#13 已发布: 2025/10/31 05:10:58
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Wrote

Triple pendulum - see errors at the second haft of time interval.



I no longer use Mathcad, except on rare occasions, when I rely on Mathcad version 11, which I consider the last decent version. So I can't see the triple pendulum file. And I suppose this is the situation for many SMath users who no longer have Mathcad readily available. But more than worrying about the conservation of energy, which seems to be a problem with the numerical method used, I'm more surprised to see how the future affects the past, since the animation shouldn't alter the trajectories already described by the particles as time passes.

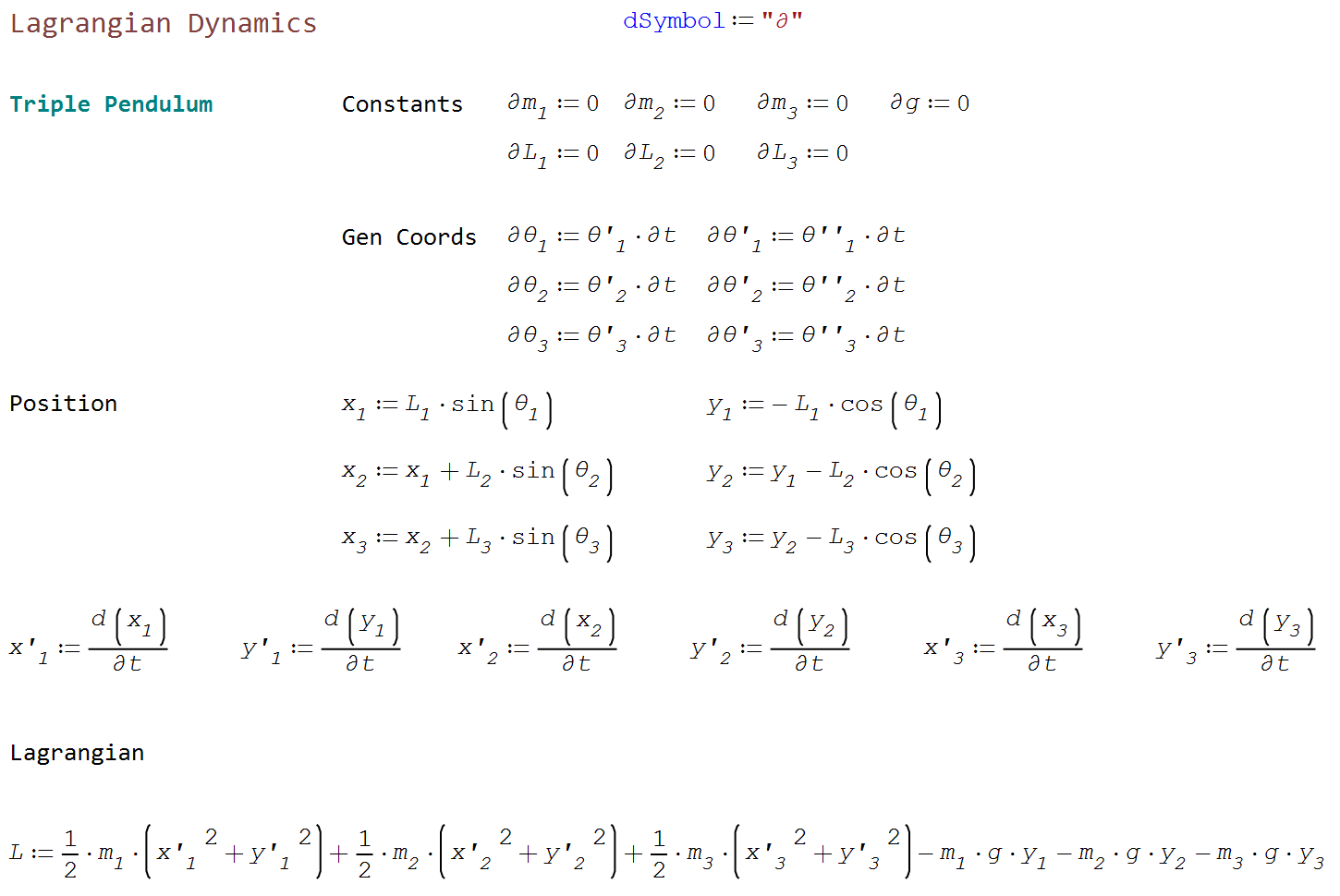

This is my approach to the triple pendulum.



triple_pendulum_lagrangian.sm (135.01 KiB)已下载 1023 次。

triple_pendulum_lagrangian.pdf (248.09 KiB)已下载 660 次。

Best regards.
Alvaro.
已编辑 2025/10/31 06:13:23
2位用户喜欢此帖子
Valery Ochkov 2025/10/31 07:38:10, Вячеслав Мезенцев 2025/10/31 07:18:43
#14 已发布: 2025/10/31 07:35:30
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

Wrote


I no longer use Mathcad,


See pls pdf
Pendulum-3-for-SMath.pdf (589.25 KiB)已下载 701 次。
已编辑 2025/10/31 07:38:52
#15 已发布: 2025/10/31 08:37:45
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Wrote

See pls pdf


With those values:



triple_pendulum_lagrangian.sm (159.26 KiB)已下载 1051 次。

Best regards.
Alvaro.
1位用户喜欢此帖子
Valery Ochkov 2025/10/31 10:39:04
#16 已发布: 2025/10/31 10:38:47
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

Wrote

Wrote


I'm more surprised to see how the future affects the past, since the animation shouldn't alter the trajectories already described by the particles as time passes.
Best regards.
Alvaro.



For me too!
#17 已发布: 2025/11/1 01:52:48
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

Wrote

Wrote

See pls pdf


With those values:
Best regards.
Alvaro.


One my plot:

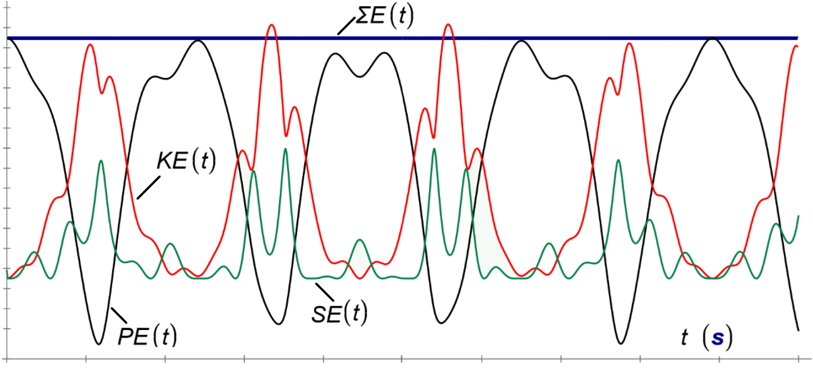

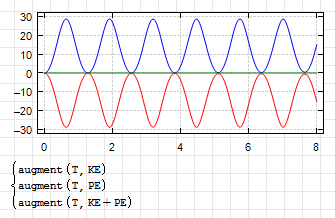

Change of three types of energy of a swinging pendulum on an elastic suspension - SE - the spring energy
已编辑 2025/11/1 01:55:02
#18 已发布: 2025/11/5 07:01:02
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

Alvaro, hi!
Is it posibble to solve the single pendulun problem with Lagrangian and rkfixed but without the al_nleqsolve function?
已编辑 2025/11/5 08:29:15
#19 已发布: 2025/11/6 04:03:01
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

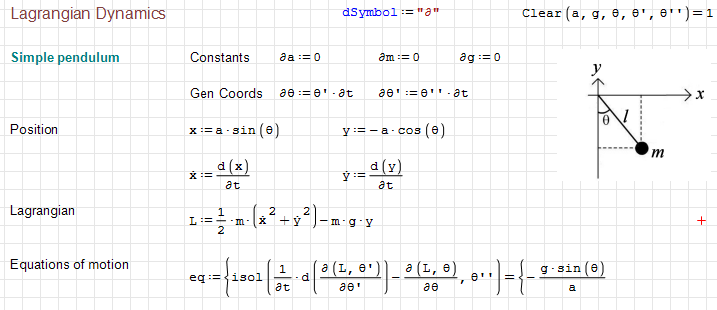

Hi Valery. For the single pendulum you can get the lagrangian from the olf post about differentials ( https://smath.com/en-US/forum/topic/AeeMSM/Using-differentials ) It's very simple and doesn't require much processing to use rkfixed.


For the double pendulum, you can use Newton-Raphson to solve the system within the function D. Here, a very simple version of the method is used.

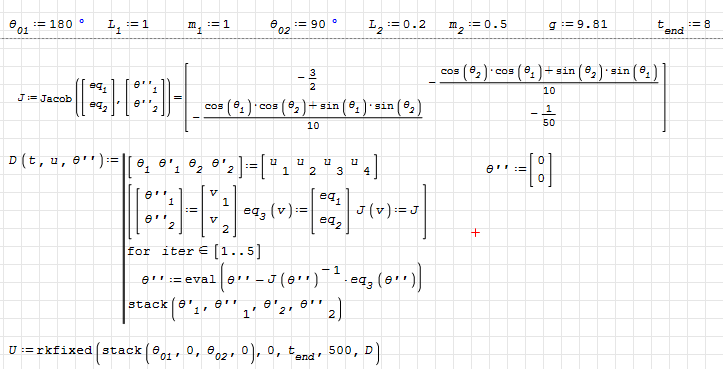

double_pendulum_lagrangian-NR.sm (178.15 KiB)已下载 1038 次。

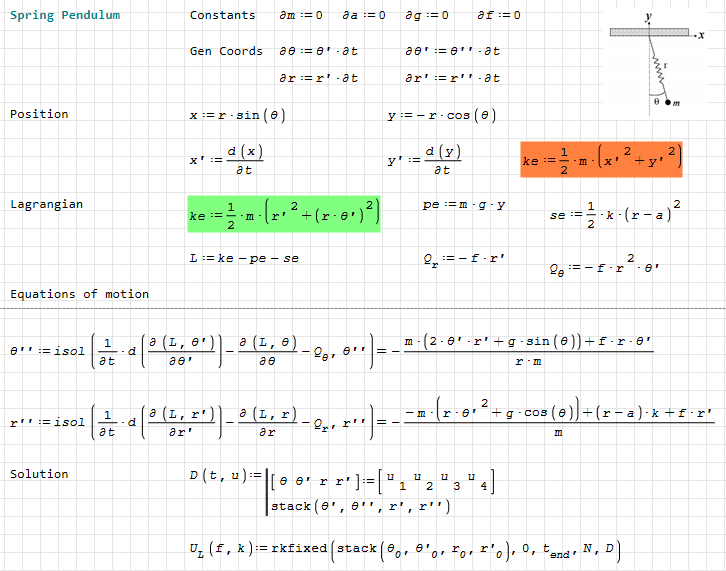

Something similar applies to the pendulum with a spring. Note that the Lagrange equations become somewhat complicated because I use the x,y coordinates to calculate the kinetic energy, and SMath cannot simplify trigonometric functions. However, if you use r, θ' (in green), the equations of motion are greatly simplified. But that breaks the principle that the program should do the calculations, not the user.


Best regards.
Alvaro.
1位用户喜欢此帖子
Valery Ochkov 2025/11/6 05:16:18
#20 已发布: 2025/11/6 11:47:20
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

Wrote

Hi Valery. For the single pendulum you can get the lagrangian from the olf post about differentials ( https://smath.com/en-US/forum/topic/AeeMSM/Using-differentials ) It's very simple and doesn't require much processing to use rkfixed.
Alvaro.



Hi Alvaro!

Can you create this simple sm-file with animation? Single pendulum!
Thanks!
