hi guys it's me again xD

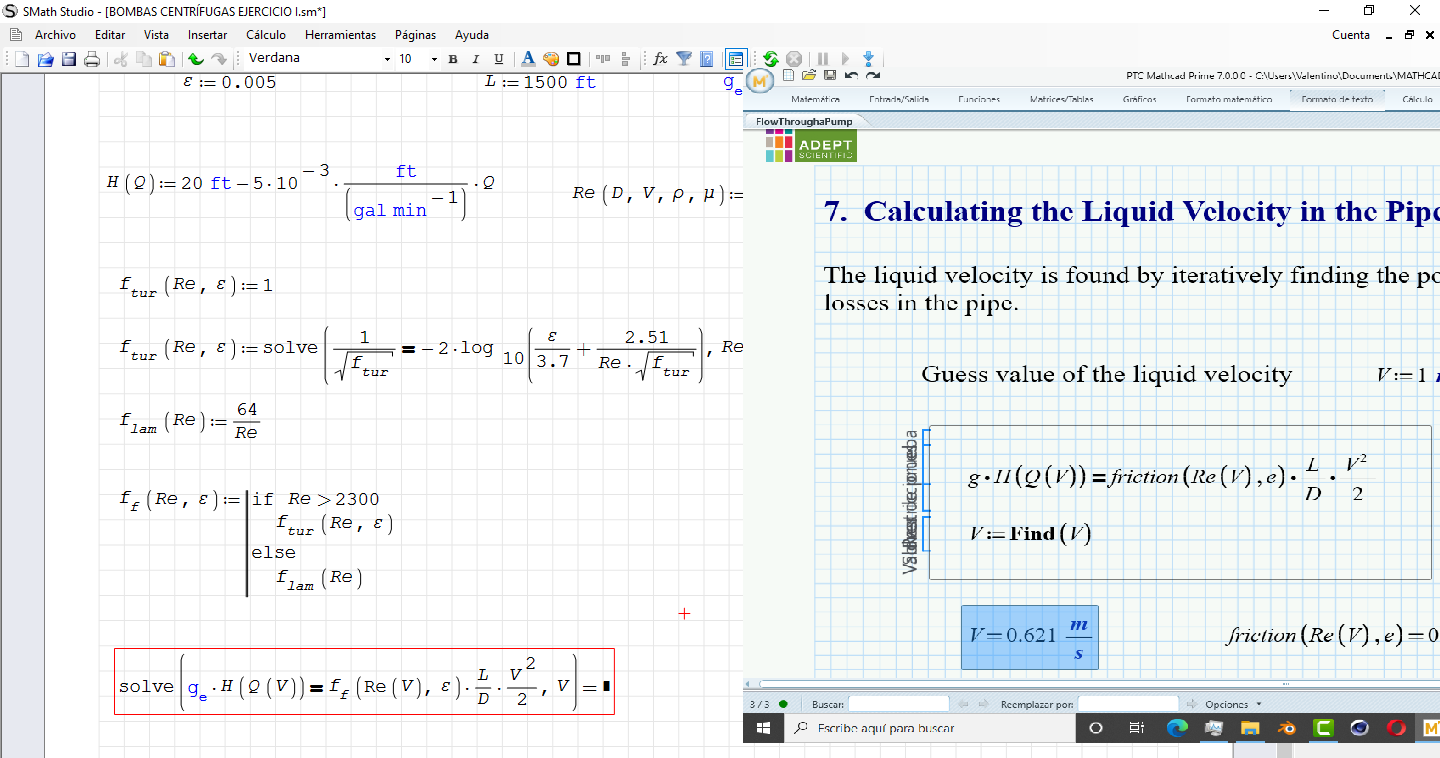

There is an exercise to find the discharge speed of a pump in Mathcad Prime ... when I try to do it in SMath Studio I am unsuccessful

Resolving functions based on other functions in SMath Studio - Mathcad Prime

I leave the pdf of Mathcad Prime and the SM File

Liquid Flow Through a Pump.sm (42.2 KiB)已下载 1236 次。

FlowThroughaPump.pdf (690.73 KiB)已下载 864 次。


#2 已发布: 2021/10/2 01:55:16
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

It didn't seem that difficult. Attached as far as I could advance.

Liquid Flow Through a Pump.sm (46.99 KiB)已下载 1215 次。

Best regards.
Alvaro.
#3 已发布: 2021/10/2 09:53:10
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

when I try to do it in SMath Studio I am unsuccessful


These 3 documents may have interest in your projects.
I have Control Valve Sizing as well.
Your first PUMP fails the Table ... incorrect format ???
Cheers ... Jean.

Inst_Colebrook MOODY.sm (16.88 KiB)已下载 1267 次。
Inst_Colebrook Pipe Data.sm (71.45 KiB)已下载 1251 次。
Inst_Colebrook.sm (167.25 KiB)已下载 1252 次。


#4 已发布: 2021/10/3 20:42:55
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

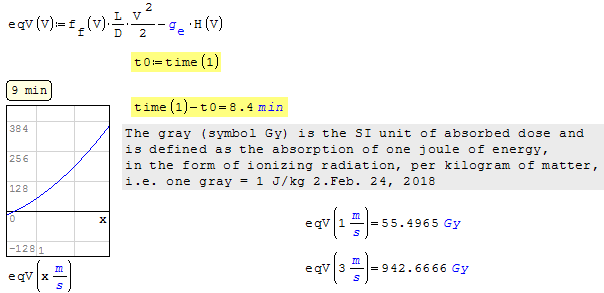

Gy Unit.PNG

Liquid Flow Through a Pump Brute Force Plot.sm (56.99 KiB)已下载 1330 次。
#5 已发布: 2021/10/4 01:48:53
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Hi. Solved.

Liquid Flow Through a Pump.sm (51.06 KiB)已下载 1247 次。

Liquid Flow Through a Pump.pdf (126.32 KiB)已下载 785 次。

Best regards.
Alvaro.
#6 已发布: 2021/10/4 09:56:35
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

There is an exercise to find the discharge speed of a pump


This document is metric, you can convert imperial.
There is more than velocity for the plant Manger
wrt power consumption and optimum plant operation.
Jean.

Inst_Colebrook Pipe Data.sm (71.45 KiB)已下载 1238 次。
#7 已发布: 2021/10/4 17:10:58
overlord

overlord

600个赞,共1,381个帖子。

组: Moderator

Thanks Valentino and Razonar.
This is a good example.
I also have a basic pump motor calculation.
With head-losses included, automatic selected.
I will upload it when I am available.

Regards
