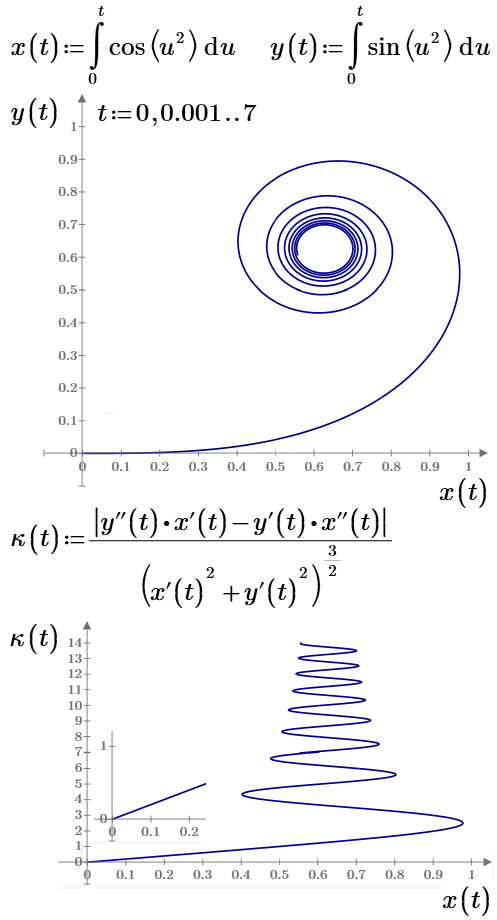

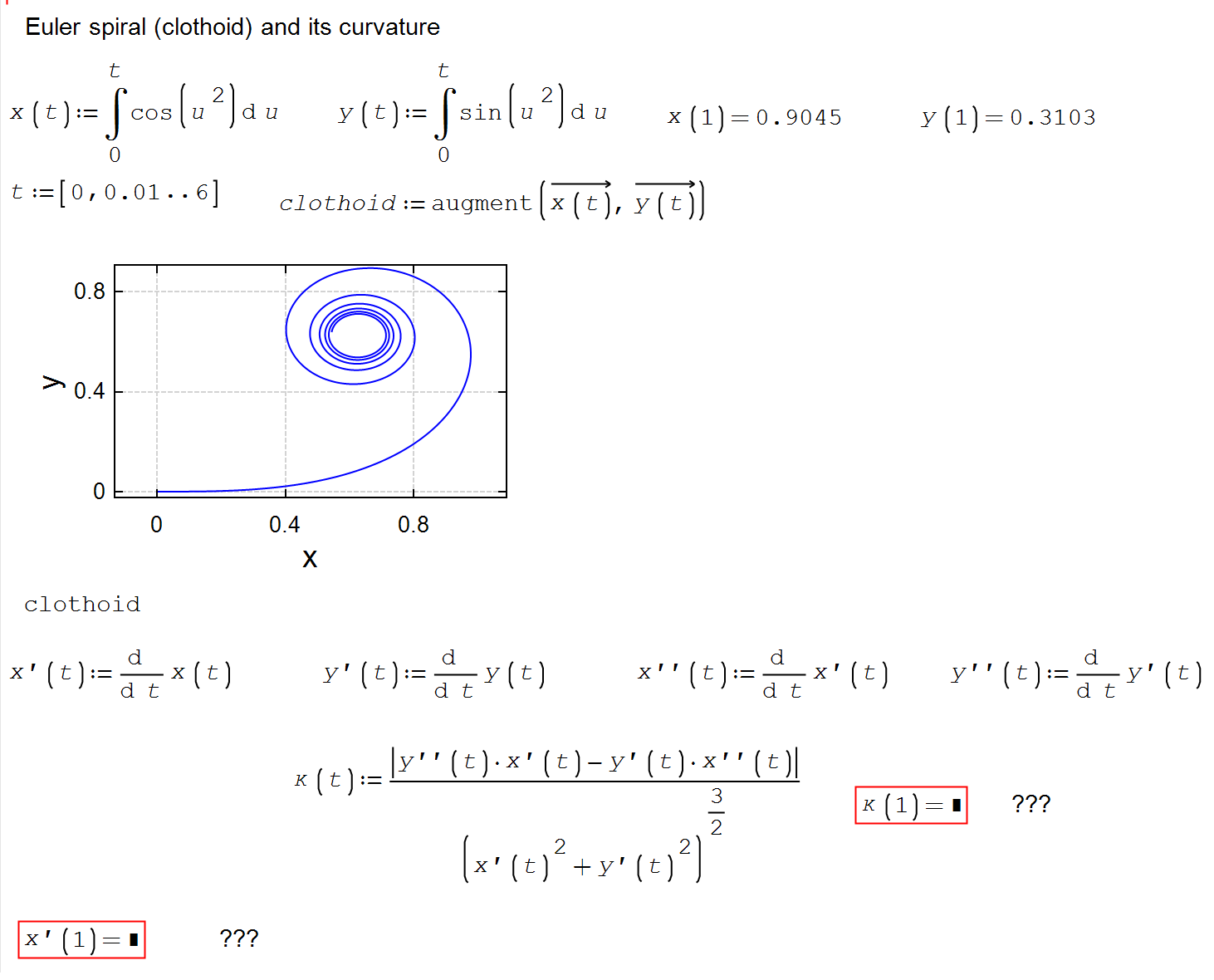

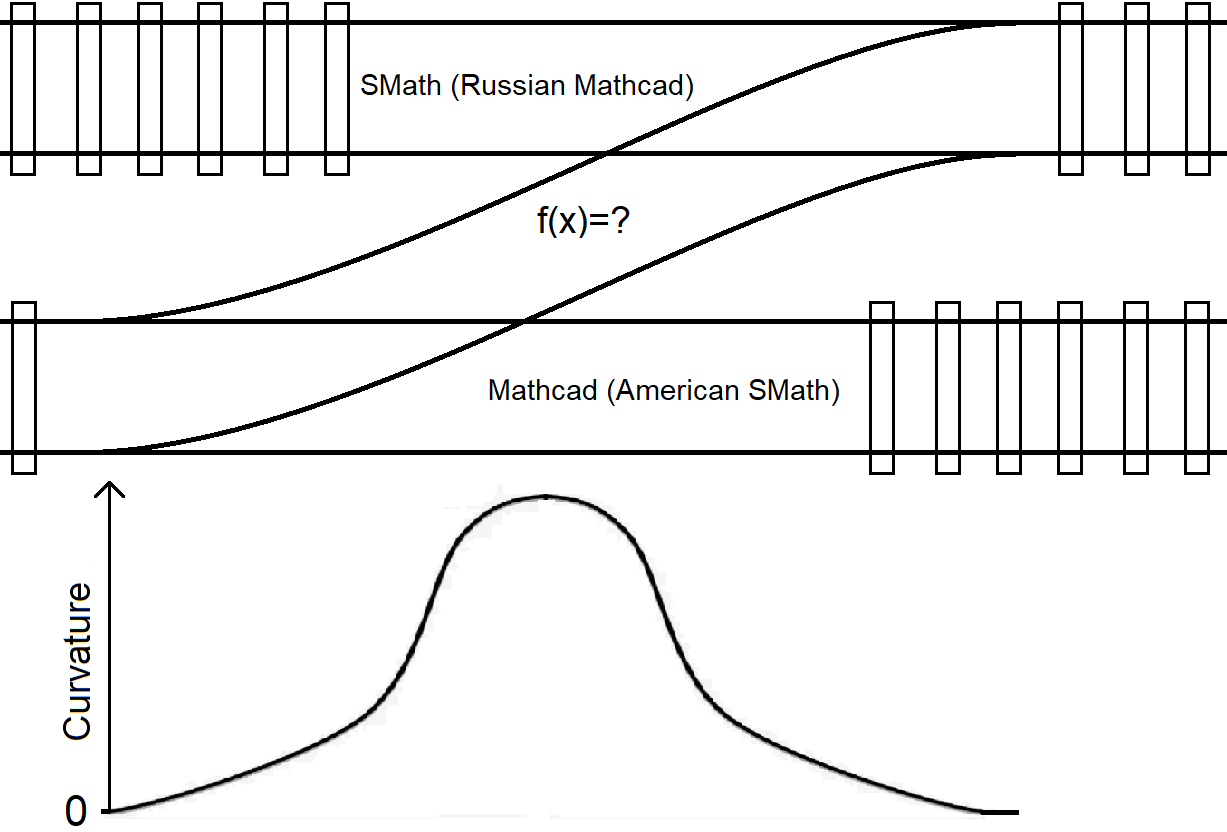

Why I can not to plot the Euler spiral curvature?
1-10-Euler-spiral.sm (175.21 KiB)已下载 1562 次。
#2 已发布: 2023/11/14 04:46:11
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

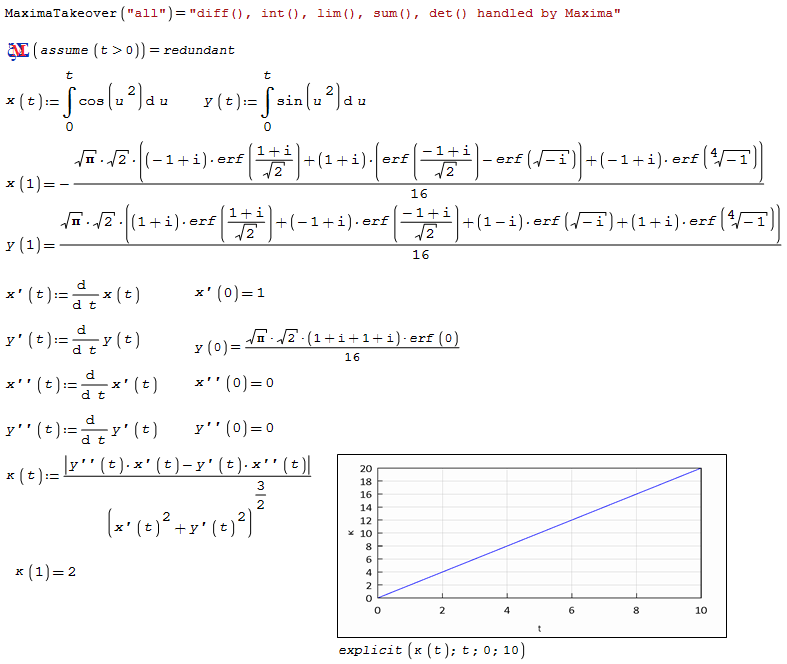

SMath native integration is a purely numerical procedure. Derivatives are symbolic ones. You would need to replace the symbolic derivatives by approximations.

Maxima can handle the derivatives. Funny enough, Maxima can't display the integral values x(t), y(t), neither can it plot them.

But you just asked for the curvature

Euler-spiral_Maxima.sm (28.89 KiB)已下载 1536 次。
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
2位用户喜欢此帖子
Valery Ochkov 2023/11/14 04:50:00, Oscar Campo 2023/11/14 10:13:00
#3 已发布: 2023/11/14 04:53:38
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

Thanks, Martin.
No solution in pure SMath?

#4 已发布: 2023/11/14 05:58:30
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

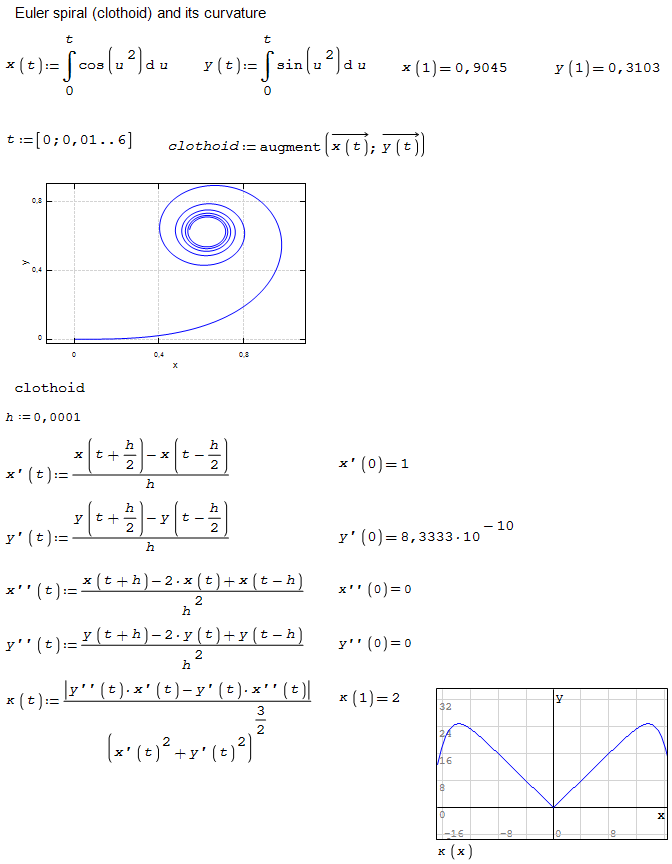

Here is a solution in pure (AKA Maxima-free) SMath.

The derivatives are replaced by difference quotients with a fixed perturbation h. Sooner or later this h is too big for a precise approximation, therefore, the value of the curvature deteriorates for large values of t.
Perhaps the fixed interval integrator also is to be blamed for the loss of precision.

Another M to patent?

Euler-spiral_Kr.sm (15.13 KiB)已下载 1618 次。
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
#5 已发布: 2023/11/14 06:11:13
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Hi. These are another two options.

1-10-Euler-spiral - option 1.sm (174.84 KiB)已下载 1578 次。
1-10-Euler-spiral - option 2.sm (176.58 KiB)已下载 1566 次。

Best regards.
Alvaro.
2位用户喜欢此帖子
Oscar Campo 2023/11/14 10:15:00, Valery Ochkov 2023/11/14 13:43:00
#6 已发布: 2023/11/14 13:45:22
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

1位用户喜欢此帖子
Oscar Campo 2023/11/14 17:47:00
#7 已发布: 2023/11/14 13:52:31
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

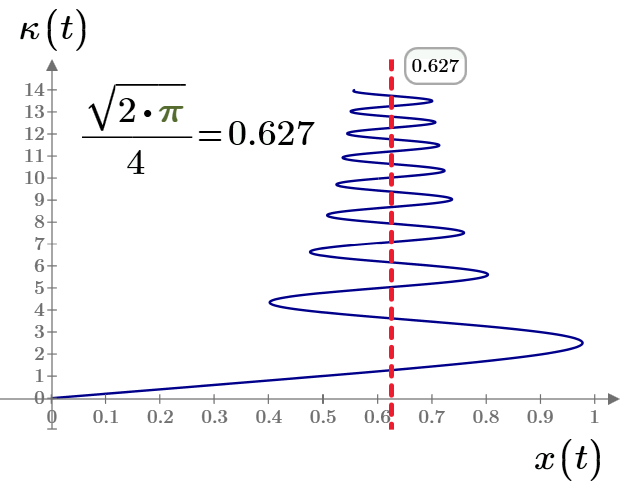

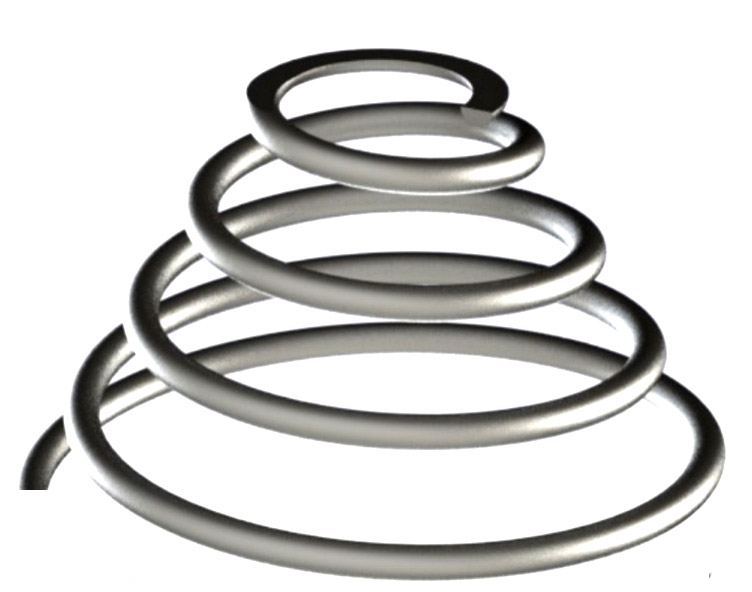

Euler spring

#8 已发布: 2023/11/14 16:44:15
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

https://community.ptc.com/t5/Mathcad/Euler-spiral/m-p/912205/thread-id/209391

#9 已发布: 2023/11/14 18:05:37
Oscar Campo

Oscar Campo

135个赞,共309个帖子。

组: Moderator

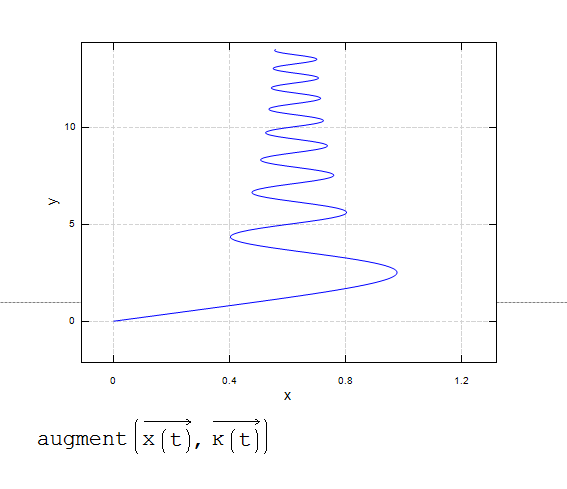

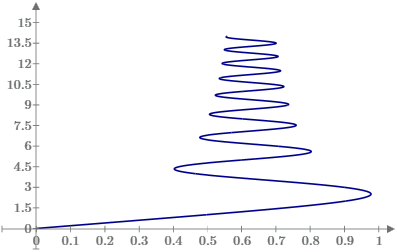

the Euler spring on SMath:

1位用户喜欢此帖子
Valery Ochkov 2023/11/14 18:18:00
#10 已发布: 2023/11/14 19:39:05
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

Why I can not to plot the Euler spiral curvature ?


Cornu = Euler = Fresnel = Clothoid ... all same.

Maths Spirals Euler-Cornu.sm (17.51 KiB)已下载 1559 次。
Maths Spirals_ANY.sm (26.77 KiB)已下载 1646 次。

#11 已发布: 2023/11/14 20:27:47
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

Cornu = Euler = Fresnel = Clothoid ... all same.


In the document ANY spiral ... set
c:= 0.30634896253
k:= -0.848622607416
r:= 0.25 ... immaterial, just to plot on same canvas.
You will have the Golden spiral considered Fibonacci.
Cheers ... Jean.


#12 已发布: 2023/11/15 09:00:51
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User


#13 已发布: 2023/11/15 10:28:26
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

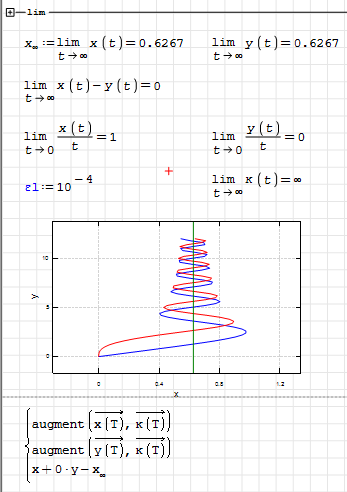

Hi. Using the numerical limit procedure from this post

1-10-Euler-spiral - option 2.sm (40.6 KiB)已下载 1552 次。


Best regards.
Alvaro.
1位用户喜欢此帖子
Valery Ochkov 2023/11/15 12:44:00
#14 已发布: 2023/11/15 20:57:32
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

#15 已发布: 2023/11/15 22:18:36
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

You can get that editing the file in this post:


Best regards.
Alvaro.
2位用户喜欢此帖子
Valery Ochkov 2023/11/15 22:59:00, Martin Kraska 2023/11/16 08:17:00
#16 已发布: 2023/11/15 23:12:37
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

#17 已发布: 2023/11/15 23:55:45
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

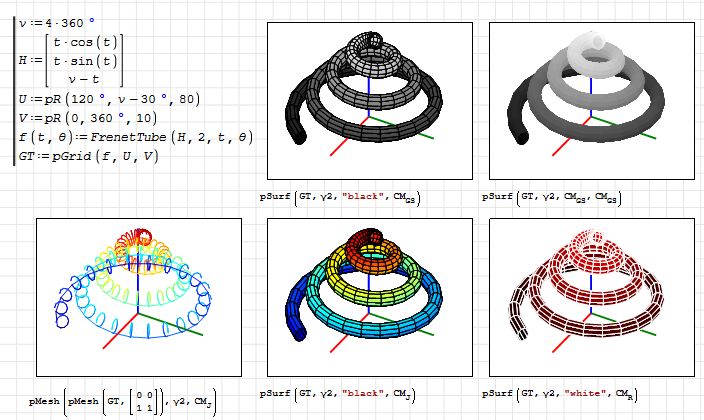

Nice picture. This is a conic helicoid.


HelliCone.sm (148.93 KiB)已下载 1646 次。

Best regards.
Alvaro.
2位用户喜欢此帖子
Oscar Campo 2023/11/16 00:16:00, Martin Kraska 2023/11/16 08:17:00
#18 已发布: 2023/11/16 08:16:36
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

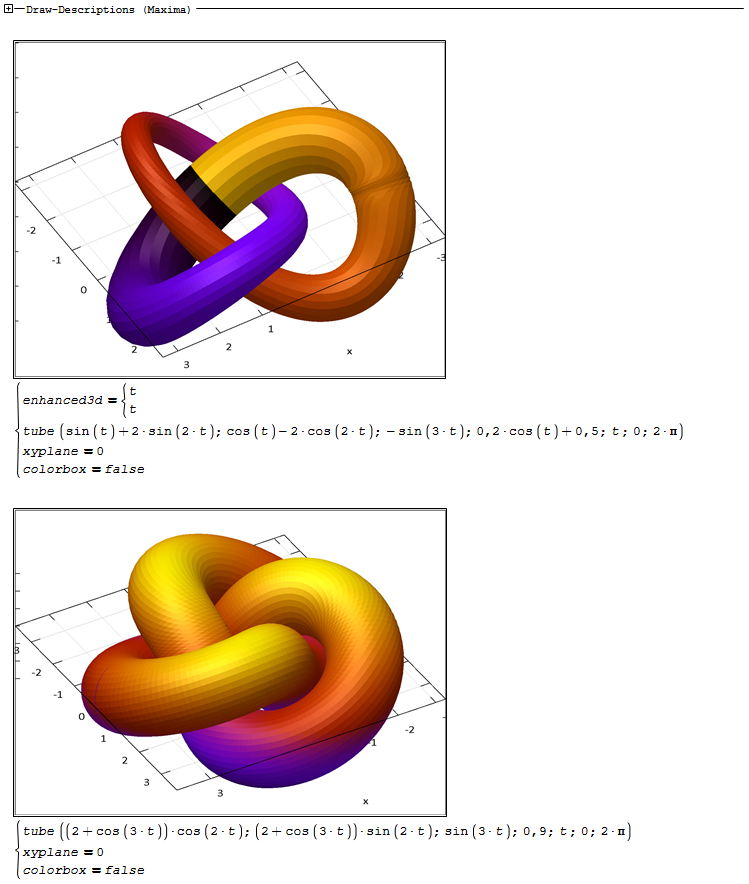

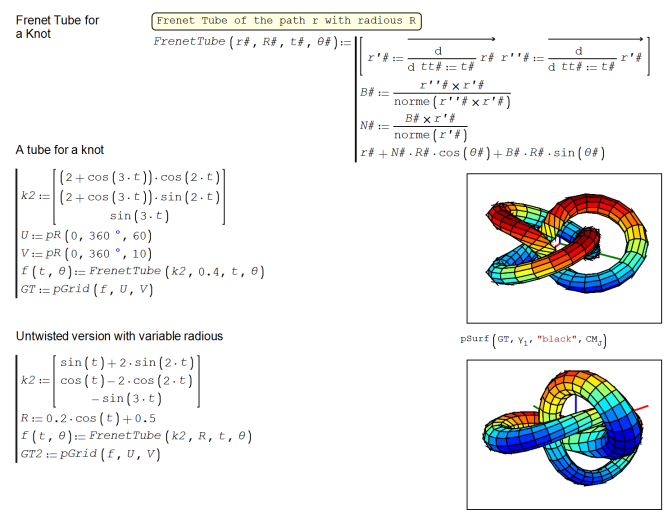

The plots are interactive (drag to rotate, Ctrl-Mousewheel to zoom). Yet, they are not really performant, takes approx. 3 seconds to update.

knots.sm (272.12 KiB)已下载 1637 次。
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
1位用户喜欢此帖子
Valery Ochkov 2023/11/16 08:51:00
#19 已发布: 2023/11/16 08:46:37
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

https://yandex.ru/video/preview/7434912311849987856
#20 已发布: 2023/11/16 09:08:36
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

Euler target
