X-Y Plot Region - Extends SMath Studio with a X-Y Plot Region. - Сообщения
#281 Опубликовано: 04.08.2018 02:46:31

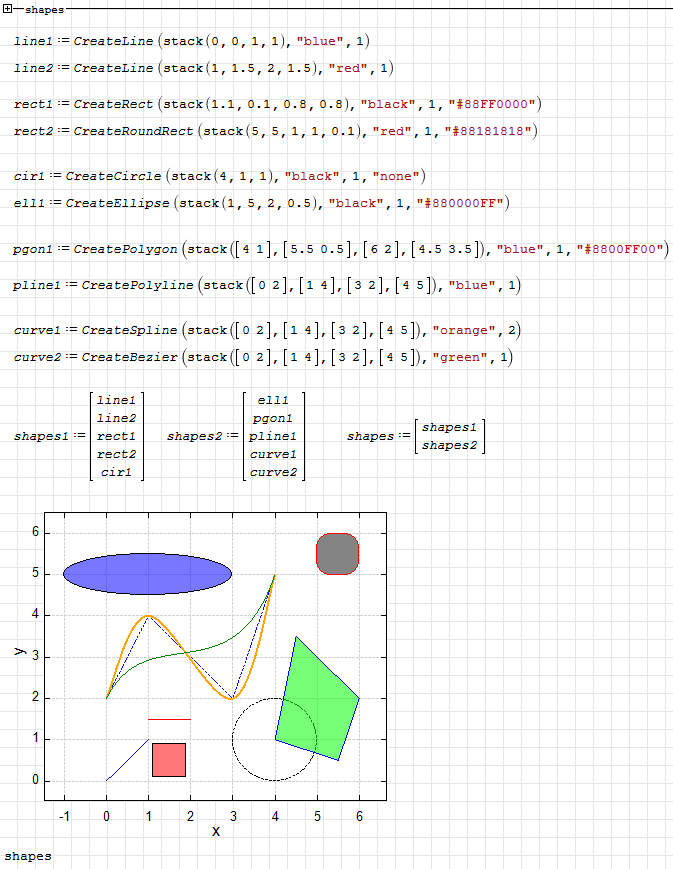

Updated. Line style for shape added. Small changes in the shape vector format.
[albumimg]1504[/albumimg]
X-Y Plot. Draw shapes.sm
[albumimg]1504[/albumimg]
X-Y Plot. Draw shapes.sm
Russia ☭ forever, Viacheslav N. Mezentsev
4 пользователям понравился этот пост
IVR 04.08.2018 06:14:00, Radovan Omorjan 04.08.2018 03:37:00, Davide Carpi 04.08.2018 04:33:00, frapuano 04.08.2018 17:40:00
#282 Опубликовано: 04.08.2018 12:42:20

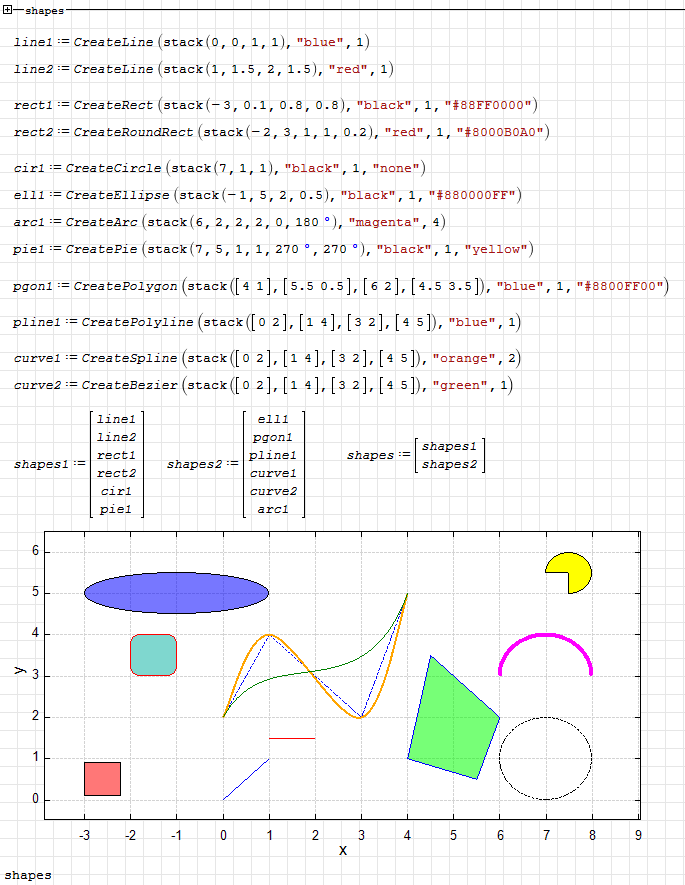

Updated. Arc and pie added, rounded rect fixed.
[albumimg]1505[/albumimg] [albumimg]1506[/albumimg]
X-Y Plot. Draw shapes.sm
[albumimg]1505[/albumimg] [albumimg]1506[/albumimg]
X-Y Plot. Draw shapes.sm
Russia ☭ forever, Viacheslav N. Mezentsev
3 пользователям понравился этот пост
NDTM Amarasekera 04.08.2018 13:13:00, sergio 04.08.2018 14:28:00, Radovan Omorjan 04.08.2018 17:20:00
#283 Опубликовано: 04.08.2018 13:14:31
Thanks. How about a simple arrow?
Look within!... The secret is inside you.
Best Regards
Eng. NDTM Amarasekera - Sri Lanka
#284 Опубликовано: 04.08.2018 17:37:50

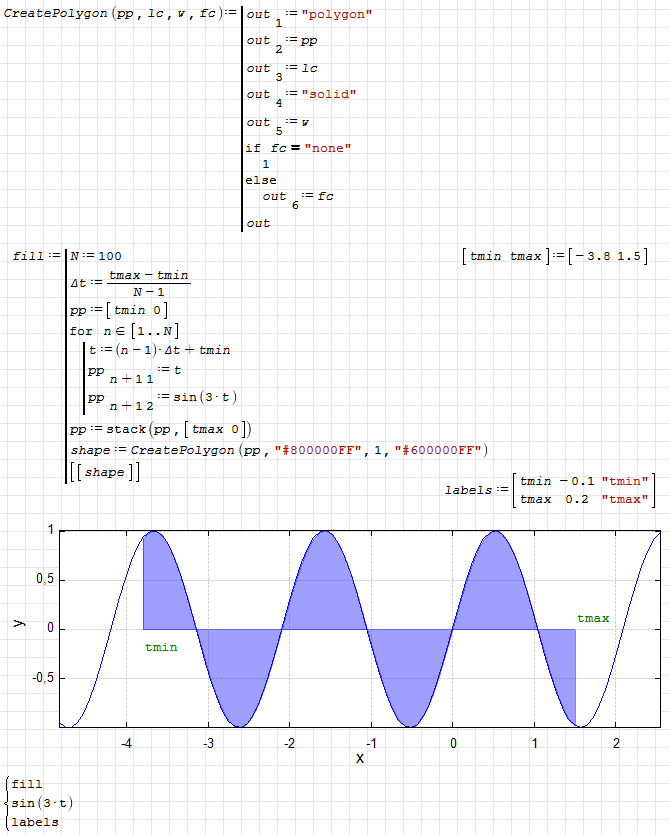

I saw the picture above made by uni and just remembered that many times users mentioned filling option (fill the area below the curve and x-axis) and workarounds in standard SMath plot.
When Sisyphus climbed to the top of a hill, they said: "Wrong boulder!"
#285 Опубликовано: 04.08.2018 22:43:12
How about a simple arrow?
I do not know how to do it better. The arrow should look good in different scales and in its own size.
I saw the picture above made by uni and just remembered that many times users mentioned filling option (fill the area below the curve and x-axis) and workarounds in standard SMath plot.
Future plans:
- add a bar plot;
- add a contour plot;
- add a color map plot;
- add a vector field plot.
As for the log scale, for now I don't know how to add it without breaking the old documents.
Russia ☭ forever, Viacheslav N. Mezentsev
3 пользователям понравился этот пост
#287 Опубликовано: 05.08.2018 22:23:12
How about a simple arrow?

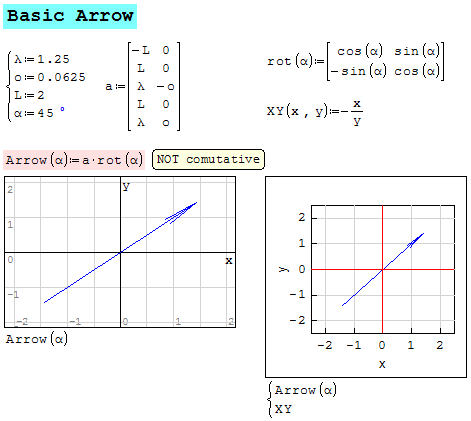

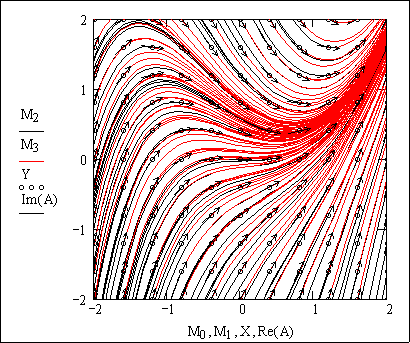

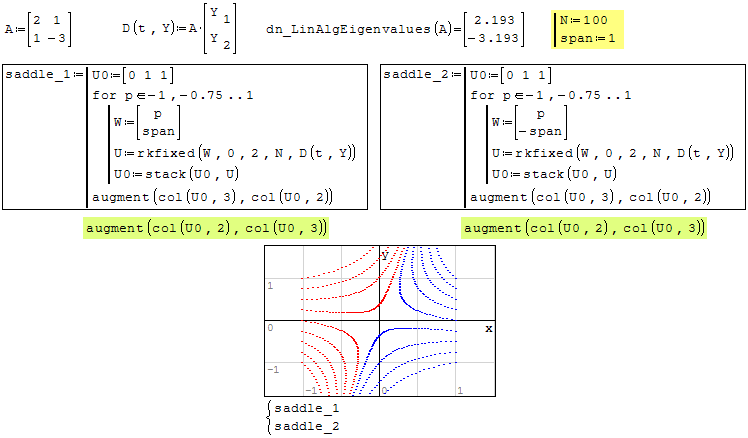

We have the Mathcad code for vector field arrow, pretty involved.
Very superb to appreciate some DE solution as it evolves.
#288 Опубликовано: 06.08.2018 16:54:53
Updated. Serialization dependency for the settings form removed (changed to the experimental automatic algorithm). Legend height issue fixed. Save/load methods are significant refactored. Version changed to 0.2.x.x. Names (text representation) for the some parameters simplified (truncated).
Be careful
Be careful
Russia ☭ forever, Viacheslav N. Mezentsev
#289 Опубликовано: 07.08.2018 05:14:02
The legend shows line patterns even if line visibility is set to false for the data series.
Workaround: Set the line color to transparent (see left plot).
Updated. Fixed.
Russia ☭ forever, Viacheslav N. Mezentsev
3 пользователям понравился этот пост
#290 Опубликовано: 07.08.2018 11:40:24
- add a vector field plot.
#291 Опубликовано: 07.08.2018 17:53:46
- add a vector field plot.

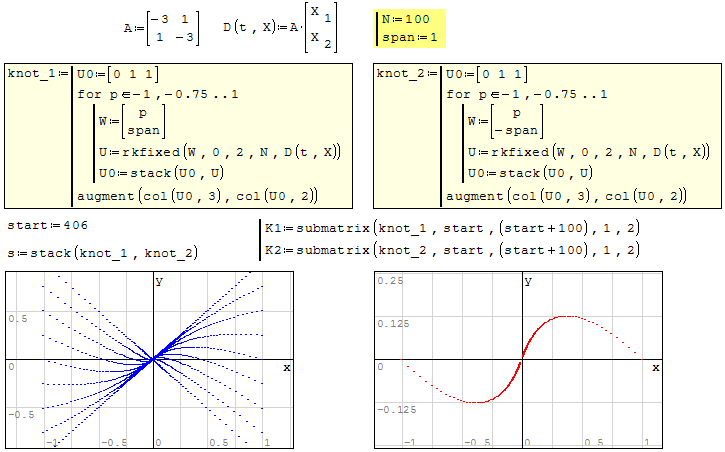

#292 Опубликовано: 07.08.2018 18:07:37
- add a vector field plot.
MCD arrow style on low populated field is OK.
MCD arrow style on high populated field ... just horror.
#293 Опубликовано: 08.08.2018 00:19:31

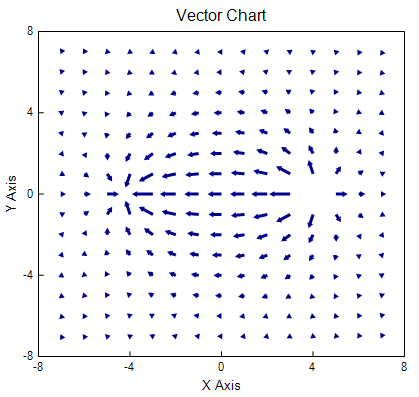

Jean, I already have code for this:
To all.
I can add more plot styles (or regions):
- stem, error, area, stock, stairstep, bar, countur (color mapped), vector field (these styles can be added to xyplot region);
- polar;
- pie.

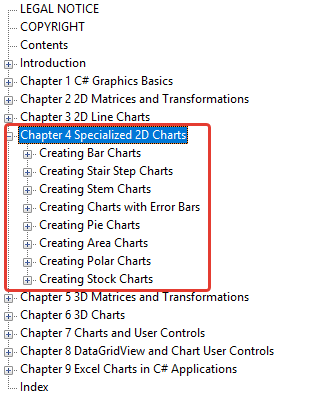

All these graphs are described in the book from Jack Xu: Practical C# Charts and Graphics.
[albumimg]77[/albumimg]
I need more time to port all of them to SMath Studio.
Now I found a way to save region settings automatically (without built in serialization). I hope that I will be able to use it in the general case. I have to change the format of saving the xyplot region settings to extend it.
You can open old versions of documents, but older versions of SMath Studio will not be able to display new documents correctly.
How do you look at such changes or what do you think about it?
To all.
I can add more plot styles (or regions):
- stem, error, area, stock, stairstep, bar, countur (color mapped), vector field (these styles can be added to xyplot region);
- polar;
- pie.
All these graphs are described in the book from Jack Xu: Practical C# Charts and Graphics.
I need more time to port all of them to SMath Studio.
Now I found a way to save region settings automatically (without built in serialization). I hope that I will be able to use it in the general case. I have to change the format of saving the xyplot region settings to extend it.
You can open old versions of documents, but older versions of SMath Studio will not be able to display new documents correctly.
How do you look at such changes or what do you think about it?
Russia ☭ forever, Viacheslav N. Mezentsev
2 пользователям понравился этот пост
#294 Опубликовано: 08.08.2018 01:39:18

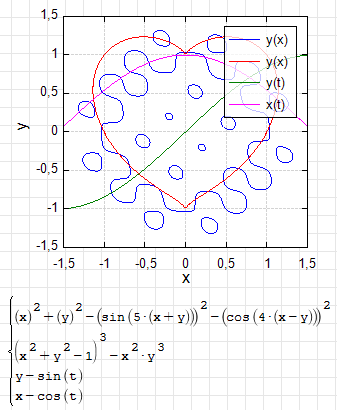

Updated. You can use simplified form to define implicit 2D plot (t or x used as first variable, for the second you can use any variable).
Russia ☭ forever, Viacheslav N. Mezentsev
4 пользователям понравился этот пост
NDTM Amarasekera 08.08.2018 11:52:00, sergio 08.08.2018 04:44:00, Radovan Omorjan 08.08.2018 04:31:00, frapuano 08.08.2018 02:36:00
#295 Опубликовано: 08.08.2018 11:46:58
Jean, I already have code for this:
Thanks Uni for working all those stuff.
We still need a 3D matrix style for different usages
but mostly Catmul-Clark 3D splines and mesh.
Jean
#296 Опубликовано: 08.08.2018 17:50:17
Uni
my modest opinion is that I see as really positive the implementation of all these features/changes mentioned in your earlier e-mail ; they are really welcome even if new documents will not be displayed in old Smath version .
Best regards
Franco
my modest opinion is that I see as really positive the implementation of all these features/changes mentioned in your earlier e-mail ; they are really welcome even if new documents will not be displayed in old Smath version .
Best regards
Franco
#297 Опубликовано: 12.08.2018 14:53:32
Uni,
thank you very much for your work on X-Y Plot Region.

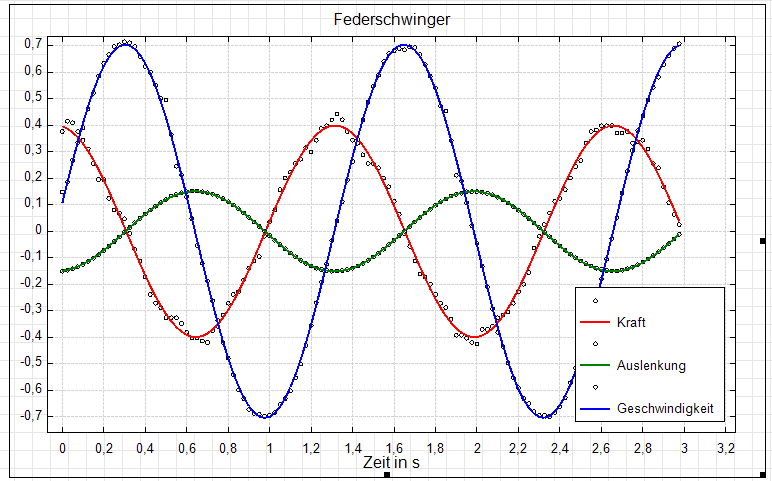

I'm plotting measured data visible as symbols and regressions as lines like this:
It is possible to change the behavior of the legend? Entries without names should not be displayed in the legend.
Many thanks, Manolo
thank you very much for your work on X-Y Plot Region.
I'm plotting measured data visible as symbols and regressions as lines like this:
It is possible to change the behavior of the legend? Entries without names should not be displayed in the legend.
Many thanks, Manolo
#298 Опубликовано: 12.08.2018 20:30:56
It is possible to change the behavior of the legend?
Entries without names should not be displayed in the legend.
If you want too look smart for the reader and hide the source,
just identify "N/A: Confidential".
#299 Опубликовано: 12.08.2018 23:52:20
It is possible to change the behavior of the legend? Entries without names should not be displayed in the legend.
Updated. Try now.
Russia ☭ forever, Viacheslav N. Mezentsev
1 пользователям понравился этот пост
frapuano 13.08.2018 03:59:00
#300 Опубликовано: 13.08.2018 13:33:10
Uni,

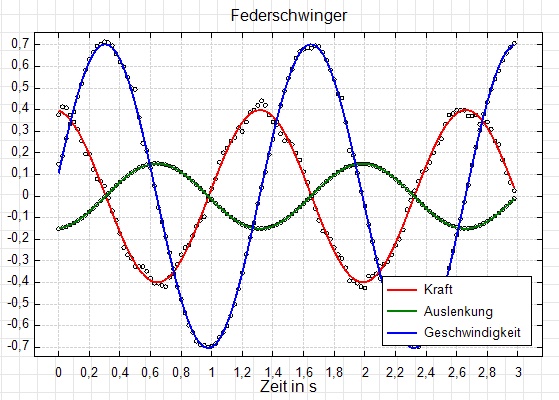

thank you for quick response. Plugin works as desired.
de_Energieumwandlungen_Federschwinger.sm
Manolo
thank you for quick response. Plugin works as desired.
de_Energieumwandlungen_Federschwinger.sm
Manolo
2 пользователям понравился этот пост
-
