X-Y Plot Region - Extends SMath Studio with a X-Y Plot Region. - Сообщения
#241 Опубликовано: 25.06.2018 19:22:57
Russia ☭ forever, Viacheslav N. Mezentsev
2 пользователям понравился этот пост
#242 Опубликовано: 26.06.2018 10:46:54
#243 Опубликовано: 26.06.2018 18:28:00

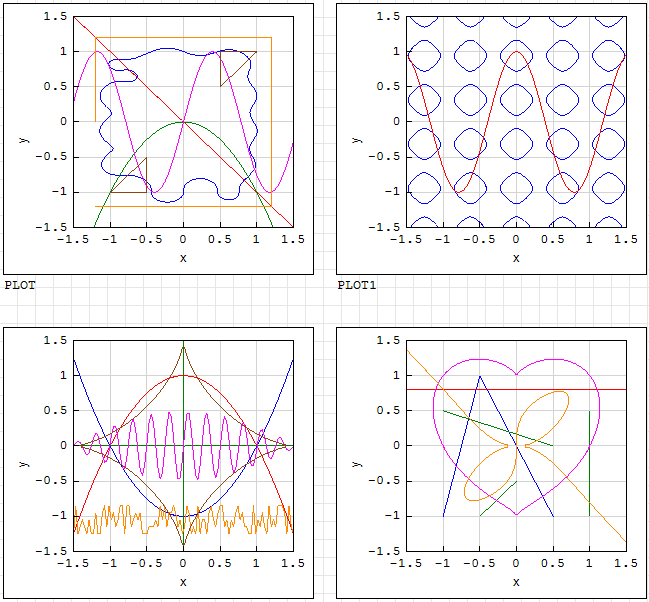

Updated. Y2 axis now looks right. Small improvements.
Russia ☭ forever, Viacheslav N. Mezentsev
3 пользователям понравился этот пост
NDTM Amarasekera 26.06.2018 23:52:00, frapuano 26.06.2018 19:13:00, Radovan Omorjan 27.06.2018 05:02:00
#244 Опубликовано: 05.07.2018 16:17:00
Updated. Fixed bug when zooming.
Russia ☭ forever, Viacheslav N. Mezentsev
1 пользователям понравился этот пост
sergio 06.07.2018 04:11:00
#245 Опубликовано: 12.07.2018 09:23:44

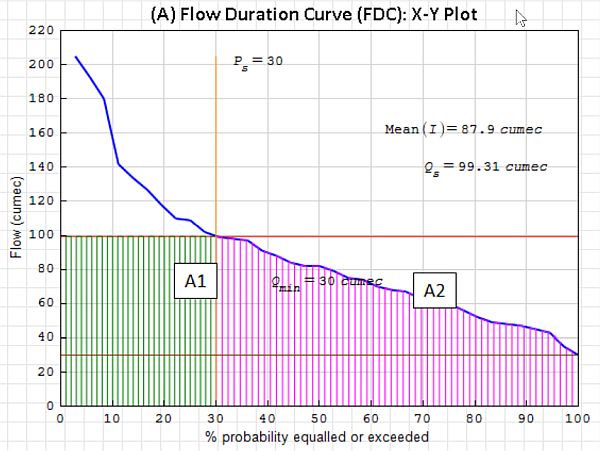

Pl see the attached. Can't enable outer border (using Tool Pallet).
I think it is after the latest update of XYPlot Region plugin.
Same with ZedGraph.
Yes you are right. I changed the look of the plugins: X-Y PLot, ZedGraph and NPlot. The border and area around the plot now hidden (transparent). This is a new design.
Do you really want to return the option of enabling the border?
Russia ☭ forever, Viacheslav N. Mezentsev
#246 Опубликовано: 12.07.2018 10:35:47
Thanks uni. Now I know it is by design.
IMHO it is alright without borders.
IMHO it is alright without borders.
Look within!... The secret is inside you.
Best Regards
Eng. NDTM Amarasekera - Sri Lanka
#247 Опубликовано: 12.07.2018 13:13:45
Yes you are right. I changed the look of the plugins: X-Y PLot, ZedGraph and NPlot. The border and area around the plot now hidden (transparent). This is a new design.
Do you really want to return the option of enabling the border?

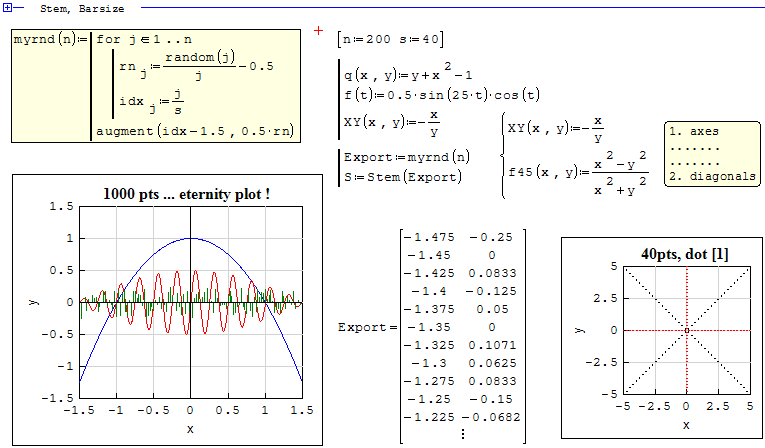

Good think is does affect 6179. Otherwise, it will make me pest off.
The borders allows clean/professional capture for publishing.
#248 Опубликовано: 12.07.2018 13:30:52
It can't be done for this version, Jean. Life goes on, do not get off the train. There are still many stops ahead.
Russia ☭ forever, Viacheslav N. Mezentsev
2 пользователям понравился этот пост
#249 Опубликовано: 20.07.2018 06:18:10
Updated. Region evaluated with using the last store state when any properties changed.
EDIT: Don't use, some bugs present.
EDIT: Don't use, some bugs present.
Russia ☭ forever, Viacheslav N. Mezentsev
#250 Опубликовано: 20.07.2018 10:59:40
Updated.
Changes:
- region evaluated with using the last store state when properties changed (removed, not stable);

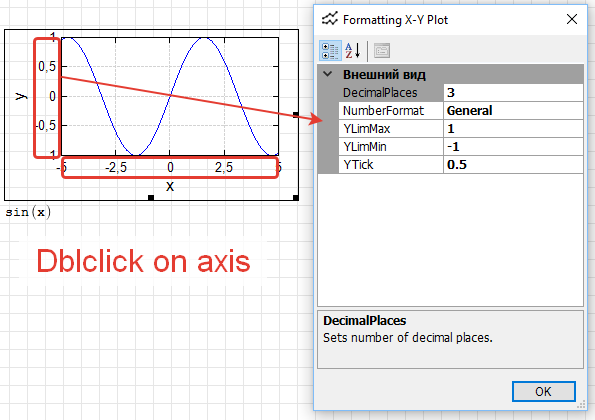

- added ability to direct access to axis when double clicking on it;
- refactored.
Changes:
- region evaluated with using the last store state when properties changed (removed, not stable);
- added ability to direct access to axis when double clicking on it;
- refactored.
Russia ☭ forever, Viacheslav N. Mezentsev
4 пользователям понравился этот пост
frapuano 20.07.2018 12:11:00, Radovan Omorjan 20.07.2018 11:31:00, Arie 20.07.2018 11:59:00, sergio 20.07.2018 16:17:00
#251 Опубликовано: 20.07.2018 13:54:21

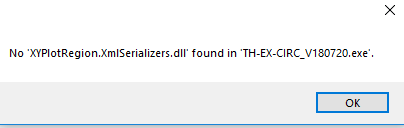

Looks like yesterday update has broken something when using Smath Viewer.
Works fine with .sm files, doesn't work with .exe
See error message here
Works fine with .sm files, doesn't work with .exe
See error message here
#252 Опубликовано: 20.07.2018 14:29:59
Maybe this is because LinqBridge dll now used (since June). I'm not sure, you need to ask Andrey about this problem. He is now busy with a new beta and you will have to wait a while.
Russia ☭ forever, Viacheslav N. Mezentsev
#253 Опубликовано: 20.07.2018 14:36:35
Ok, understood.
Is there a way to rollback to yesterdays version?
I'm asking this because this morning I have been working on a file and saving the .exe and running it was working smoothly.
This evening I updated the plugin and now it doesn't.
So I would be happy to roll back to yesterday, at the moment :P
Is there a way to rollback to yesterdays version?
I'm asking this because this morning I have been working on a file and saving the .exe and running it was working smoothly.
This evening I updated the plugin and now it doesn't.
So I would be happy to roll back to yesterday, at the moment :P
#254 Опубликовано: 20.07.2018 14:45:32
Yes, it is possible. You just need to remove the last copy of plugin from the plugin folder:
C:\Users\User\Application Data\SMath\extensions\plugins\c12231ec-4873-43c1-a7d0-a167ebd17066
You need to remove downloaded folder (0.1.67xx.xxxx) and change the record in .ini file.
C:\Users\User\Application Data\SMath\extensions\plugins\c12231ec-4873-43c1-a7d0-a167ebd17066
You need to remove downloaded folder (0.1.67xx.xxxx) and change the record in .ini file.
Russia ☭ forever, Viacheslav N. Mezentsev
#255 Опубликовано: 20.07.2018 16:06:18
Houston we have a problem.
I messed around, don't know exactly how and have corrupted something.
I need to reinstall everything from scratch, but when I try to, SMath finds the previously installed plugin again.
Any clue on how to remove EVERYTHING and start from scratch?
Sorry to bother, so angry with myself.
Here below some infos
Can't disable version 36185
Error message when attempting to create a new XYPLOT
Configuration modifications...
Most critical, today work will not open...
I messed around, don't know exactly how and have corrupted something.
I need to reinstall everything from scratch, but when I try to, SMath finds the previously installed plugin again.
Any clue on how to remove EVERYTHING and start from scratch?
Sorry to bother, so angry with myself.
Here below some infos
Can't disable version 36185

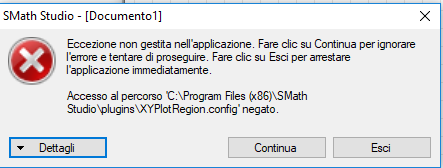

Error message when attempting to create a new XYPLOT
Configuration modifications...
Most critical, today work will not open...
#256 Опубликовано: 20.07.2018 16:19:48

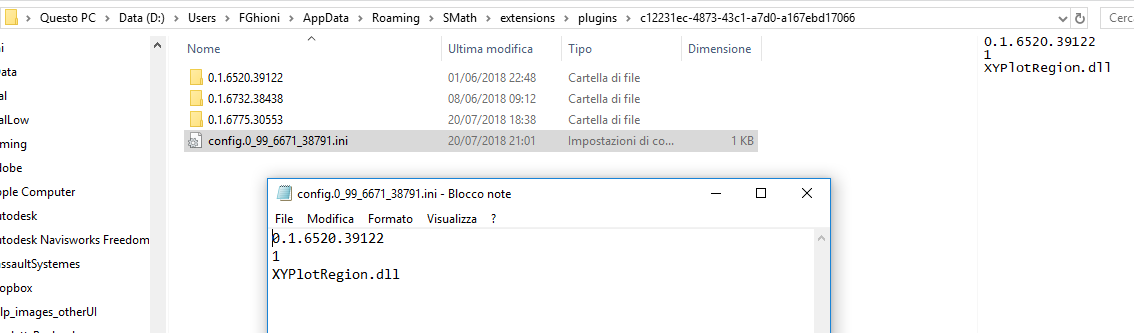

Try this.
1. Close SMath Studio
2. Remove folder 0.1.6775.30553.
Edit ini file:
3. Run SMath Studio.
1. Close SMath Studio
2. Remove folder 0.1.6775.30553.
Edit ini file:
0.1.6732.38438
0
XYPlotRegion.dll3. Run SMath Studio.
Russia ☭ forever, Viacheslav N. Mezentsev
#257 Опубликовано: 20.07.2018 16:28:30
Try this.
1. Close SMath Studio
2. Remove folder 0.1.6775.30553.
Edit ini file:0.1.6732.38438 0 XYPlotRegion.dll
3. Run SMath Studio.
Done, same error messages. Cant' understand why 36185 is still listed in the plugin manager... Where the hell is that version coming from, since we removed its folder?

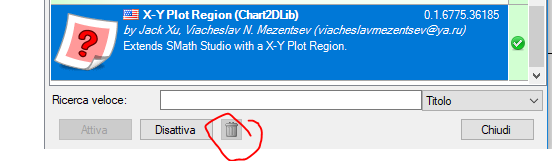

Can't disable version 36185
#258 Опубликовано: 20.07.2018 16:33:34
Try to save entire c12231ec-4873-43c1-a7d0-a167ebd17066 folder in another place and remove it from \extensions\plugins at all. Restart SMath Studio. Plugin still exists?
Russia ☭ forever, Viacheslav N. Mezentsev
#259 Опубликовано: 20.07.2018 16:40:31
Try to save entire c12231ec-4873-43c1-a7d0-a167ebd17066 folder in another place and remove it from \extensions\plugins at all. Restart SMath Studio. Plugin still exists?
I solved differently, just rolling back something very stupid (an overwrite) I did in C:\Program Files (x86)\SMath Studio\plugins.
1) I un-installed again smath.
2) I noticed that everything was gone except for a XYPlotRegion.dll file which was left there... So I understood how stupidly I moved it when trying to roll back to a previous version "on my own" (so stupid).
3) Deleted that .dll in the wrong folder, installed Smath back again, and I assume that while installing smath loaded back all the plugins as per D:\Users\FGhioni\AppData\Roaming\SMath\extensions\plugins dataset, including the beloved old version of XYPlot
Uni I really need to THANK YOU for the support!
Awesome software, awesome user community
#260 Опубликовано: 01.08.2018 23:32:10

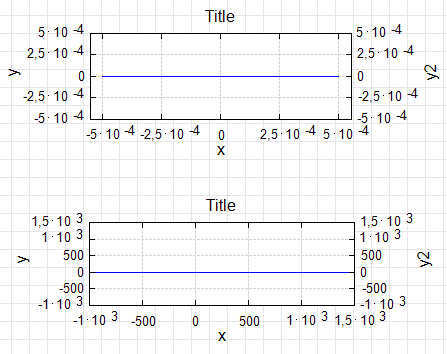

Updated. Axis general format changed.
Russia ☭ forever, Viacheslav N. Mezentsev
2 пользователям понравился этот пост
-
