#382 Опубликовано: 16.05.2020 11:42:12
Hi!
Just to confirm: so far setprop can't address Traces both in ZedGraph and X-Y Plot, right?
Just to confirm: so far setprop can't address Traces both in ZedGraph and X-Y Plot, right?
#383 Опубликовано: 16.05.2020 11:50:10
Yes, I found out only how to do it. I will explore another way to control component settings. The correct way is to specify the variable name directly in the properties. I think that it will be more intuitive than all other methods.
Russia ☭ forever, Viacheslav N. Mezentsev
1 пользователям понравился этот пост
frapuano 16.05.2020 16:54:00
#384 Опубликовано: 16.05.2020 11:53:41
Thank you!
#385 Опубликовано: 16.05.2020 20:54:08
Updated.
Changes:
- increased calculation speed;
- green frame restored when region in evaluation.
Changes:
- increased calculation speed;
- green frame restored when region in evaluation.
Russia ☭ forever, Viacheslav N. Mezentsev
1 пользователям понравился этот пост
Davide Carpi 17.05.2020 12:26:00
#386 Опубликовано: 17.05.2020 11:04:30
Updated.
Changes:
- setprop() partially fixed.
Changes:
- setprop() partially fixed.
Russia ☭ forever, Viacheslav N. Mezentsev
2 пользователям понравился этот пост
#387 Опубликовано: 20.05.2020 03:02:26
Updated.
Changes:

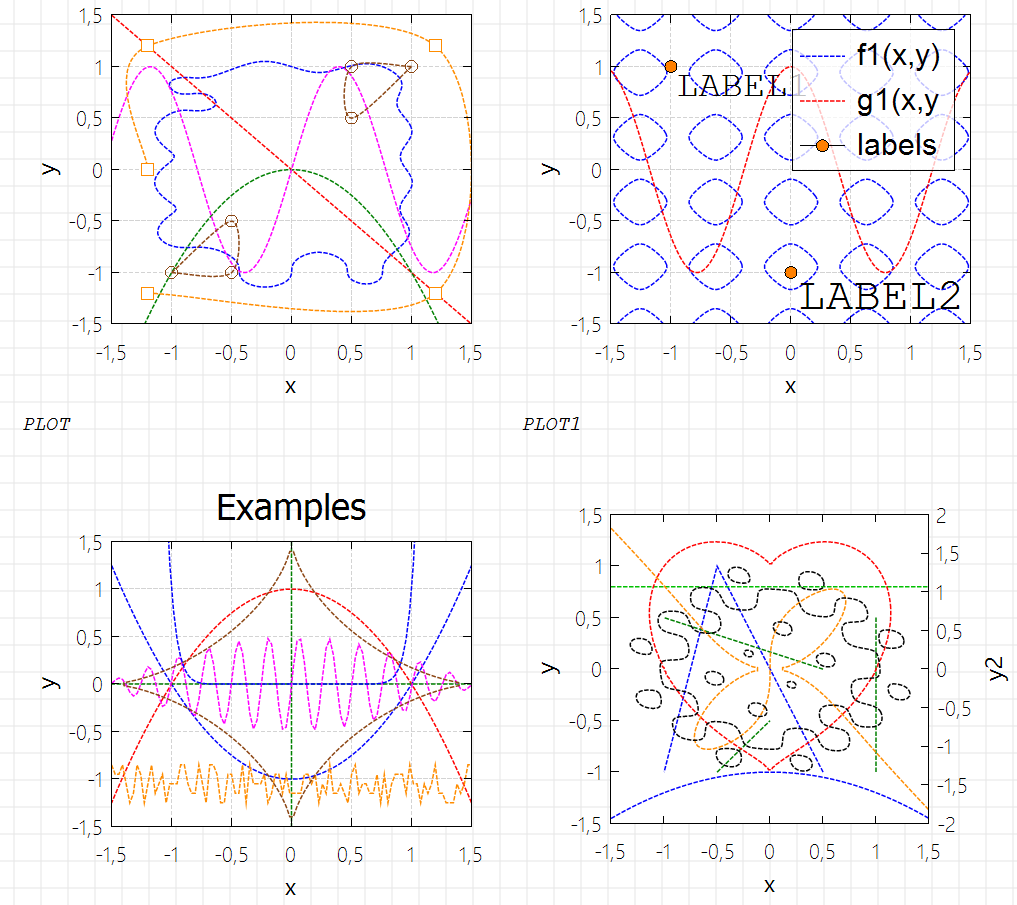

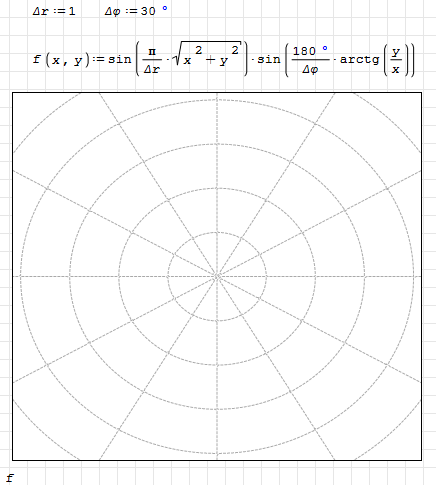

- implicitplot method improved.
[albumimg]1610[/albumimg]
Changes:
- implicitplot method improved.
Russia ☭ forever, Viacheslav N. Mezentsev
#388 Опубликовано: 21.06.2020 02:10:43

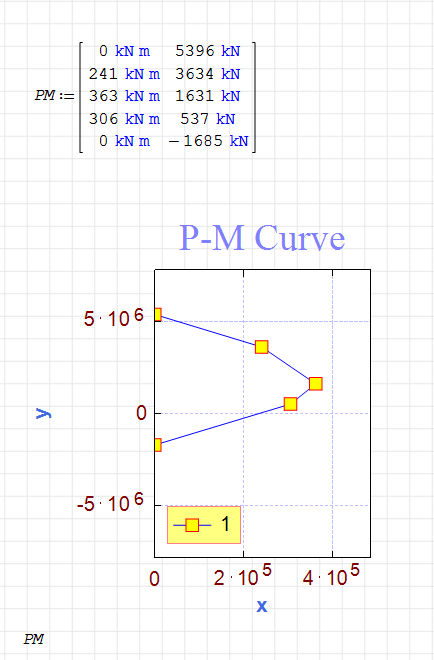

Can anyone help me with 2D plots. I have several questions.
1. how do I input/show the units on the graph?
2. how do I scale the units/number on the axis. the graph is in N-mm vs N, I want to change it in kN-m vs kN.
3. is there a way to automatically adjust the max and min of values on the axis?
PM Curve.sm
1. how do I input/show the units on the graph?
2. how do I scale the units/number on the axis. the graph is in N-mm vs N, I want to change it in kN-m vs kN.
3. is there a way to automatically adjust the max and min of values on the axis?
PM Curve.sm

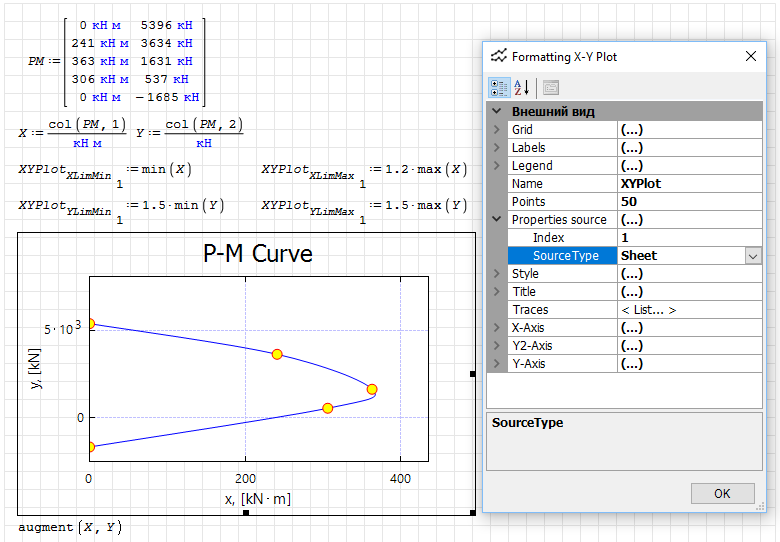

#389 Опубликовано: 21.06.2020 02:39:47
Russia ☭ forever, Viacheslav N. Mezentsev
#390 Опубликовано: 21.06.2020 03:29:14
Thanks a lot uni
#391 Опубликовано: 22.06.2020 10:02:40
#392 Опубликовано: 22.06.2020 12:15:29
You can have it more productive: Export/Interpolate
You can have it convex polyline style: Export/interpolate.
Spline Hermite Interpolation General Polyline.sm
#393 Опубликовано: 09.07.2020 09:18:01
Hi,
in the past, using cases (or if) to plot a function only in in specified range worked well.

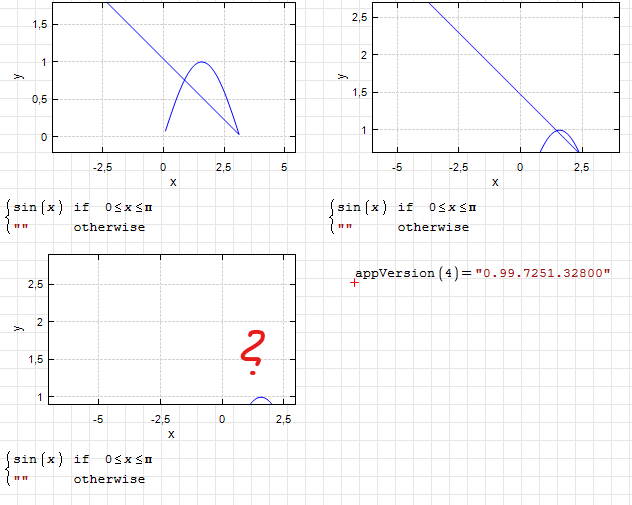

Now there appears an ugly line ending nowhere.
By moving the plot range, the line disappears sometime.
Could this please be fixed? I didn't find a workaround, except of plotting tabled values.
in the past, using cases (or if) to plot a function only in in specified range worked well.
Now there appears an ugly line ending nowhere.
By moving the plot range, the line disappears sometime.
Could this please be fixed? I didn't find a workaround, except of plotting tabled values.
#394 Опубликовано: 09.07.2020 10:21:14

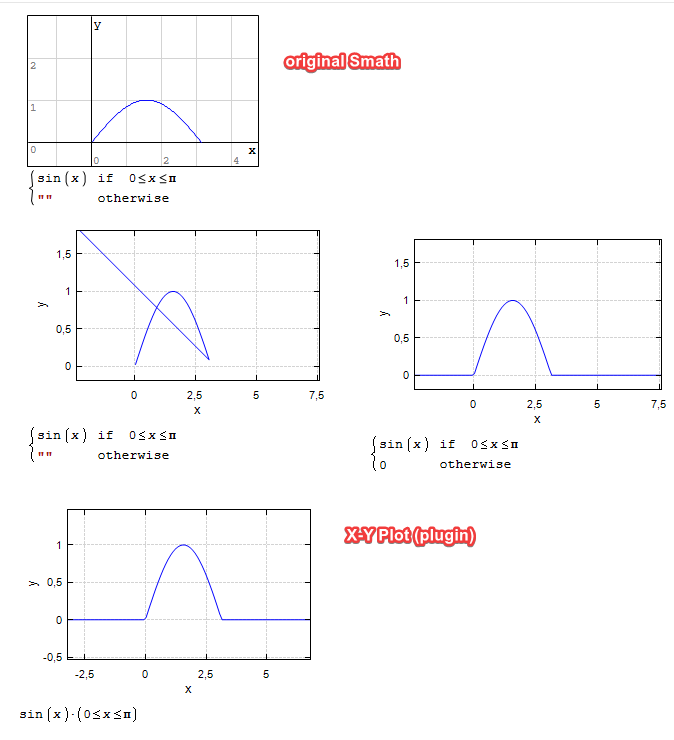

The problem is found with the X-YPlot plugin and not with the original 2D chart of Smath. At the moment you can use the two tricks as in the picture.
sergio
sergio
#395 Опубликовано: 09.07.2020 11:12:38
You CAN NOT blank scalar canvas plot X_Y.
Alternately, discretize /tabulate your range of interest
then plot the data in X_Y. The bonus is that on rough
data from source plot "splines" to smooth the discontinuities.
Advanced Bezier interpolation works as well.
X_Y rejects the if/otherwise blanking character "
Alternately, discretize /tabulate your range of interest
then plot the data in X_Y. The bonus is that on rough
data from source plot "splines" to smooth the discontinuities.
Advanced Bezier interpolation works as well.
X_Y rejects the if/otherwise blanking character "
#396 Опубликовано: 09.07.2020 12:23:16
You CAN NOT blank scalar canvas plot X_Y.
Alternately, discretize /tabulate your range of interest
then plot the data in X_Y. The bonus is that on rough
data from source plot "splines" to smooth the discontinuities.
Advanced Bezier interpolation works as well.
X_Y rejects the if/otherwise blanking character "
Didn't I show, that I CAN!?
I know plotting tabulated values, maybe I didn't write clearly.
#397 Опубликовано: 09.07.2020 13:13:32

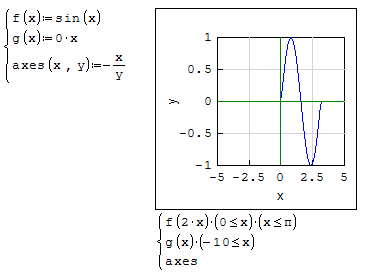

plot g(x) white ... plot/no plot axes.
#398 Опубликовано: 09.07.2020 16:25:23
Yes, when adding a new feature when displaying implicit curves, I had to change the working code. I could not immediately fix the artifacts.
Russia ☭ forever, Viacheslav N. Mezentsev
#399 Опубликовано: 14.07.2020 08:52:39
in the past, using cases (or if) to plot a function only in in specified range worked well.
if/else or if/otherwise never did work at least up to SS 6179.
X_Y is essentially designed around data set.
Quite convenient but not as the champion OriginLab.
OriginLab is the software dedicated for Phamacokinetics,
hyper rich in plot styles but strictly from data sets.
IMHO, I see no point to trick/fix what ? nothing, use as is.
These two styles of demo are common as well as the 1/x.
logpts enables intelligible tabulated export and plot.
Utilities logpts Demo.sm
-
