And now => attached document to best use native X_Y plot.
#402 已发布: 2020/9/27 16:03:48
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Updated.

Changes:

- the problem of drawing piecewise functions is partially solved.
Russia ☭ forever, Viacheslav N. Mezentsev
2位用户喜欢此帖子
Martin_B 2020/9/28 08:17:00, sergio 2020/9/27 16:16:00
#403 已发布: 2020/11/21 08:00:24
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Updated.

Changes:

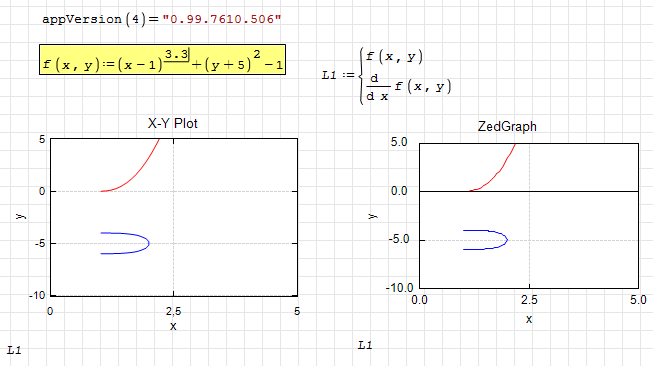

- SS-4652 partially fixed.

Russia ☭ forever, Viacheslav N. Mezentsev
2位用户喜欢此帖子
sergio 2020/11/21 14:03:00, Alvaro 2020/11/21 11:24:00
#404 已发布: 2021/1/11 16:46:49
zwdt

zwdt

0个赞,共2个帖子。

组: User

This is a great plugin. I've been using it for several years now, and it just gets better. Thank you for it. I had a question on if there is any functionality to include a picture as the graph background?
#405 已发布: 2021/1/11 17:38:55
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

I had a question on if there is any functionality to include a picture as the graph background?


Have you tried to slide one over the other ?
No problem for background, much less irritating .
Cheers ... Jean

#406 已发布: 2021/1/11 18:04:22
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

Have you tried to slide one over the other ?
No problem for background, much less irritating .


Background and image was possible in Mathcad 11 but not in Smath.
Image: yes in empty region of the graph, SS 6179.

Image Background.PNG


#407 已发布: 2021/1/11 18:55:44
zwdt

zwdt

0个赞,共2个帖子。

组: User

Thanks, I inserted a picture with a transparent background, and it worked out great.
#408 已发布: 2021/1/12 11:47:23
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

Thanks, I inserted a picture with a transparent background, and it worked out great.


Can you show, very interesting.

#409 已发布: 2021/1/22 15:56:59
Ruben Sidranski

Ruben Sidranski

17个赞,共465个帖子。

组: User

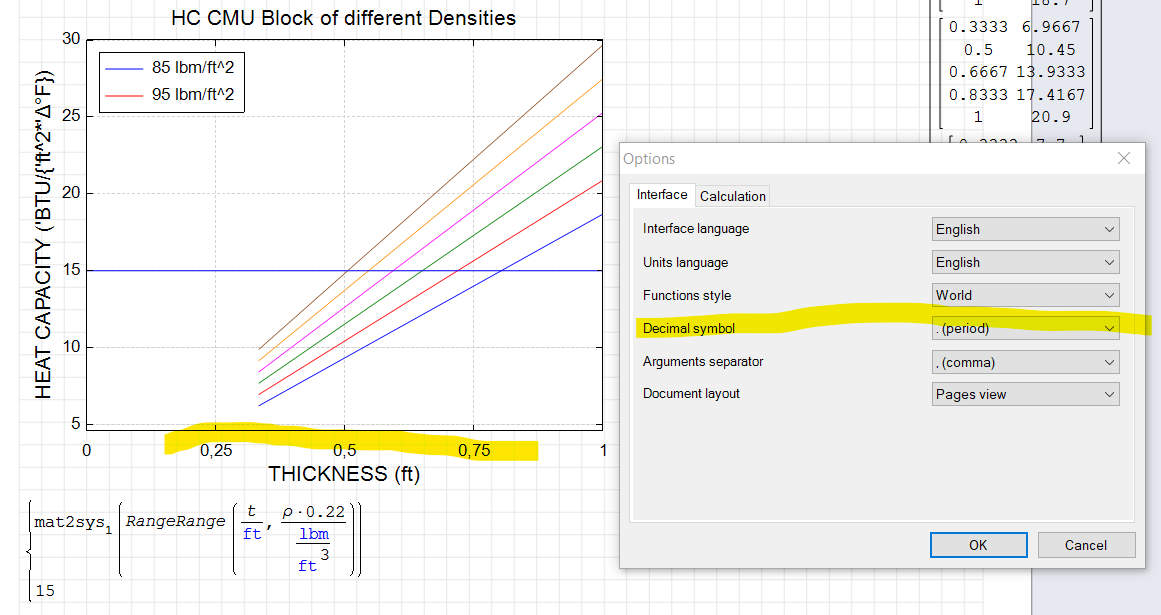

Is there a reason why the X-Y Plot is showing decimals as a comma? In the US we use periods and I cannot find where it's getting the requirement Heat Capacity Function_Sys2Mat Ber7.sm (15.07 KiB)已下载 1756 次。
Screenshot 2021-01-22 134309.png
#410 已发布: 2021/1/22 17:44:16
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

s there a reason why the X-Y Plot is showing decimals as a comma? In the US we use periods and I cannot find where it's getting the requirement


Check "Options" ... set decimal dot.
Here, we use . as decimals and never notice , decimal X_Y plot.

#411 已发布: 2021/1/23 01:21:23
Ruben Sidranski

Ruben Sidranski

17个赞,共465个帖子。

组: User

Wrote

Wrote

s there a reason why the X-Y Plot is showing decimals as a comma? In the US we use periods and I cannot find where it's getting the requirement


Check "Options" ... set decimal dot.
Here, we use . as decimals and never notice , decimal X_Y plot.


Exactly. My settings are decimal dot and plot is showing comma (European style).

#412 已发布: 2021/1/23 07:37:34
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Wrote

Is there a reason why the X-Y Plot is showing decimals as a comma?


The standard 2d plot also uses a comma.

Russia ☭ forever, Viacheslav N. Mezentsev
#413 已发布: 2021/1/23 09:28:16
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

Here, we use . as decimals and never notice , decimal X_Y plot.



#414 已发布: 2021/1/23 12:46:02
Ruben Sidranski

Ruben Sidranski

17个赞,共465个帖子。

组: User

Jean,
Where in your settings? Maybe it's the newer SMath version and older plugin. Your on 0.98 right?
#415 已发布: 2021/1/23 13:10:21
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Jean is in an alternate reality, he doesn't know what is happening at the moment.
Russia ☭ forever, Viacheslav N. Mezentsev
3位用户喜欢此帖子
fedeghi 2021/1/25 03:54:00, ElSid 2021/1/23 18:35:00, overlord 2021/1/23 23:12:00
#416 已发布: 2021/1/25 12:00:12
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

Exactly. My settings are decimal dot and plot is showing comma (European style).


Is it, you can create a vector decimal dot and create project
with decimal dot but the alternate reality the X_Y is decimal coma ?

#417 已发布: 2021/1/30 13:07:30
netsonicyxf

netsonicyxf

2个赞,共79个帖子。

组: User

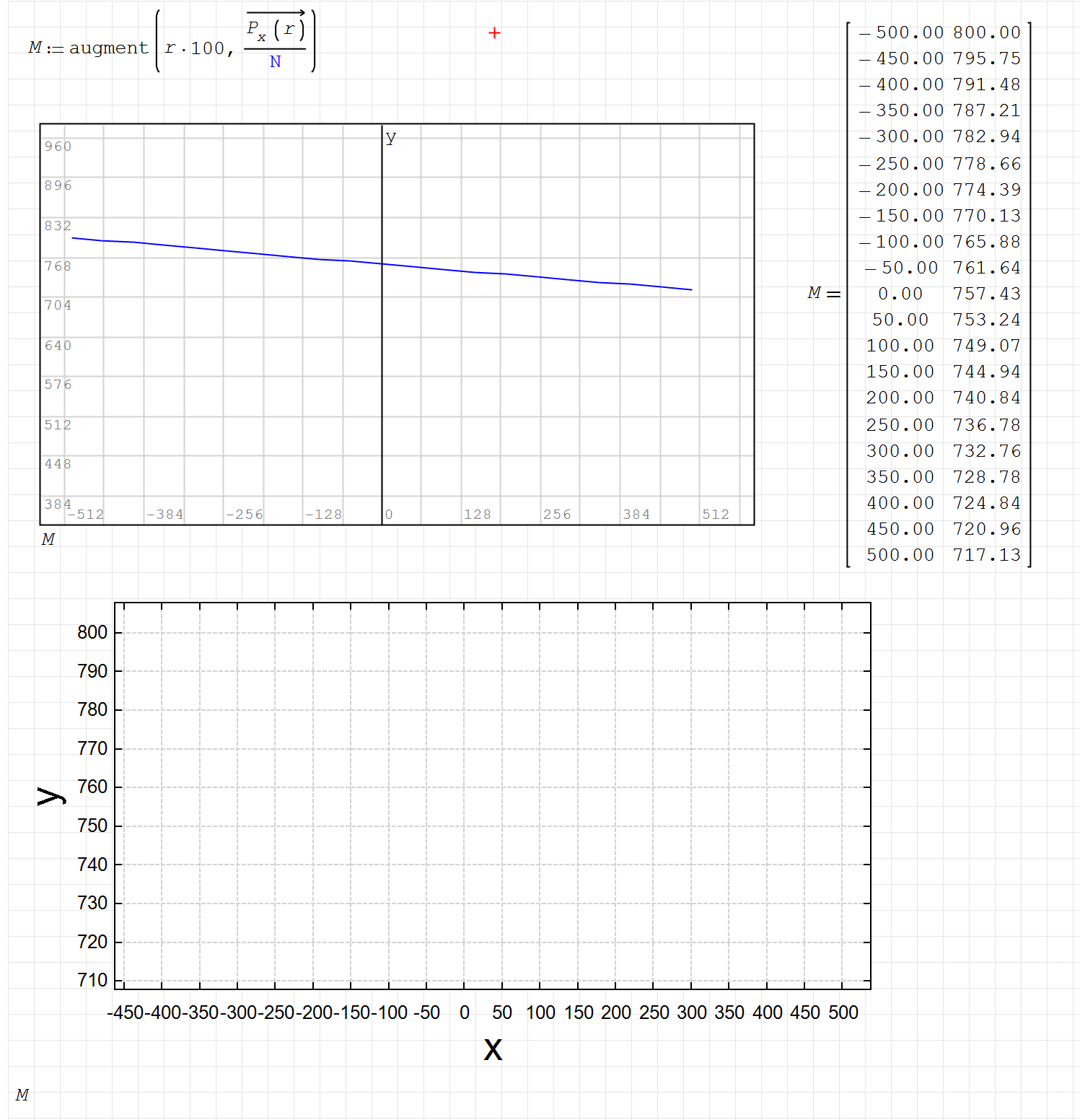

Why X-Y plot can't polt this, while plot 2D can?
#418 已发布: 2021/1/30 15:43:33
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

Why X-Y plot can't plot this, while plot 2D can?


Spool to file 'M' or copy/paste to isolate.

#419 已发布: 2021/1/30 15:48:56
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

I need a document to find out the reason. I can't reproduce this behavior.

引用

Why X-Y plot can't polt this, while plot 2D can?


The components use different source code.
Russia ☭ forever, Viacheslav N. Mezentsev
#420 已发布: 2021/1/30 23:07:19
netsonicyxf

netsonicyxf

2个赞,共79个帖子。

组: User

Wrote

I need a document to find out the reason. I can't reproduce this behavior.

引用

Why X-Y plot can't polt this, while plot 2D can?


The components use different source code.



please see attached. 1.sm (80.1 KiB)已下载 1588 次。
