#361 已发布: 2019/11/21 06:15:16
veb

veb

1个赞,共38个帖子。

组: User

Wrote

Unfortunately, this cannot be done yet.



Is there any other extension for smath that allows this?
#362 已发布: 2019/11/21 06:26:21
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Yes, ZedGraph Region supports such axes.
Russia ☭ forever, Viacheslav N. Mezentsev
#363 已发布: 2019/11/21 08:46:38
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

It is necessary to display a logarithmic graph, how to do it in smath?


Try X_Y Zgraph.

Project Bode plot.sm (27.79 KiB)已下载 1552 次。
2D Plot Stem log10 DECADES Bode.sm (168.9 KiB)已下载 1605 次。
#364 已发布: 2019/11/21 10:11:20
veb

veb

1个赞,共38个帖子。

组: User

Uni and Jean Giraud thank you very much!!!

ZedGraph Region made a logarithmic coordinate axis and build everything
#365 已发布: 2019/11/21 12:41:21
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

ZedGraph Region made a logarithmic coordinate axis and build everything


Such applications are very limited, for convenience.
IMHO, not much useful as we are born Cartesian sight.
#366 已发布: 2019/11/21 13:51:27
Arie

Arie

94个赞,共285个帖子。

组: User

Wrote

Wrote

ZedGraph Region made a logarithmic coordinate axis and build everything


Such applications are very limited, for convenience.
IMHO, not much useful as we are born Cartesian sight.



I disagree. In electronics engineering we often deal in frequency domain with such applications as filter design, EMI/EMC, control.. just to name a few. Being able to plot on logarithmic scale is necessary in such applications.
Feel free to join the SMath Studio Users Discord Channel: https://discord.gg/PayZpJW
#367 已发布: 2019/11/21 13:56:37
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

Such applications are very limited, for convenience.
IMHO, not much useful as we are born Cartesian sight.


A great utility is the logpts for convenient tabulation/export.
Very useful to adequately populate the vertical region and not
over populate the flat region, especially for interpolation.

Utilities logpts Populate Quick.sm (14.43 KiB)已下载 1526 次。

#368 已发布: 2019/11/21 18:27:17
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

Wrote

Wrote

Unfortunately, this cannot be done yet.



Is there any other extension for smath that allows this?



The maxima plugin allows for log plots (all functions of the draw package are available, the draw commands generate images which can be displayed using image region. Alternatively, there are interactive draw regions provided by the plugin.

See for example Ashby style material property charts
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
#369 已发布: 2019/11/22 00:51:15
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Wrote

Wrote

Wrote

Unfortunately, this cannot be done yet.



Is there any other extension for smath that allows this?



The maxima plugin allows for log plots ...



Hi. Can try this other one also, in SMath lang.

examples MNA RLC.sm (219.13 KiB)已下载 1557 次。
examples MNA RLC.pdf (318.62 KiB)已下载 888 次。

Best regards.
Alvaro
1位用户喜欢此帖子
frapuano 2019/11/22 04:28:00
#370 已发布: 2019/11/22 06:15:28
veb

veb

1个赞,共38个帖子。

组: User

Wrote



Hi. Can try this other one also, in SMath lang.

examples MNA RLC.sm (219.13 KiB)已下载 1557 次。
examples MNA RLC.pdf (318.62 KiB)已下载 888 次。

Best regards.
Alvaro



wow !!!
When Uni told me that the X-U region does not support the logarithmic axis, I was upset and thought that I could do it in a standard tool. But I could not even imagine that it would be so difficult.
ZedGraf region perfectly copes with the task, it is possible to make legends (have not yet learned). We rarely use charts in calculations.
#371 已发布: 2019/11/22 13:15:33
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

When Uni told me that the X-U region does not support the logarithmic axis, I was upset


Disambiguate:
Smath does not have the Cartesian x,y log axis from command line
like Mathcad 11 and earlier. In lieu X_Y ZedGraph plugin.
I guess Uni [our Viacheslav] is same from former Mathsoft Collaboratory.

#372 已发布: 2019/11/25 12:47:19
Oscar Campo

Oscar Campo

135个赞,共309个帖子。

组: Moderator

Wrote

Hello!
Help with this extension.
It is necessary to display a logarithmic graph, how to do it in smath?
I looked at the settings did not find such an opportunity.



Hi, maybe you can use the information of this post: https://en.smath.com/forum/yaf_postsm7005_Signals-and-Systems.aspx#post7005
1位用户喜欢此帖子
frapuano 2019/11/25 15:05:00
#373 已发布: 2019/11/25 15:32:02
veb

veb

1个赞,共38个帖子。

组: User

Wrote


Hi, maybe you can use the information of this post: https://en.smath.com/forum/yaf_postsm7005_Signals-and-Systems.aspx#post7005



Thanks, I'll keep it in mind.
But while the ZedGraph Region completely suits me.
#374 已发布: 2019/11/25 23:47:48
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

But while the ZedGraph Region completely suits me.


What you can do in the linear Cartesian,
you can subdivide between integer values of the quick plot.
You can subdivide in any number of sub-intervals and log10
these sub-intervals. Then plot the stems at those intervals.

Utilities logpts SQRT X,Y.sm (28.47 KiB)已下载 1484 次。
#375 已发布: 2020/2/9 08:34:10
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

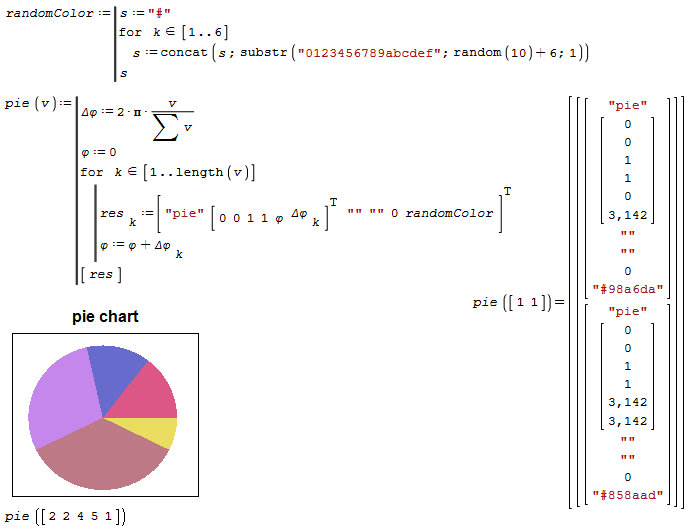

Pie chart with random colors

piechart.sm (9.4 KiB)已下载 1548 次。
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
4位用户喜欢此帖子
Fridel Selitsky 2020/2/9 16:26:00, Вячеслав Мезенцев 2020/2/9 10:07:00, NDTM Amarasekera 2020/2/9 11:21:00, frapuano 2020/2/9 14:03:00
#376 已发布: 2020/2/9 10:03:04
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

Pie chart with random colors


Thanks Martin, interesting but not Smath native.
Obviously fails SS 6179 and no use for concluding a document.

Cheers ... Jean

#377 已发布: 2020/4/22 06:54:11
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Updated.

setprop() function changed for support ZedGraph region.
Russia ☭ forever, Viacheslav N. Mezentsev
2位用户喜欢此帖子
frapuano 2020/4/22 07:52:00, sergio 2020/4/22 07:40:00
#378 已发布: 2020/4/22 21:04:28
João Felipe Seráfico Melo

João Felipe Seráfico Melo

7个赞,共62个帖子。

组: User

Awesome!

I've just tested it and it fixes the Viewer issue I mentioned in another post.

Any chance it can access the configurations of indivual plots inside a ZedGraph Region? In other words, is it possible to address specific Traces?
#379 已发布: 2020/4/23 01:59:24
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

It is possible, but not yet implemented. Also for the ZedGraph region the new Name property is not saved yet.
Russia ☭ forever, Viacheslav N. Mezentsev

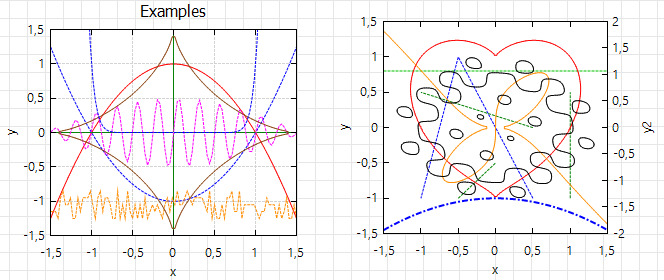

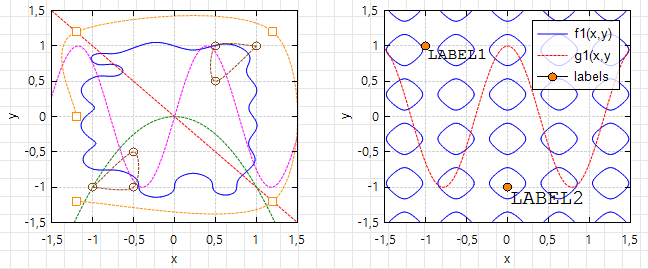

#380 已发布: 2020/5/10 09:15:31
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Updated.

Changes:

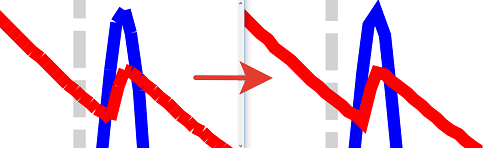

- trace quality improved;
- now default value for AntiAlias is true;
- Y2 grid lines added;
- setprop() function improved.

Theoretically, we can set the dash style for implicit functions as well, but this is more difficult to implement.



Russia ☭ forever, Viacheslav N. Mezentsev
2位用户喜欢此帖子
frapuano 2020/5/10 10:35:00, Andrey Ivashov 2020/7/16 04:55:00
