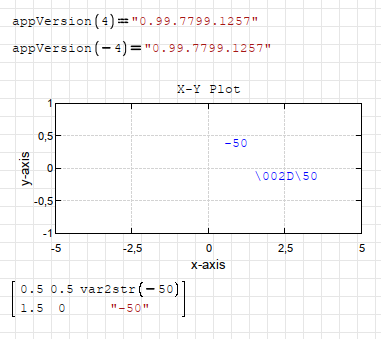

In latest SS 99.7799, I experience a label error similar to image as shown.
Some previous files show this error.


I couldn't replicate this bug but if you have it then there it is.
Maybe I don't have old files that particular versions which gives this bug.
But I can tell there is another one.

#442 已发布: 2021/5/11 01:15:47
NDTM Amarasekera

NDTM Amarasekera

130个赞,共352个帖子。

组: User

Wrote

Originally Posted by: ndtma [url=/forum/yaf_postsm70673_X-Y-Plot-Region.aspx#post70673][/url]In latest SS 99.7799, I experience a label error similar to image as shown.
Some previous files show this error.

I couldn't replicate this bug but if you have it then there it is.
Maybe I don't have old files that particular versions which gives this bug.
But I can tell there is another one.



Hello.
Thanks for the feedback. I also had this problem.
Therefore, I downloaded and checked the file of Alyles and observed the error as shown in my last post.

Consequent to your post, I checked my collection and observed a strange situation
with a one saved in version 99.7769 where no such error occurred when opened with 99.7799.

On the other hand, a similar file in 99.7251 showed the error as shown.

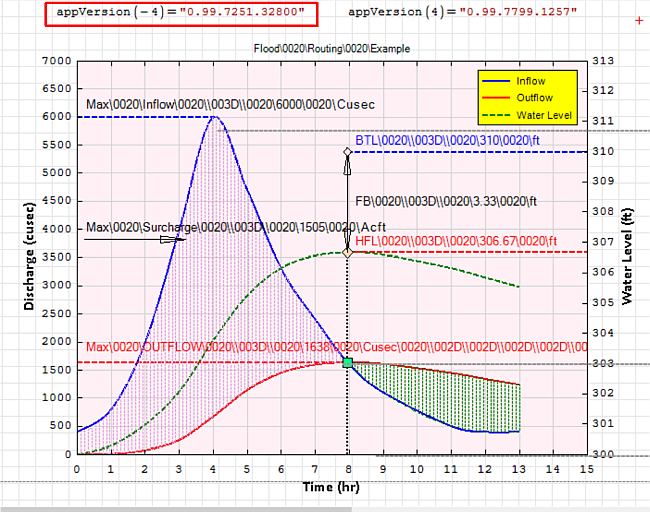

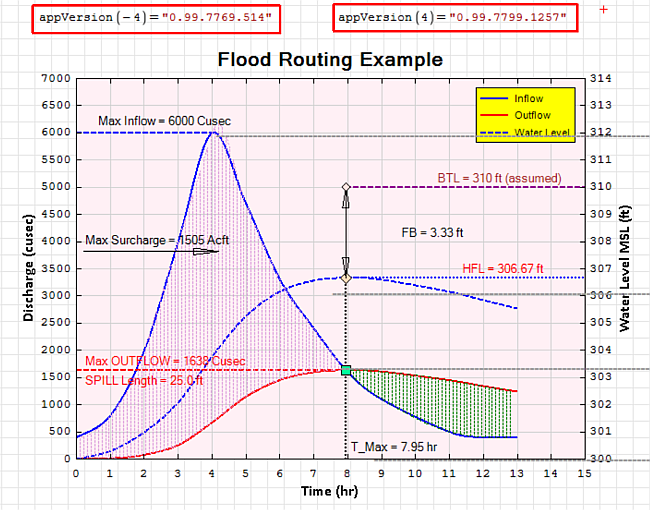

XYPlot Label OK.png

XYPlot Label Error2.png
Look within!... The secret is inside you. Best Regards Eng. NDTM Amarasekera - Sri Lanka
#443 已发布: 2021/5/11 01:42:13
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

These numbers encode the text. Andrey changed something in new versions and I need to make changes in the plugin. Hopefully this only affects the display of the data.
Russia ☭ forever, Viacheslav N. Mezentsev
1位用户喜欢此帖子
NDTM Amarasekera 2021/5/11 06:59:00
#444 已发布: 2021/5/11 03:14:19
Andrey Ivashov

Andrey Ivashov

2,344个赞,共4,057个帖子。

组: Super Administrator

Wrote

These numbers encode the text. Andrey changed something in new versions and I need to make changes in the plugin. Hopefully this only affects the display of the data.


You're right, Viacheslav.

You need to use this line of code to decode text entries:
引用

TermsConverter.DecodeText(txt)



As I already mentioned, we have such kind of issues for a long time already. But in one of the latest beta versions I've made encoding more strict, so issues appears much more often now. Let's say that it is our chance to catch them and fix.

Best regards.
2位用户喜欢此帖子
sergio 2021/5/11 06:58:00, NDTM Amarasekera 2021/5/11 06:59:00
#445 已发布: 2021/5/12 01:17:24
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

SMath Studio compatibility

Plugin updated. Please try.

Changes:
- plug-in corrected to respect latest SMath Studio API changes.
Russia ☭ forever, Viacheslav N. Mezentsev
2位用户喜欢此帖子
sergio 2021/5/12 07:20:00, NDTM Amarasekera 2021/5/12 02:32:00
#446 已发布: 2021/5/12 02:33:13
NDTM Amarasekera

NDTM Amarasekera

130个赞,共352个帖子。

组: User

Thanks. It works now.
Look within!... The secret is inside you. Best Regards Eng. NDTM Amarasekera - Sri Lanka
#447 已发布: 2021/5/25 23:09:50
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

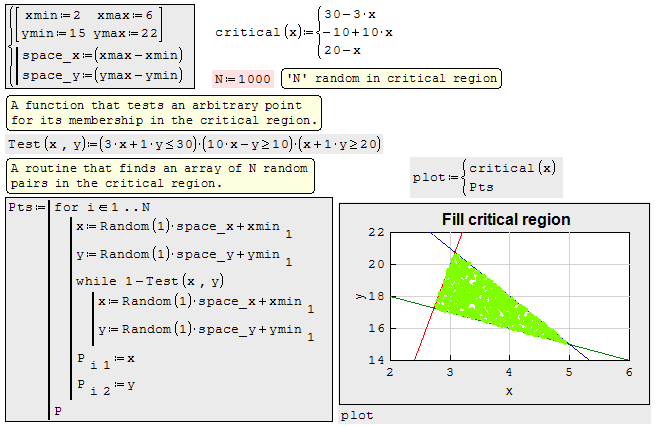

Small piece of code for filled 2-D contour plot in the XY plot plugin.

FillContour.sm (34.45 KiB)已下载 2503 次。
FillContour.pdf (306.44 KiB)已下载 1819 次。

Best regards
Alvaro.
2位用户喜欢此帖子
sergio 2021/5/26 04:38:00, Fridel Selitsky 2021/5/26 00:52:00
#448 已发布: 2021/5/26 09:49:23
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

#449 已发布: 2021/5/26 13:54:01
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Added contour levels over the filled 2-D contour plot.

ContourLevels.sm (87.15 KiB)已下载 1569 次。
ContourLevels.pdf (1.2 MiB)已下载 983 次。

Best regards
Alvaro.
4位用户喜欢此帖子
sergio 2021/5/26 15:27:00, Fridel Selitsky 2021/5/26 17:17:00, IVR 2021/6/12 14:02:00, Вячеслав Мезенцев 2021/5/26 14:17:00
#450 已发布: 2021/6/11 08:01:38
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Slightly modified for accept loops and conditionals in the function procedure for functions like Mandelbrot set.


MandelbrotSet.sm (60.78 KiB)已下载 1605 次。
MandelbrotSet.pdf (772.06 KiB)已下载 906 次。

Best regards
Alvaro.
3位用户喜欢此帖子
Вячеслав Мезенцев 2021/6/11 22:11:00, Fridel Selitsky 2021/6/11 10:09:00, João Felipe Seráfico Melo 2021/6/11 08:04:00
#451 已发布: 2021/10/25 09:09:10
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

SMath Studio compatibility

Plugin updated. Please try.

Changes:
- fixed an issue with incorrect drawing of grid lines when changing the direction of the axis.

Russia ☭ forever, Viacheslav N. Mezentsev
1位用户喜欢此帖子
sergio 2021/10/25 11:46:00
#452 已发布: 2021/11/4 19:17:27
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

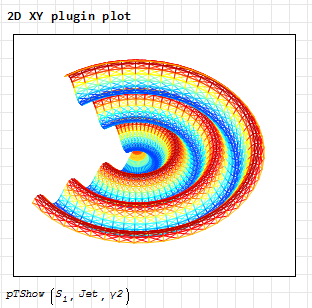

A colormaped trimesh in the XY plugin.

pShowTMesh.sm (53.22 KiB)已下载 1575 次。


Best regards.
Alvaro.
3位用户喜欢此帖子
sergio 2021/11/5 05:32:00, Fridel Selitsky 2021/11/4 22:02:00, Вячеслав Мезенцев 2021/11/6 04:23:00
#453 已发布: 2021/11/16 15:07:16
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

SMath Studio compatibility

Plugin updated.

Changes:

- fixed problem when copying a region (some properties of the chart style were not copied).
Russia ☭ forever, Viacheslav N. Mezentsev
2位用户喜欢此帖子
João Felipe Seráfico Melo 2021/11/16 15:08:00, sergio 2021/11/16 17:39:00
#454 已发布: 2021/11/16 16:52:25
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

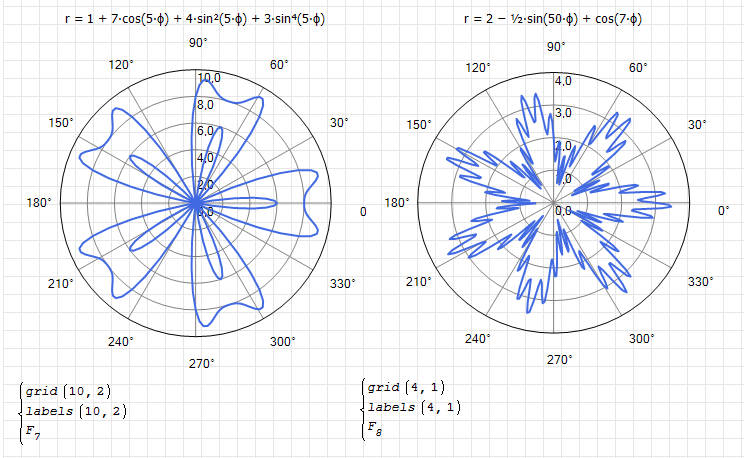

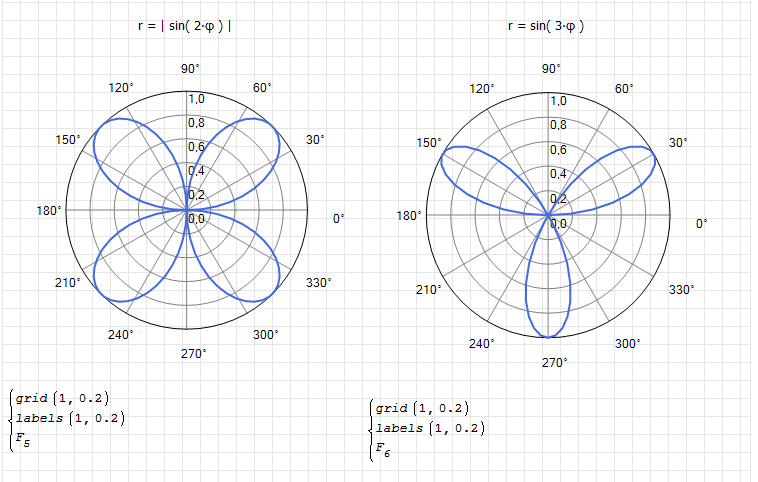

Linear polar examples.


XYPlot. Linear polar.sm (56.78 KiB)已下载 2644 次。
XYPlot. Linear polar.pdf (134.78 KiB)已下载 1679 次。
Russia ☭ forever, Viacheslav N. Mezentsev
5位用户喜欢此帖子
sergio 2021/11/16 17:39:00, Davide Carpi 2021/11/17 08:31:00, João Felipe Seráfico Melo 2021/11/16 17:02:00, Alvaro 2021/11/16 17:09:00, overlord 2021/11/16 20:27:00
#455 已发布: 2021/11/16 19:33:09
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Wrote

Linear polar examples.

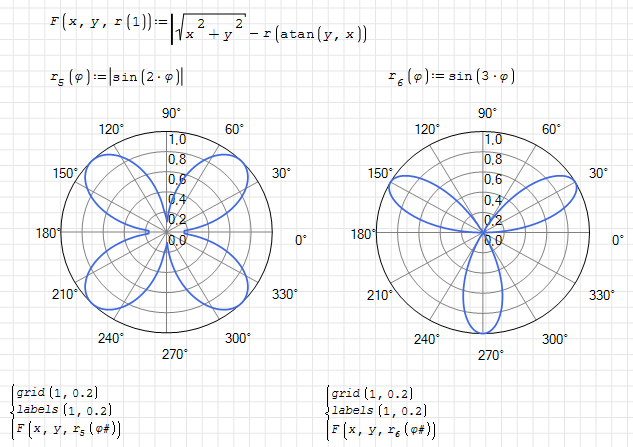

Hi. Very nice and useful plots. In some cases you can get more or less the same result with less effort using the plugin's ability to graph implicit functions.


Best regards.
Alvaro.
5位用户喜欢此帖子
Вячеслав Мезенцев 2021/11/17 03:27:00, Davide Carpi 2021/11/17 08:31:00, sergio 2021/11/17 08:25:00, NDTM Amarasekera 2021/11/17 03:13:00, overlord 2021/11/16 21:53:00
#456 已发布: 2021/11/18 10:57:35
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

SMath Studio compatibility

Plugin updated.

Changes:

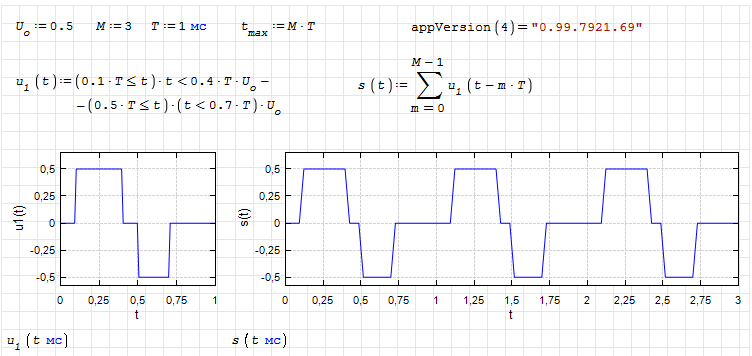

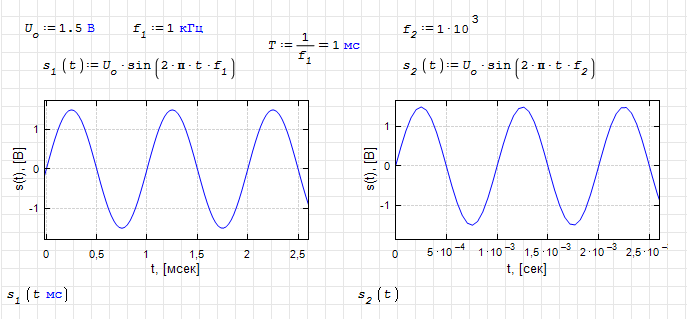

- restored the ability to use units in arguments.

Russia ☭ forever, Viacheslav N. Mezentsev
3位用户喜欢此帖子
NDTM Amarasekera 2021/11/18 12:45:00, sergio 2021/11/18 11:33:00, João Felipe Seráfico Melo 2021/11/18 11:01:00
#457 已发布: 2021/12/14 10:22:20
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

SMath Studio compatibility

Plugin updated. It works, but the component is still not stable.

Changes:

- added support for parametric plot type.

'~' is used as a mark for the "range" variable and should only be used inside the X-Y Plot. When used in conjunction with ODE solvers (with a lspline() function), too many calculations are obtained and it is impossible to use this method.

Click to enlarge

XYPlot.%20Parametric.sm
Russia ☭ forever, Viacheslav N. Mezentsev
2位用户喜欢此帖子
Martin_B 2021/12/14 14:08:00, sergio 2021/12/14 11:36:00
#458 已发布: 2021/12/14 18:10:33
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

SMath Studio compatibility

Plugin updated.

Changes:

- some broken functionality repaired;
- fixed error in determining the field width for vertical axes;
- the decimal symbol is taken from the program settings now;
- the midpoint is replaced by the multiplication sign ×;
- added the ability to change the scales of the axes using the mouse wheel;
- refactored.

未找到文件。 未找到文件。
Russia ☭ forever, Viacheslav N. Mezentsev
1位用户喜欢此帖子
sergio 2021/12/15 06:53:00
#459 已发布: 2021/12/17 06:56:28
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

SMath Studio compatibility

Plugin updated.

Changes:

- fixed a critical error when copying a region;
- rendering of linetypes (dash, ...) slightly changed (enlarged);
- added support for automatic drawing of the region when the document autocalculation mode is enabled (for now only for zoom mouse event).
Russia ☭ forever, Viacheslav N. Mezentsev
2位用户喜欢此帖子
João Felipe Seráfico Melo 2021/12/17 09:21:00, sergio 2021/12/17 08:03:00
#460 已发布: 2021/12/17 09:17:09
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

SMath Studio compatibility

Plugin updated.

Changes:

- returned red border on error;
- more complete support for auto-recalculation mode.
Russia ☭ forever, Viacheslav N. Mezentsev
3位用户喜欢此帖子
Martin_B 2021/12/18 17:28:00, João Felipe Seráfico Melo 2021/12/17 09:21:00, sergio 2021/12/17 11:03:00
