Just to confirm: so far setprop can't address Traces both in ZedGraph and X-Y Plot, right?
Just to confirm: so far setprop can't address Traces both in ZedGraph and X-Y Plot, right?
Yes, I found out only how to do it. I will explore another way to control component settings. The correct way is to specify the variable name directly in the properties. I think that it will be more intuitive than all other methods.
Russia ☭ forever, Viacheslav N. Mezentsev
1位用户喜欢此帖子
frapuano 2020/5/16 16:54:00
Thank you!
Updated.
Changes:
- increased calculation speed;
- green frame restored when region in evaluation.
Changes:
- increased calculation speed;
- green frame restored when region in evaluation.
Russia ☭ forever, Viacheslav N. Mezentsev
1位用户喜欢此帖子
Davide Carpi 2020/5/17 12:26:00
Updated.
Changes:
- setprop() partially fixed.
Changes:
- setprop() partially fixed.
Russia ☭ forever, Viacheslav N. Mezentsev
2位用户喜欢此帖子

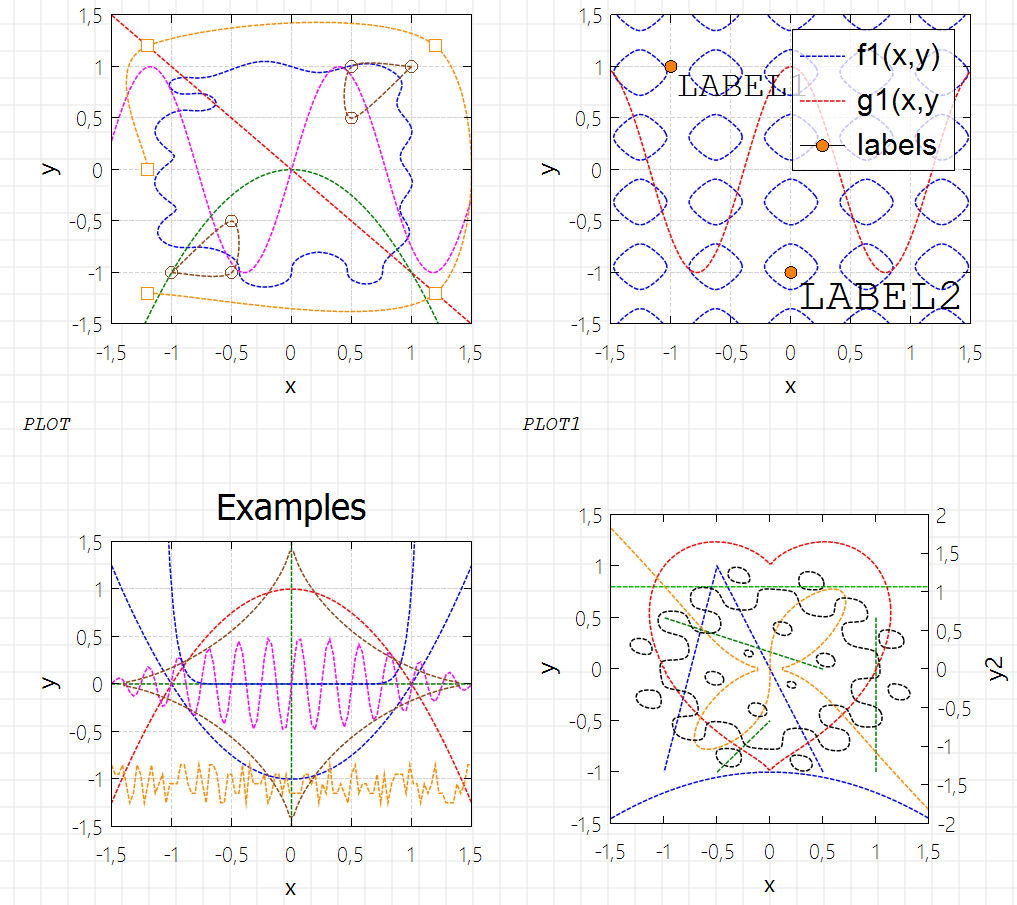

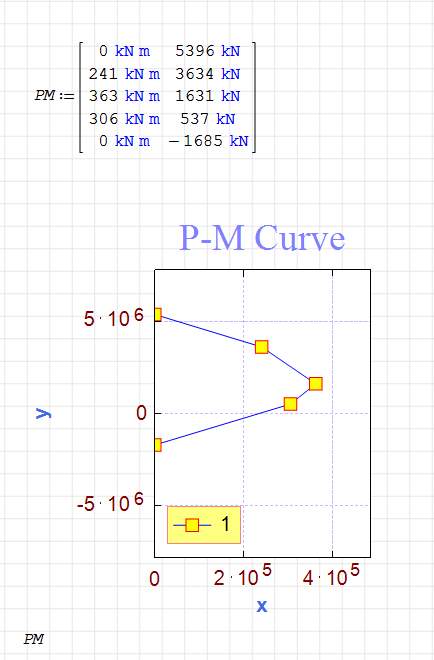

Can anyone help me with 2D plots. I have several questions.
1. how do I input/show the units on the graph?
2. how do I scale the units/number on the axis. the graph is in N-mm vs N, I want to change it in kN-m vs kN.
3. is there a way to automatically adjust the max and min of values on the axis?
PM Curve.sm (5.34 KiB)已下载 1576 次。

1. how do I input/show the units on the graph?
2. how do I scale the units/number on the axis. the graph is in N-mm vs N, I want to change it in kN-m vs kN.
3. is there a way to automatically adjust the max and min of values on the axis?
PM Curve.sm (5.34 KiB)已下载 1576 次。

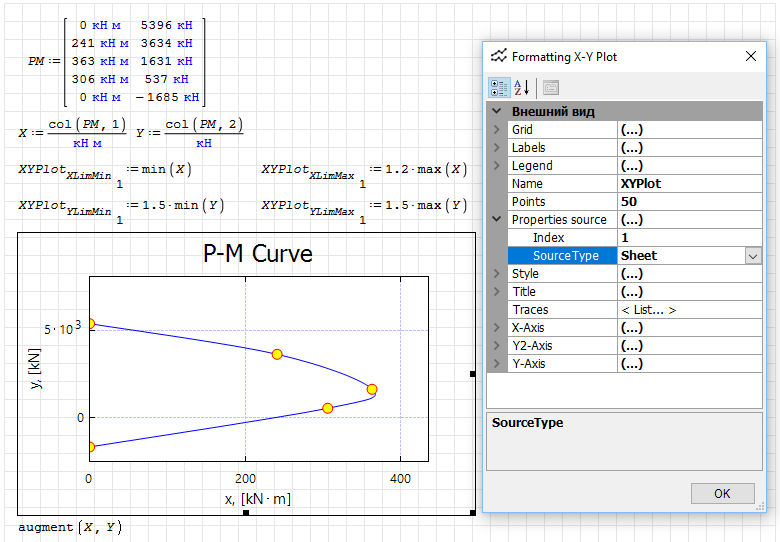

Russia ☭ forever, Viacheslav N. Mezentsev
Thanks a lot uni
You can have it more productive: Export/Interpolate
Spline Hermite Interpolation General.sm (71.83 KiB)已下载 1535 次。
Spline Hermite Interpolation General.sm (71.83 KiB)已下载 1535 次。
WroteYou can have it more productive: Export/Interpolate
You can have it convex polyline style: Export/interpolate.
Spline Hermite Interpolation General Polyline.sm (72.62 KiB)已下载 1567 次。
You CAN NOT blank scalar canvas plot X_Y.
Alternately, discretize /tabulate your range of interest
then plot the data in X_Y. The bonus is that on rough
data from source plot "splines" to smooth the discontinuities.
Advanced Bezier interpolation works as well.
X_Y rejects the if/otherwise blanking character "
Alternately, discretize /tabulate your range of interest
then plot the data in X_Y. The bonus is that on rough
data from source plot "splines" to smooth the discontinuities.
Advanced Bezier interpolation works as well.
X_Y rejects the if/otherwise blanking character "
WroteYou CAN NOT blank scalar canvas plot X_Y.
Alternately, discretize /tabulate your range of interest
then plot the data in X_Y. The bonus is that on rough
data from source plot "splines" to smooth the discontinuities.
Advanced Bezier interpolation works as well.
X_Y rejects the if/otherwise blanking character "

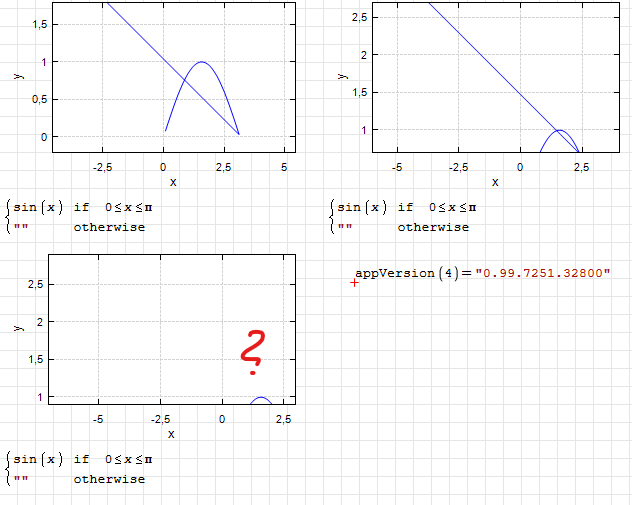

Didn't I show, that I CAN!?
I know plotting tabulated values, maybe I didn't write clearly.

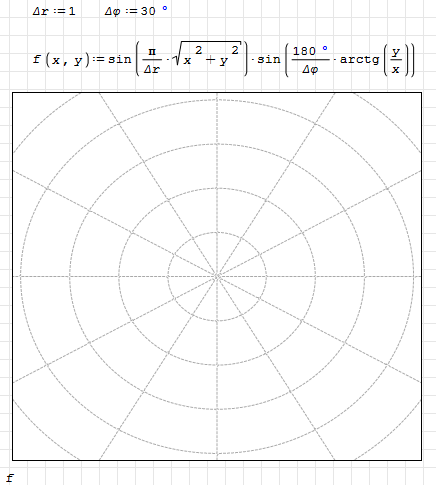

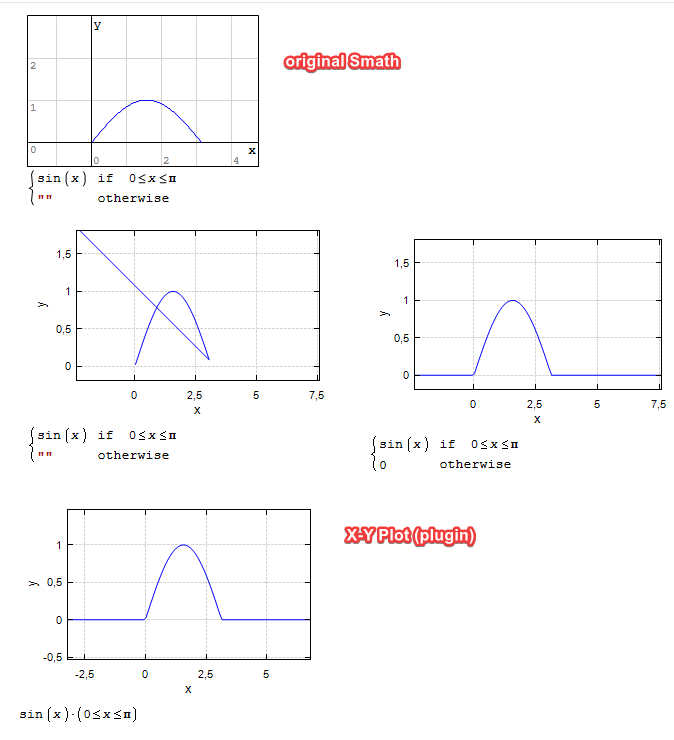

Yes, when adding a new feature when displaying implicit curves, I had to change the working code. I could not immediately fix the artifacts.
Russia ☭ forever, Viacheslav N. Mezentsev
Wrotein the past, using cases (or if) to plot a function only in in specified range worked well.
if/else or if/otherwise never did work at least up to SS 6179.
X_Y is essentially designed around data set.
Quite convenient but not as the champion OriginLab.
OriginLab is the software dedicated for Phamacokinetics,
hyper rich in plot styles but strictly from data sets.
IMHO, I see no point to trick/fix what ? nothing, use as is.
These two styles of demo are common as well as the 1/x.
logpts enables intelligible tabulated export and plot.
Utilities logpts Demo.sm (26.52 KiB)已下载 1512 次。
