Modified Nodal Analysis

Modified Nodal Analysis - 消息

#1 已发布: 2019/2/18 13:13:53
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

This a solver for electrical circuits with the MNA method, here implemented as "stamps" for each linear circuit element. That's meaning that it's modular: can be extended adding more circuit elements stamps. To do: add nullors, diodes, transistors and describe how to handle subciruits.

mna_stamps.sm (405.83 KiB)已下载 1714 次。

Best regards.
Alvaro.
4位用户喜欢此帖子
Arie 2019/2/18 15:36:00, Вячеслав Мезенцев 2019/2/19 03:28:00, Davide Carpi 2019/2/19 16:44:00, frapuano 2019/2/18 14:07:00

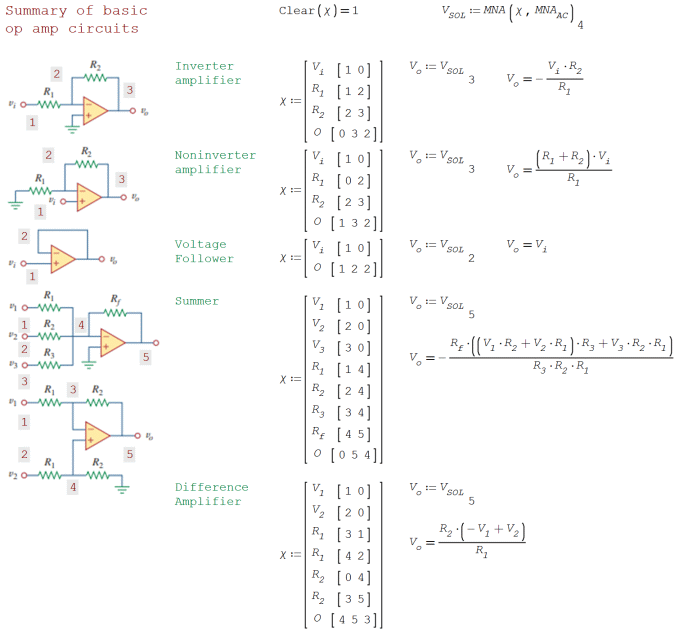

#2 已发布: 2019/2/19 02:08:39
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

1位用户喜欢此帖子
frapuano 2019/2/19 05:25:00
#3 已发布: 2019/2/19 15:48:51
Arie

Arie

94个赞,共285个帖子。

组: User

Alvaro,

Awesome work! I'm excited to start using this. I see a lot of potential uses. I did have a question regarding your algorithm. In the attached segment, what is the purpose of repeating the for-loop inside the if/else condition on the right? I get the purpose of the for-loop to select the correct Stamp prefix, but do not see the benefit of added if/else on right side.

Thanks,
alyles
Feel free to join the SMath Studio Users Discord Channel: https://discord.gg/PayZpJW
1位用户喜欢此帖子
Alvaro 2019/2/28 06:10:00
#4 已发布: 2019/2/19 19:16:17
Oscar Campo

Oscar Campo

135个赞,共309个帖子。

组: Moderator

Wrote

This a solver for electrical circuits with the MNA method, here implemented as "stamps" for each linear circuit element. That's meaning that it's modular: can be extended adding more circuit elements stamps. To do: add nullors, diodes, transistors and describe how to handle subciruits.

mna_stamps.sm (405.83 KiB)已下载 1714 次。

Best regards.
Alvaro.



Nice work! and thanks for the use of one of my very old posts!!
1位用户喜欢此帖子
Alvaro 2019/2/19 20:44:00
#5 已发布: 2019/2/19 20:59:27
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Wrote

Alvaro,

Awesome work! I'm excited to start using this. I see a lot of potential uses. I did have a question regarding your algorithm. In the attached segment, what is the purpose of repeating the for-loop inside the if/else condition on the right? I get the purpose of the for-loop to select the correct Stamp prefix, but do not see the benefit of added if/else on right side.

Thanks,
alyles



Hi alyles. Thanks for your words. As you say, the first loop it's for choose the correct Stamp with the first circuit element letter. The if ensure that if the string is largest than one, then can take a substring largest, but there are a bug there: must to be substr(str#, 1, 2), for make avaible the use of two letters too as stamp identifier.

Best regards.
Alvaro.
#6 已发布: 2019/2/20 21:10:36
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Hi. In the attached, bug about selecting stamps pointing by alyles not "corrected" but just eliminate the second loop. Also shows how to work with a pulse train, choosing a true periodic laplace transform from the input signal, not only the transform that figures on the books.

opamp integrator.sm (316.26 KiB)已下载 1643 次。

opamp integrator.pdf (464.25 KiB)已下载 1083 次。

Best regards.
Alvaro.
1位用户喜欢此帖子
NDTM Amarasekera 2019/2/21 22:47:00
#7 已发布: 2019/2/23 06:15:39
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Hi. In the attached, bug for selecting stamps corrected. Also frequency domain analysis tools for use with MNA analysis: BodeMag, BodePhase, ZP Plot, Nyquist and Nichols charts.

mna_RLC_freq_domain.pdf (308.9 KiB)已下载 969 次。
mna_RLC_freq_domain.sm (187.22 KiB)已下载 1662 次。

Best regards.
Alvaro.



1位用户喜欢此帖子
frapuano 2019/2/23 08:16:00
#8 已发布: 2019/2/27 00:13:38
Norm Schutzkus

Norm Schutzkus

9个赞,共90个帖子。

组: User

Hello Alvaro, nice work!

I was planning to convert the attached (copy of) MathCad worksheet, but it seemed difficult for me. Would some of the routines, or stamps work in place of the solve block?

I welcome your review and look forward to your reply.

Sincerely,

NormRLC step response - MC.pdf (695.17 KiB)已下载 1026 次。
#9 已发布: 2019/2/27 06:20:53
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Hi Norm. Thanks. This is what think that you can do with the MNA method.

RLC Norma.sm (194.82 KiB)已下载 1533 次。
RLC Norma.pdf (175.12 KiB)已下载 978 次。

Best regards.
Alvaro.
#10 已发布: 2019/2/27 10:32:03
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

I was planning to convert the attached (copy of) MathCad worksheet, but it seemed difficult for me.


If you can setup in form of DE [Differential Equation]
It will surely have a Laplace solution easy to extract.

#11 已发布: 2019/2/27 12:58:20
Norm Schutzkus

Norm Schutzkus

9个赞,共90个帖子。

组: User

Many thanks Alvaro!

The "Thanks" icon presented an error.

Norm
#12 已发布: 2019/2/27 13:07:04
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

The "Thanks" icon presented an error.


This is a long lasting/reported bug.
#13 已发布: 2019/2/27 18:43:59
Norm Schutzkus

Norm Schutzkus

9个赞,共90个帖子。

组: User

If you can setup in form of DE [Differential Equation]
It will surely have a Laplace solution easy to extract.

Thanks Jean, I'll try that as well... if I do it correctly.

Norm
#14 已发布: 2019/2/27 20:55:16
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

Ifyou can setup in form of DE [Differential Equation]
It will surely have a Laplace solution easy to extract.

Thanks Jean, I'll try that as well... if I do it correctly.


The technical approach is simply write the Laplace algebra
of the circuit ... maple, bingo/done.
Literature call it H(s) ... I call it L(s).
You can find some examples browsing the web.
Those operational [symbol triangle] supplier
should give the L(s). Here is an old example.

Jean

Maths Laplace Circuit Algebra.sm (38.29 KiB)已下载 1558 次。
#15 已发布: 2021/3/24 23:51:47
Norm Schutzkus

Norm Schutzkus

9个赞,共90个帖子。

组: User

Hello Alvaro, I hope you are well in this challenging time.

The MNA worksheet throws an error when I updated to version 0.99(build: 7610). It worked fine before then.

Here's the sheet:

RLC Norma.sm (194.94 KiB)已下载 1568 次。

The error:
Error.pdf (8.16 KiB)已下载 859 次。

I welcome your review and recommendation(s) to repair the issue.

Stay safe and take care.

Sincerely,

Norm
#16 已发布: 2021/3/25 02:29:29
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

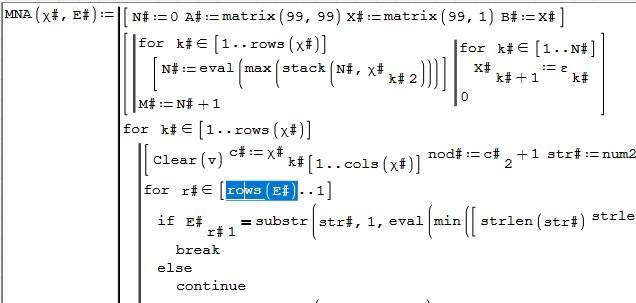

Hi Norm. Thanks for the good wishes. I hope you are well too. First issue is that new versions can't get the number of rows in the stamps matrix. So, change rows(E#) by it's value, 12.

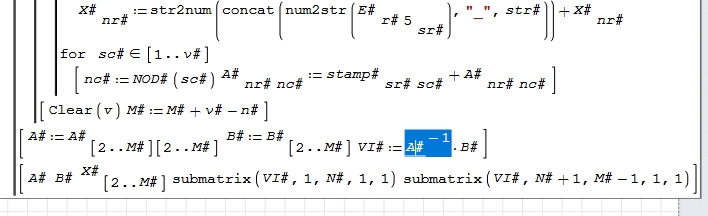

That make almost all other calculus ok. But there are also a bug in SMath when when you invert matrices with units. For some reason, you must to change A#^-1 by maple(invert(A#)) for calculate the voltage in the first calculus with units (in this case for the current SMath can invert the matrix)


Now there are only one last red in a plot, but can't remember why is it.

RLC Norma.pdf (146.53 KiB)已下载 974 次。
RLC Norma.sm (194.95 KiB)已下载 1603 次。

Finally, in the meantime I improve the Peaks function

MPeaks.sm (16.49 KiB)已下载 1559 次。

Best regards.
Alvaro.
#17 已发布: 2021/3/25 09:47:10
Norm Schutzkus

Norm Schutzkus

9个赞,共90个帖子。

组: User

Many thanks, for your prompt reply and fixes!

Sincerely,

Norm
#18 已发布: 2022/1/10 09:37:52
babElec

babElec

1个赞,共5个帖子。

组: User

Really good job! I have to try it !!
1位用户喜欢此帖子
Alvaro 2022/1/10 13:24:00
