#21 已发布: 2017/8/28 14:28:47
Oscar Campo

Oscar Campo

135个赞,共309个帖子。

组: Moderator

Wrote


However I've edited the link, now it downloads the file, whatever is your favorite browser.



Thanks Davide!!
#22 已发布: 2017/8/28 20:58:29
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Thanks Davide for the WS.

"assume" is often needed as well as "real".
The most common is "allvalues". It expands
the more general RootOf.

#23 已发布: 2017/8/29 07:30:28
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

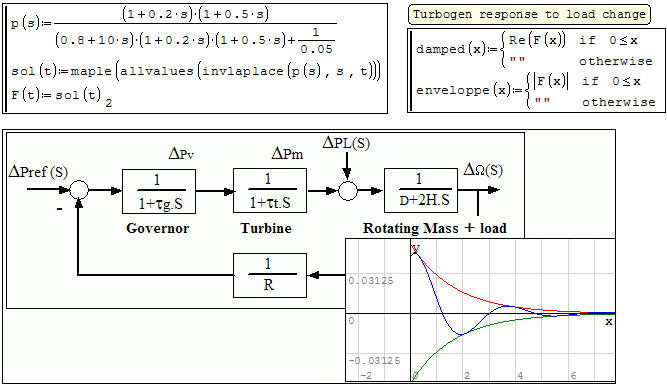

The most common is "allvalues".



invlaplace allvalues.PNG

#24 已发布: 2017/8/29 08:13:02
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

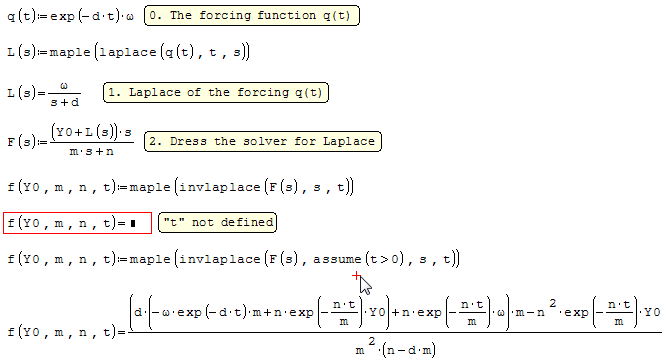

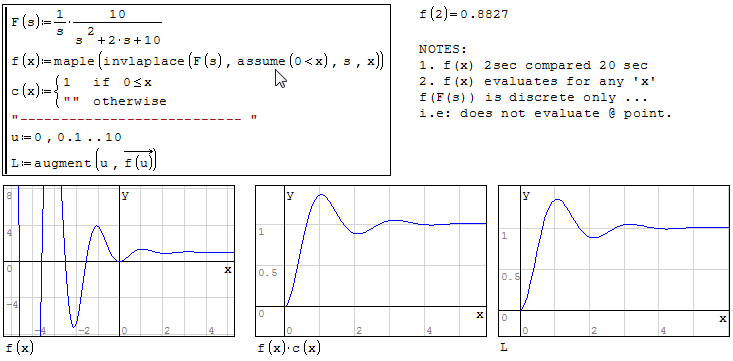

"assume" is often needed



invlaplace assume.PNG
#25 已发布: 2018/7/5 06:00:06
Adriaan Knox

Adriaan Knox

0个赞,共25个帖子。

组: User

I'm still trying to get the hand of this software. I'm an e.e. undergraduate and would like to be able to perform the something like the mathcad at the end of this post. I did try to input a similar syntax but I'm too much of a noob to work it. Can anyone shed some light on this for me?

The post shows a trasfer function solved for the poles and zeros... It looks like you have to know how many poles and zeros to solve for before getting going. That would require putting the transfer function in standard form I'm somewhat sure.

https://electronics.stackexchange.com/questions/243435/bode-plot-of-transfer-function?rq=1
#26 已发布: 2018/7/5 08:37:52
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

I'm still trying to get the hand of this software. I'm an e.e. undergraduate and would like to be able to perform the something like the mathcad at the end of this post. I did try to input a similar syntax but I'm too much of a noob to work it. Can anyone shed some light on this for me?

The post shows a trasfer function solved for the poles and zeros... It looks like you have to know how many poles and zeros to solve for before getting going. That would require putting the transfer function in standard form I'm somewhat sure.



All documents attached are in Smath 6179, should work same imore recent version(s).
The Smath/Maple companions of this year [2018] work a bit different than Mathcad 11 [2003].
At the end, all attached documents work for me Smath 6179 same as my former Mathcad 11.

Inst_PID [ODE].sm (24.75 KiB)已下载 1108 次。
Inst_PID Discrete State Systems.sm (25.51 KiB)已下载 1343 次。
Inst_PID DynSys.sm (14.9 KiB)已下载 1258 次。
Inst_PID [PI, PID].sm (71.51 KiB)已下载 1126 次。
Inst_PID [P, PD].sm (106.94 KiB)已下载 1051 次。
Inst_PID Feedback Attenuator.sm (43.76 KiB)已下载 1285 次。
Inst_PID [MCD Model].sm (177.96 KiB)已下载 1121 次。
Inst_TurboGen Smath.sm (106.19 KiB)已下载 1313 次。
ODE_Laplace Read First.sm (27.41 KiB)已下载 1316 次。
Inst_TurboGen Signum.sm (91.08 KiB)已下载 1353 次。
Inst_PID Discrete Schema.sm (166.36 KiB)已下载 1348 次。
ODE_Laplace 1rst [Type 1].sm (24.7 KiB)已下载 1120 次。
Inst_XFR 2nd [XFR nth].sm (34.08 KiB)已下载 1128 次。
ODE_Laplace 1rst [Type 2].sm (22.5 KiB)已下载 1199 次。
Inst_PID DynSys_v01 (1).sm (235.59 KiB)已下载 1306 次。
ODE_Laplace 2nd [Type 3].sm (33.42 KiB)已下载 1134 次。
ODE Laplace Kinetic Reaction.sm (93.13 KiB)已下载 1311 次。
#27 已发布: 2018/7/5 11:11:33
Arie

Arie

94个赞,共285个帖子。

组: User

Wrote

I'm still trying to get the hand of this software. I'm an e.e. undergraduate and would like to be able to perform the something like the mathcad at the end of this post. I did try to input a similar syntax but I'm too much of a noob to work it. Can anyone shed some light on this for me?



Here's an example of how one might attack it.

Page1.sm (44.98 KiB)已下载 1534 次。
Feel free to join the SMath Studio Users Discord Channel: https://discord.gg/PayZpJW
#28 已发布: 2018/7/5 12:58:56
Oscar Campo

Oscar Campo

135个赞,共309个帖子。

组: Moderator

Wrote


Here's an example of how one might attack it.

Page1.sm (44.98 KiB)已下载 1534 次。



Bravo! Alyles, simple and beautiful!!
#29 已发布: 2018/7/5 13:04:44
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

You may attack for an export solution.

#30 已发布: 2018/7/6 20:56:39
Basile

Basile

8个赞,共172个帖子。

组: User

Jean,
What why the invlaplace I get a dot?
Inverse Laplace-1.sm (4.08 KiB)已下载 1356 次。

Basile
#31 已发布: 2018/7/6 21:30:07
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

Jean,
What why the invlaplace I get a dot?



Basile, mon ami, you need a new pair of glasses !

Just code as the snippet, it will gladly work for Basile.

Cheers ... Jean
#32 已发布: 2018/7/7 11:57:01
Basile

Basile

8个赞,共172个帖子。

组: User

Jean,
Until I get my new pair, I see that a dot appears after the F(s) when I type a comma.
Any diagnosis?
Inverse Laplace-2.sm (4.25 KiB)已下载 1288 次。
Basile
#33 已发布: 2018/7/7 14:28:49
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

Jean,
Until I get my new pair, I see that a dot appears after the F(s) when I type a comma.
Any diagnosis?



Check from "Options" if you can fix .
#34 已发布: 2018/7/12 20:05:19
Basile

Basile

8个赞,共172个帖子。

组: User

Jean,
Can you be more specific?
Basile
#35 已发布: 2018/7/12 23:15:48
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

Jean,
Can you be more specific?
Basile



From the menu tool bar up top work sheet:
Tools => Options => Interface => Arguments separator [period, coma, semicolon]
#36 已发布: 2018/7/13 09:21:09
Basile

Basile

8个赞,共172个帖子。

组: User

My glasses arrived!
Thank you,
Basile
#37 已发布: 2018/8/23 20:53:31
Adriaan Knox

Adriaan Knox

0个赞,共25个帖子。

组: User

After doing my best to incorporate sMath into my University workload for the past 6 months. From my magnetism class to my analog circuits class here at the University of California at Santa Cruz but it has been my experience that for every line of code I write that I generate many more while trying which are unproductive. I think the efforts made on this program are exemplary and I've donated $10 but I think unfortunately I will not be able to continue with it due to the learning curve being so steep.

People have done some amazing things with it that I can't even begin to follow but I haven't been as successful. Perhaps as I become more competent I might be more successful but for now I think I will unfortunately have to hang up my hat gentlemen... I bid you a respectful adieu for the time being kind Sirs...

未找到文件。未找到文件。
magnetism.zip (5.26 MiB)已下载 497 次。
#38 已发布: 2018/8/24 00:30:05
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

Perhaps as I become more competent I might be more successfu



I have doctored few things in these two documents.

hw 2.6.sm (133.49 KiB)已下载 1282 次。
open loop gain from closed loop gain 2.sm (48.32 KiB)已下载 1276 次。
#39 已发布: 2018/9/21 06:23:31
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Wrote

Hi, this is a snippet for numerical inverse Laplace transform. You can find time response of a system expresed in F(s) form.

enjoy

Oscar Campo



Hi. Enjoyed & Improved. Six years later.

InvLaplace2.sm (93.88 KiB)已下载 1311 次。

Best regards.
Alvaro.
#40 已发布: 2018/9/21 11:43:32
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

Enjoyed



Thanks Alvaro for your dedication,

Does syntax error 6179, but does not to where it complains.
Don't worry, OK like this.
The 2nd example is lot more involved, correct [sanity MCD].

Cheers ... Jean

InvLaplace2 Otherwise.sm (27.68 KiB)已下载 1337 次。
