I have f(x, y) - thermal efficiency of a steam turbine with two steam extractions for heating feed water depending on the extraction pressures.
Question.
1. How to find the optimal pressure values at which the efficiency will be maximum?
2. Is it possible to build a surface? For now I have two separate 2D graphics.
More https://link.springer.com/book/10.1007/978-3-319-26674-9
2RegP-Ideal-new.sm (94.95 KiB)已下载 1590 次。
#2 已发布: 2023/11/6 00:43:57
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

No, you cannot replace WaterSteamPro with Cool Prop for water/steam.
WaterSteamPro is a certified program!
Compare please two plots
#3 已发布: 2023/11/7 03:44:54
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

I am not familiar with CoolProps but I think I could make a nice 3D plot with Maxima if you provide the smath file
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
1位用户喜欢此帖子
Valery Ochkov 2023/11/7 13:09:00
#4 已发布: 2023/11/7 13:10:43
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

Wrote

I am not familiar with CoolProps but I think I could make a nice 3D plot with Maxima if you provide the smath file



Thanks, Martin!
Must be someone so
#5 已发布: 2023/11/7 14:53:03
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

OK but I need a file where the wsp calls are replaced by coolprop ones. Even if plotting doesn't work as expected.
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
#6 已发布: 2023/11/8 13:05:10
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

Wrote

OK but I need a file where the wsp calls are replaced by coolprop ones. Even if plotting doesn't work as expected.



See please attach
2RegP-Ideal-Cool_Prop-95.sm (73.63 KiB)已下载 1570 次。
2RegP-Ideal-Cool_Prop-95.pdf (361.44 KiB)已下载 958 次。
Martin (and all), I am waiting for the solution - 3D-plot and optimal values of p1 and p2.
#7 已发布: 2023/11/8 21:11:41
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

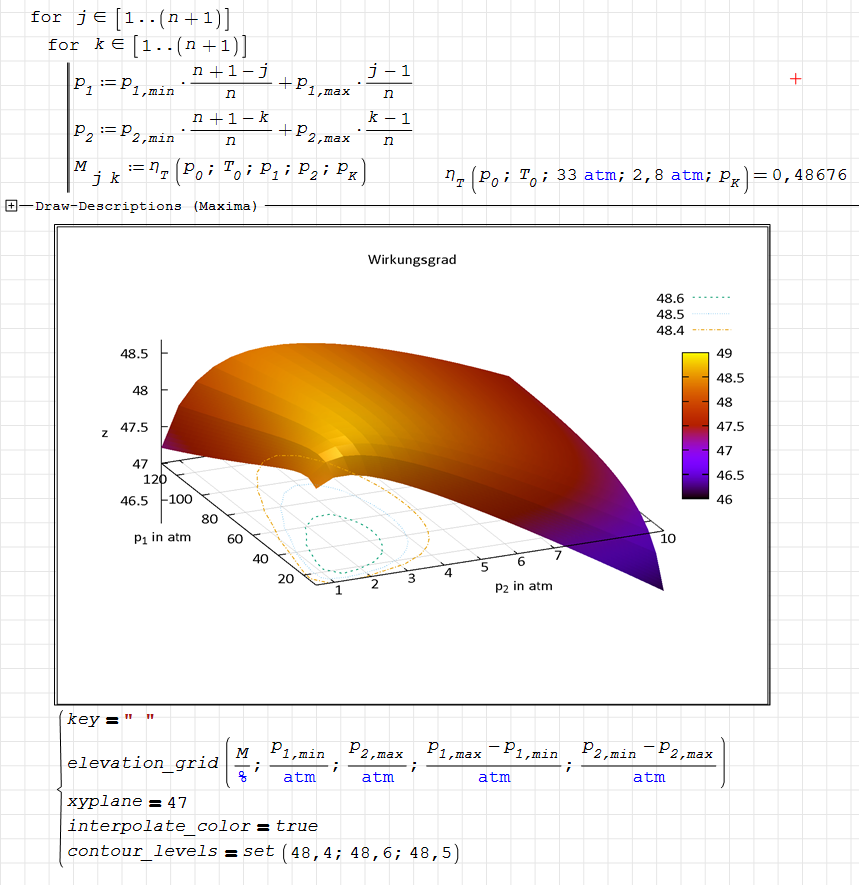

Just the plot, no optimization yet.

2023-11-08 15_08_23-SMath Solver - [2RegP-Ideal-Cool_Prop-95_Kr.sm_].png
2RegP-Ideal-Cool_Prop-95_Kr.sm (300.35 KiB)已下载 1576 次。
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
2位用户喜欢此帖子
Oscar Campo 2023/11/8 21:22:00, Valery Ochkov 2023/11/8 22:27:00
#8 已发布: 2023/11/9 01:16:22
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

No optimization yet.
For checking

#9 已发布: 2023/11/9 18:31:08
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

No, you cannot replace WaterSteamPro with Cool Prop for water/steam.
WaterSteamPro is a certified program!


Agreed: CoolProp is CoolProp.
For quick visit, I use freeware Katmar IAPWS=97 in all sorts of units.
By same token, in Smath, we have lot of water/steam formulas.
What about you tabulate matrix style, then spline/interpolate.
I will be back on your document ... Jean
1位用户喜欢此帖子
Valery Ochkov 2023/11/9 18:37:00
#10 已发布: 2023/11/10 13:49:18
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

Wrote

Wrote

No, you cannot replace WaterSteamPro with Cool Prop for water/steam.
WaterSteamPro is a certified program!


Agreed: CoolProp is CoolProp.
For quick visit, I use freeware Katmar IAPWS=97 in all sorts of units.
By same token, in Smath, we have lot of water/steam formulas.
What about you tabulate matrix style, then spline/interpolate.
I will be back on your document ... Jean


#11 已发布: 2023/11/11 01:40:46
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

... confirmed vs my formula IAPWS-97
#12 已发布: 2023/11/12 02:37:31
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

Wrote

No optimization yet.
For checking

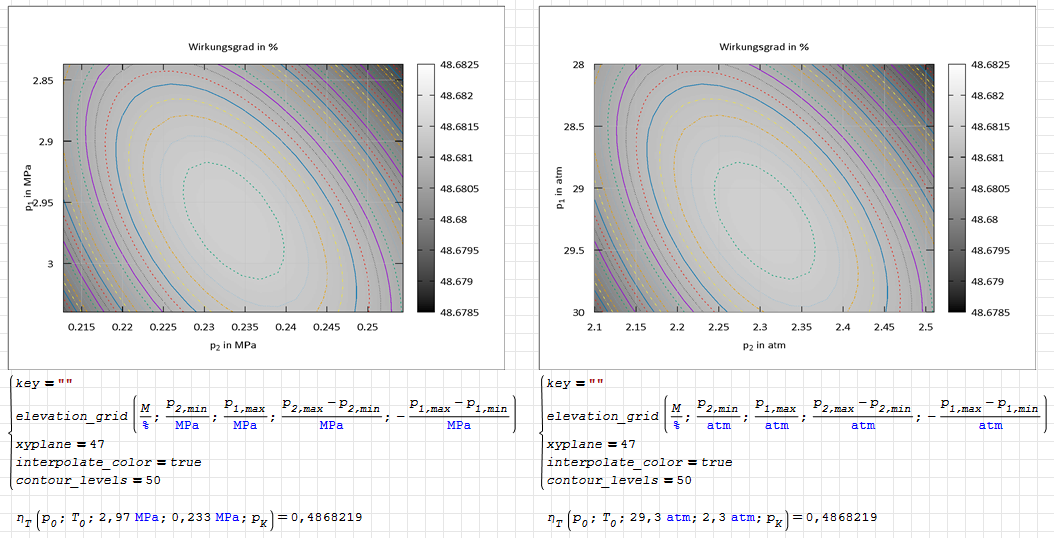

I get slightly different values. Still no automatic optimization because the objective function doesn't translate to Maxima. As a first step I made the function more robust by solving the two equations sequentially instead of simultaneously. In the original version sampling for the plot occasionally failed.

Plot MPa.pdf (219.47 KiB)已下载 957 次。
2RegP-Ideal-Cool_Prop-95_Kr_detail.sm (157.12 KiB)已下载 1588 次。
2023-11-11 19_21_55-SMath Solver - [2RegP-Ideal-Cool_Prop-95_Kr_detail.sm_].png
2RegP-Ideal-Cool_Prop-95_Kr_detail.pdf (520.5 KiB)已下载 911 次。
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
2位用户喜欢此帖子
Valery Ochkov 2023/11/12 02:41:00, Alvaro 2023/11/12 09:04:00
#13 已发布: 2023/11/12 02:51:46
Valery Ochkov

Valery Ochkov

67个赞,共716个帖子。

组: User

Wonderful!
But I dare to note that a real steam turbine unit has up to eight steam extractions from the turbine to regenerative heaters. And not only mixing, but also surface type.

#14 已发布: 2023/11/12 09:07:21
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Wrote

I get slightly different values. ...


Hi. Using the definition for partial derivatives and a pure numerical solver.


2RegP-Ideal-Cool_Prop-95_Kr_detail.sm (162.36 KiB)已下载 1512 次。

Best regards.
Alvaro.
3位用户喜欢此帖子
Martin Kraska 2023/11/12 09:10:00, Valery Ochkov 2023/11/12 14:12:00, Oscar Campo 2023/11/12 18:29:00
